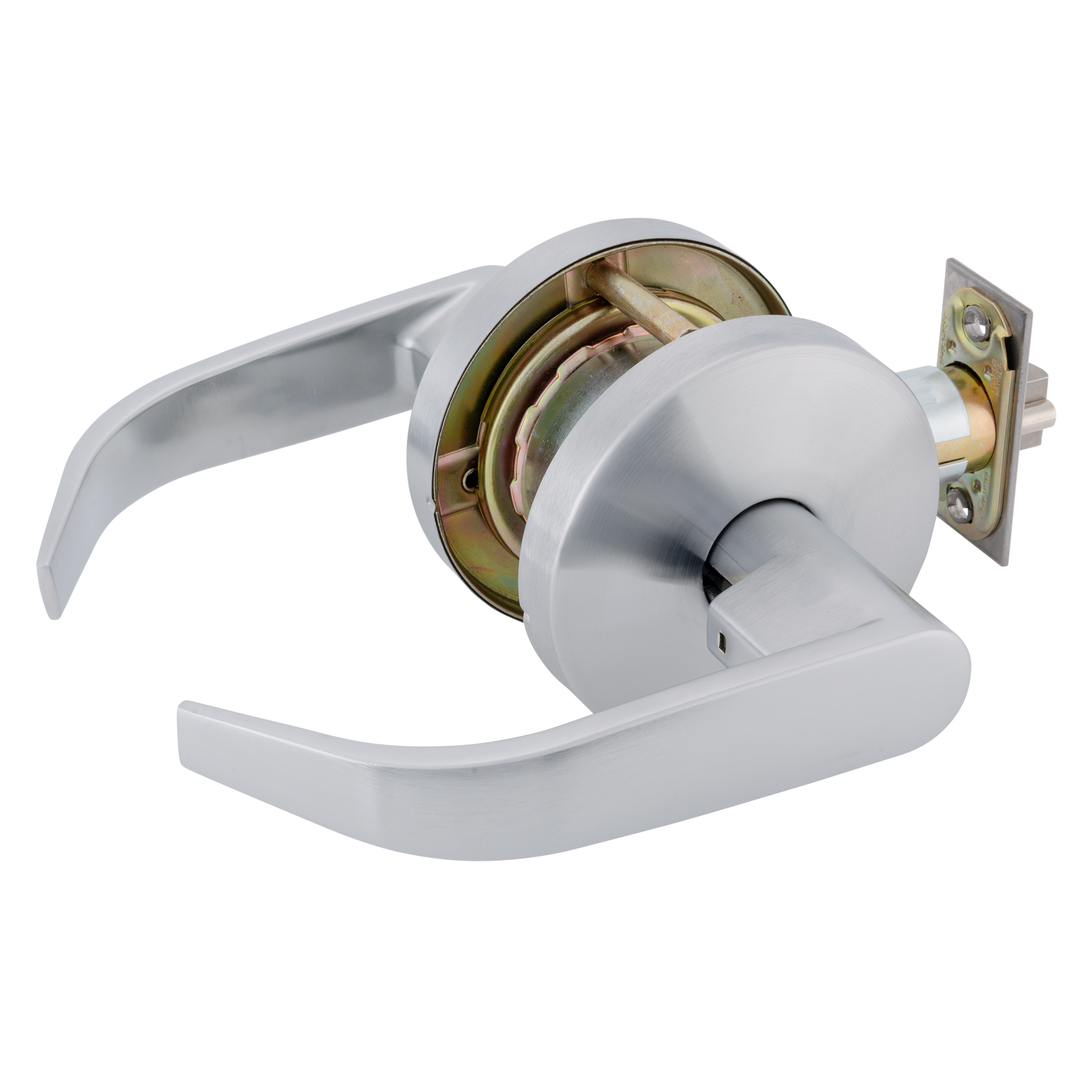

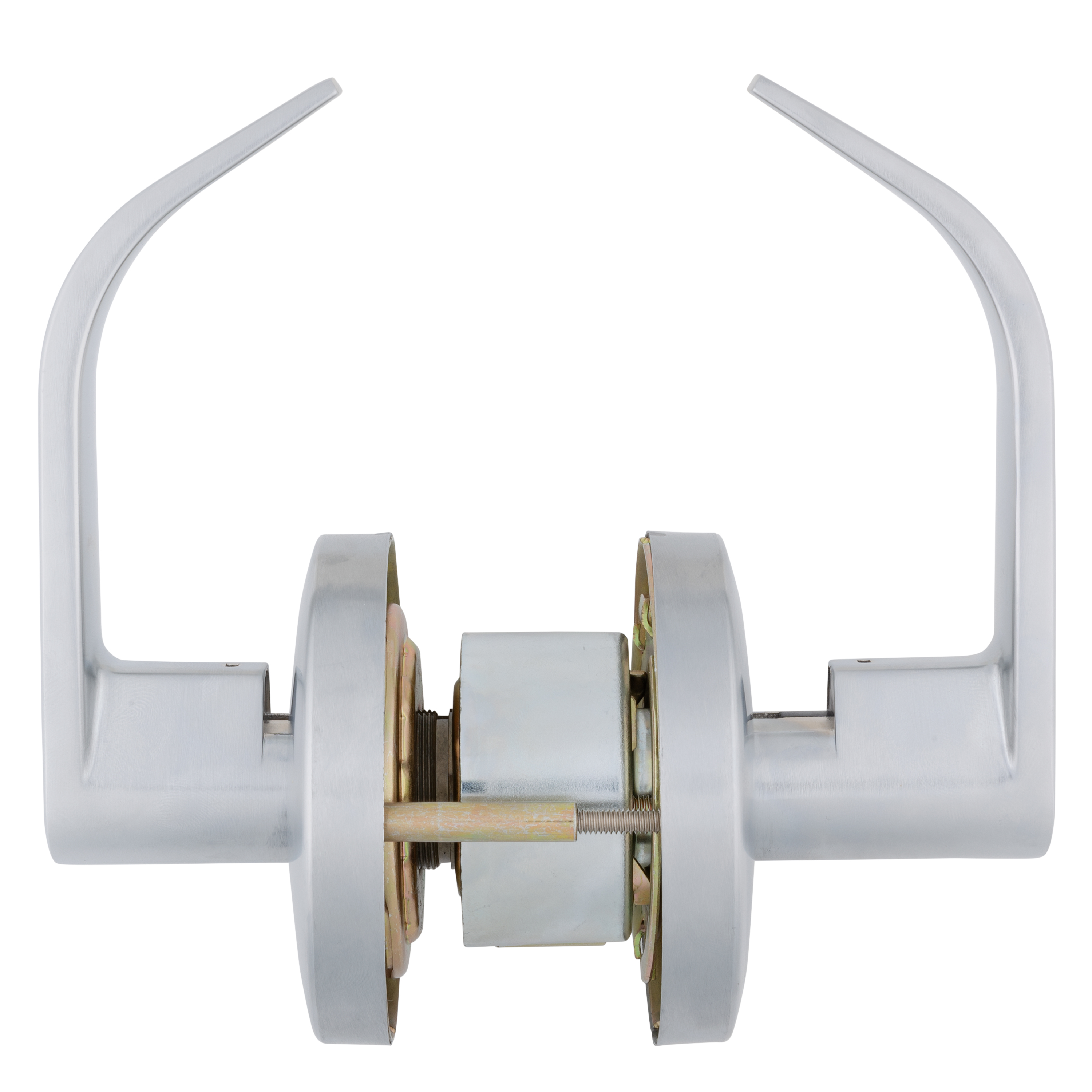

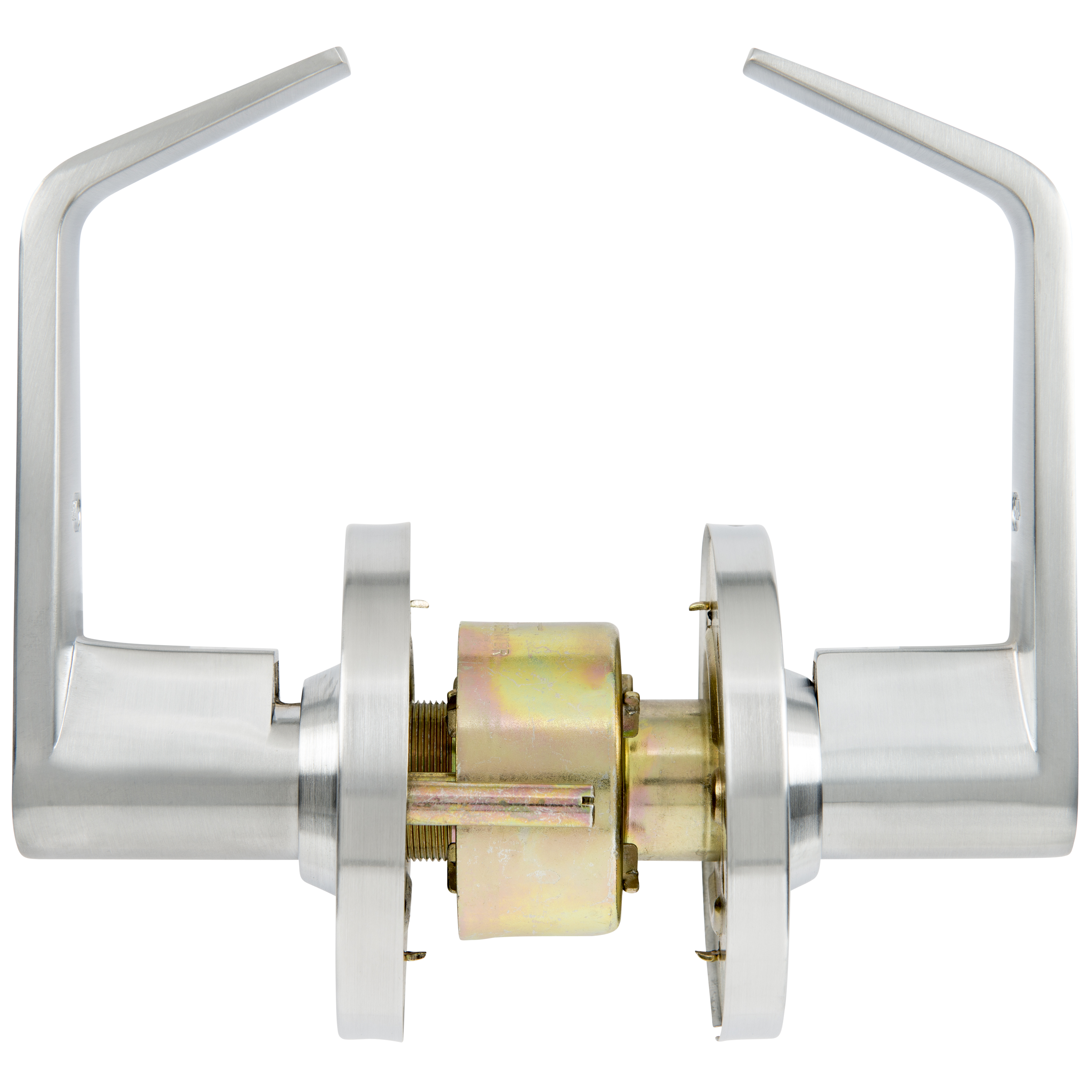

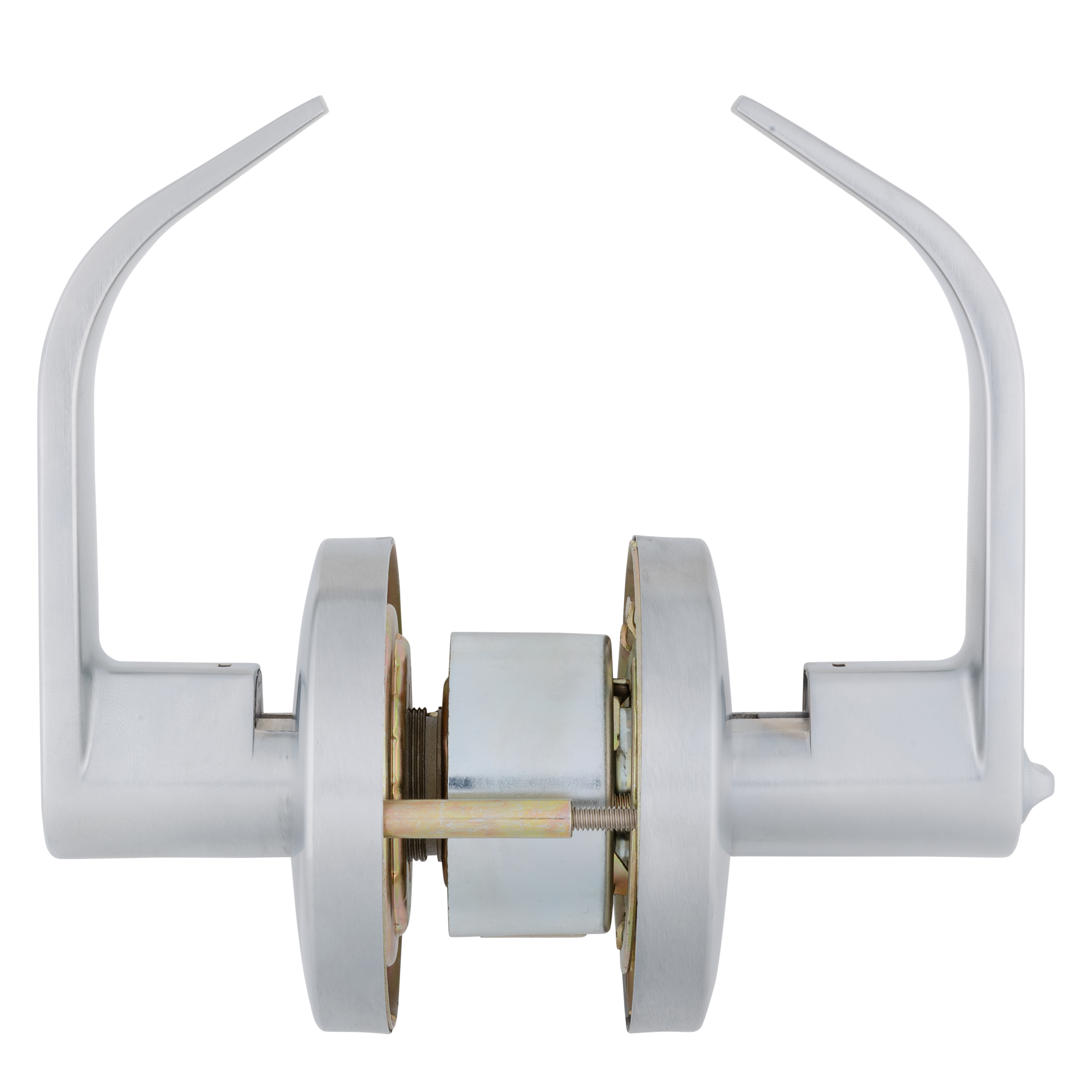

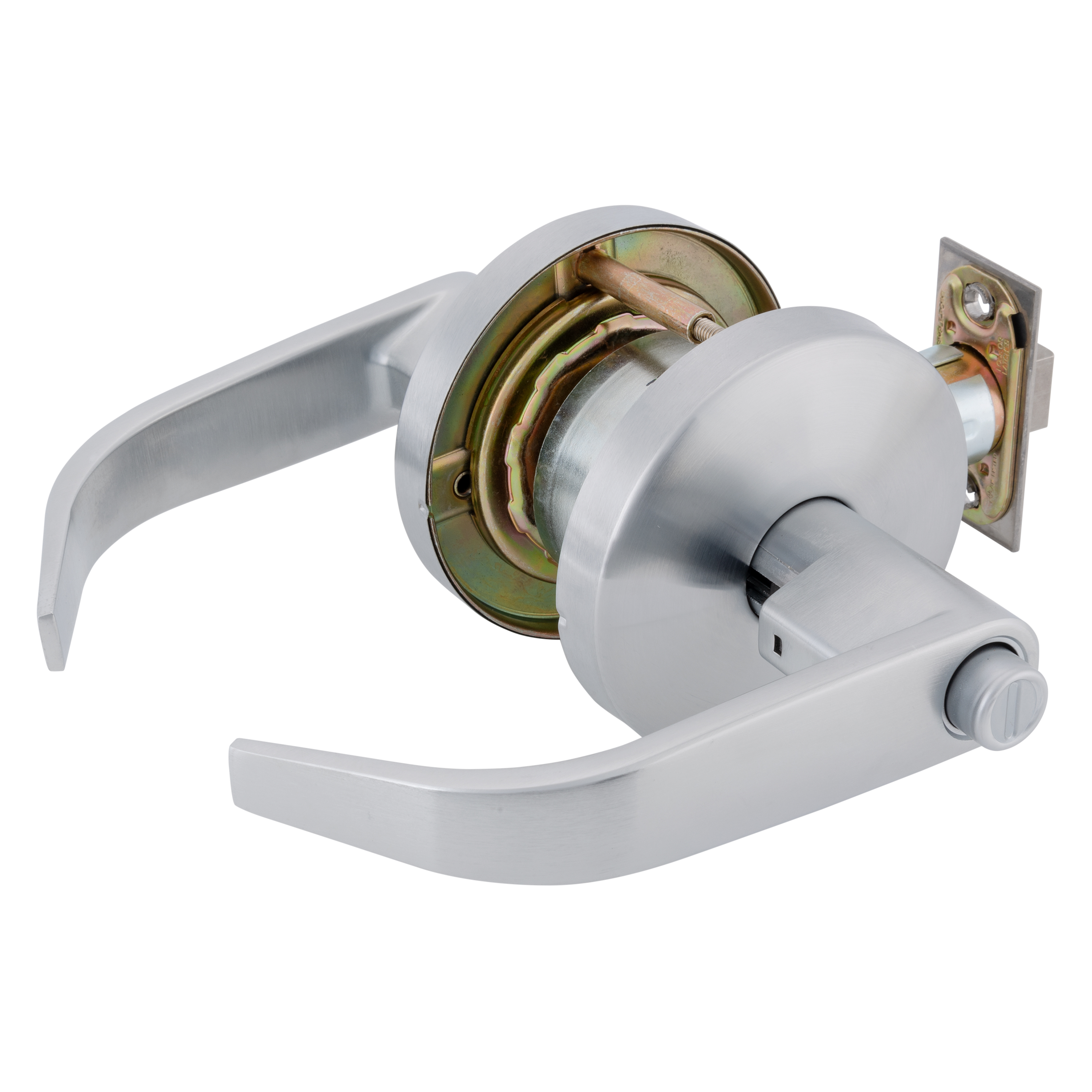

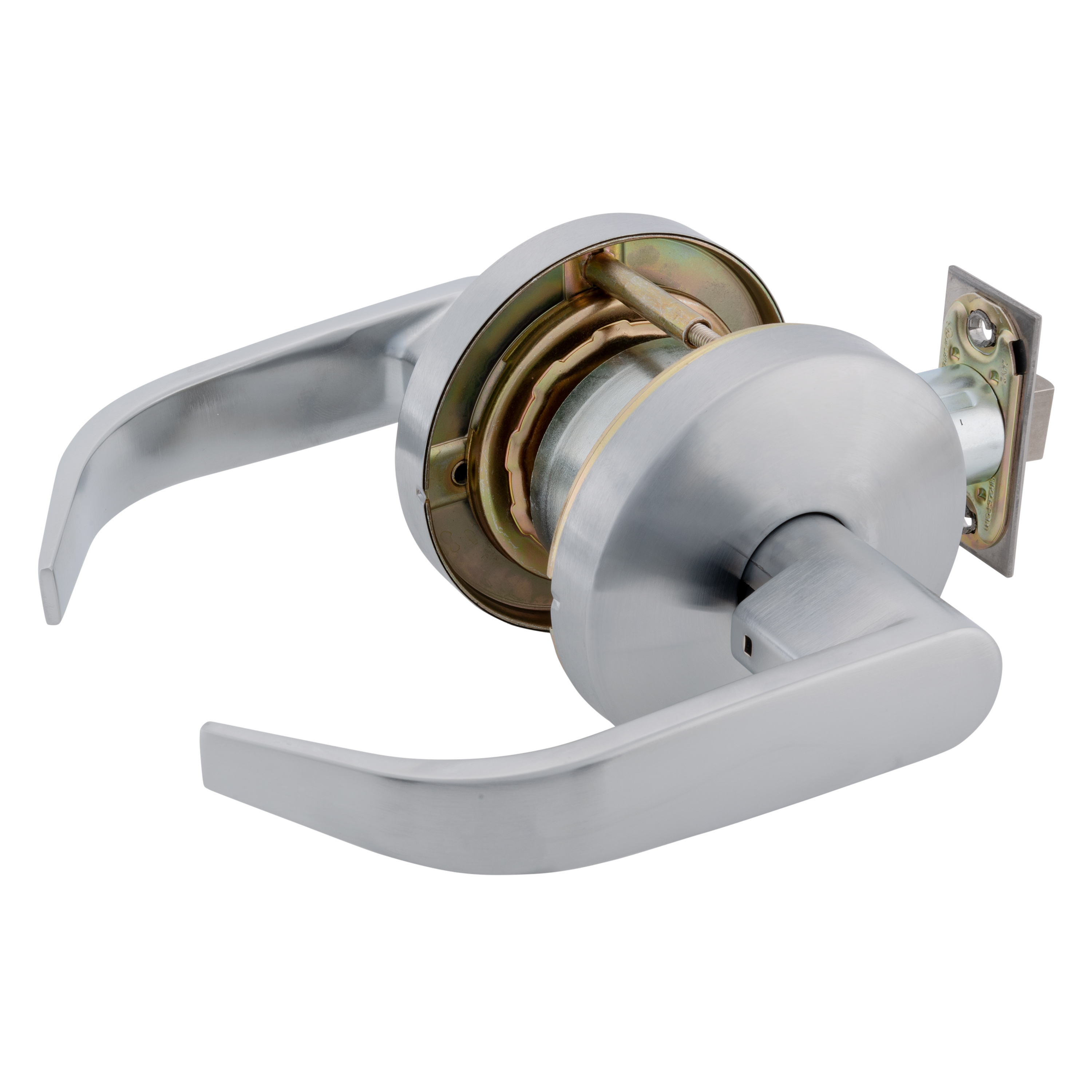

Heavy Duty Commercial Curved Lever

SKU UH40129
Function: Passage
Color: Satin Chrome
Find online:

Product Description

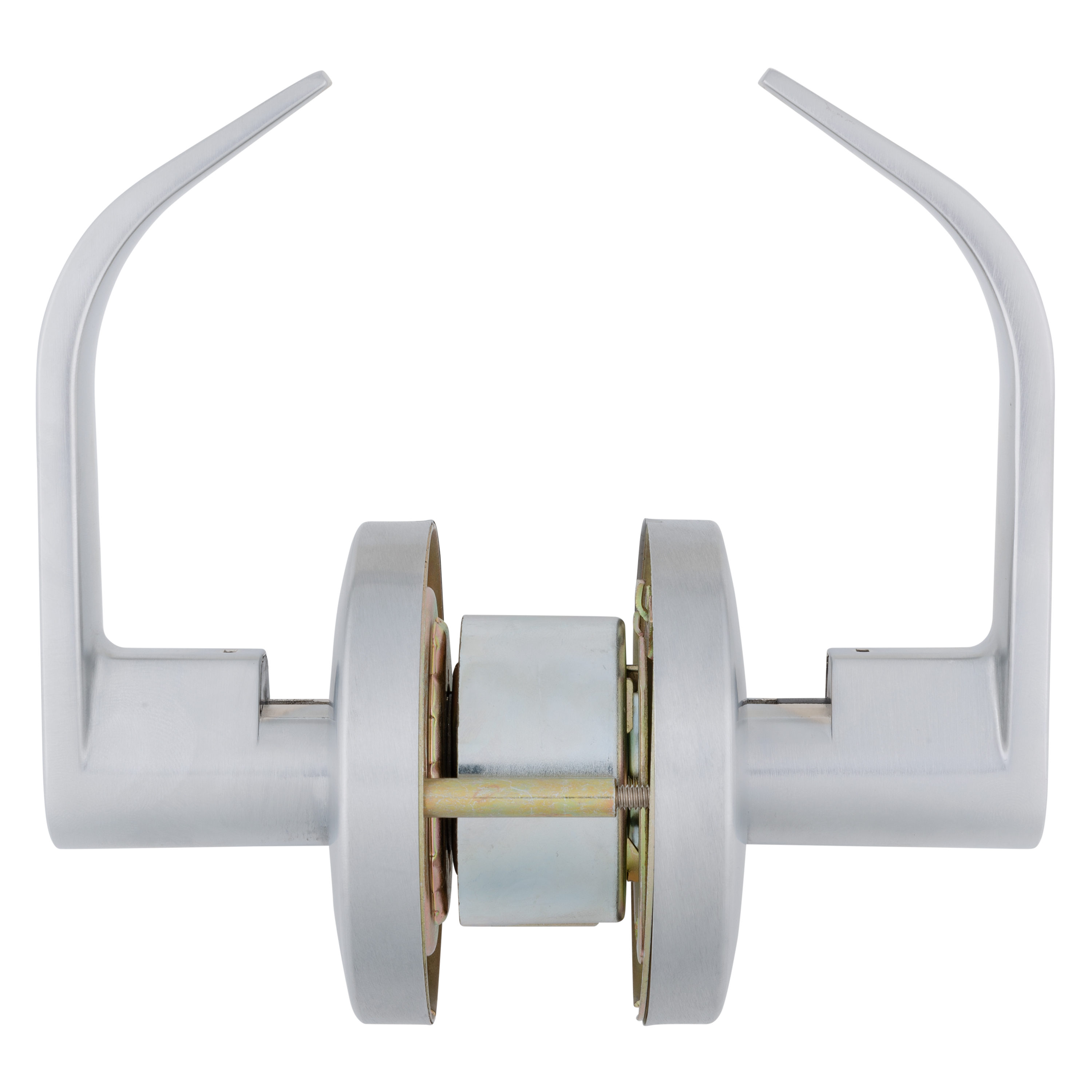

The Universal Hardware Heavy-Duty Curved Passage Lever is designed for doors that do not require locking such as connecting doors within office buildings, hallway doors or closets. The latch bolt is operated by the lever from either side of the door at all times. Equipped with tubular chassis for easier installation, the passage lever will fit wood or metal doors 1-3/8" to 2" thick. The Heavy-Duty Passage Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating that's tested to exceed 500,000 cycles, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial or residential use. A T-strike, 4-7/8" ASA strike, mounting hardware and installation instructions are included. Universal Hardware is the pro's choice for commercial door hardware and flat goods.

ANSI Badge Disability Badge Testing Level Badge UL Badge Warranty Badge

Construction

  • Equipped with 4-5/8" solid zinc diecast levers
  • Sleek satin chrome finish

Durability

  • ANSI Grade 2: Tested to exceed 500,000 cycles
  • UL Listed: 3 Hour fire rated for added protection and meeting building requirements
  • ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
  • Included 6-Pin SC4 Cylinder, brass plug and 2 keys for added security and piece of mind
  • Full lifetime warranty covers finish and function

Installation

  • Door Type: Wood or Metal doors 1-3/8"-2" thick
  • Non-Handed: Can be applied to left or right handed doors

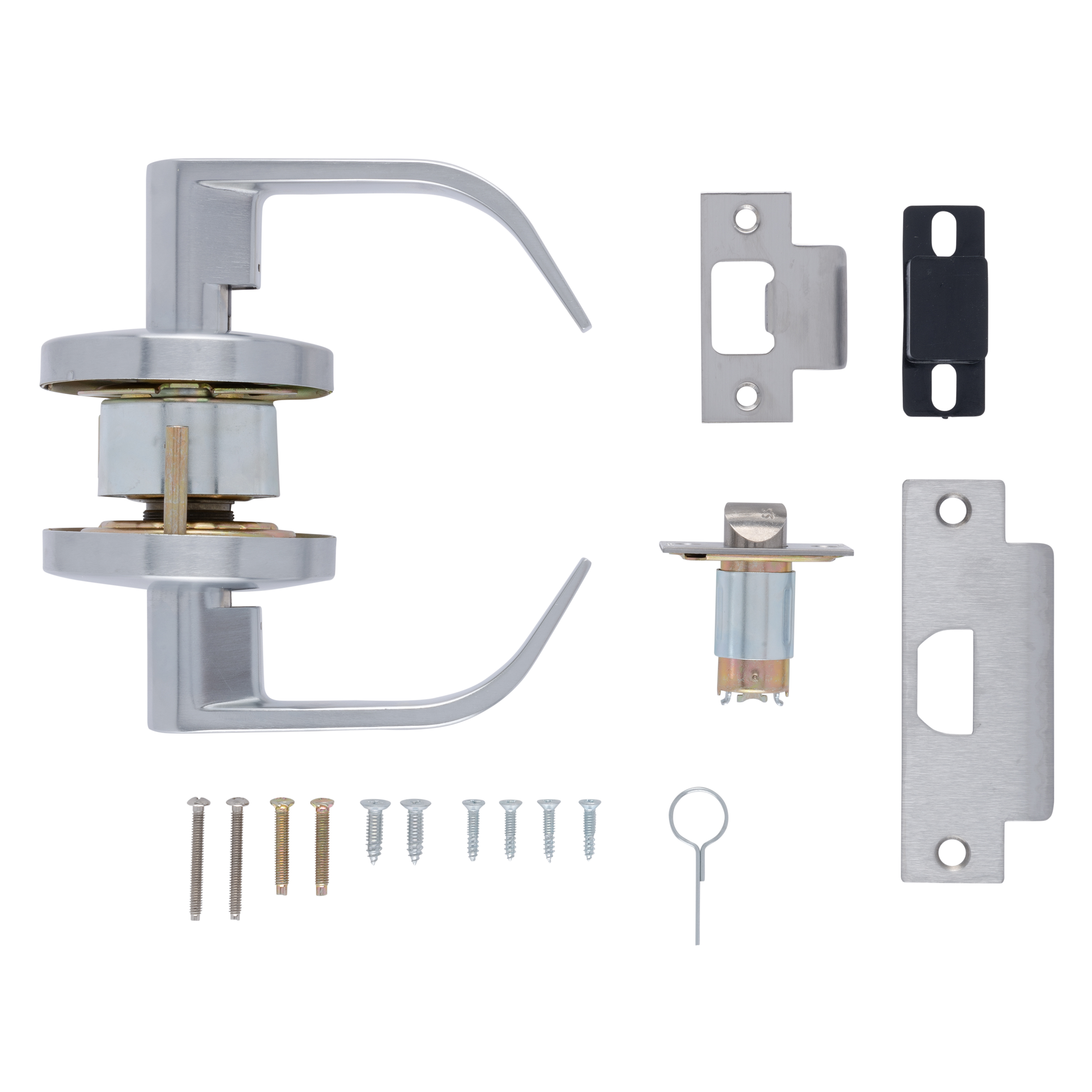

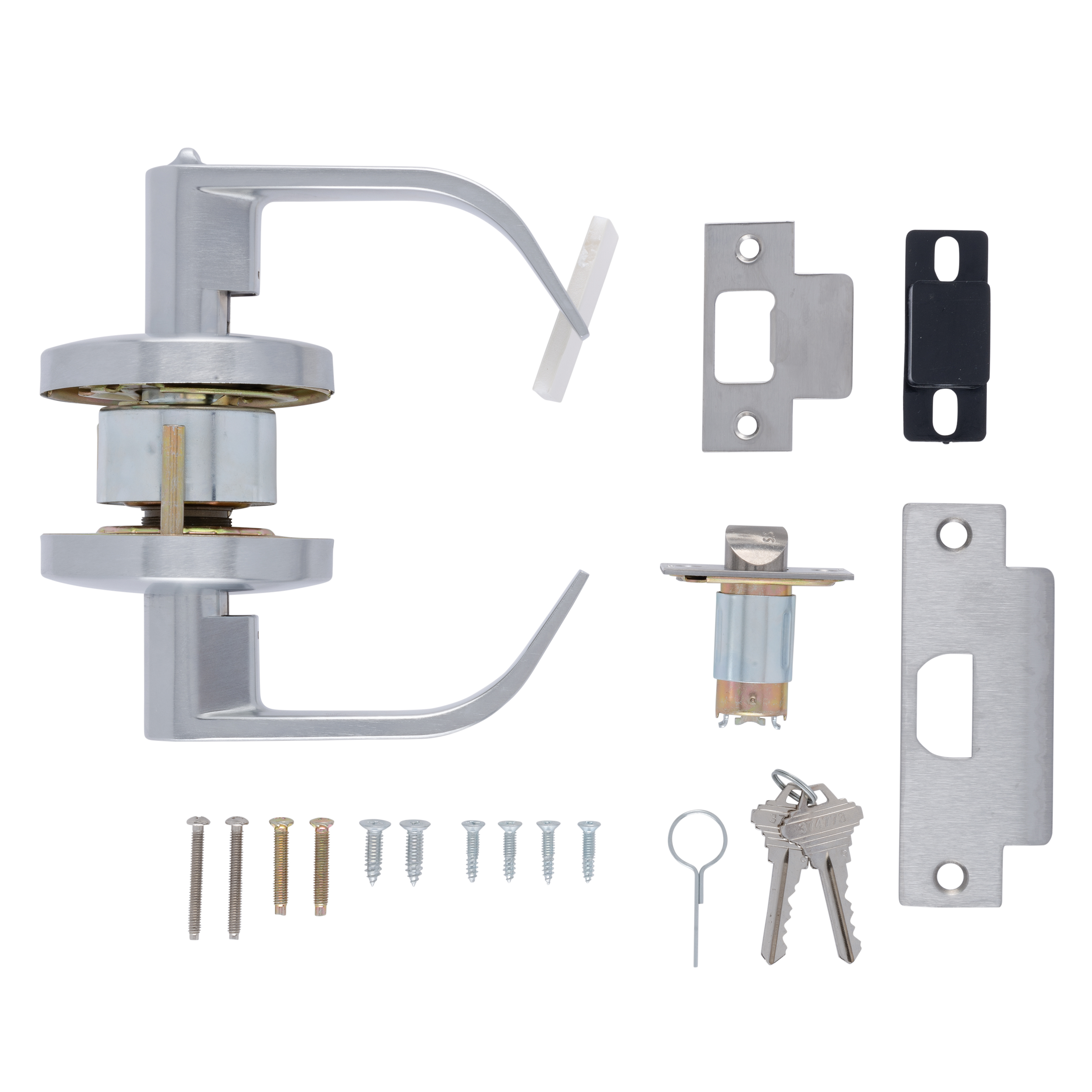

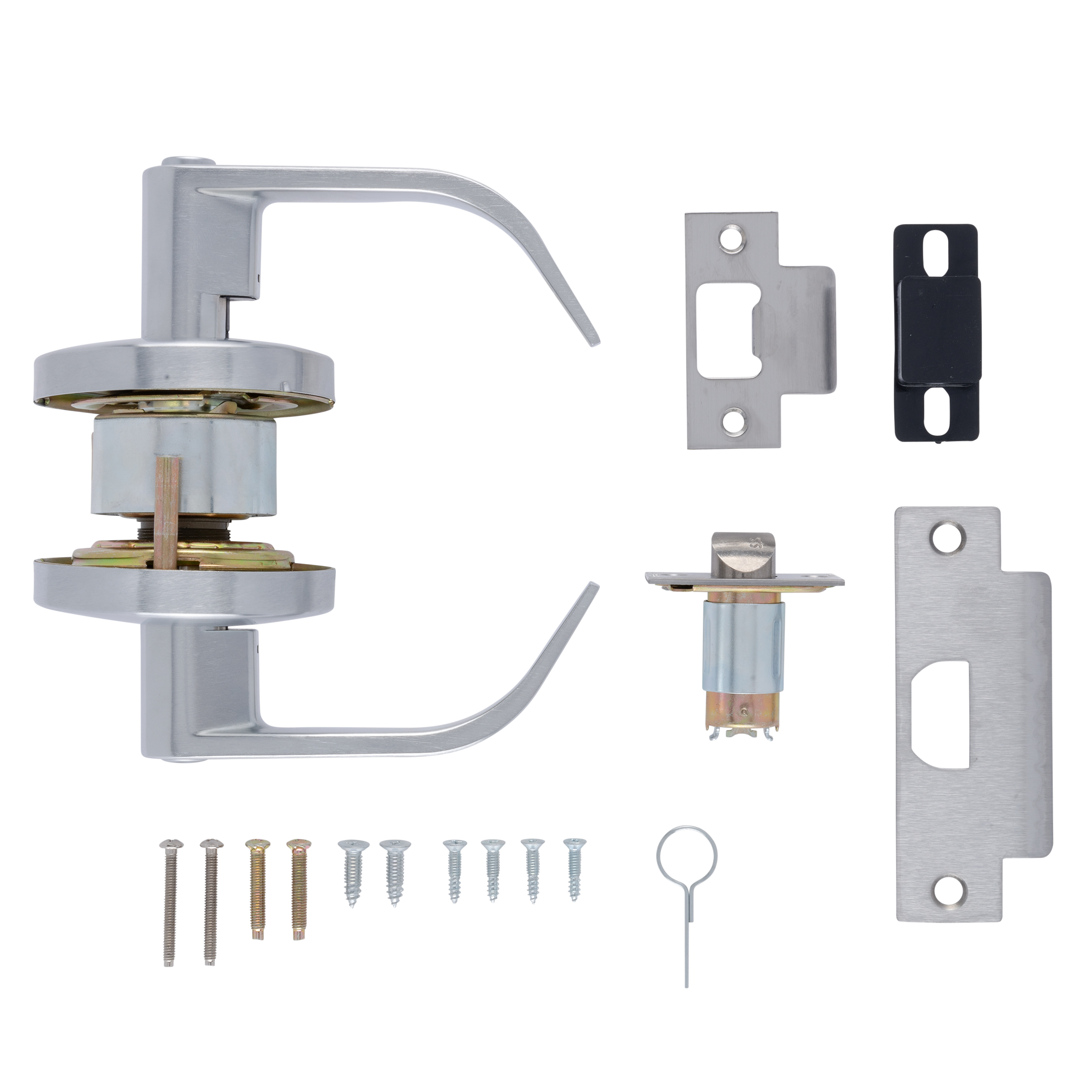

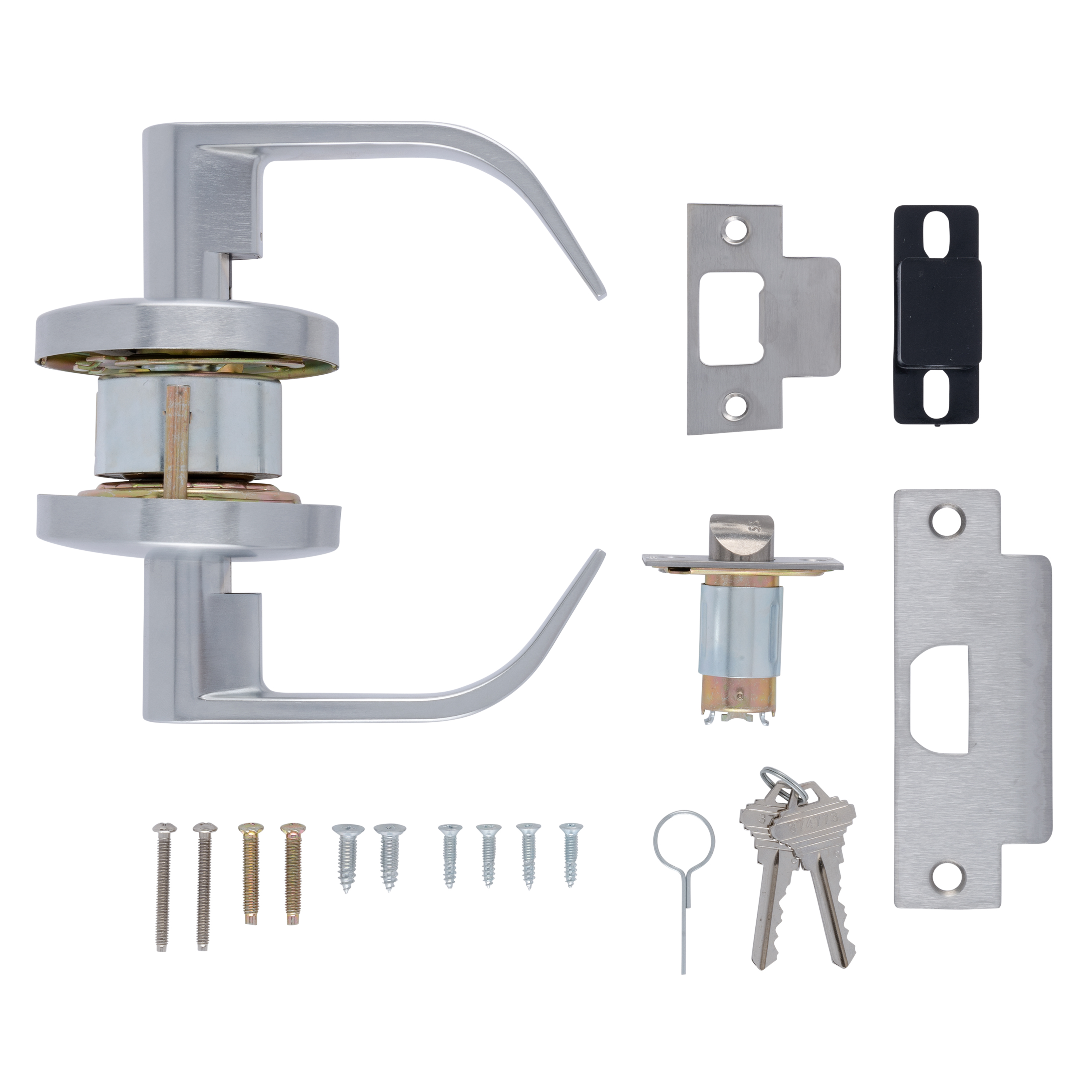

  • Included hardware: Mounting screws, 2 keys and installation instructions
  • Fixed cylindrical latch fits 2-3/4" backset

Additional Images

Drawings

Files

Instructions

Download

Product Information

Technical Details

Function Passage
Retail Width 0 in
Retail Height 0 in
Retail Depth 0 in
Retail Weight 0 lb
Included Hardware Mounting Hardware, Yes
Exterior Door Compatibility Left or right handed wood or metal doors 1-3/8" - 2" thick
ANSI Grade 2
Mount Type Surface Mount
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant Yes
Finish Satin Chrome
Warranty Full lifetime
Country of Origin Taiwan (TW)

Additional Information

SKU UH40129
UPC 039208240246
Brand Universal Hardware
Type Lever
