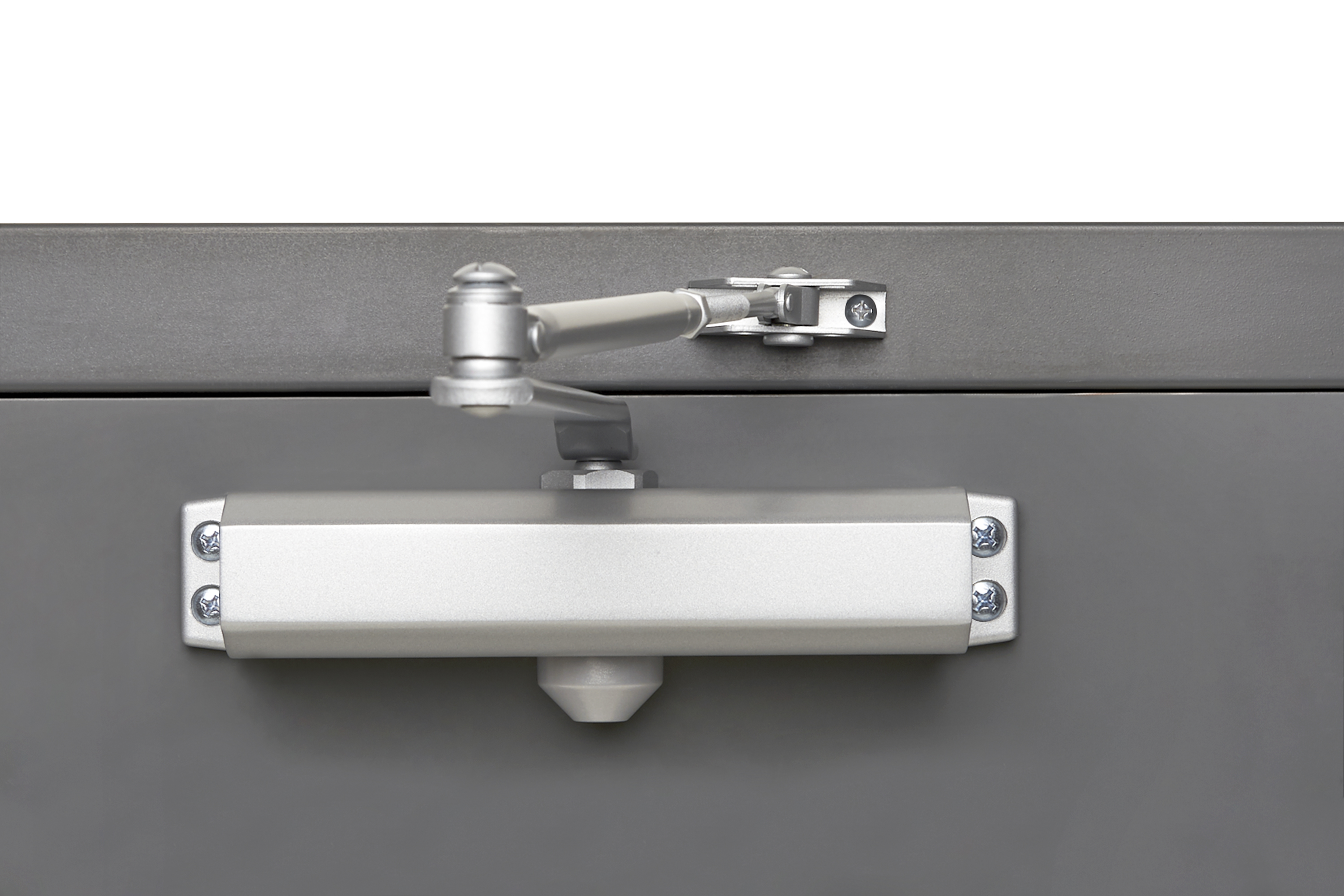

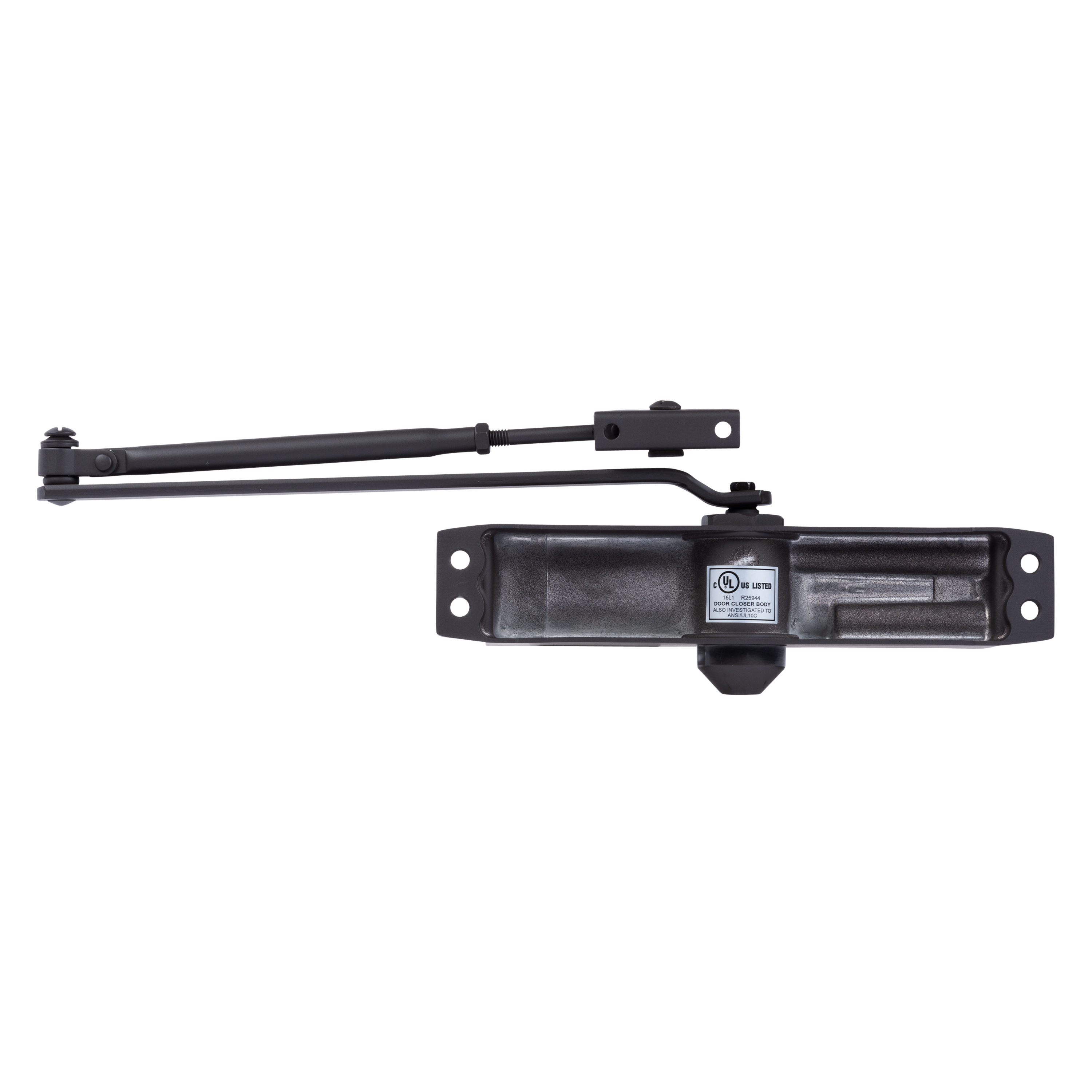

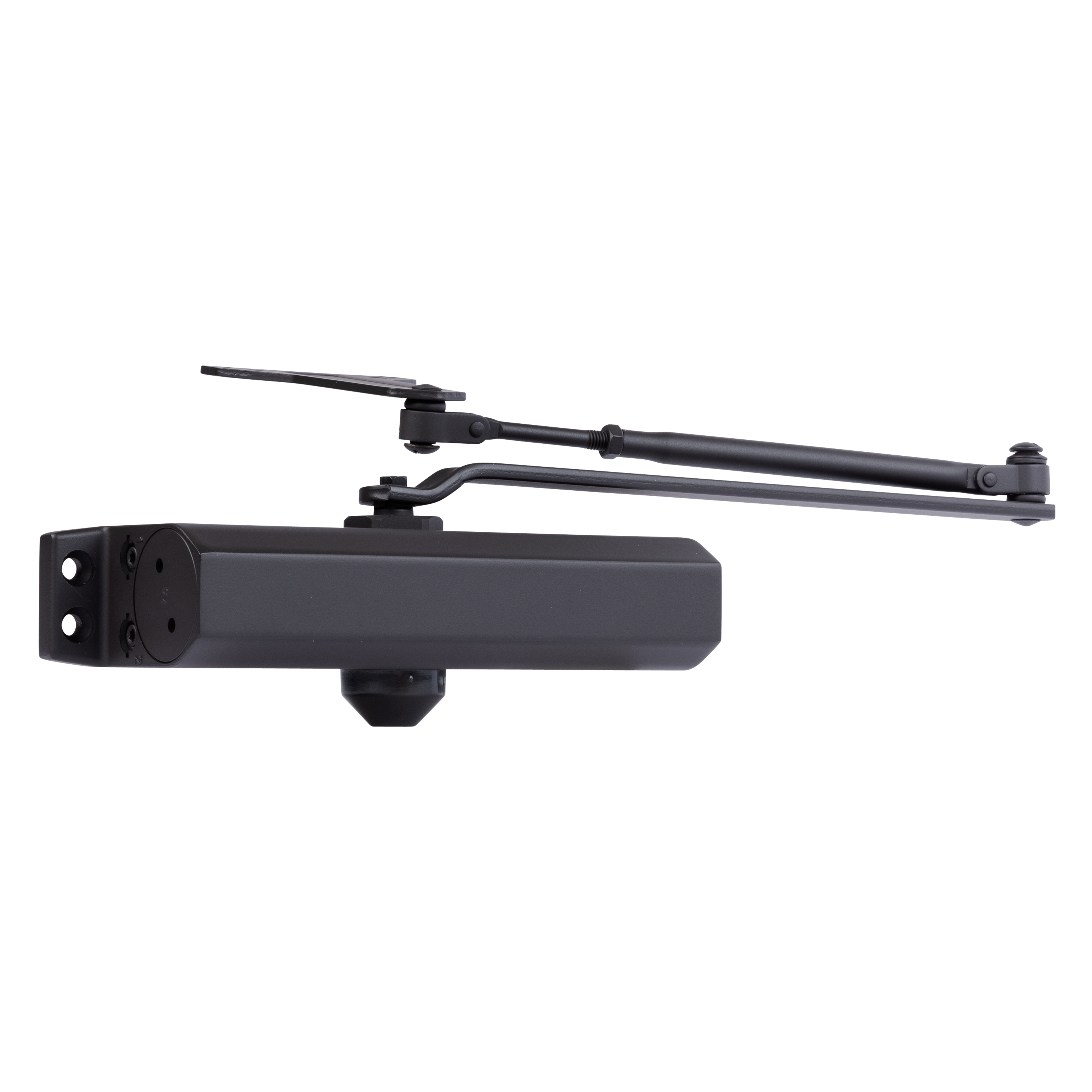

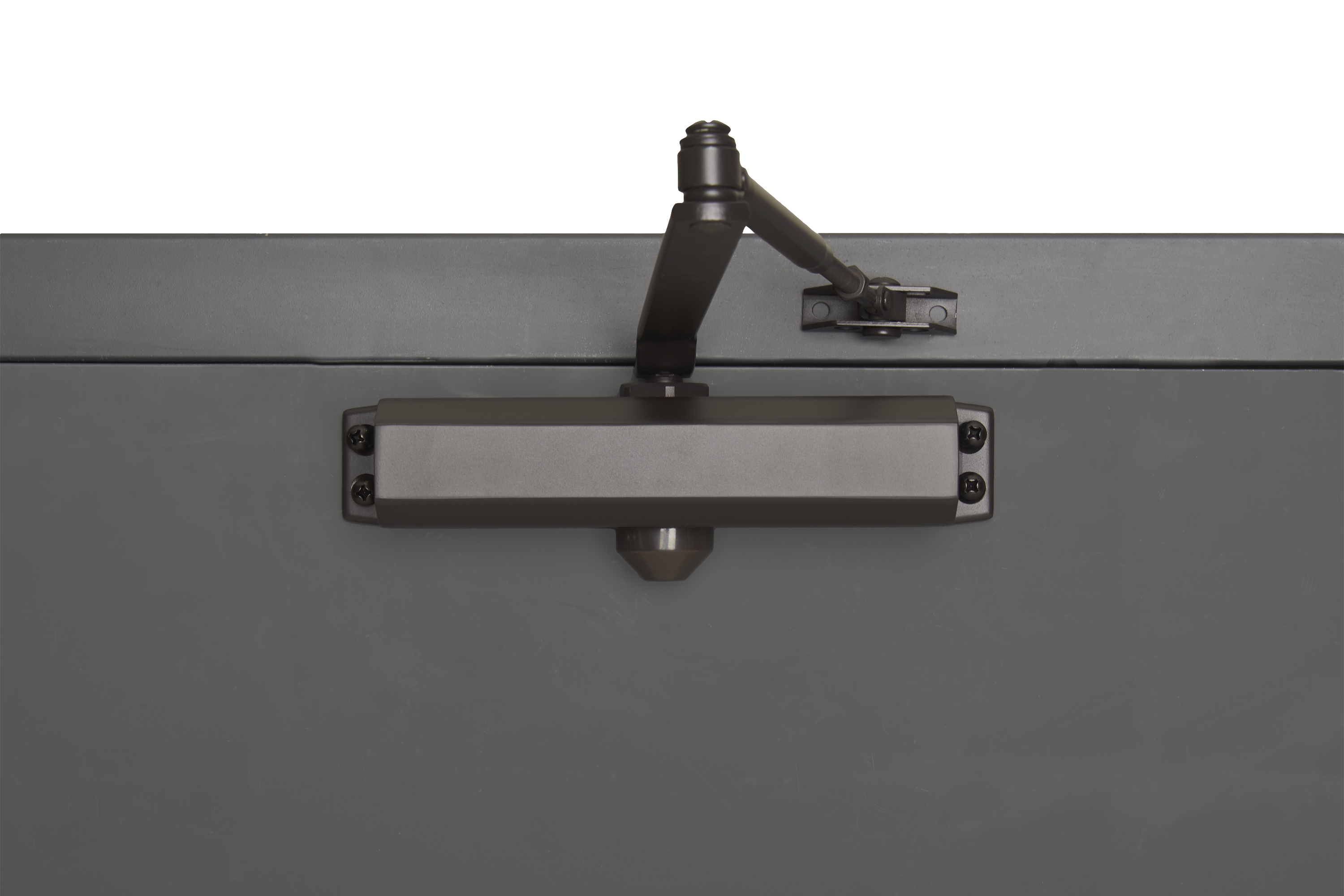

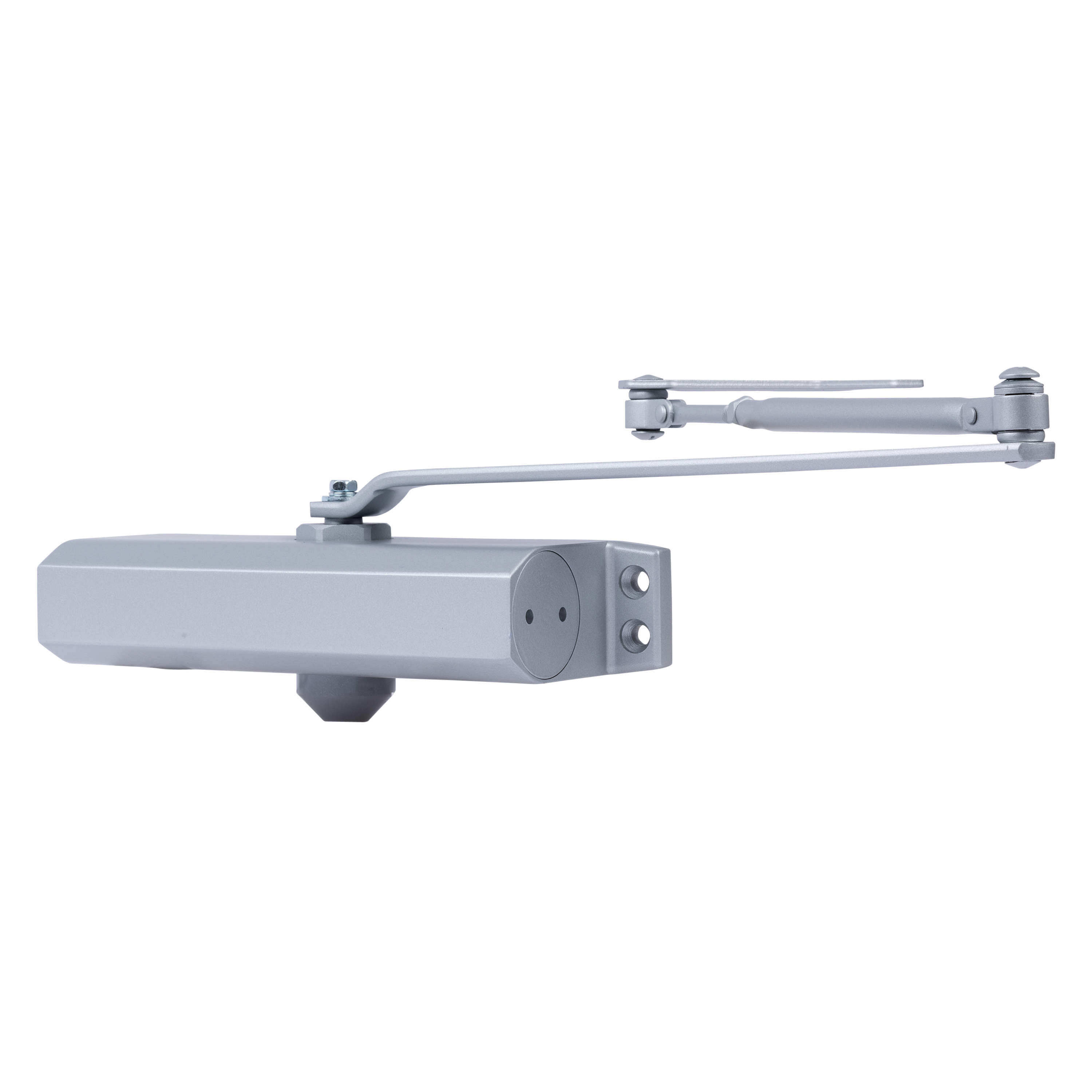

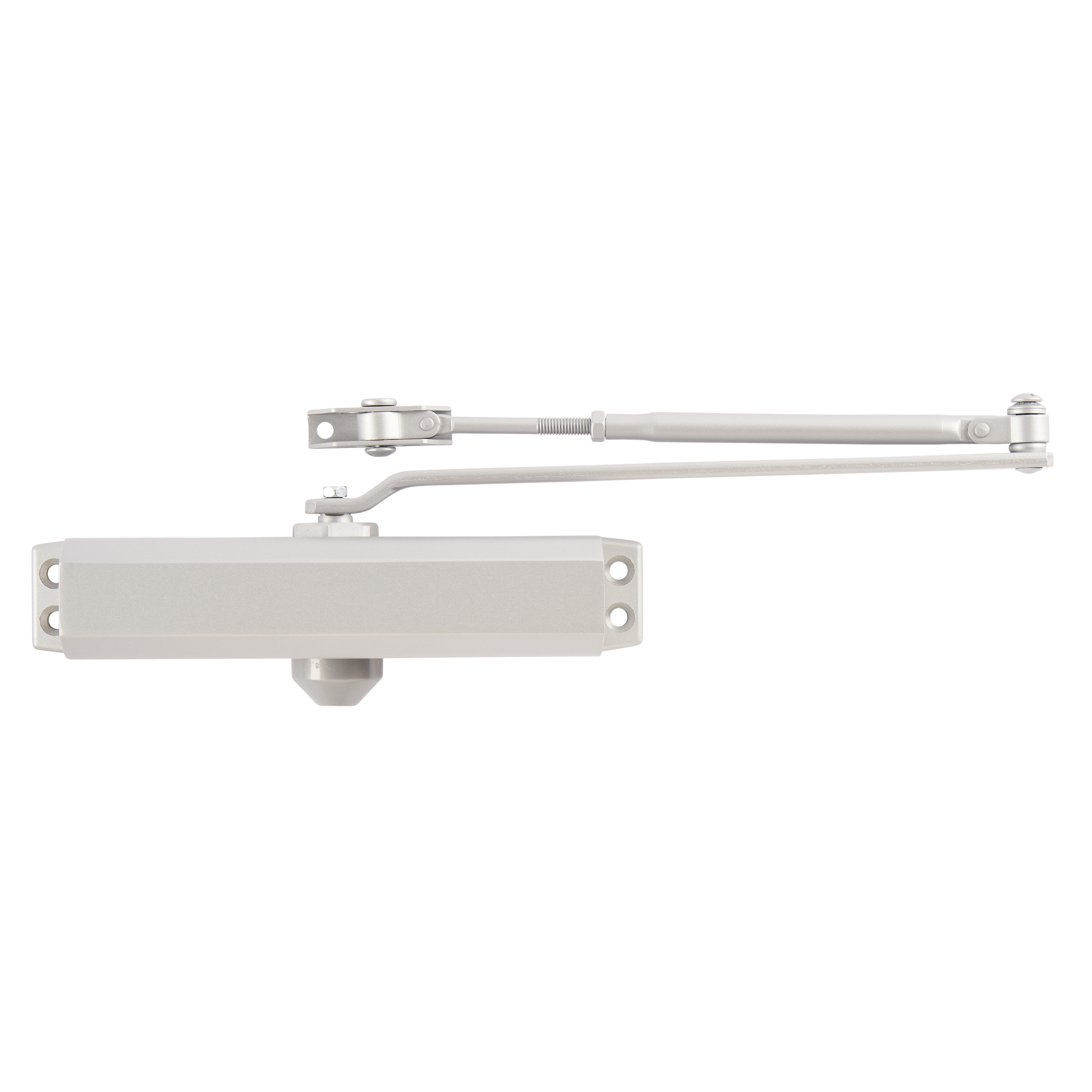

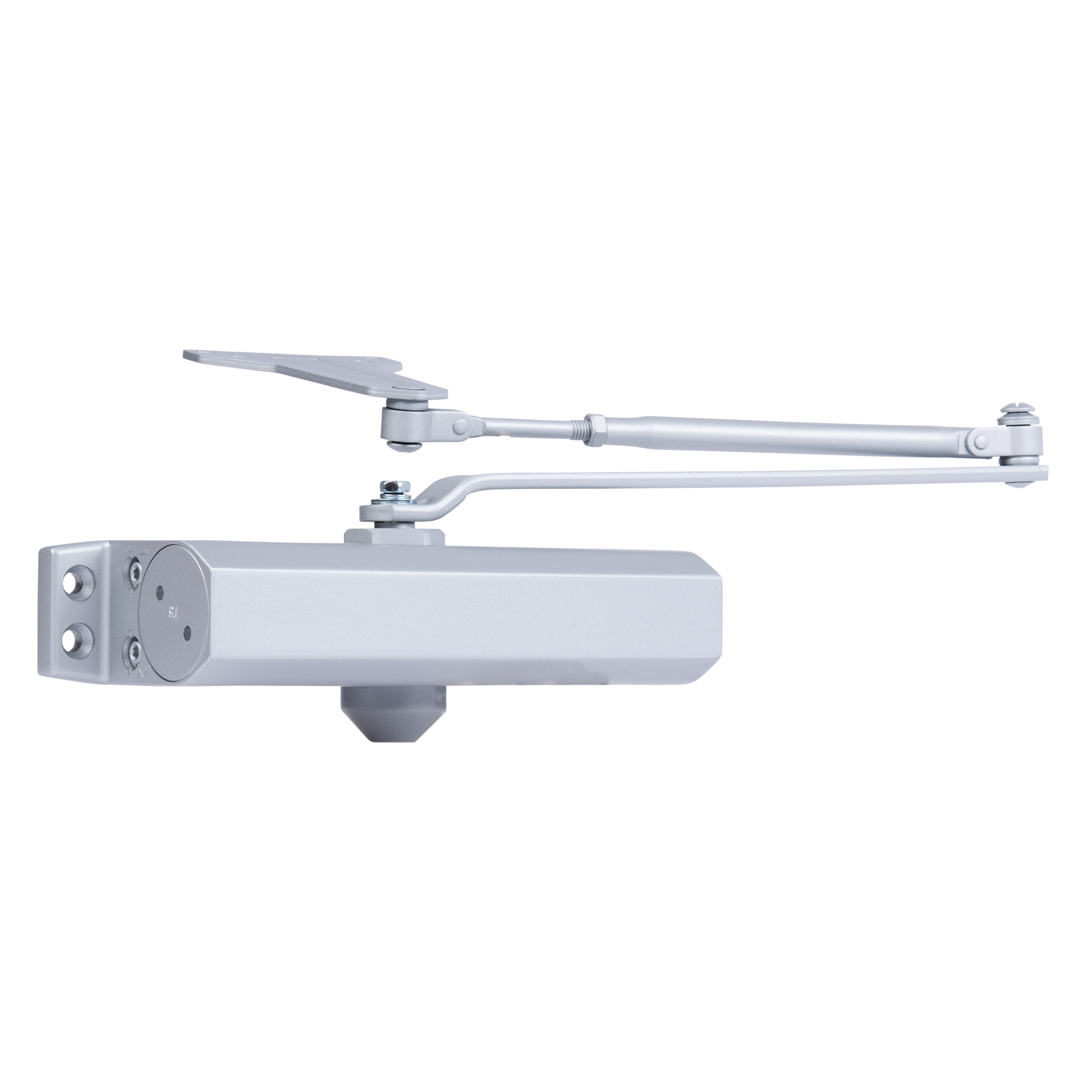

Medium Duty Commercial Door Closer

SKU BC4051
Find online:
Color: Aluminum

Product Description

This medium duty closer controls the traffic in and out of your space and automatically closes the door after every opening. For exterior doors up to 30” and interior doors up to 38”. Has a 3-hour UL fire rating. This closer fits on top jamb, standard or parallel positions with a 180-degree opening range. Compatible with most commercial doors. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.

UL Badge Warranty Badge

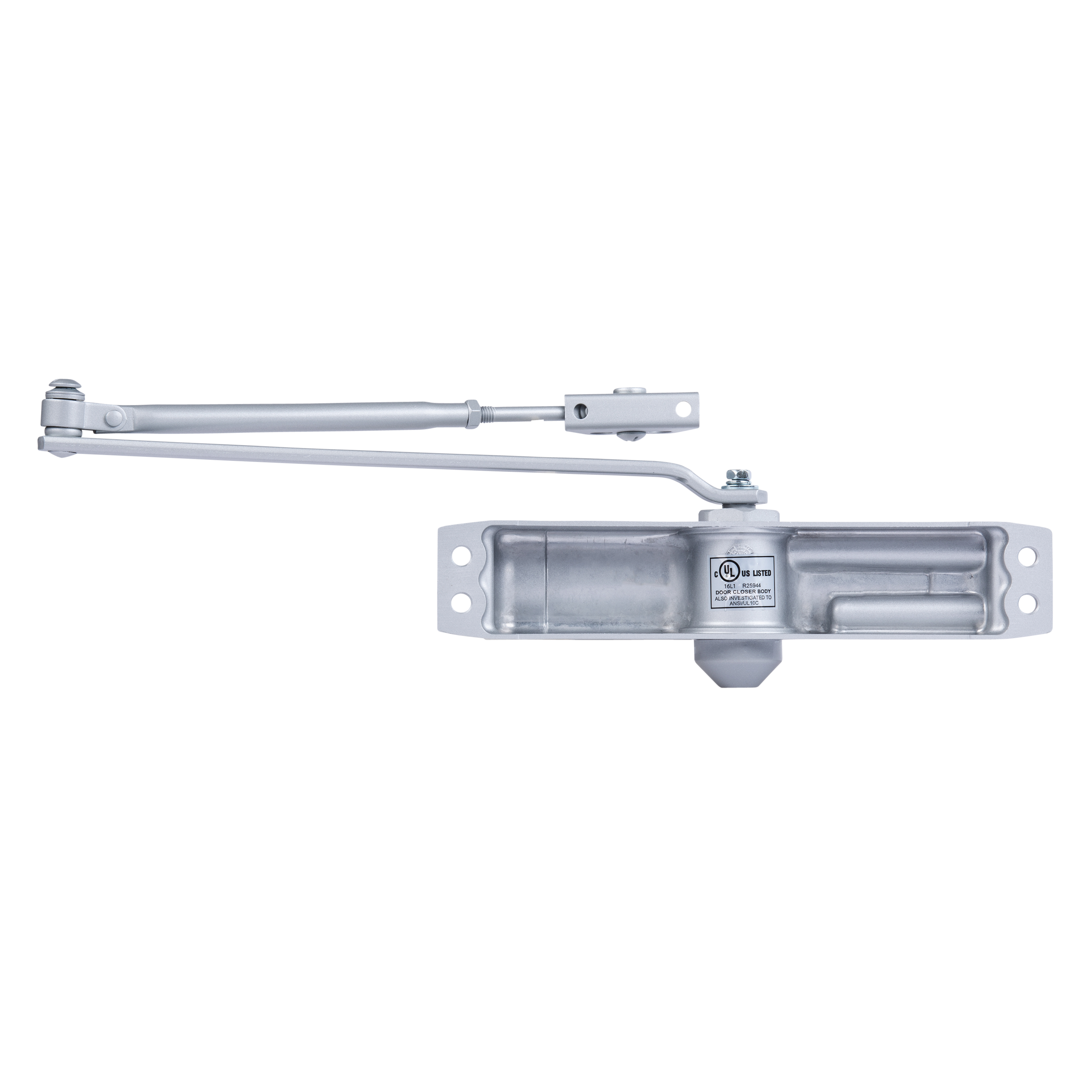

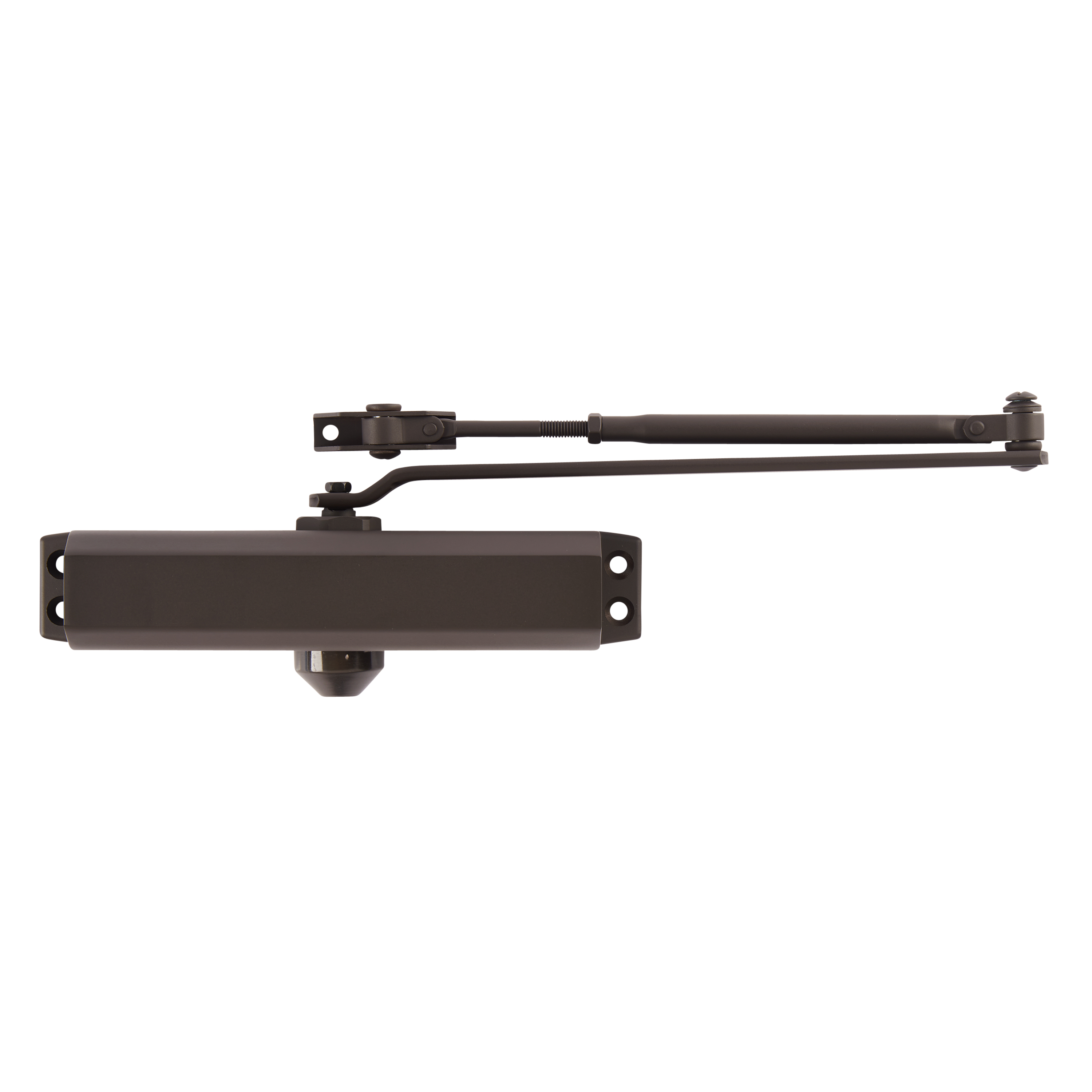

  • All metal body construction for added durability
  • Sleek aluminum finish


  • Size 3: works with minimum of 5 lbs. closing force for worry-free closing
  • UL Listed: 3-hour fire rated for added protection and meeting building requirements
  • Warranty: Limited 10 year warranty covers finish and function


  • Interior doors: Left or right hinged doors up to 125 lbs. and 38" wide
  • Exterior doors: Left or right hinged doors up to 125 lbs. and 30" wide

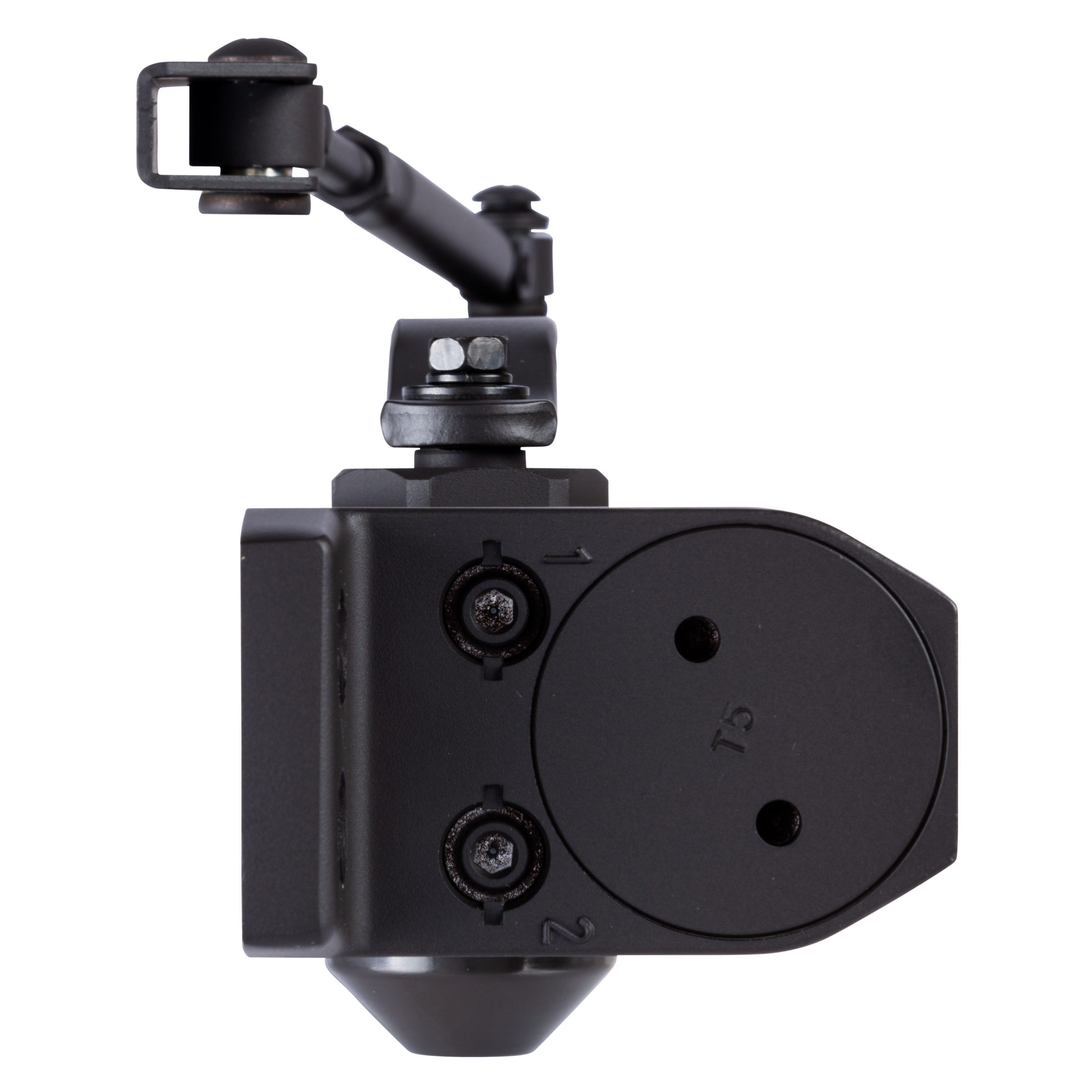

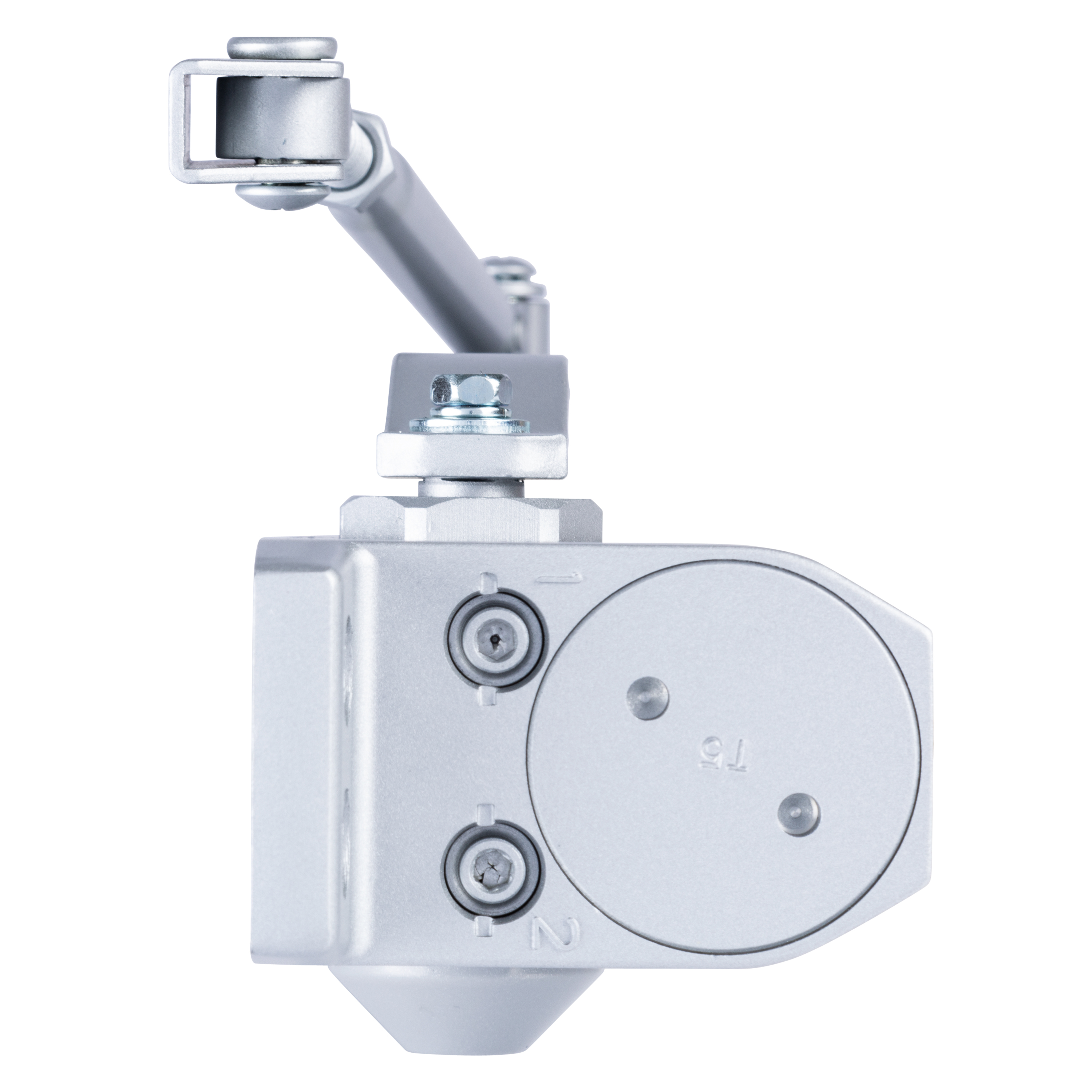

  • Adjustable closing and latching speeds eliminate door slamming
  • Opening range: 180-degree for added convenience and pass-through space

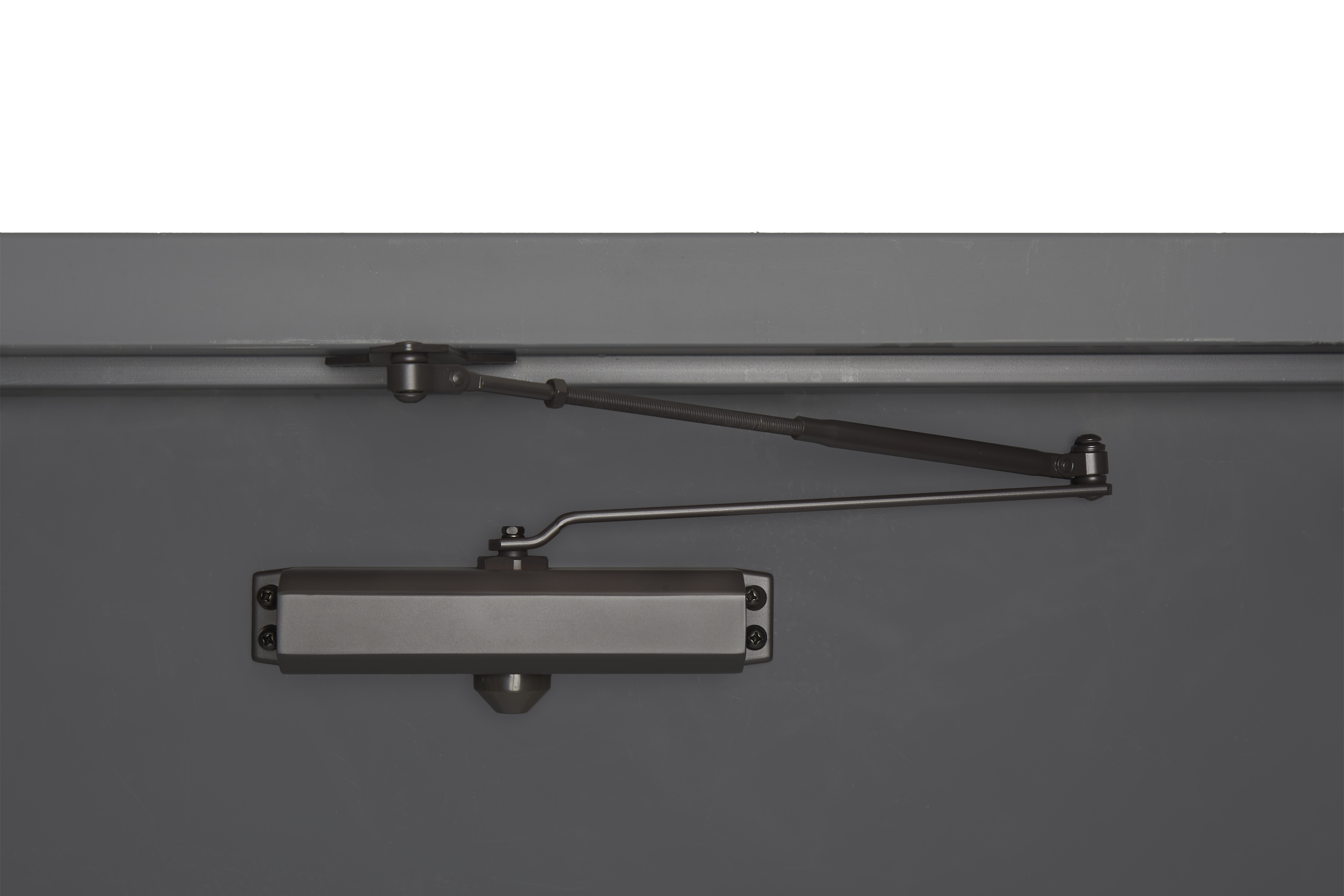

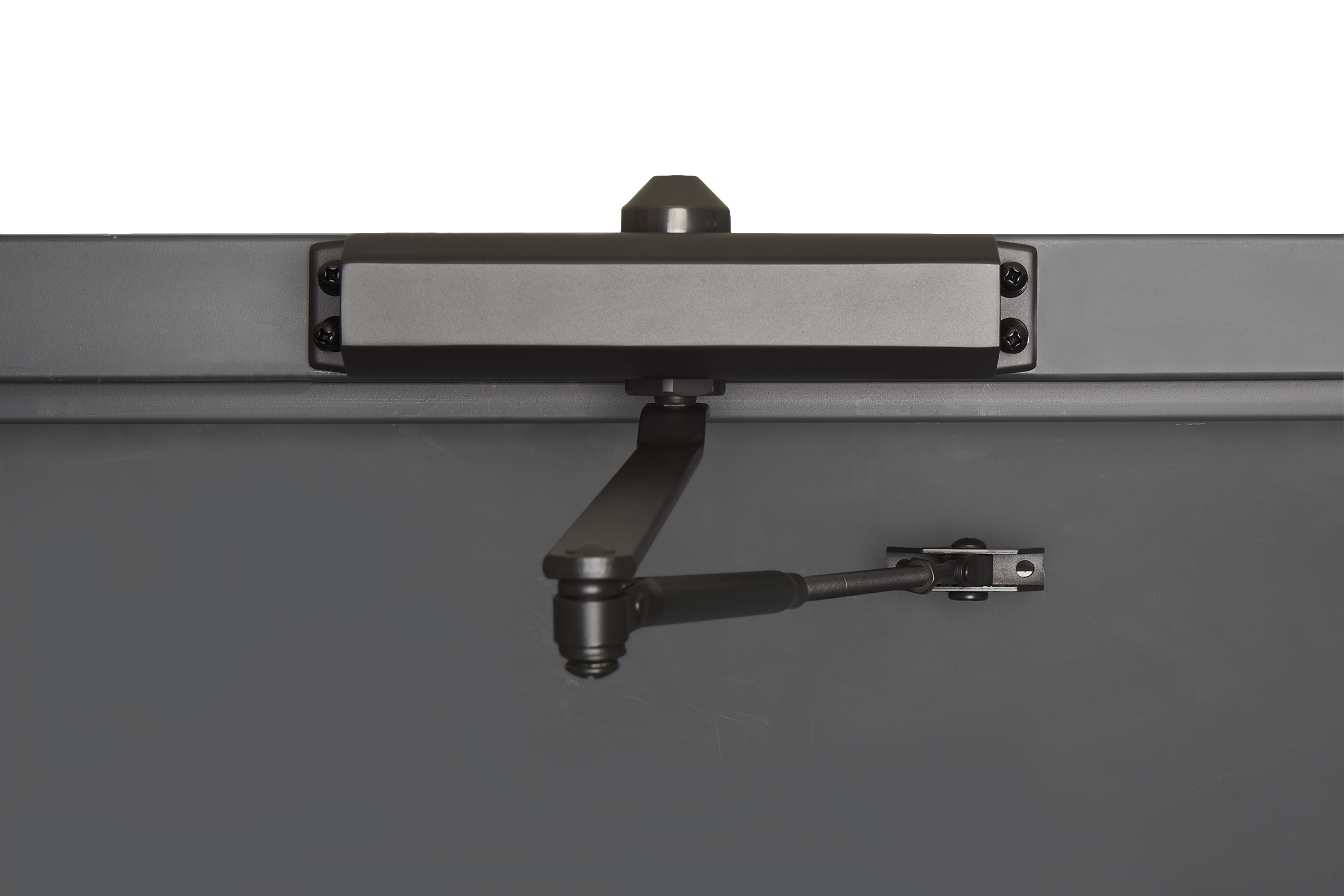

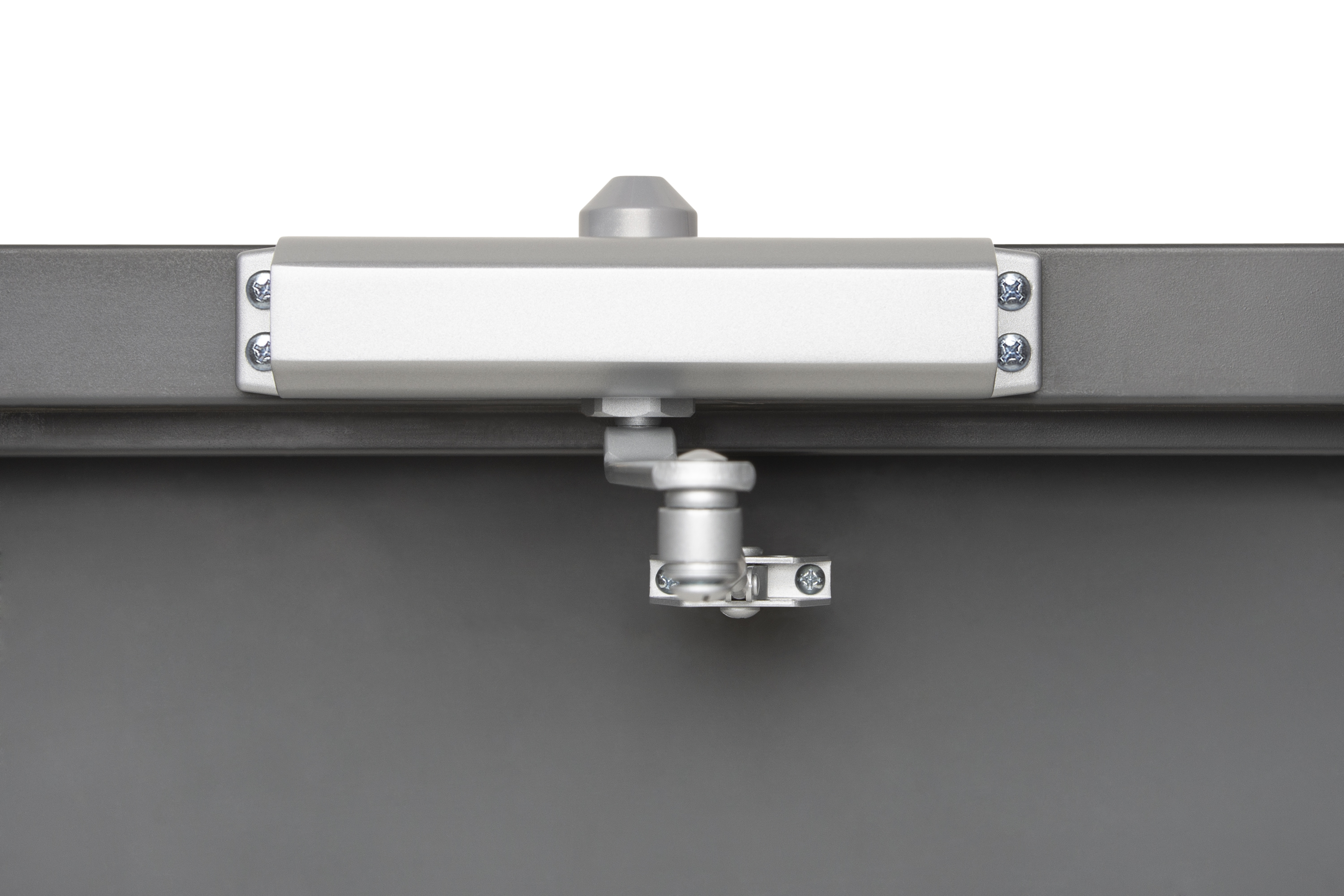

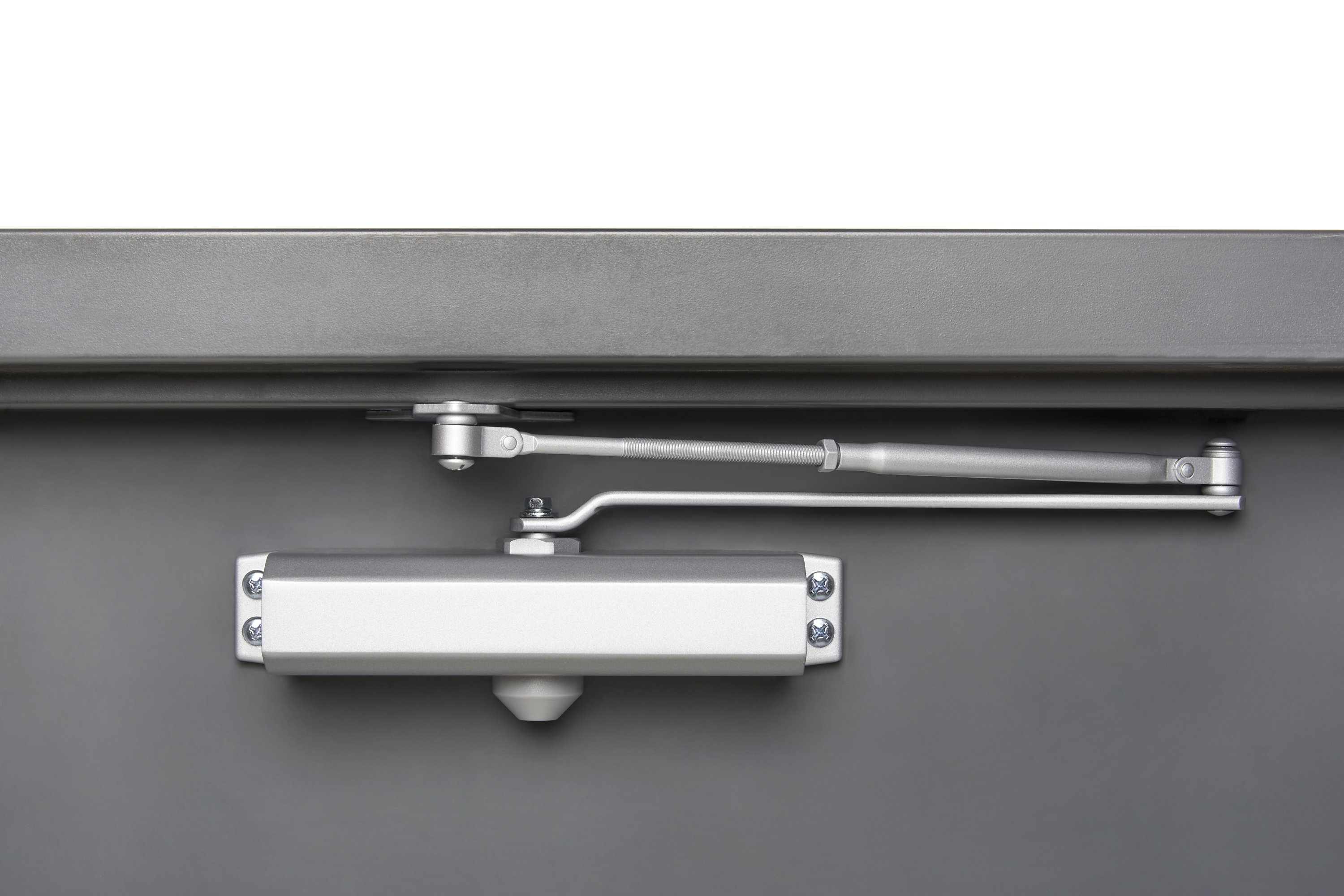

  • Mounting: Standard, top jamb or parallel mount

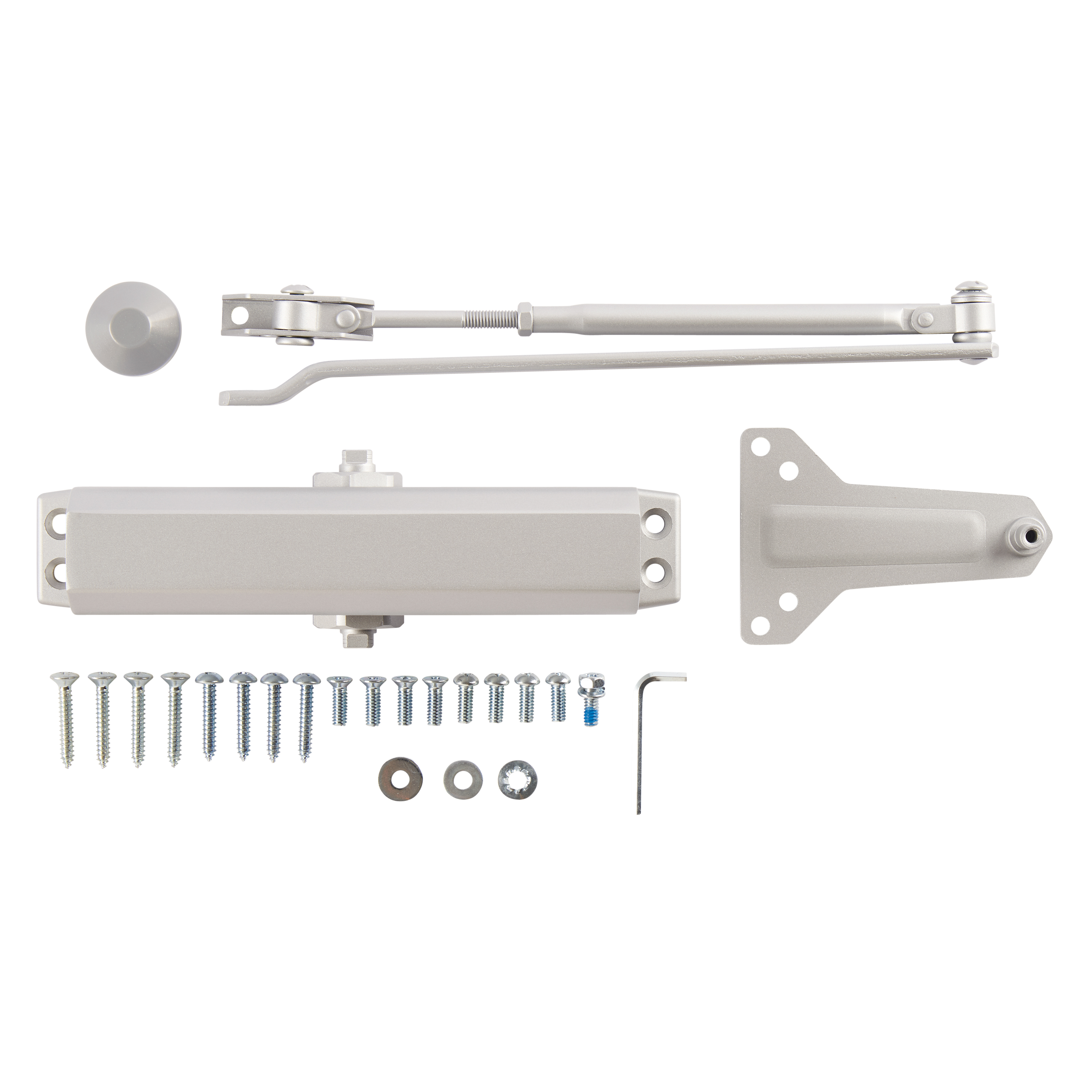

  • Included hardware: finish matched closer body, mounting screws, and installation instructions

Additional Images

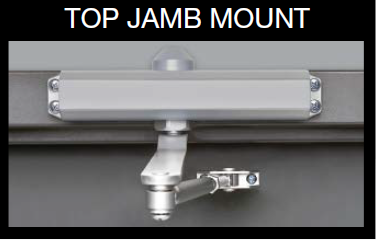

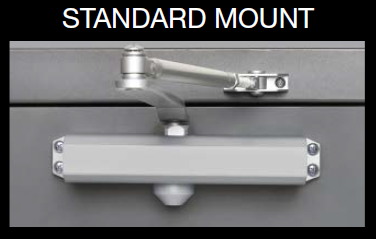

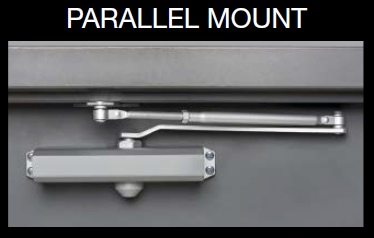

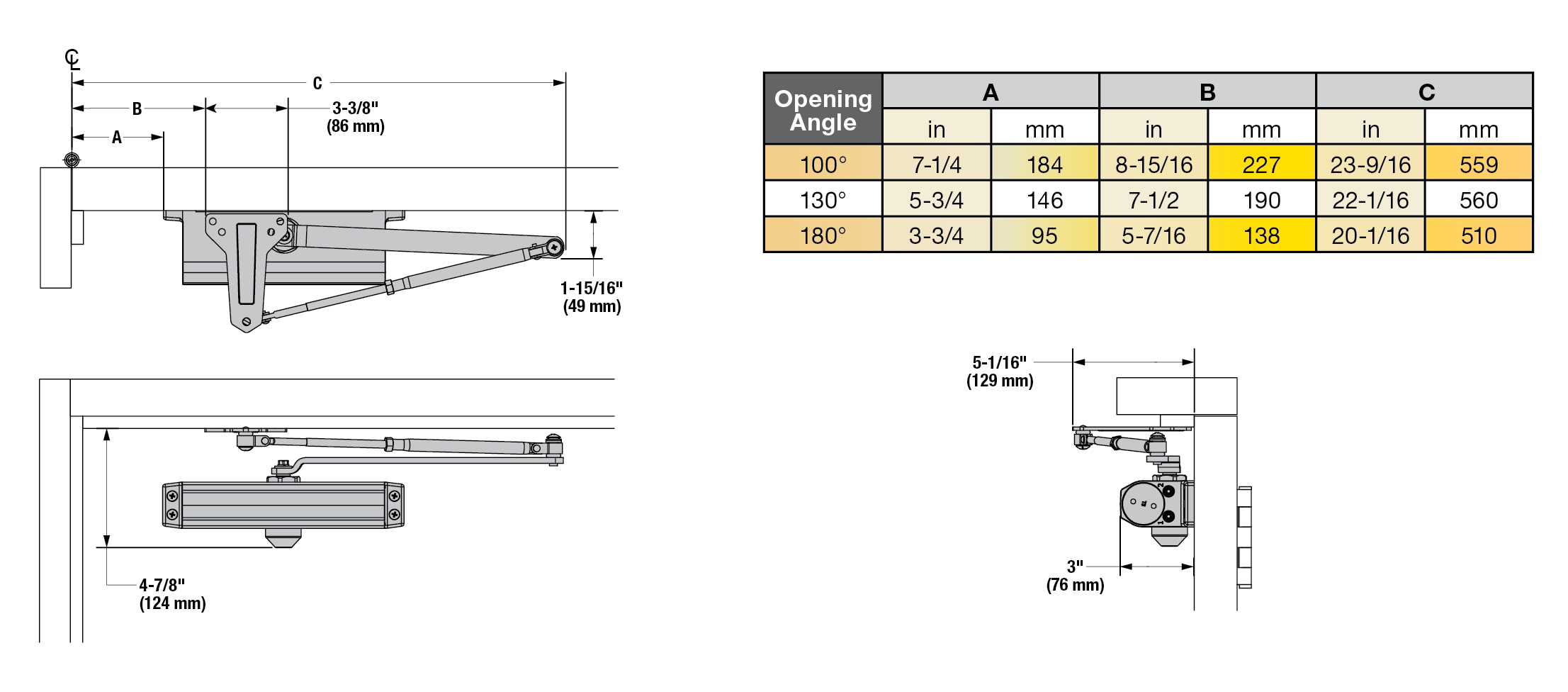

Mounting Configurations



Instructions 1


Instructions 2


Instructions 3


Product Information

Technical Details

Retail Width 12.63 in
Retail Height 3.63 in
Retail Depth 4.38 in
Retail Weight 6.19 lb
Included Hardware Mounting Hardware, Yes
Interior Door Compatibility Left or right hinged doors up to 38" wide
Exterior Door Compatibility Left or right hinged doors up to 30" wide
Closer Rating Size 3
OpeningRange 180 Degrees
Mount Type Standard, Top Jamb, Parallel
Closing and Latching Speed Adjustable
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant No
Warranty 10 Year Limited Warranty

Additional Information

SKU BC4051
UPC 039208228343
Brand Brinks Commercial
Type Closer
