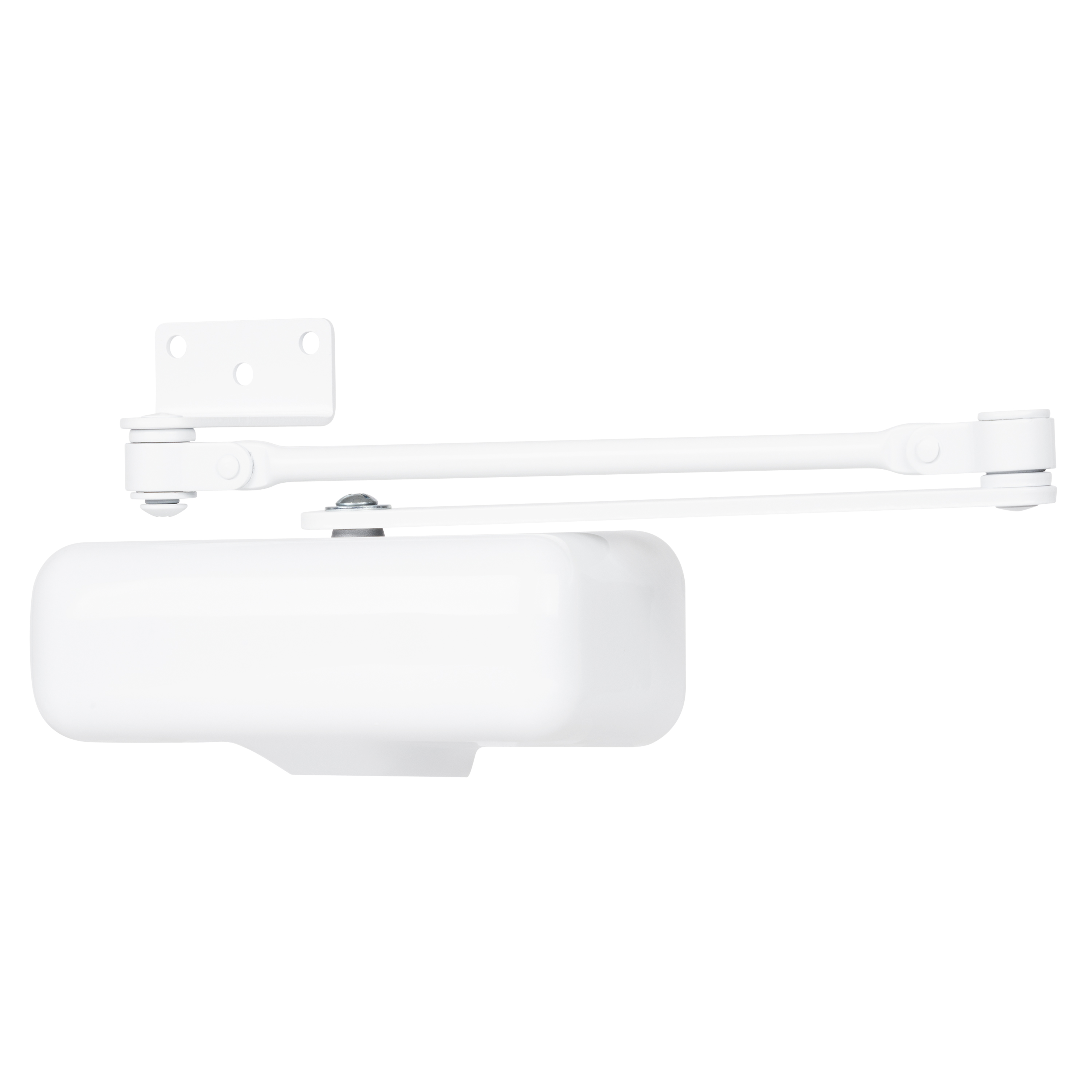

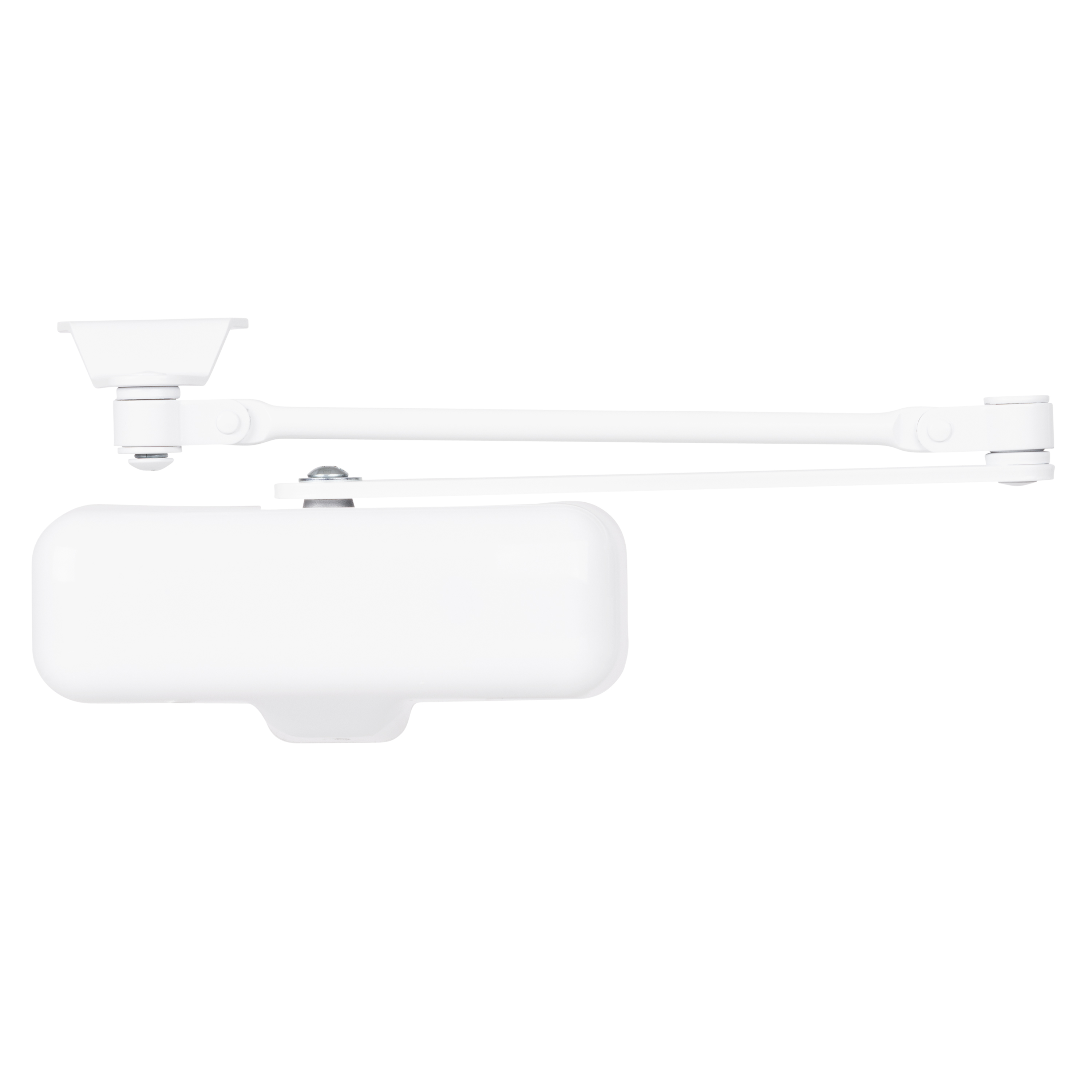

Light Duty Residential Closer

SKU BC4009
Find online:
Color: White

Product Description

BRINKS Commercial has designed a light duty door closer that's ADA compliant and perfect for interior residential applications. This Light Duty Residential Closer provides added security and safety to your space by automatically closing the door after each open for peace of mind. This closer is a size 1 and has a 180 degree opening range with an automatic hold-open feature that engages at 80 degrees for added convenience. The closer speed is also adjustable so you can seamlessly control the closing and latching of your doors to eliminate slamming. The closer is intended for the push side of interior doors with parallel mounting and can be applied on right or left hinged doors up to 30" wide. A finish matched closer body and mounting hardware are included. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.

Disability Badge Warranty Badge


  • All metal body for added durability. Color finished decorative cover
  • White finish


  • Size 1: works with door weighing less than 100 lbs.
  • Warranty: 5 year limited warranty covers finish and function
  • ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons


  • Interior doors: left or right hinged doors up to 100 lbs. and 30" wide
  • Adjustable sweep speed to eliminate door slamming
  • Opening range: 180-degree opening range with hold-open at 80 degrees

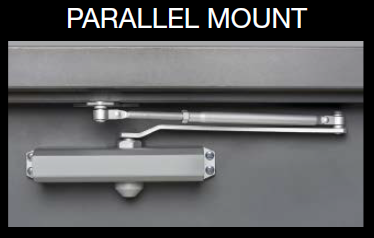

  • Parallel mount only

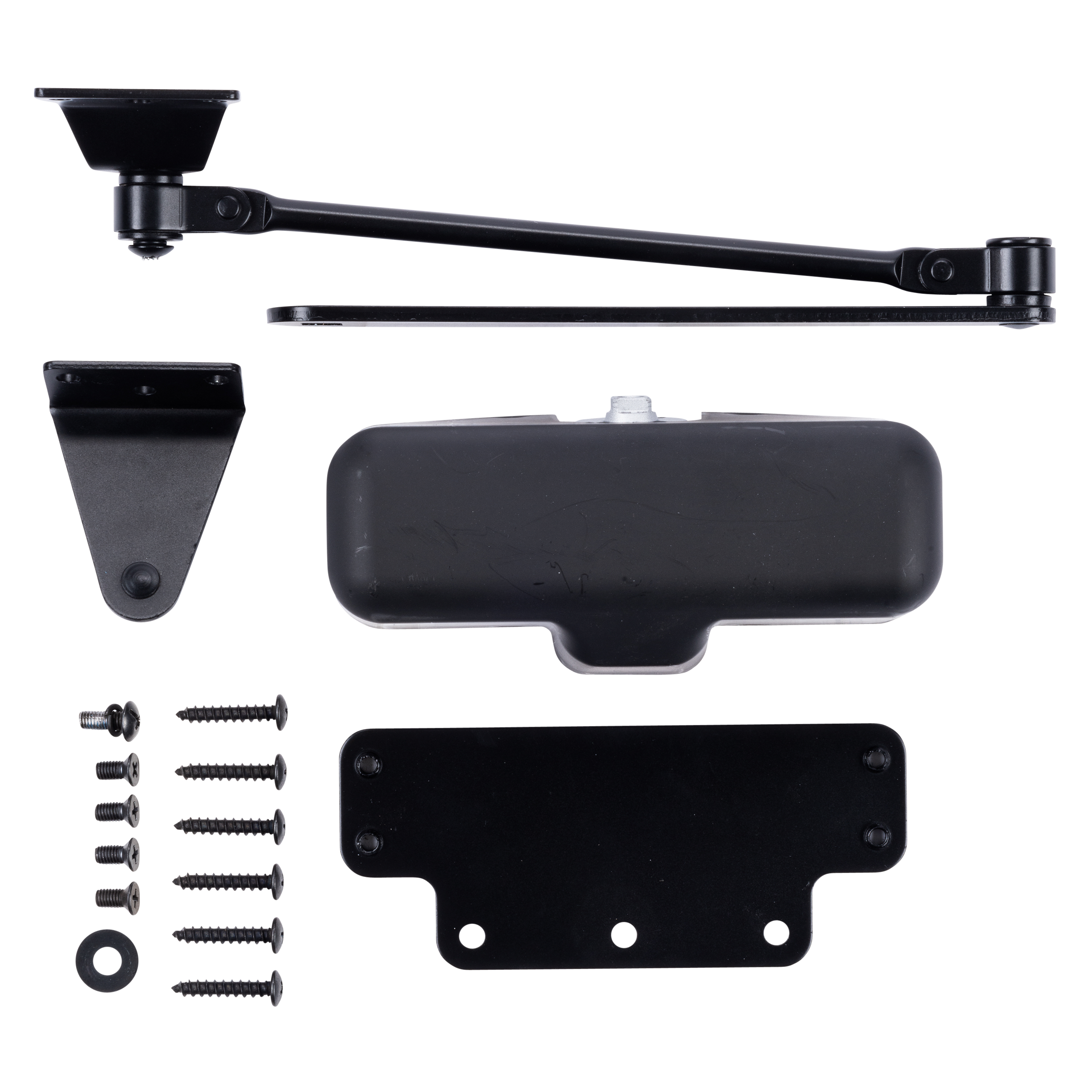

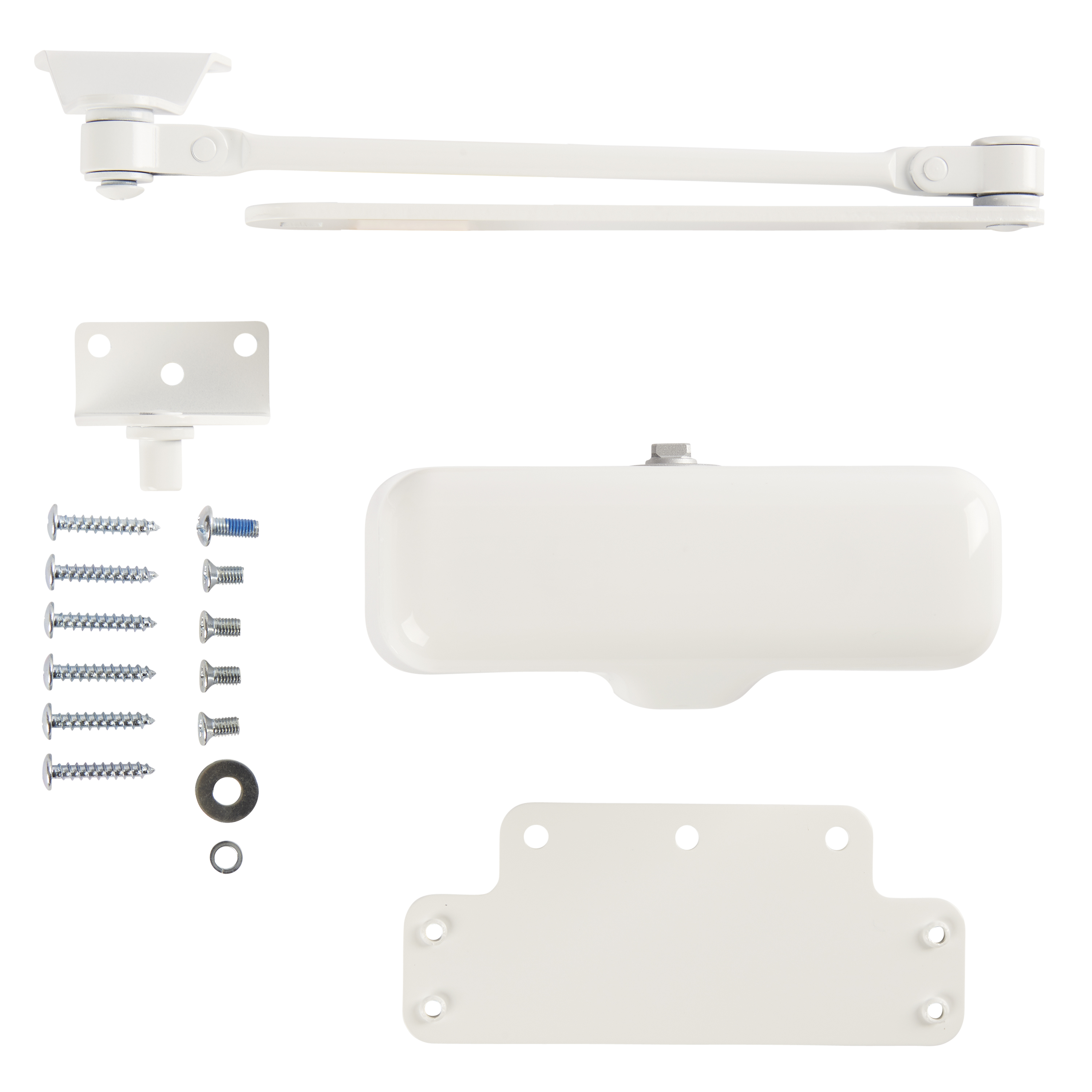

  • Included hardware: finished matched closer body, mounting screws and installation instructions

Additional Images

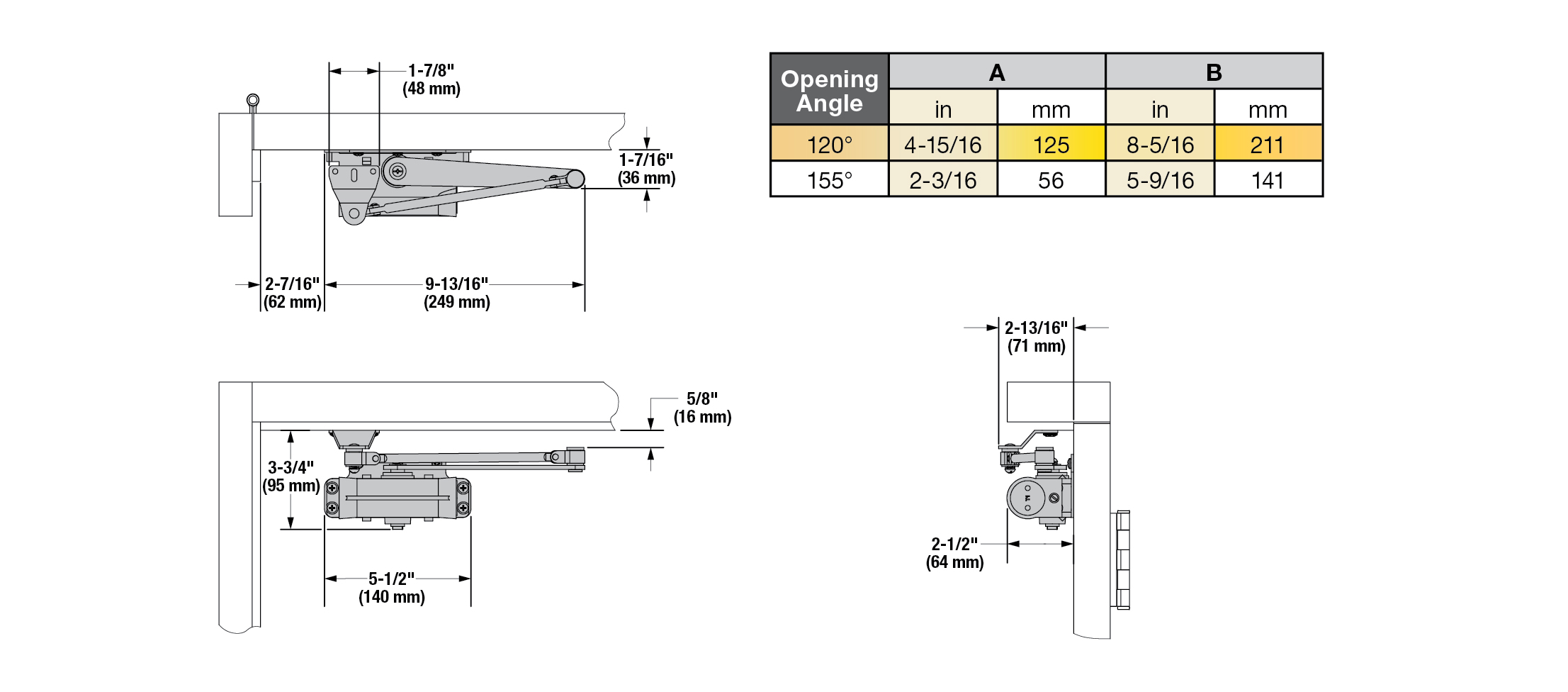

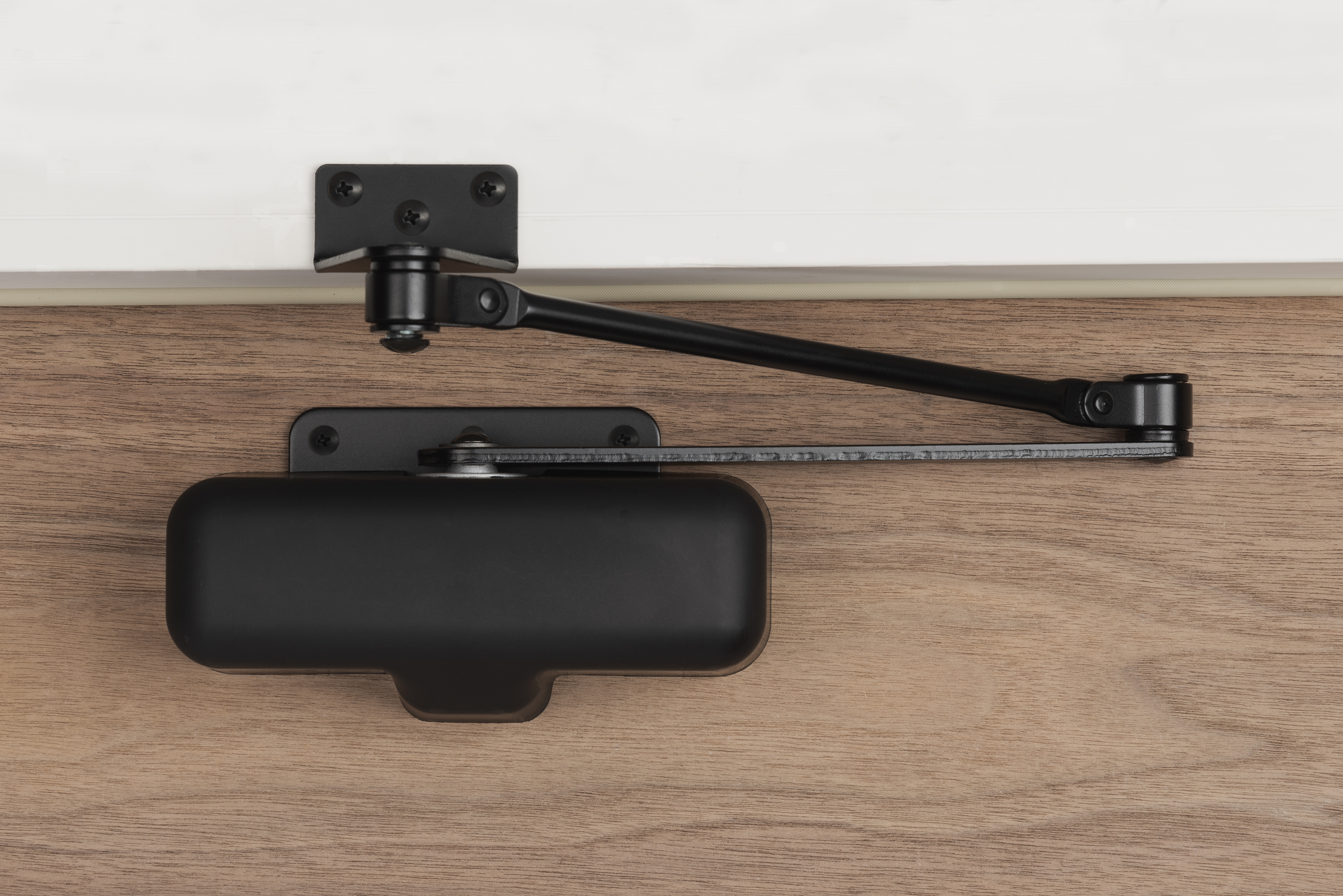

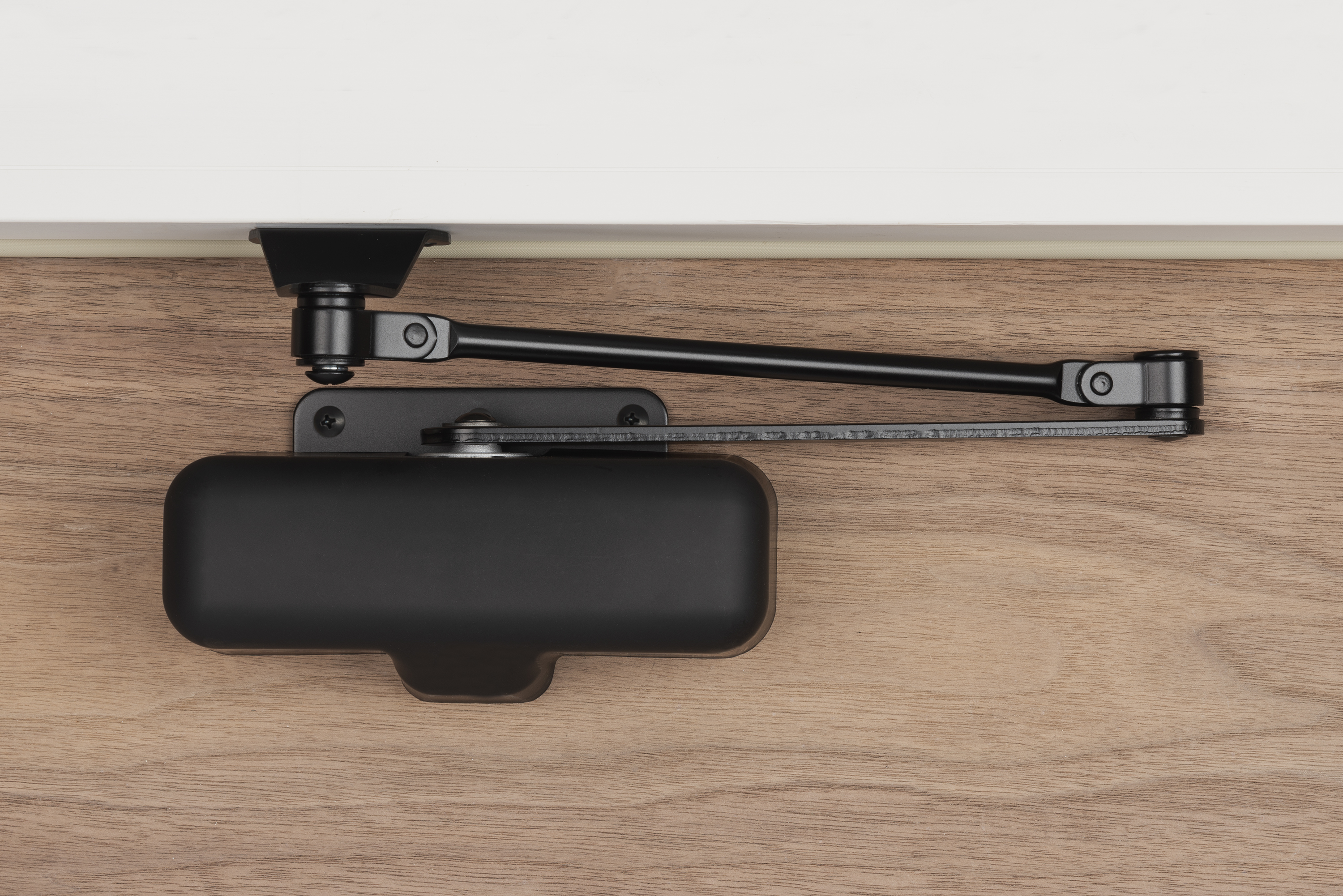

Mounting Configurations



Instructions 1


Instructions 2


Instructions 3


Product Information

Technical Details

Retail Width 10.63 in
Retail Height 3.5 in
Retail Depth 3.63 in
Retail Weight 3.21 lb
Included Hardware Yes
Interior Door Compatibility Left or right handed doors up to 100lbs. and 30" wide
OpeningRange 180 Degrees
Mount Type Parallel Mount
Closing and Latching Speed Adjustable Closing
Indoor Outdoor Indoor
UL Listing No
ADA Compliant Yes
Finish White
Warranty 5 Year Limited Warranty
Country of Origin Taiwan (TW)

Additional Information

SKU BC4009
UPC 039208237475
Brand Brinks Commercial
Type Closer
