Keypad Entry Lever

SKU BC40107
Find online:
Function: Keypad Entry
Color: Satin Chrome

Product Description

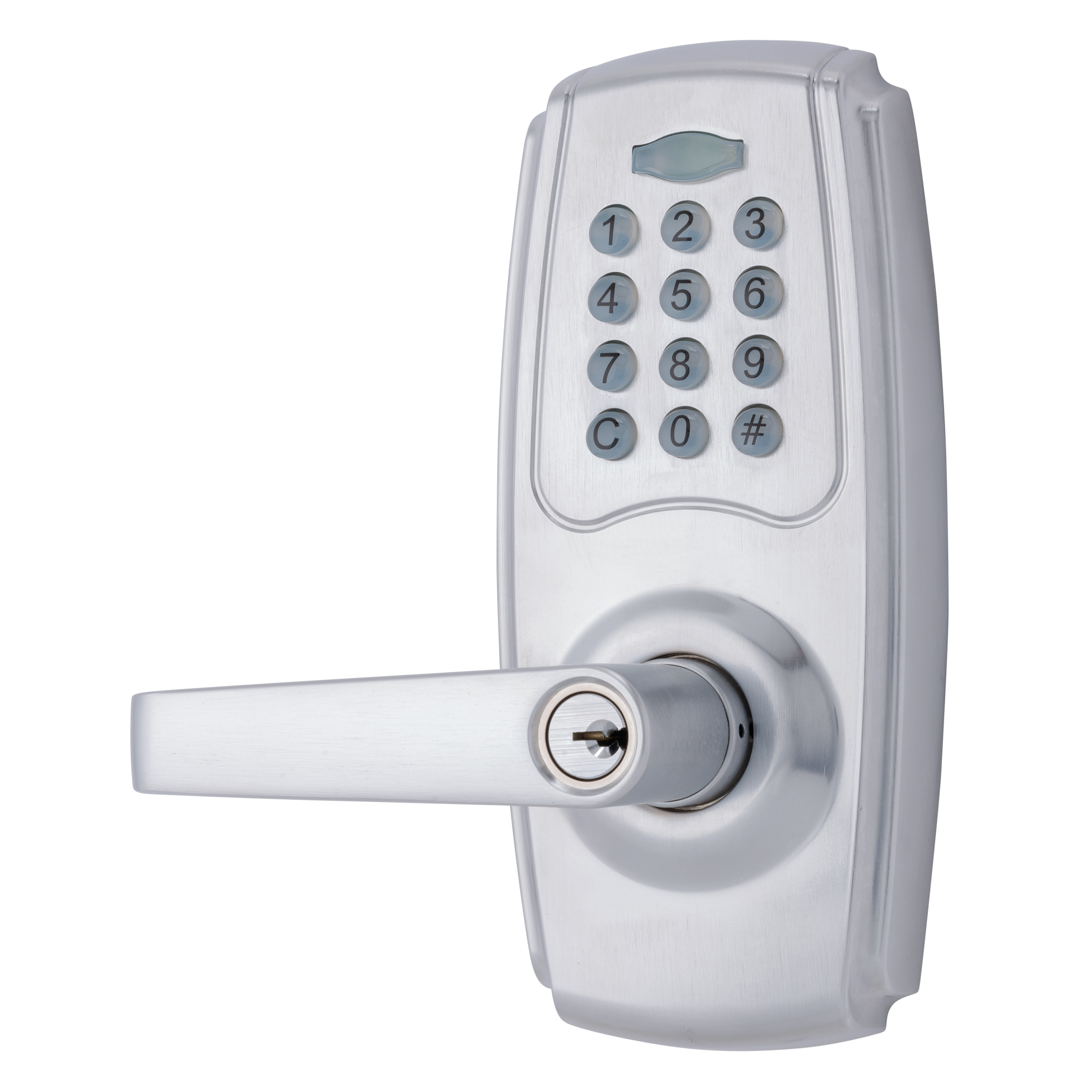

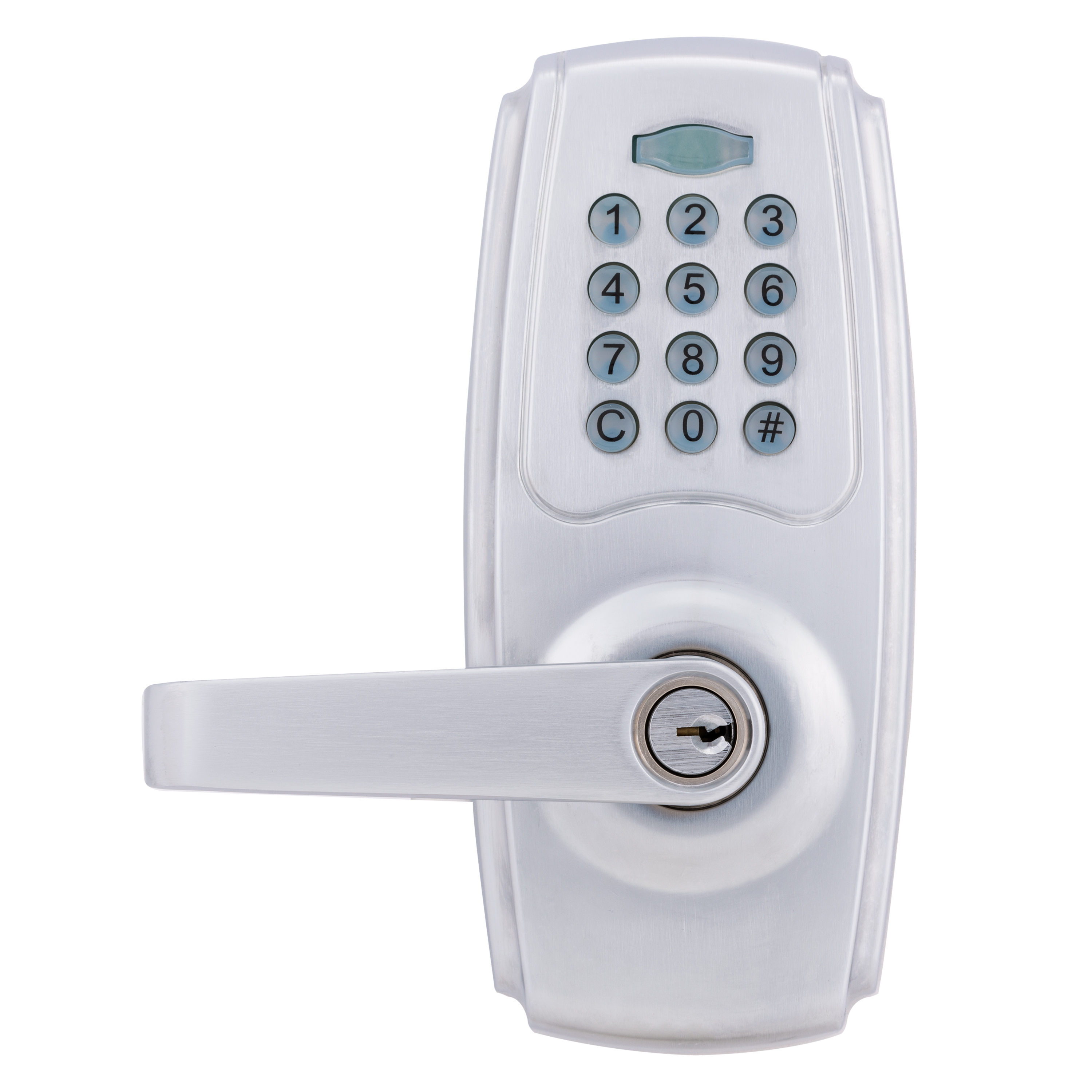

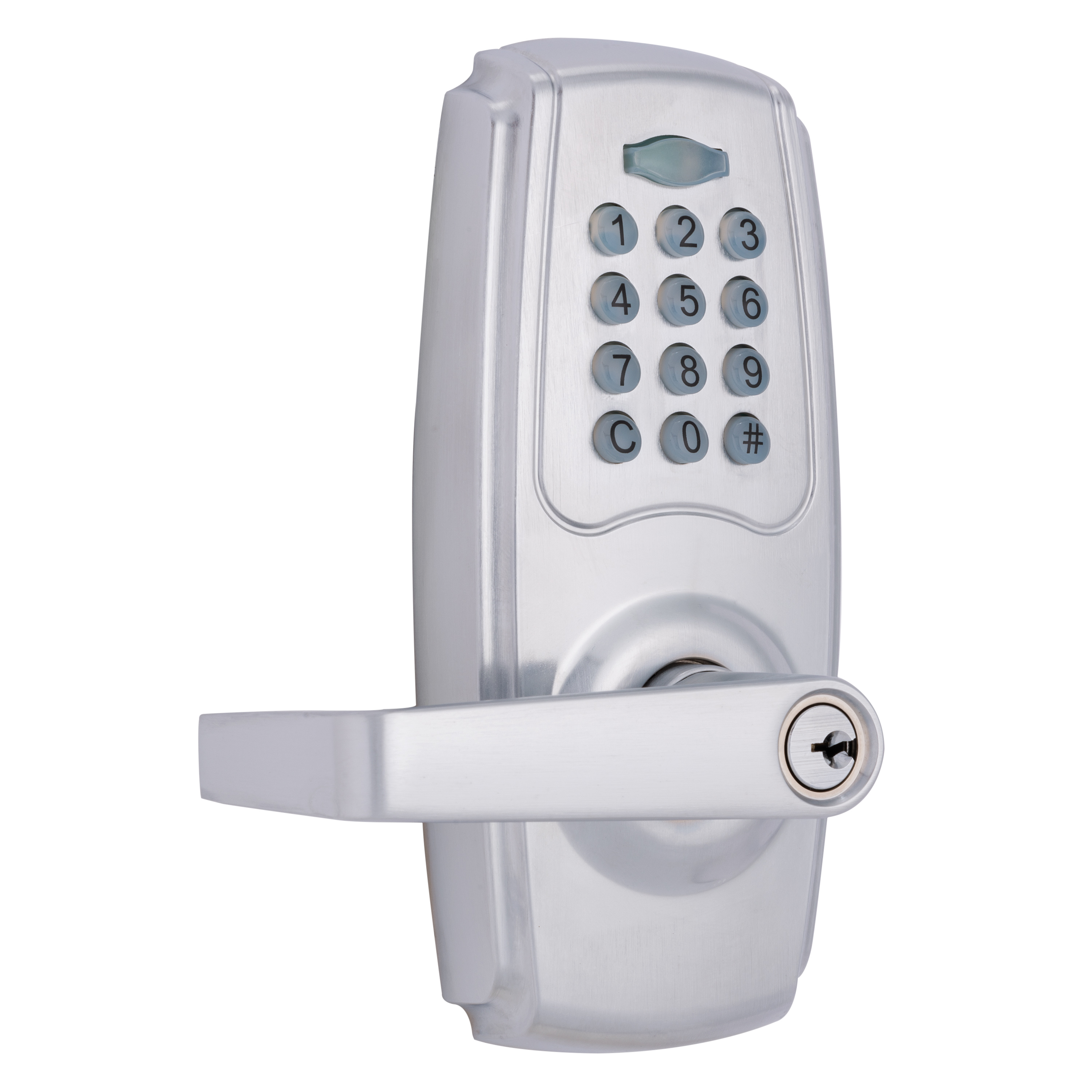

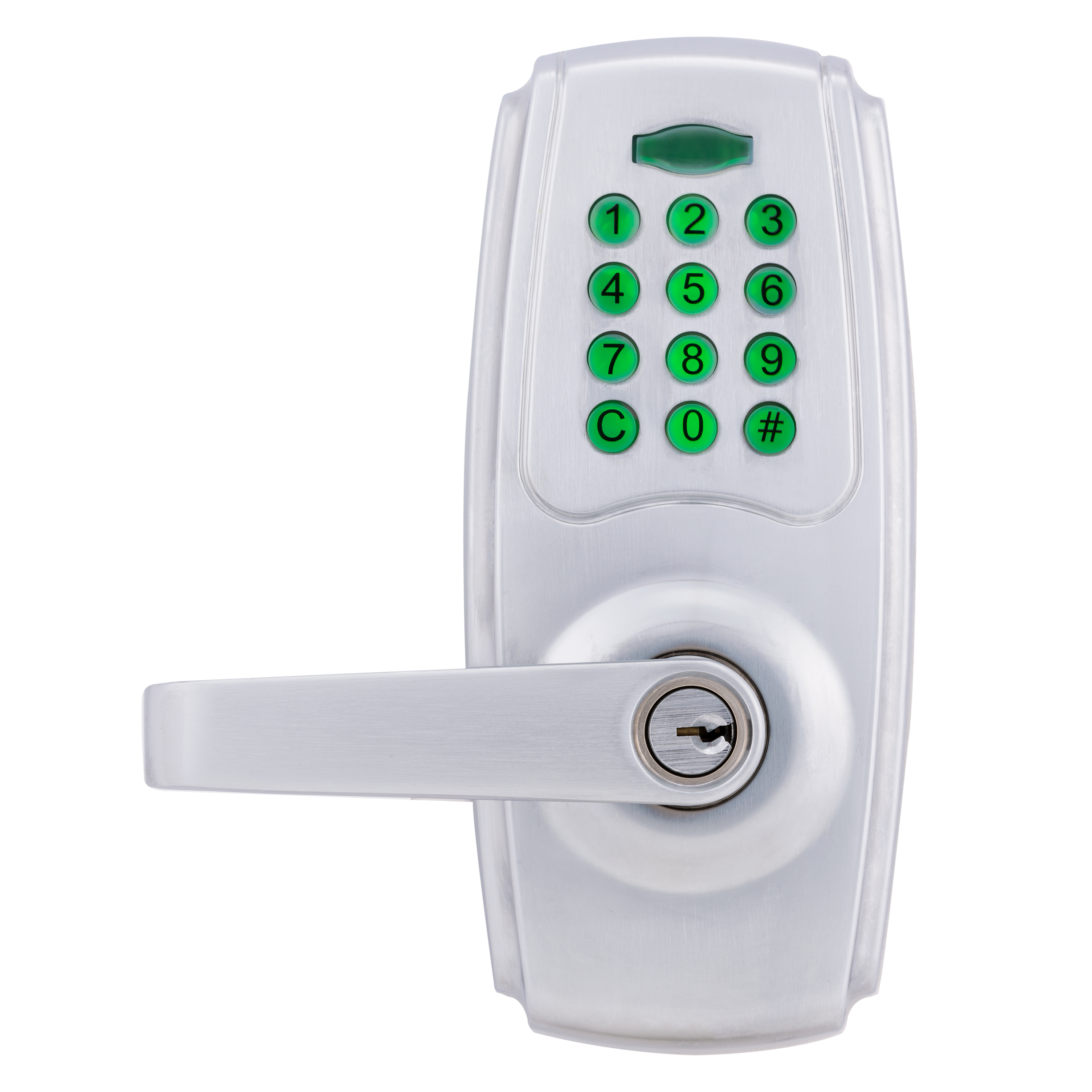

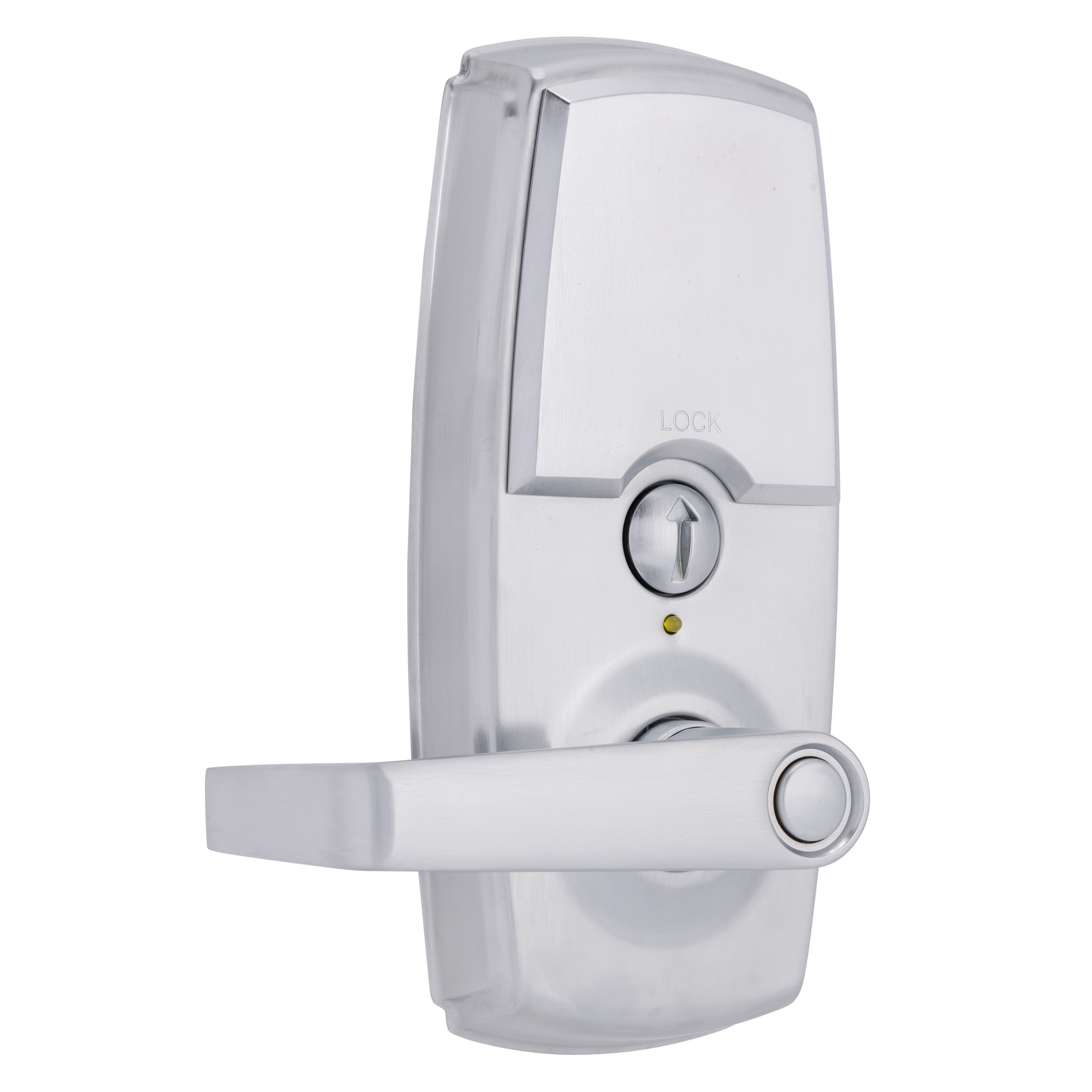

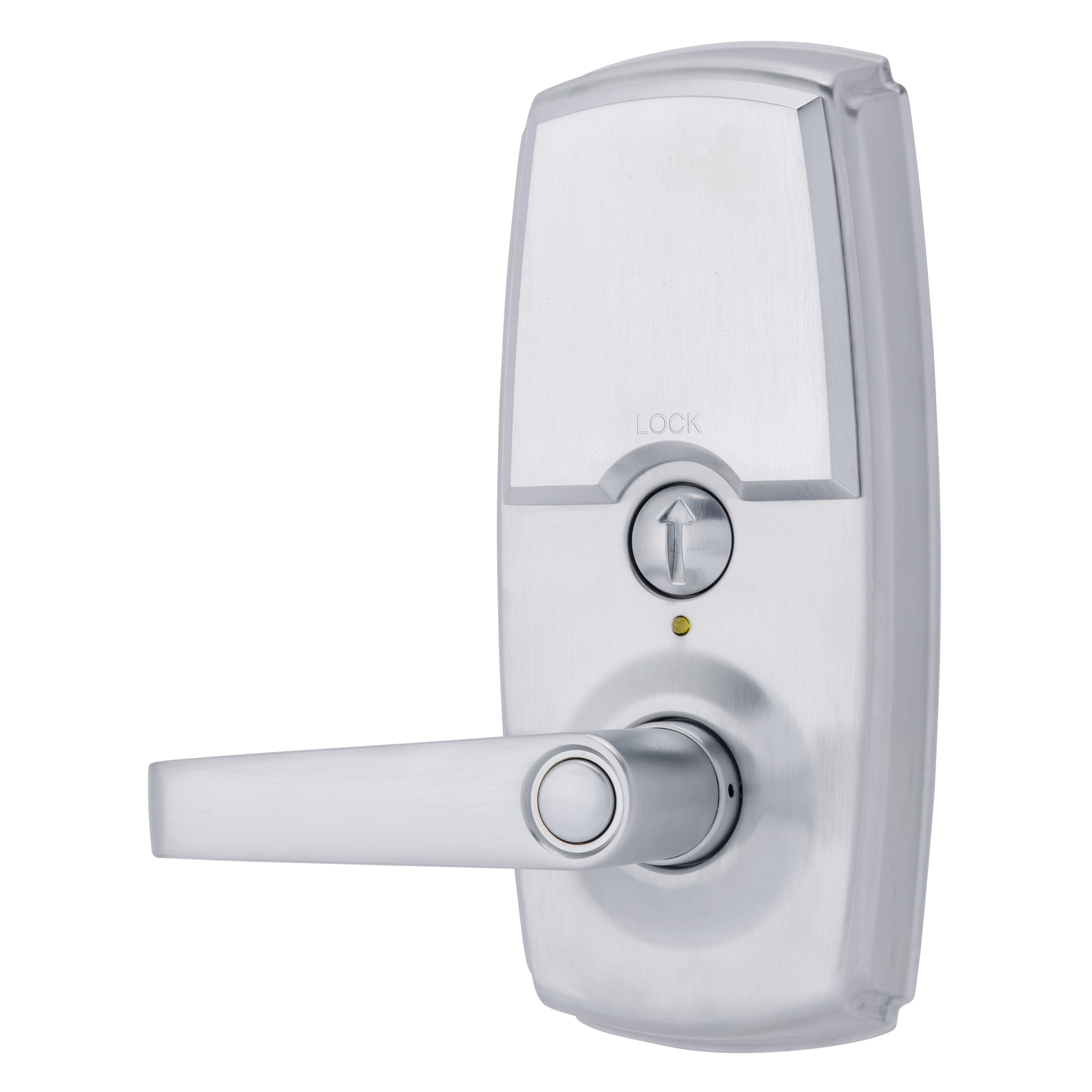

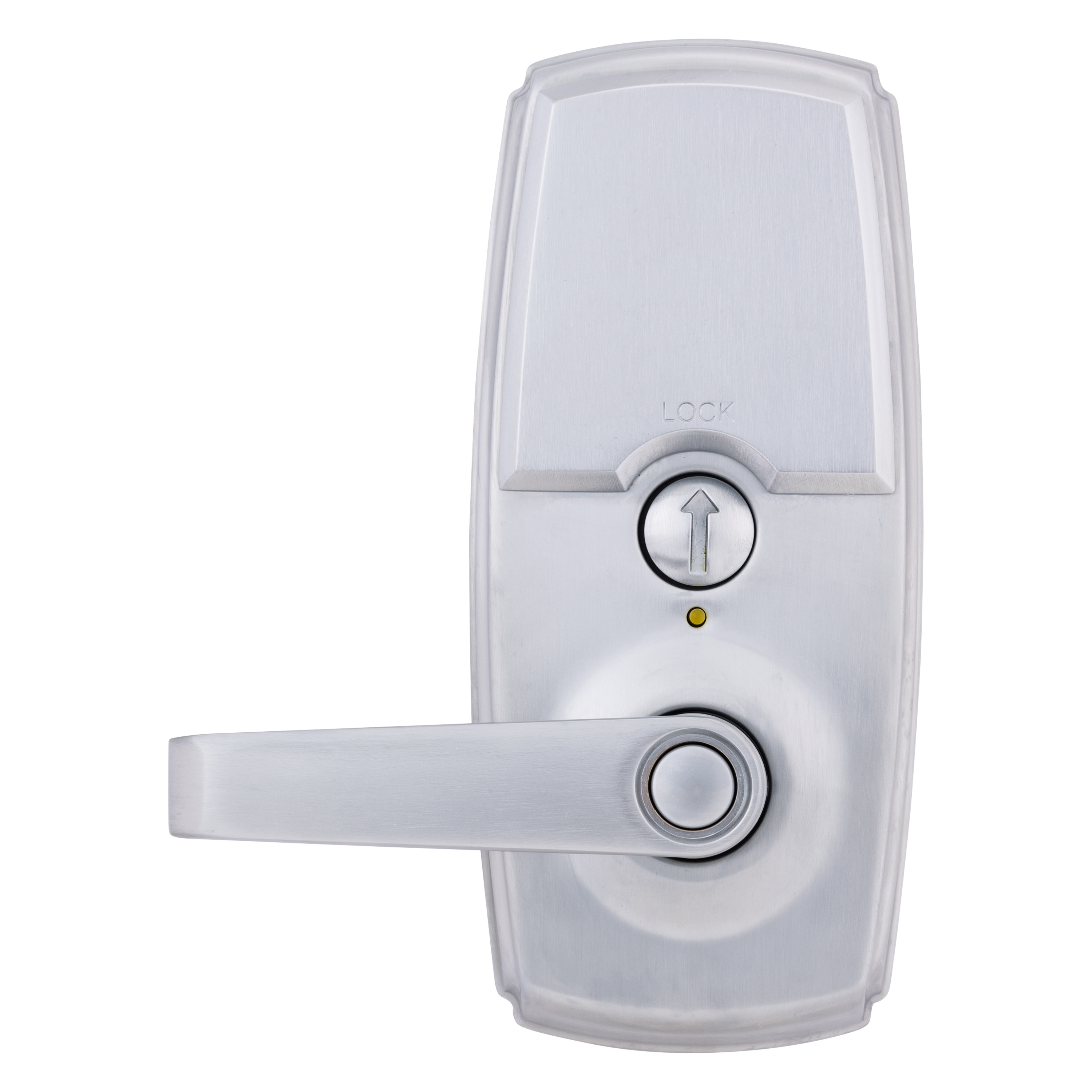

The Brinks Commercial Keypad Entry Lever provides convenient keyless protection for your commercial space. This keypad leverset is perfect for entry doors or doorways where added security is needed such as; maintenance rooms, supply closets or member-only access areas. It comes with an auto-lock feature has an adjustable delay so you can ensure the door is locked after entry or exit. The keypad has illuminated buttons that light up when pressed. The lock is programmableand can hold up to 99 additional user codes. The leverset runs on 4, AA alkaline batteries (included) and features a low battery indicator on the interior handle. The keypad entry lever is ANSI Grade 2 rated for commercial use and has a 6-Pin SC4 Cylinder, brass plug for added security. An adjustable latch, 3 spare keys, t-strike and full lip strike are included.

ANSI Badge Warranty Badge

Construction

  • Equipped with 3-3/4" solid zinc diecast levers
  • Sleek satin chrome finish
  • 6-pin SC4 solid brass cylinder in backup keyway

Durability

  • Meets ANSI Grade 2 standards
  • Suitable for indoor or outdoor use
  • 10 year limited warranty

Installation

  • Door Type: Wood or metal doors 1-3/8" to 2" thick
  • Non-handed/ Reversible: Can be applied to left or right handed doors
  • Latch: Adjustable 2-3/8" or 2-3/4" backset
  • Tubular chassis helps simplify installation
  • Included hardware: Hardware, full lip strike and instructions

Additional Images

Drawings

Files

Instructions 1

Download

Instructions 2

Download

Product Information

Technical Details

Function Keypad Entry
Retail Width 3.94 in
Retail Height 7.52 in
Retail Depth 7.68 in
Retail Weight 4.52 lb
Included Hardware Yes
Interior Door Compatibility Left or right handed wood or metal doors 1-3/8" - 2" thick
Exterior Door Compatibility Left or right handed wood or metal doors 1-3/8" - 2" thick
ANSI Grade 2
Mount Type Surface Mount
Indoor Outdoor Both
UL Listing No
ADA Compliant No
Finish Matte Black
Warranty 10 Year Limited Warranty
Country of Origin Taiwan (TW)

Additional Information

SKU BC40107
UPC 039208241649
Brand Brinks Commercial
Type Lever
