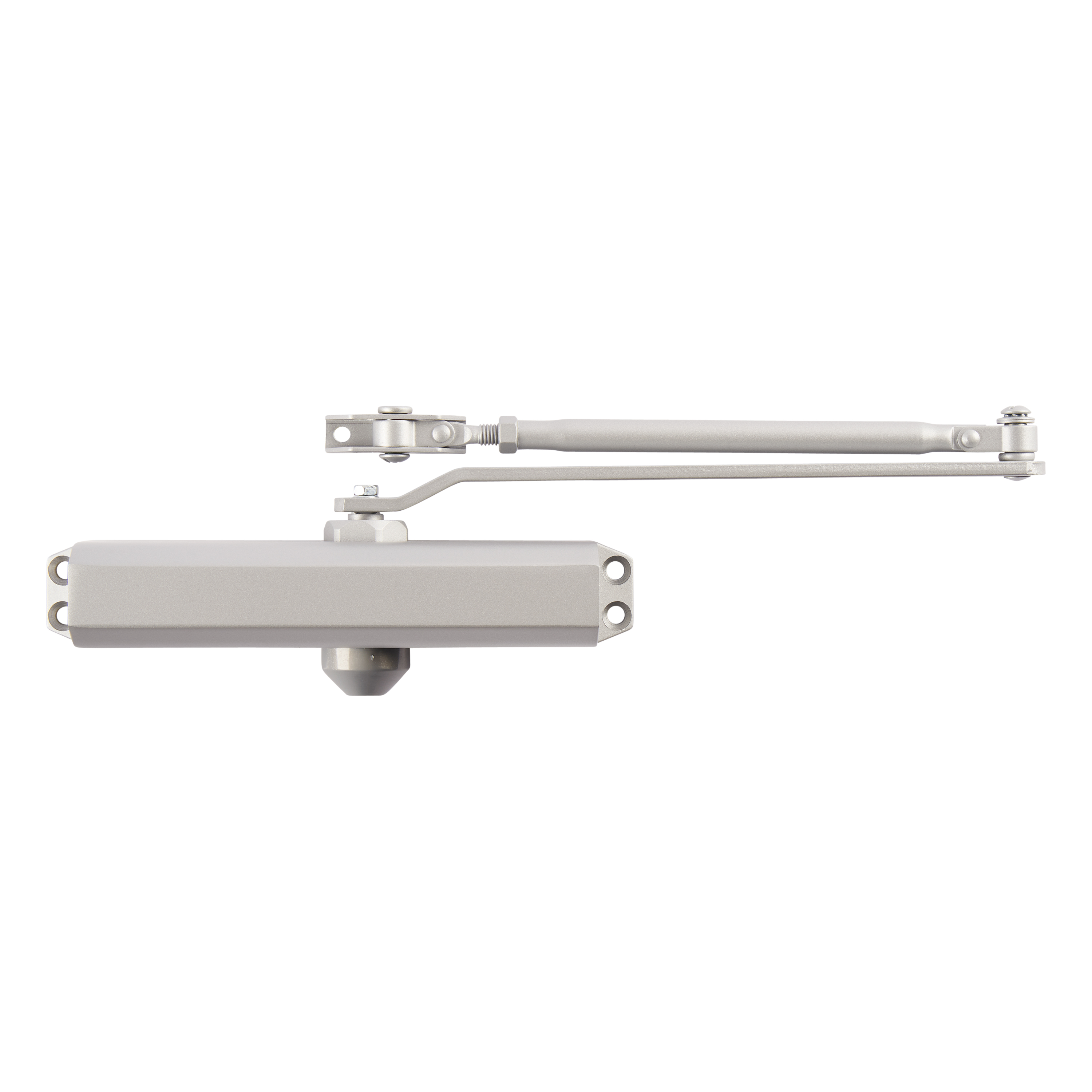

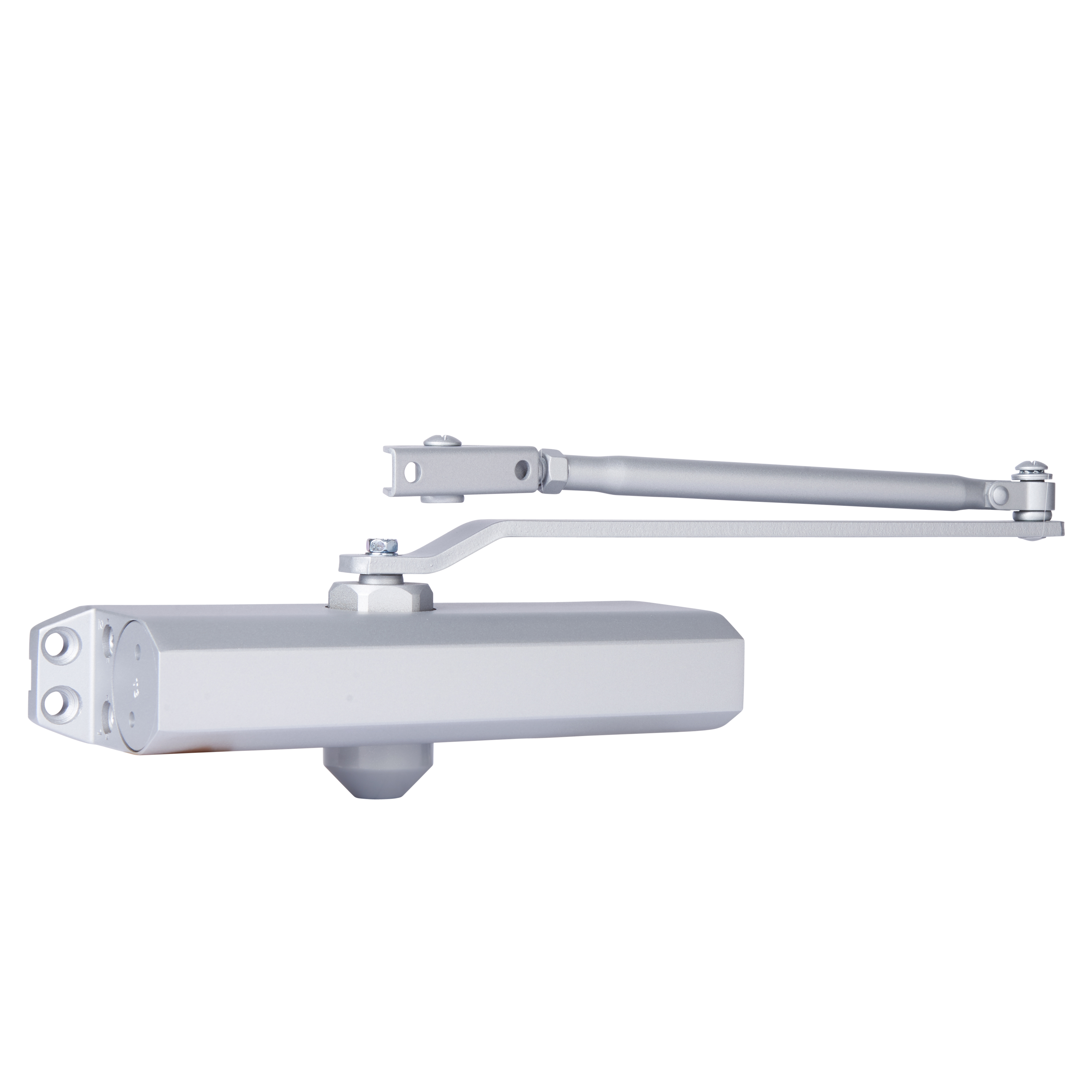

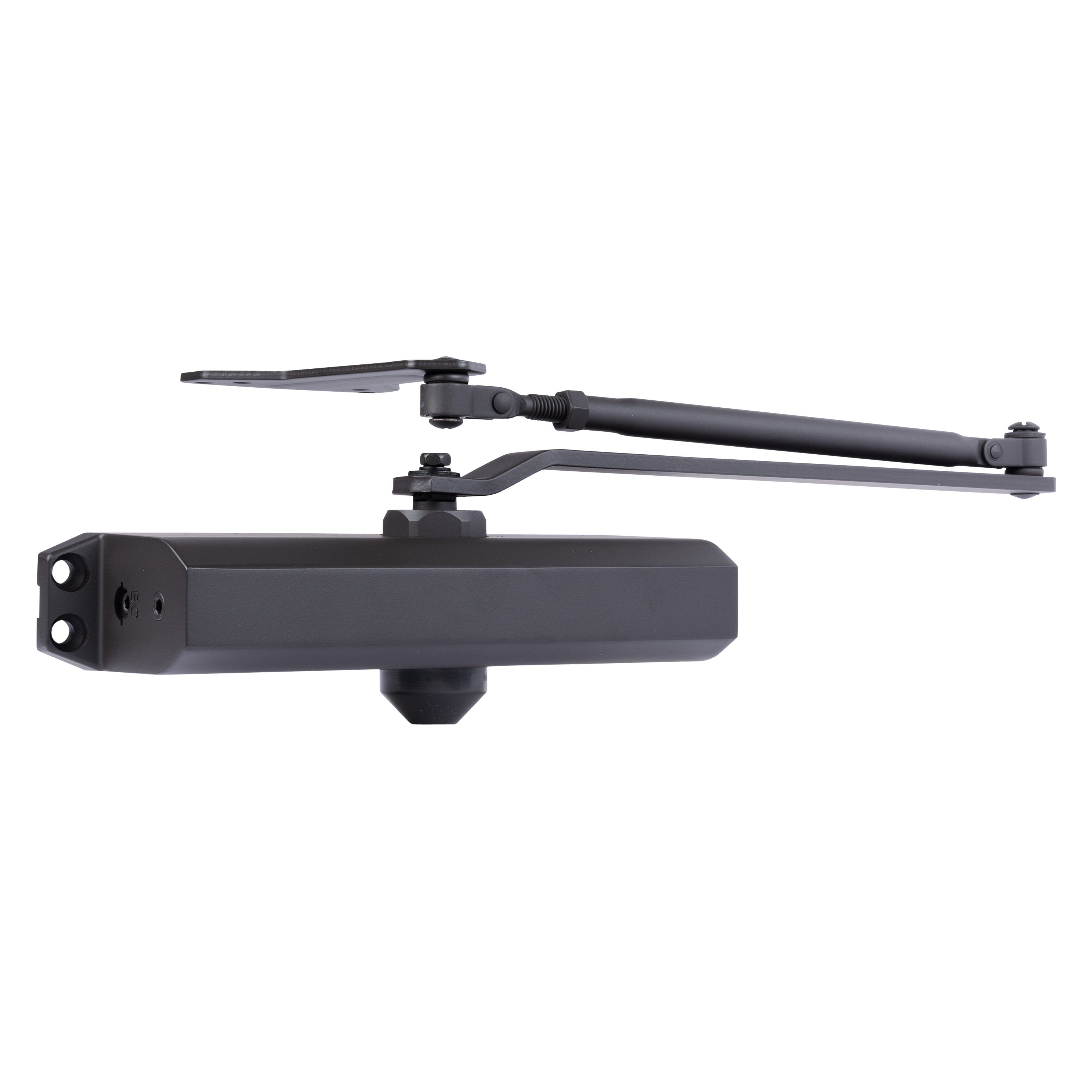

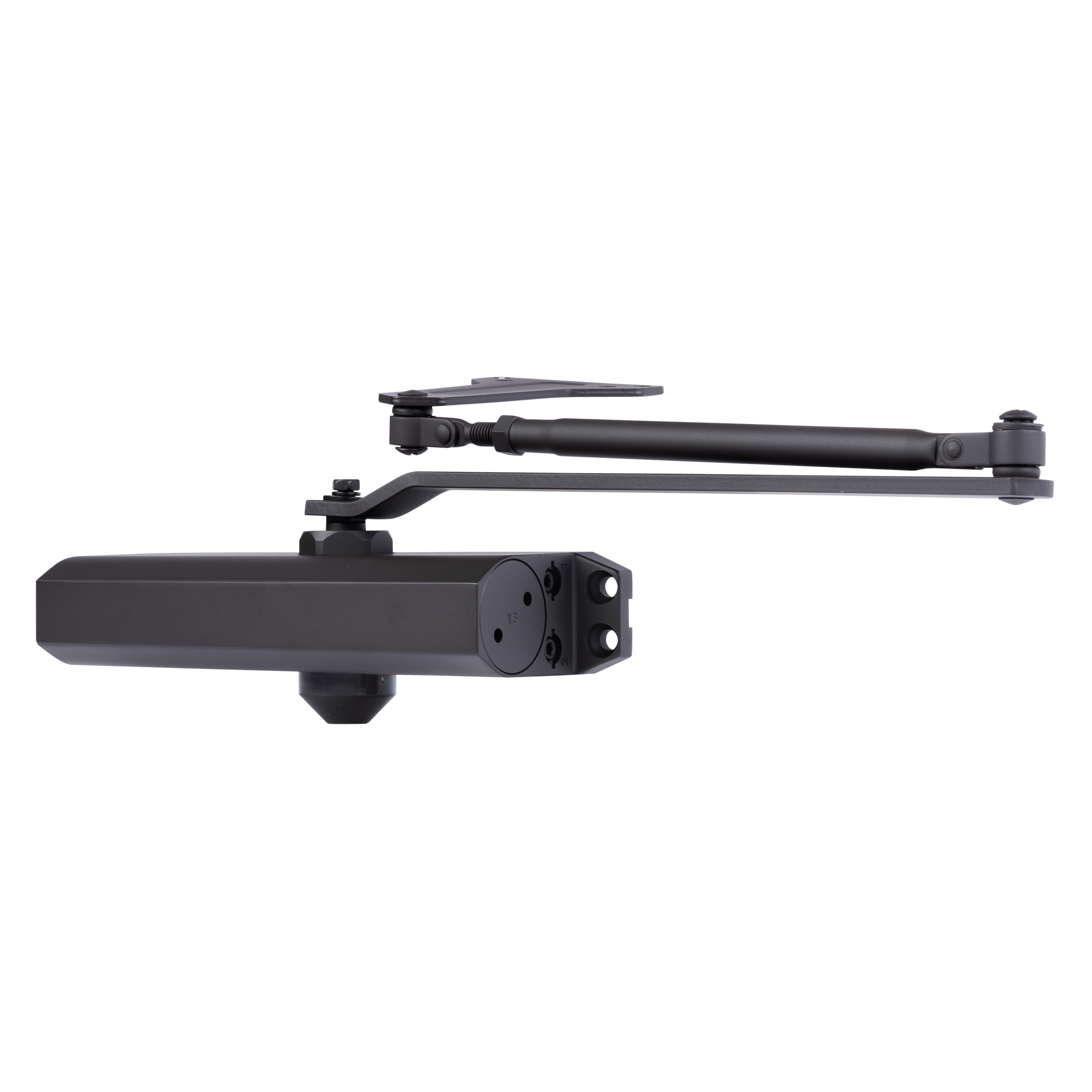

Heavy Duty Commercial Door Closer

SKU BC4031
Find online:
Color: Aluminum

Product Description

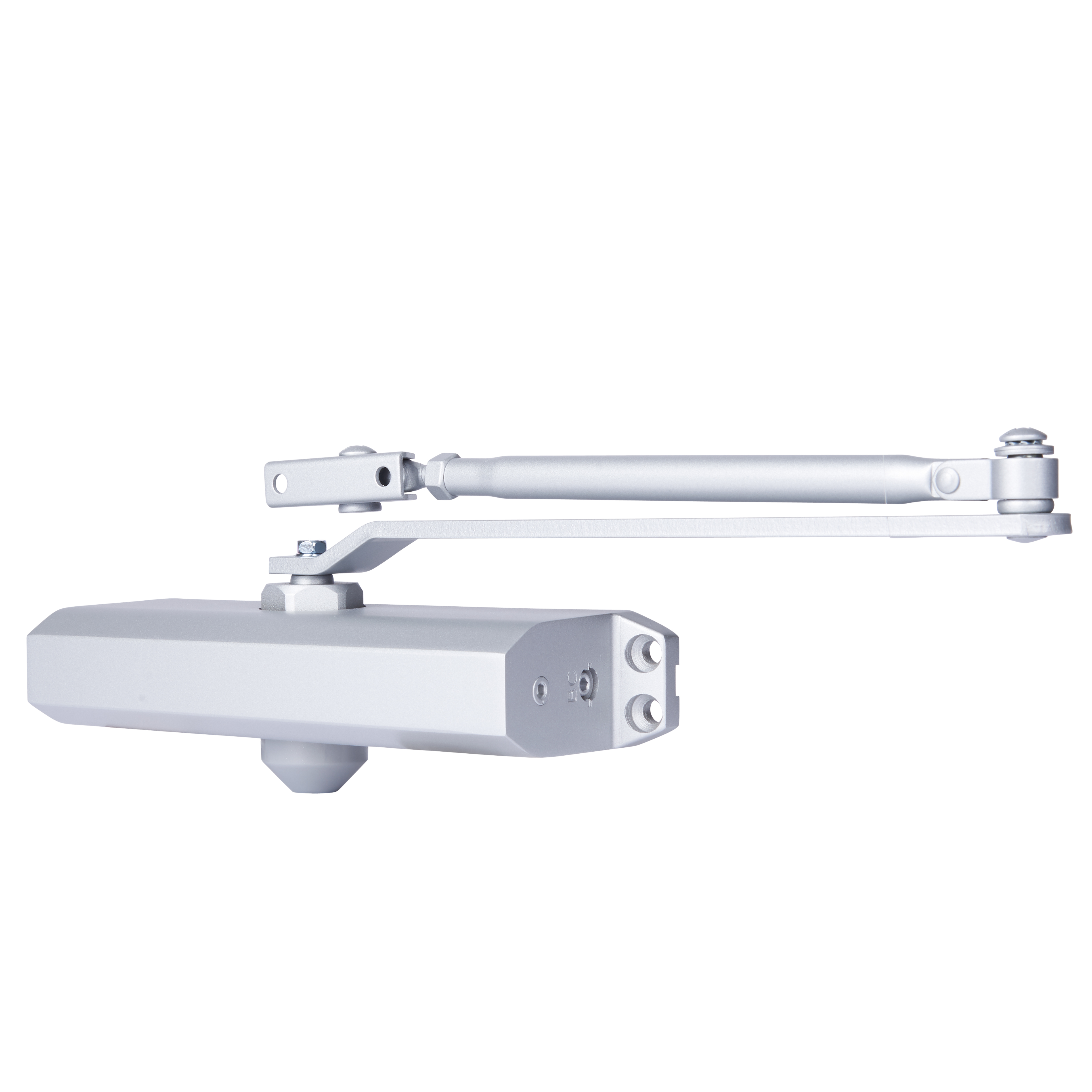

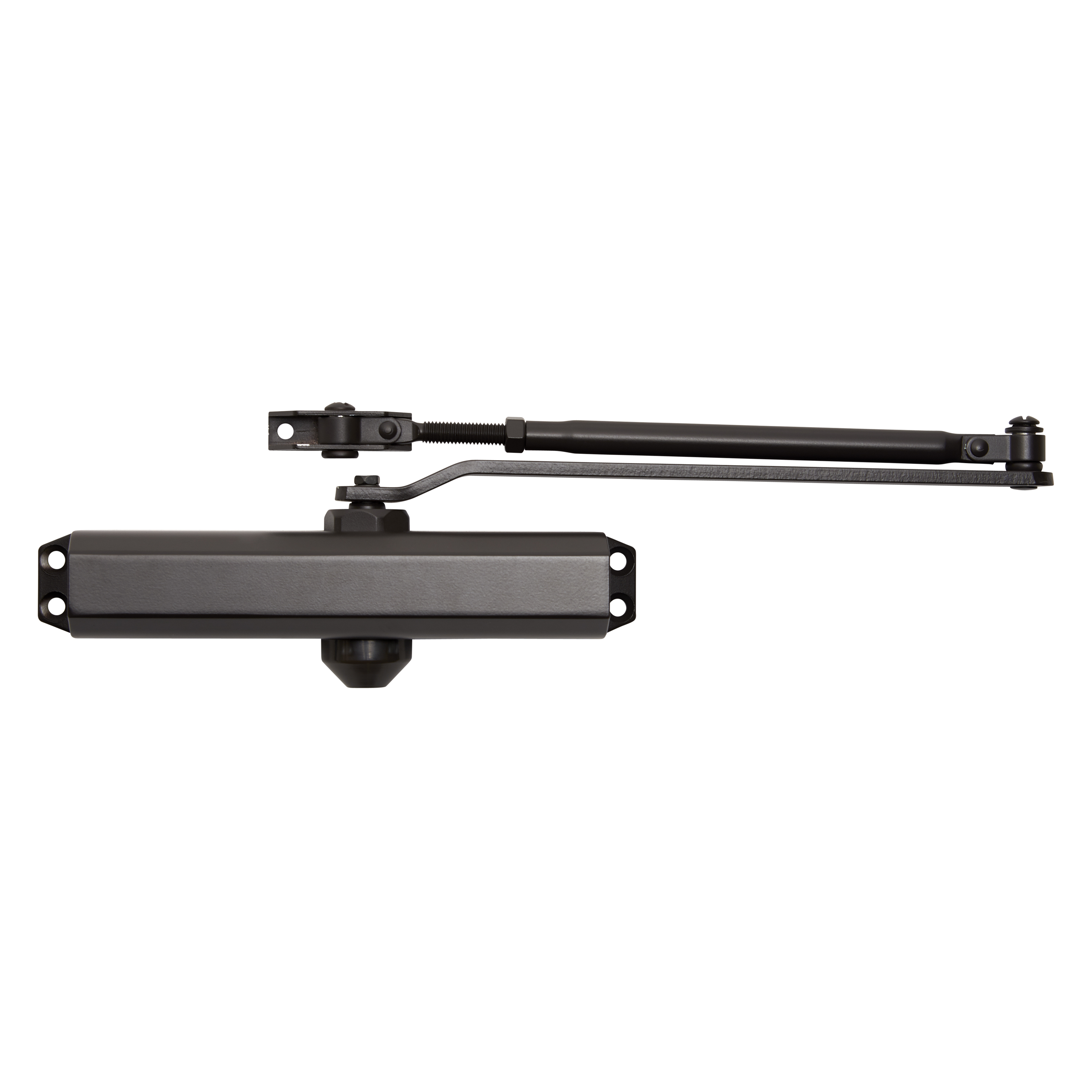

This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 42” and interior doors up to 54”. This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.

ANSI Badge Disability Badge UL Badge Warranty Badge

Construction

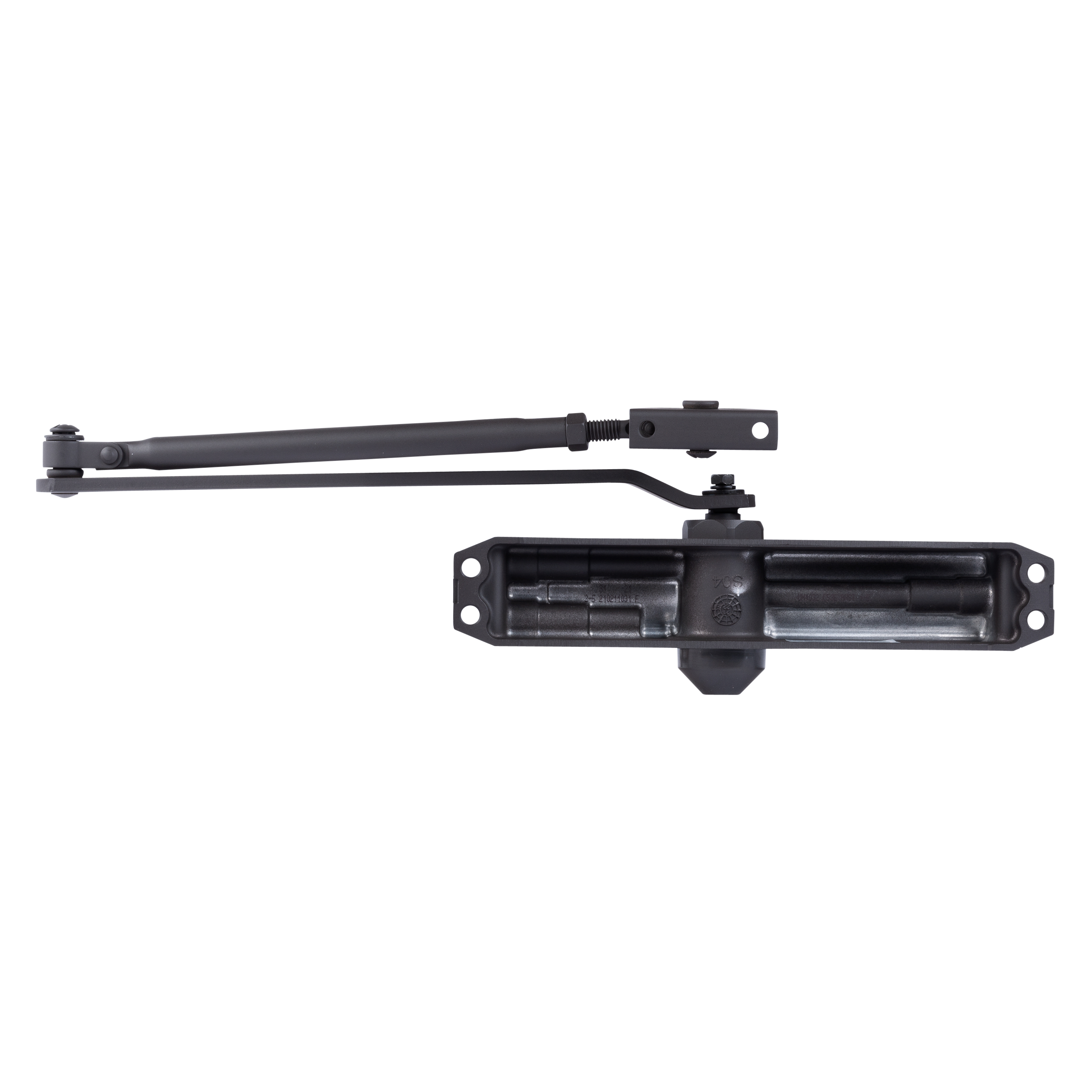

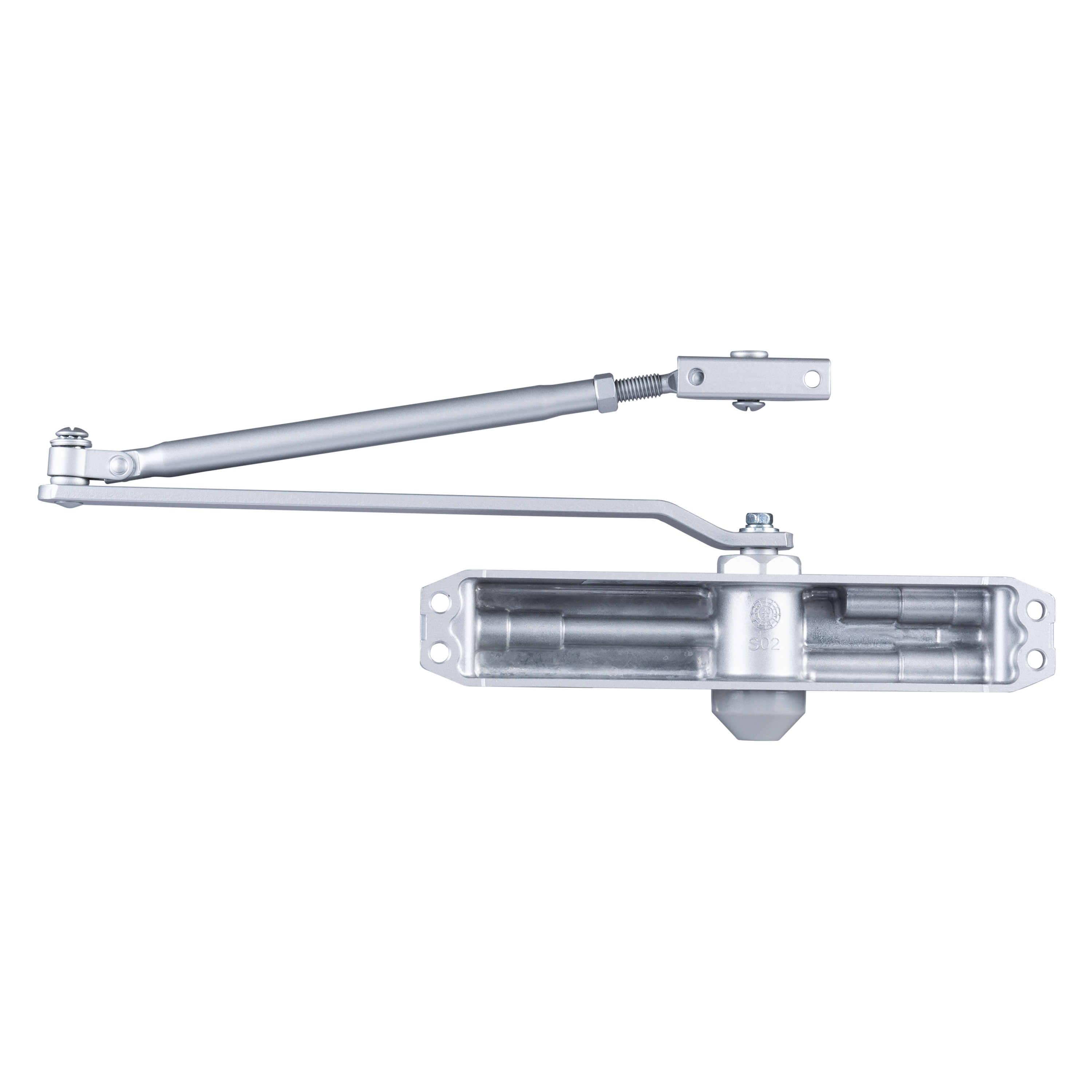

  • All metal body construction for added durability
  • Sleek aluminum finish

Durability

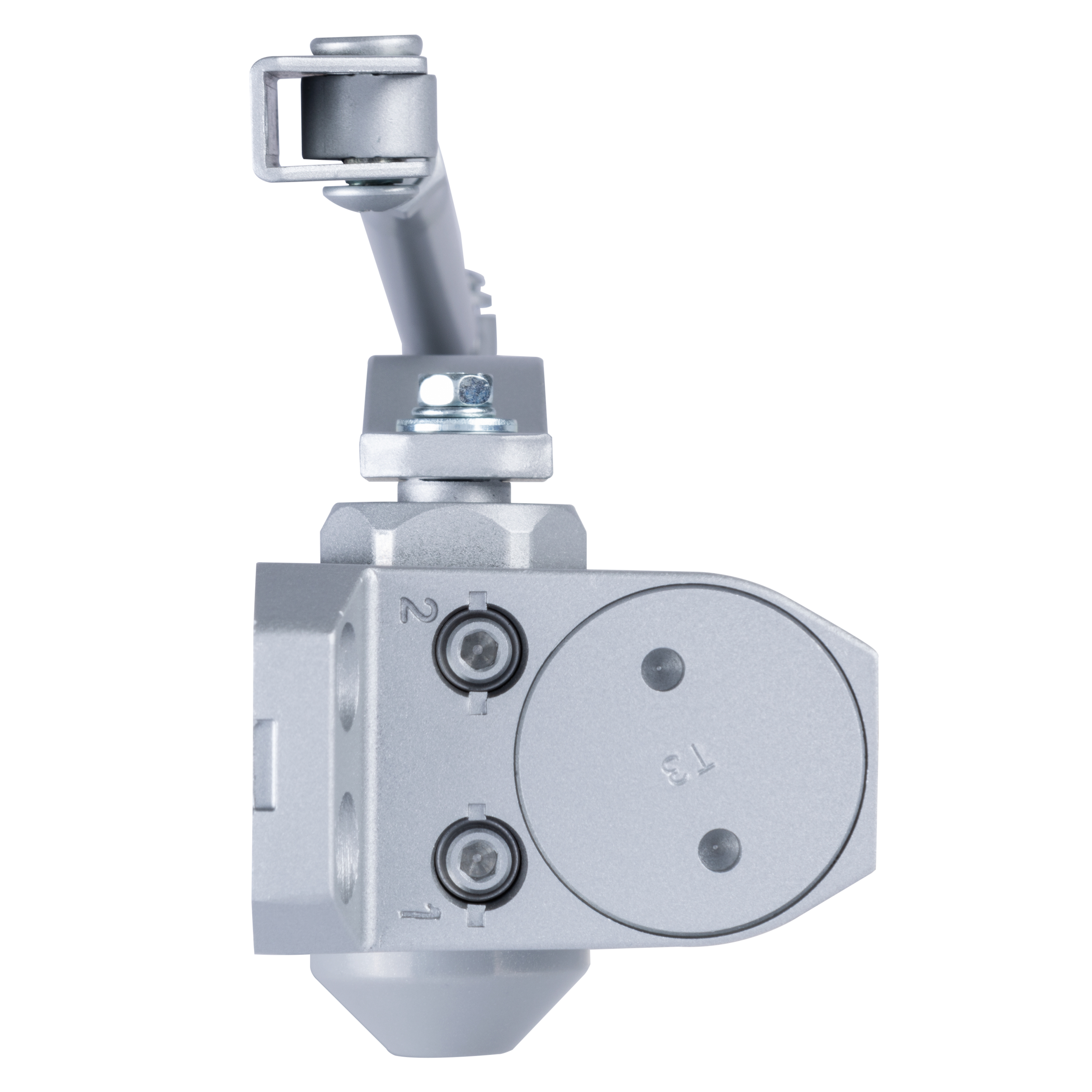

  • Adjustable sizing 1-5: provides ability to use in a variety of applications from light to heavy duty
  • Grade: Meets ANSI Grade 1 standards
  • ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
  • UL Listed: 3-hour fire rated for added protection and meeting building requirements
  • Warranty: Limited 10 year warranty covers finish and function

Installation

  • Interior doors: Left or right hinged doors up to 54" wide
  • Exterior doors: left or right hinged doors up to 42" wide
  • Adjustable back check helps prevent wind damage for exterior facing doors
  • Opening range: 180-degree for added convenience and pass-through space

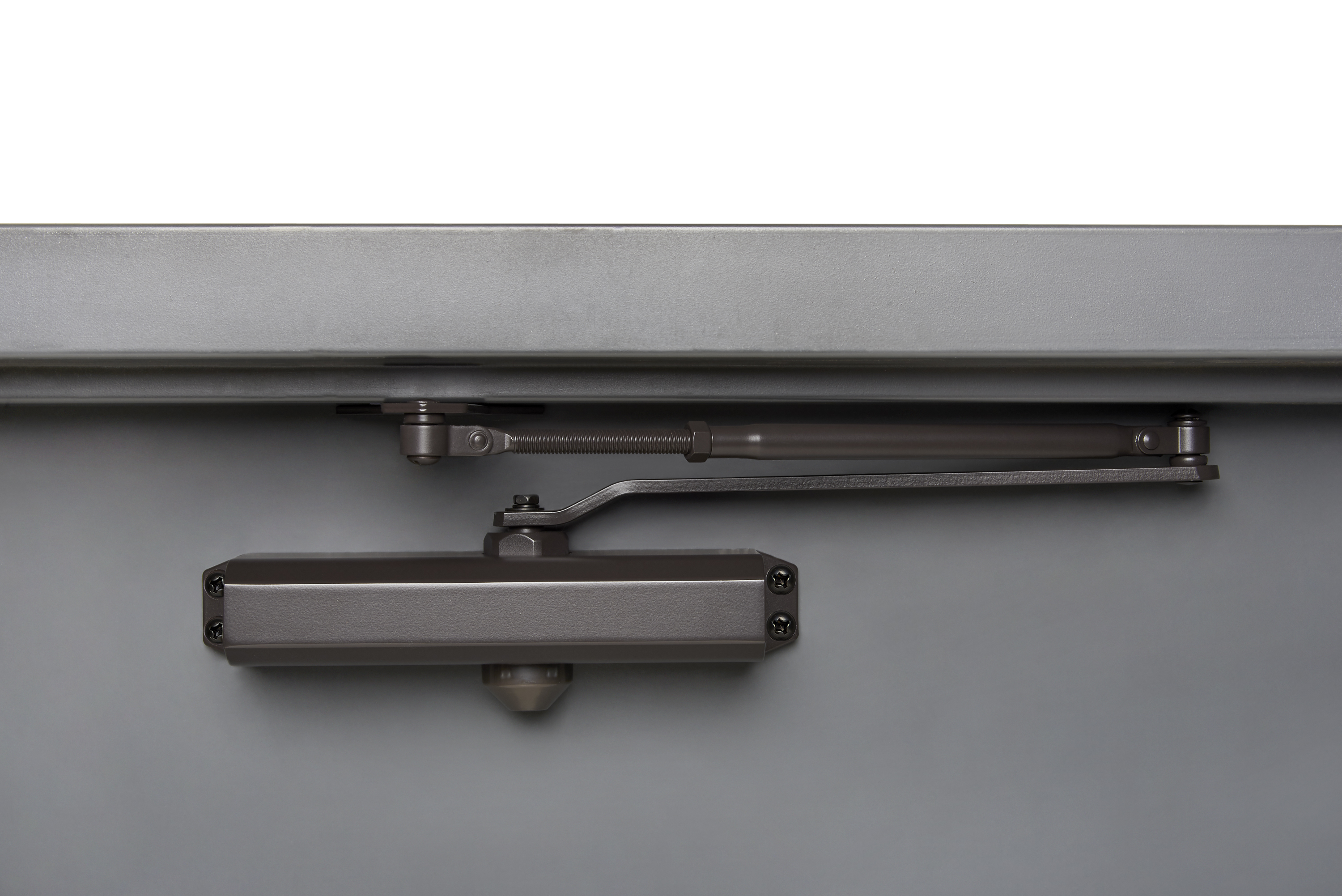

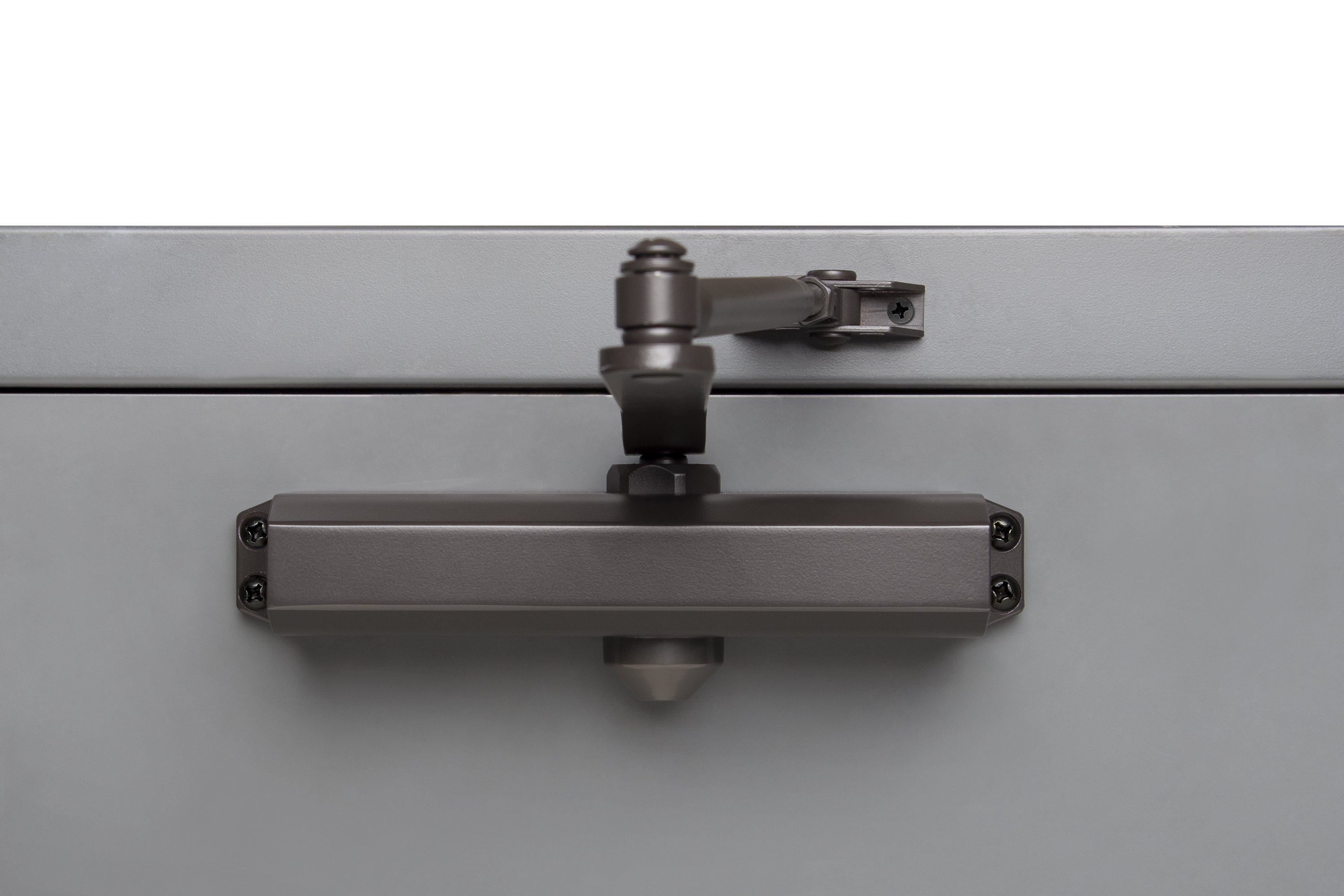

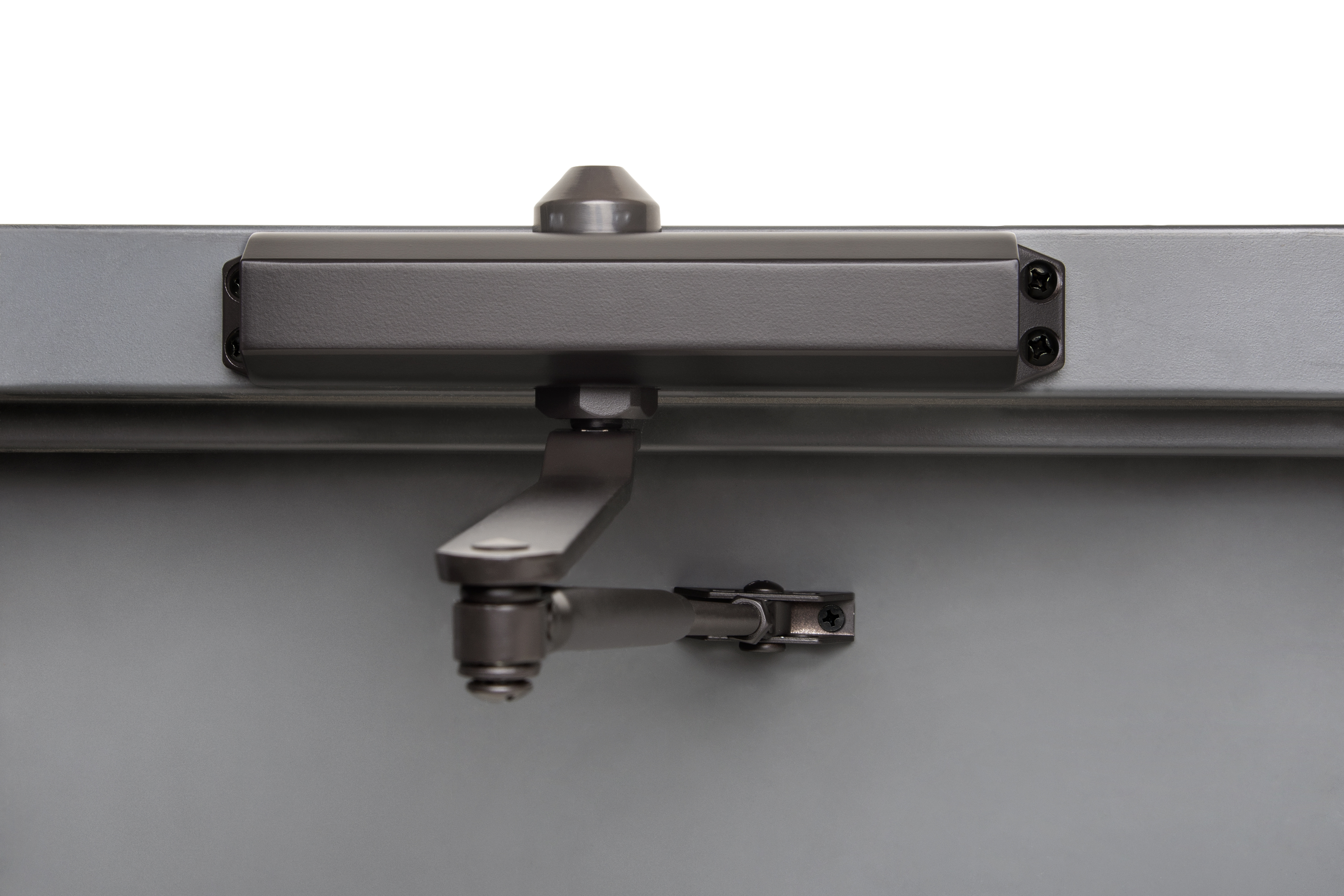

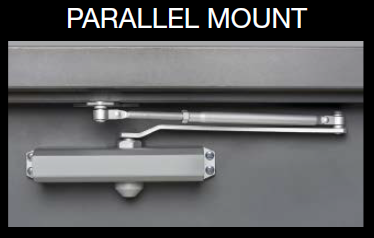

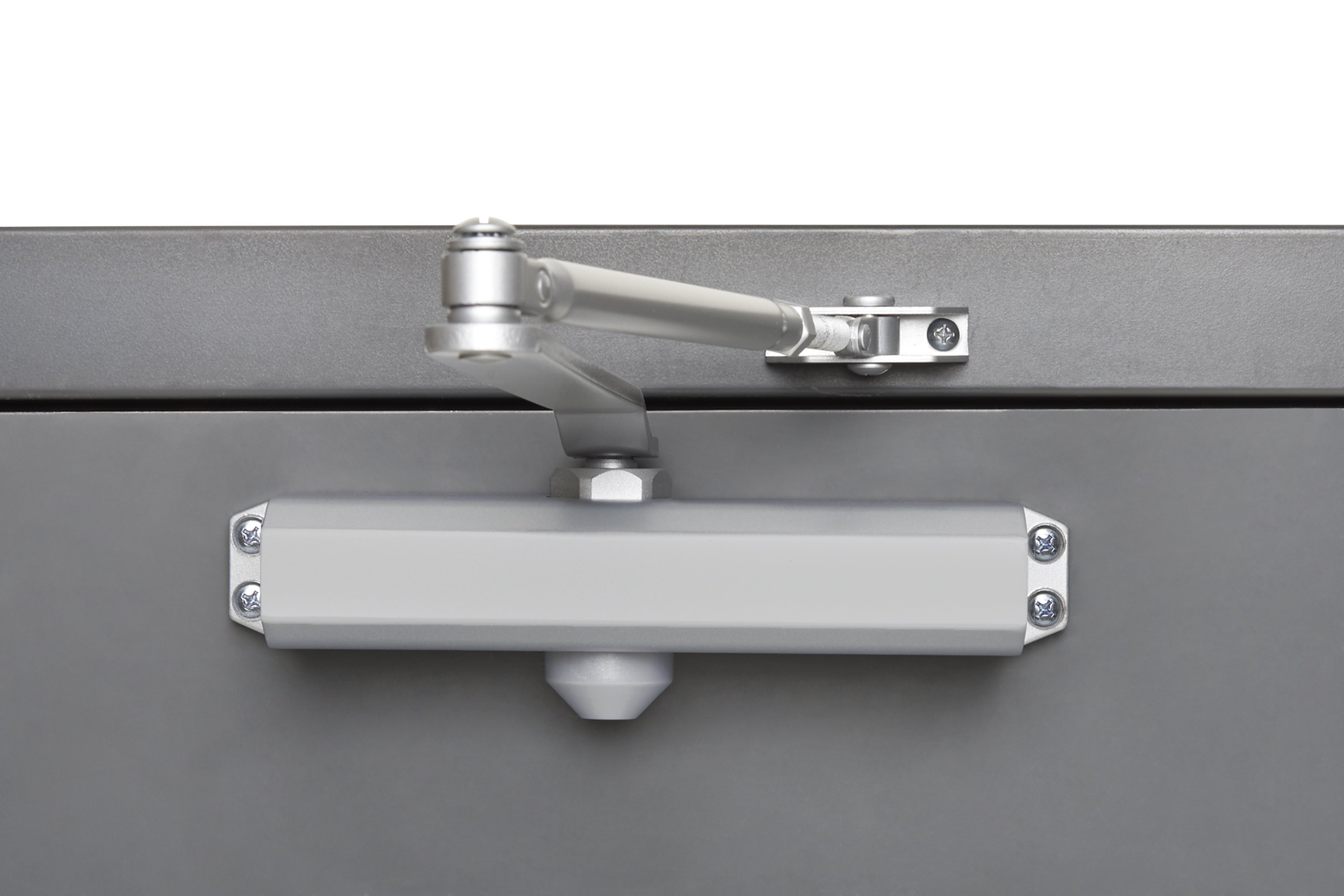

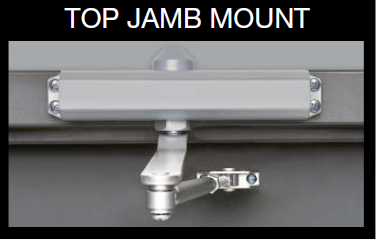

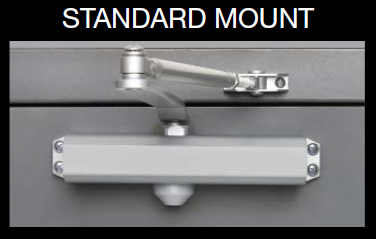

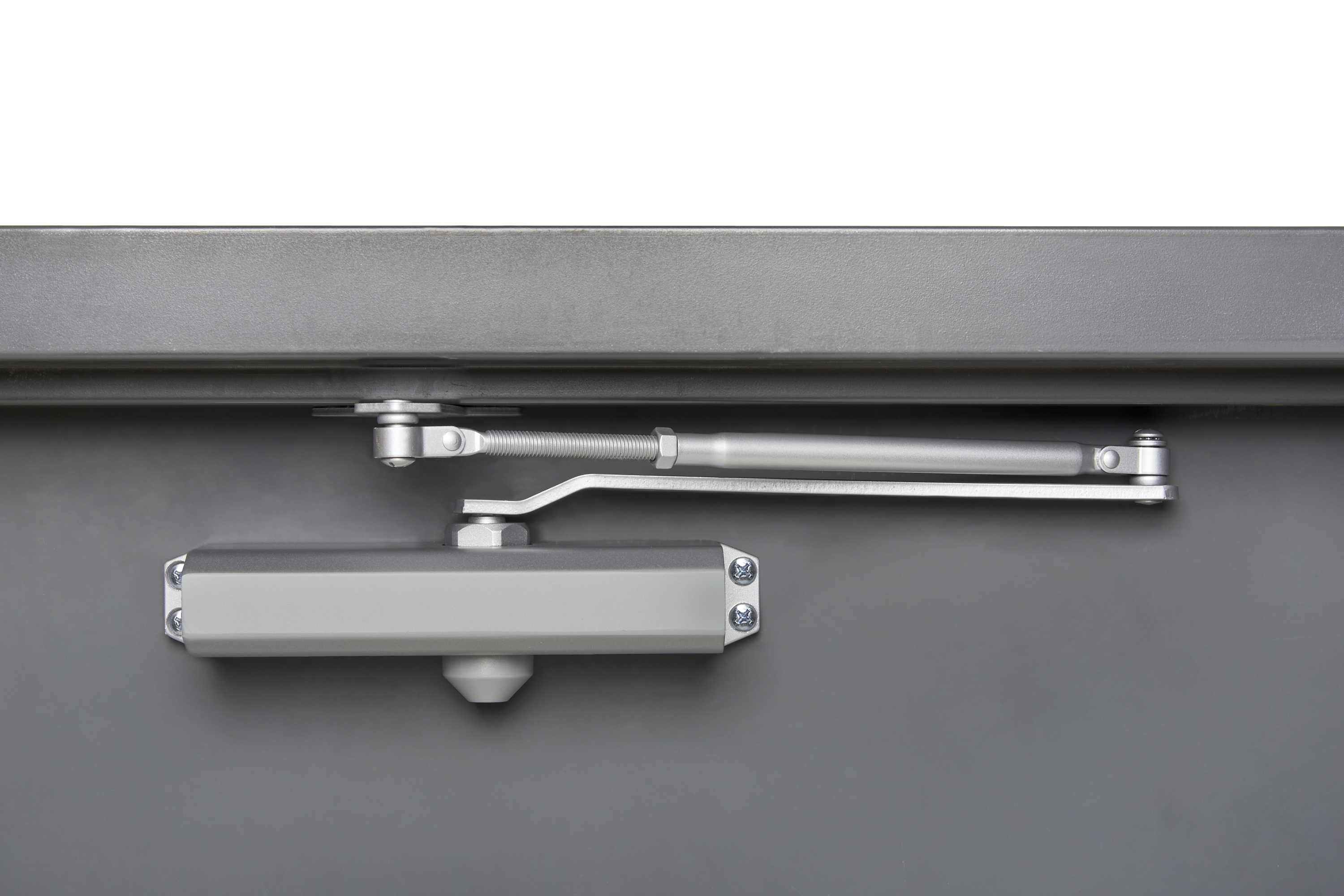

  • Mounting: Standard, top jamb or parallel mounting

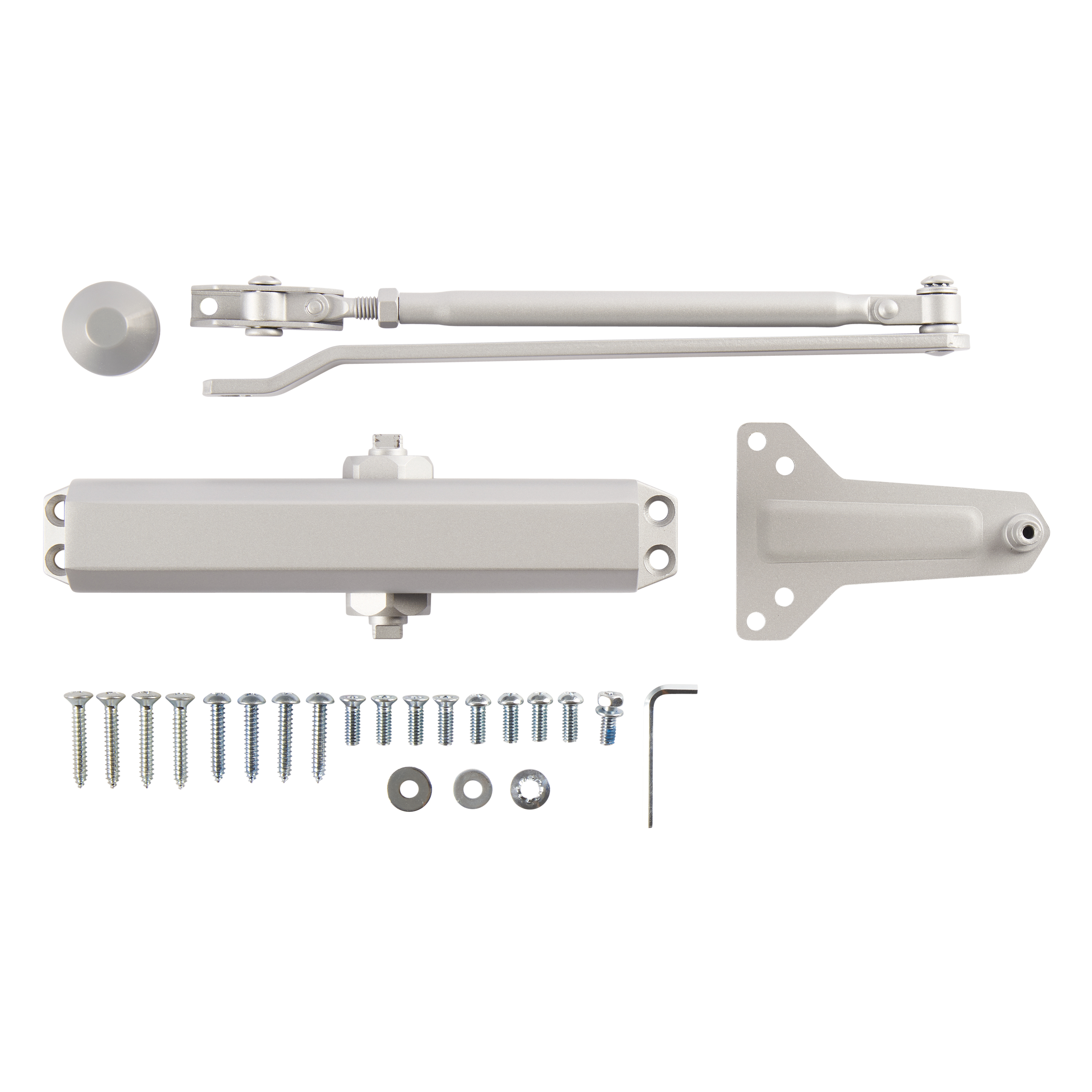

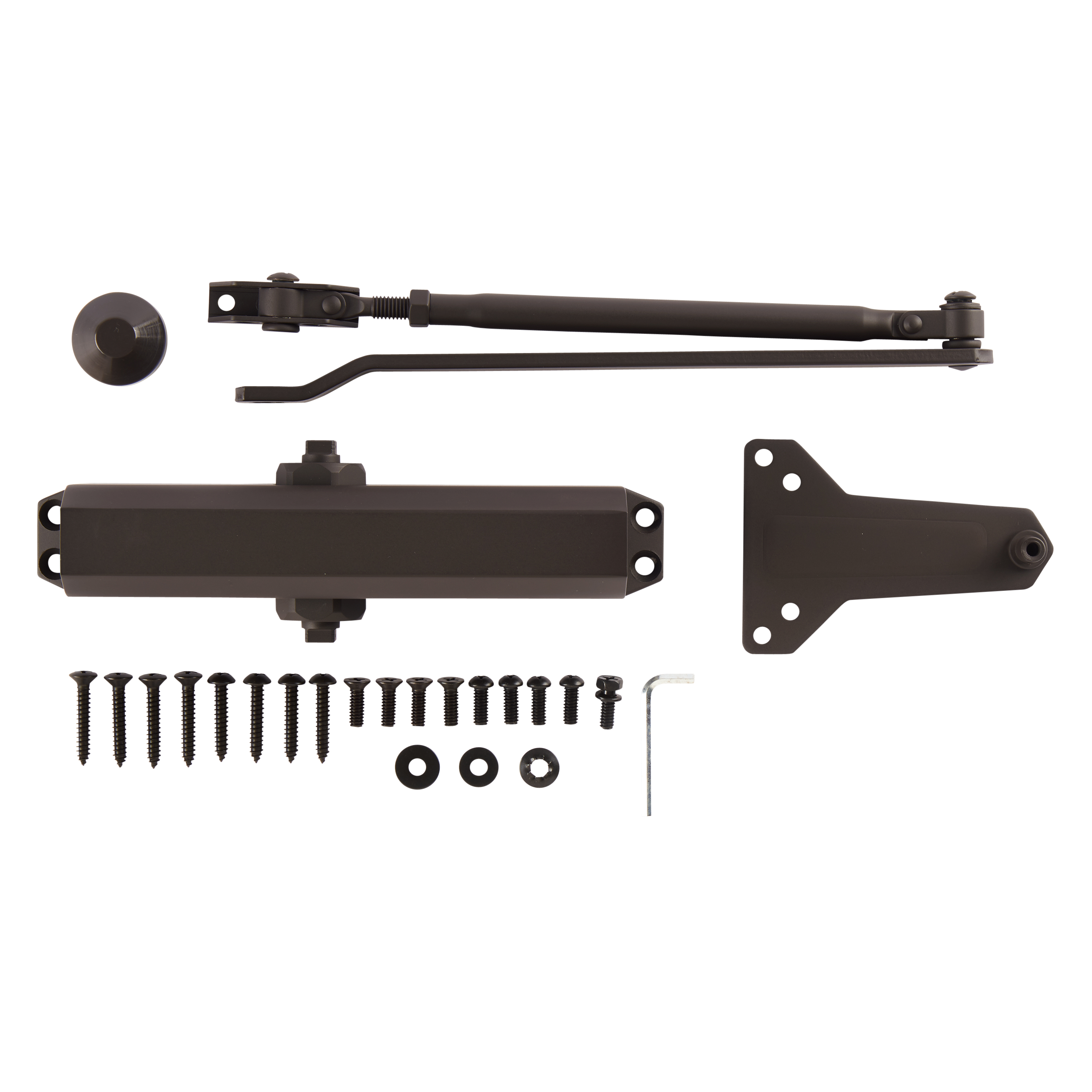

  • Included hardware: finish matched closer body, mounting screws and installation instructions

Product Information

Technical Details

Exterior Door Compatibility Left or right hinged doors up to 42" wide
Closer Rating Adjustable Size 1-5
ANSI Grade 1
Backcheck Adjustable
OpeningRange 180 Degrees
Mount Type Standard, Top Jamb, Parallel
Closing and Latching Speed Adjustable
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant Yes
Included Hardware Mounting Hardware, Yes
Warranty 10 Year Limited Warranty

Additional Information

SKU BC4031
UPC 039208228329
Brand Brinks Commercial
Type Closers

Warranty & Support

The Hampton.Care team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.

View Product on Hampton.Care Open a Support Ticket

Additional Images

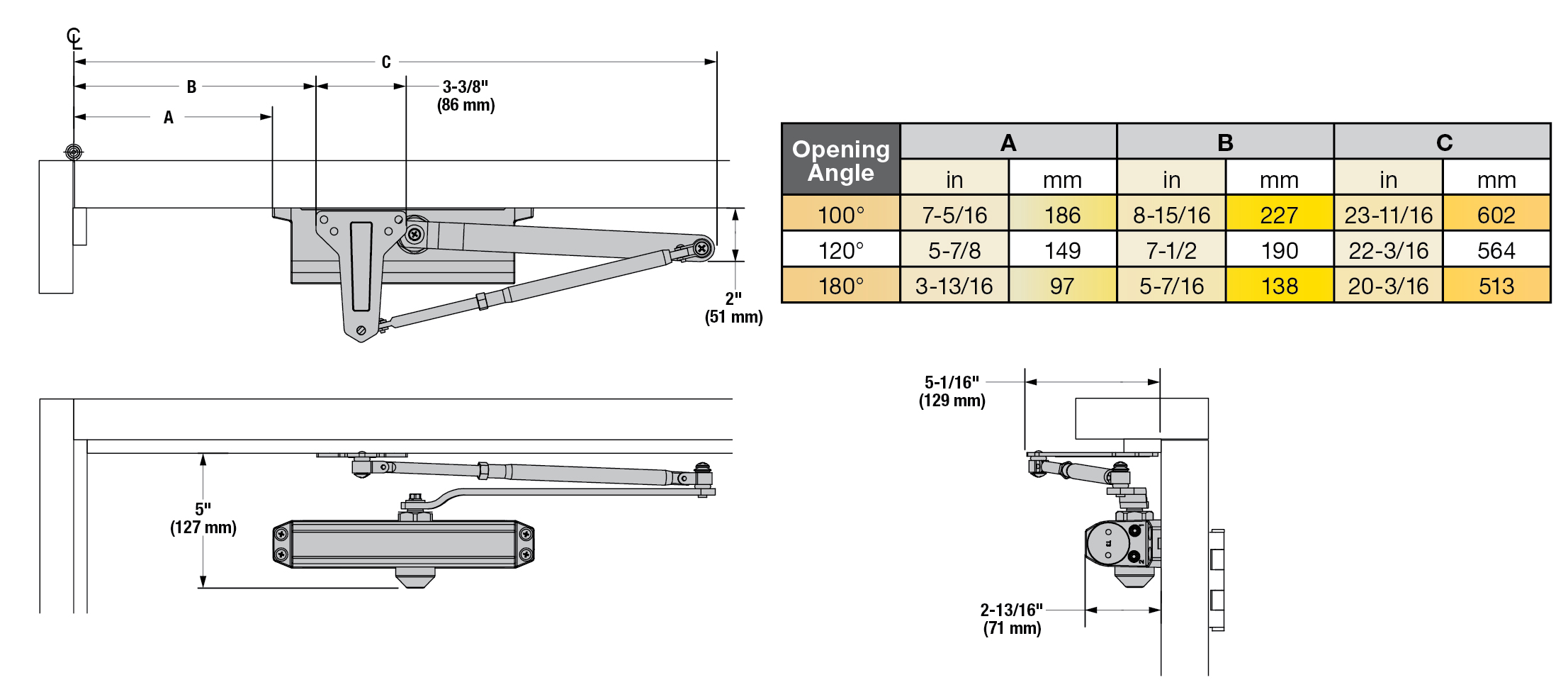

Drawings
