Exit Device
SKU BC40010
Find online:
Product Description

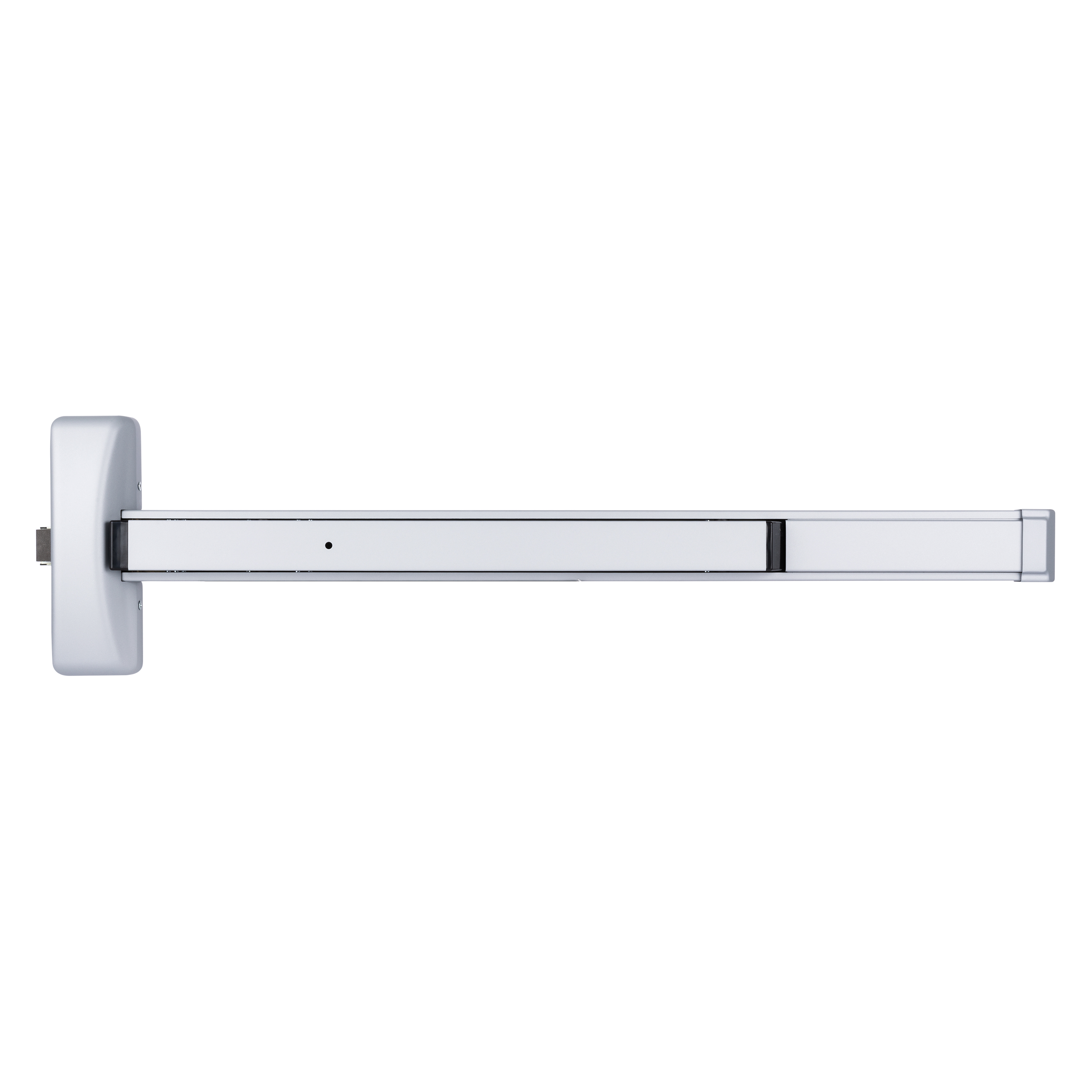

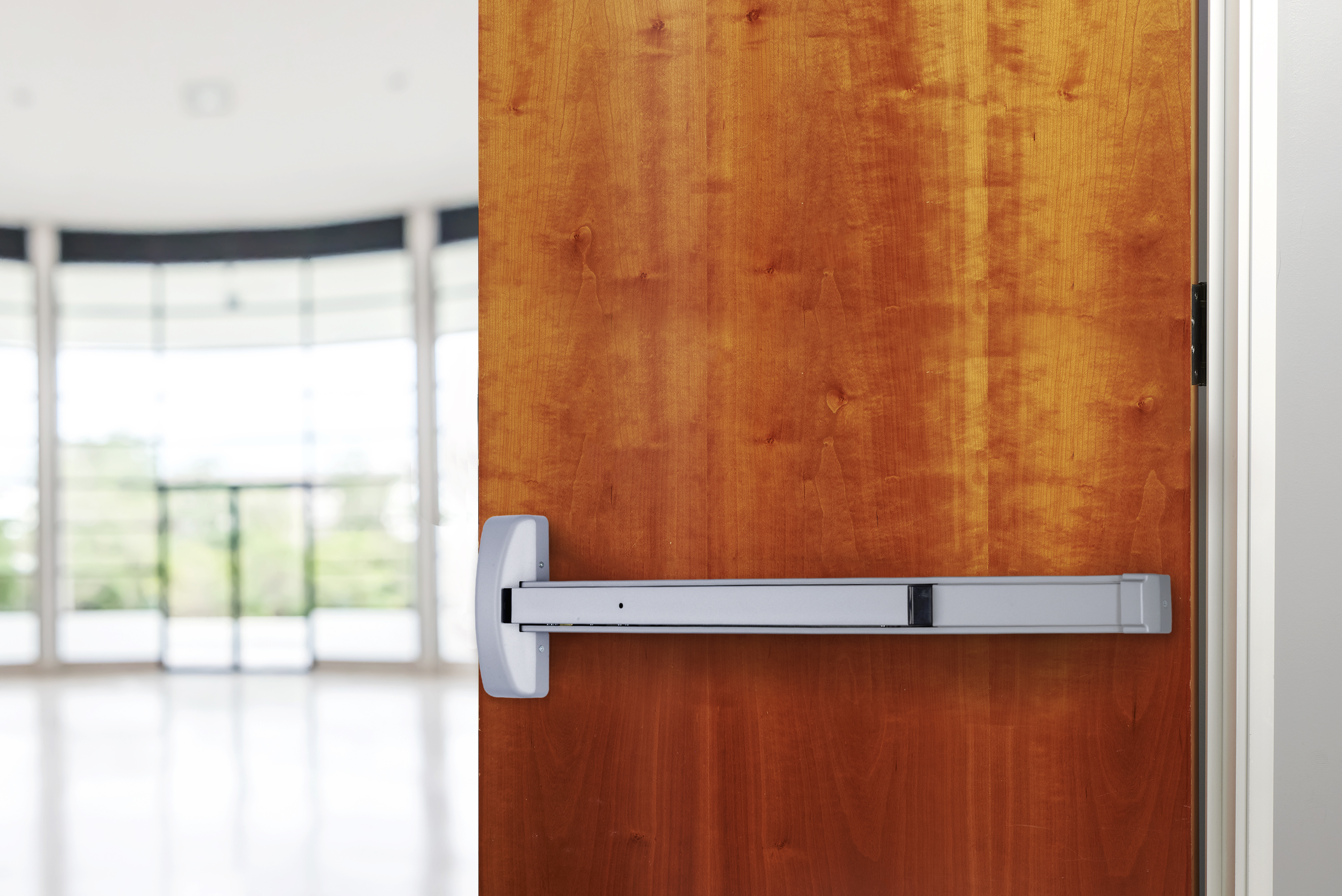

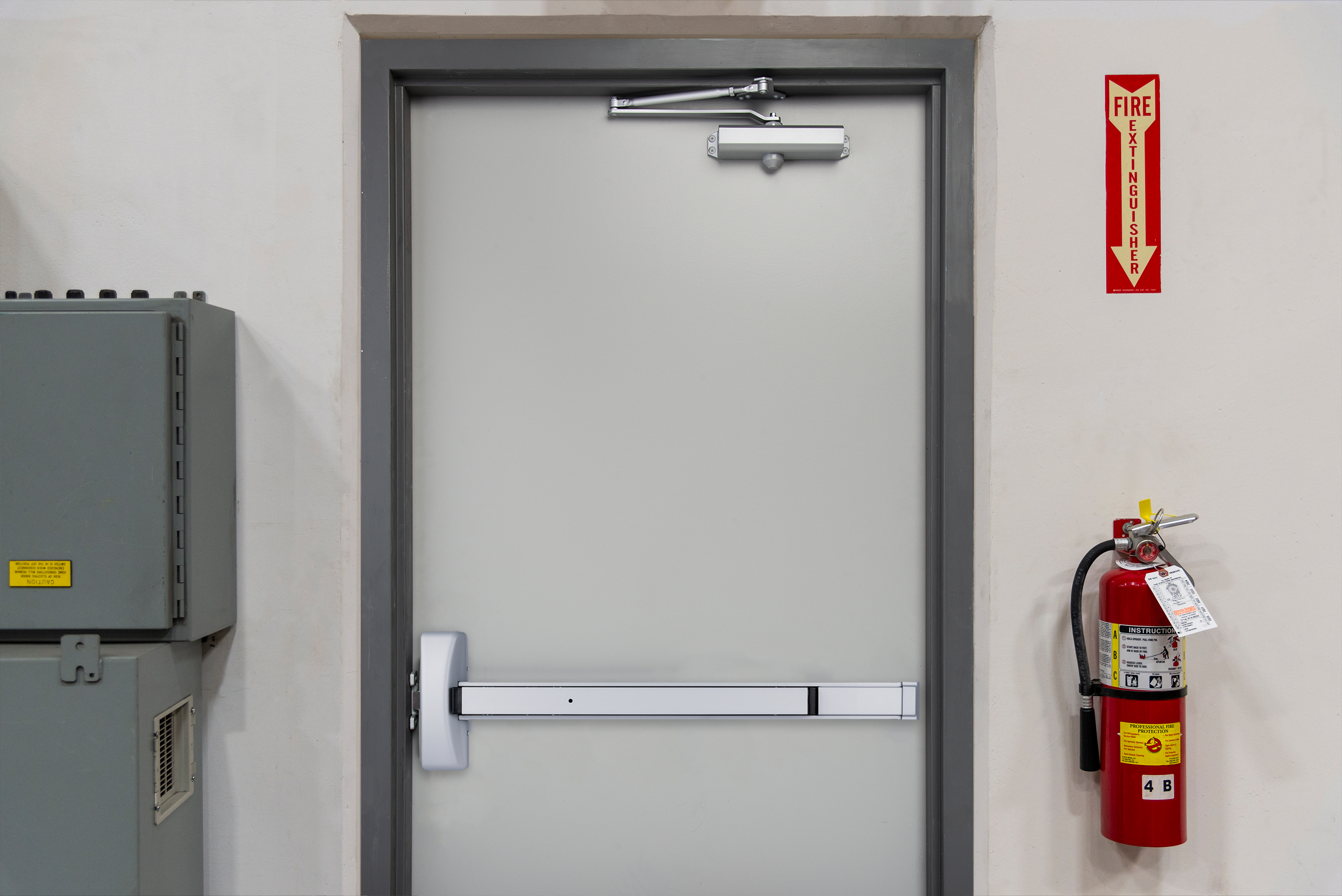

This device is reversible to work on both left- or right-handed doors. Can be adjusted with a dogging device to be constantly open. Fits doors 28” to 42” wide and comes with a deadlocking latch bolt with 5/8” projection. Meets ANSI Grade 1 standards is UL 305 Compliant and meets ADA requirements with the lever trim. This exit device includes everything needed to install and use, including the SC4 brass rim cylinder and a small steel pull plate. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.
Construction
- Stainless Steel ideal for heavy-use
- Satin aluminum finish pairs well in all settings and decors
- Limited 10 year warranty covers finish and function
- UL 305 Compliant: Designed to facilitate the egress of persons from buildings in the event of panic or other emergency
- ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
Durability
- Included SC4 Brass Cylinder for added security and pull plate for added convenience
- Meets ANSI Grade 1 Standards
- Device is tested to exceed 500,000 cycles (ANSI Grade 1)
Installation
- Deadlocking latch bolt with 5/8" projection
- Ideal for doors with 2 3/4" backset optional shim included for doors with greater than 2 3/4" backset.
- Included SC4 Brass Cylinder and pull plate for added security
- Non-Handed: Can be applied to left or right handed doors
- Dogging: Latch can be dogged in open position for high-traffic doors
- Ideal for doors up to 36"-42" wide and can be field-sized to work with 28" doors.
Files
Instructions
DownloadProduct Information
Technical Details
| Function | Push |
| Color / Finish | Aluminum |
| Durability | Exit Devices |
| Retail Width | 34.38 in |
| Retail Height | 2.88 in |
| Retail Depth | 6.75 in |
| Retail Weight | 9.27 lb |
| Included Hardware | Yes |
| ANSI Grade | 1 |
| Mount Type | Surface Mount |
| Indoor Outdoor | Both |
| UL Listing | Yes |
| ADA Compliant | Yes |
| Warranty | 10 Year Limited Warranty |
Additional Information
| SKU | BC40010 |
| UPC | 039208237178 |
| Brand | Brinks Commercial |
| Type | Exit Device |
Warranty & Support
The Hampton.Care team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.
View Product on Hampton.Care Open a Support TicketProduct Description

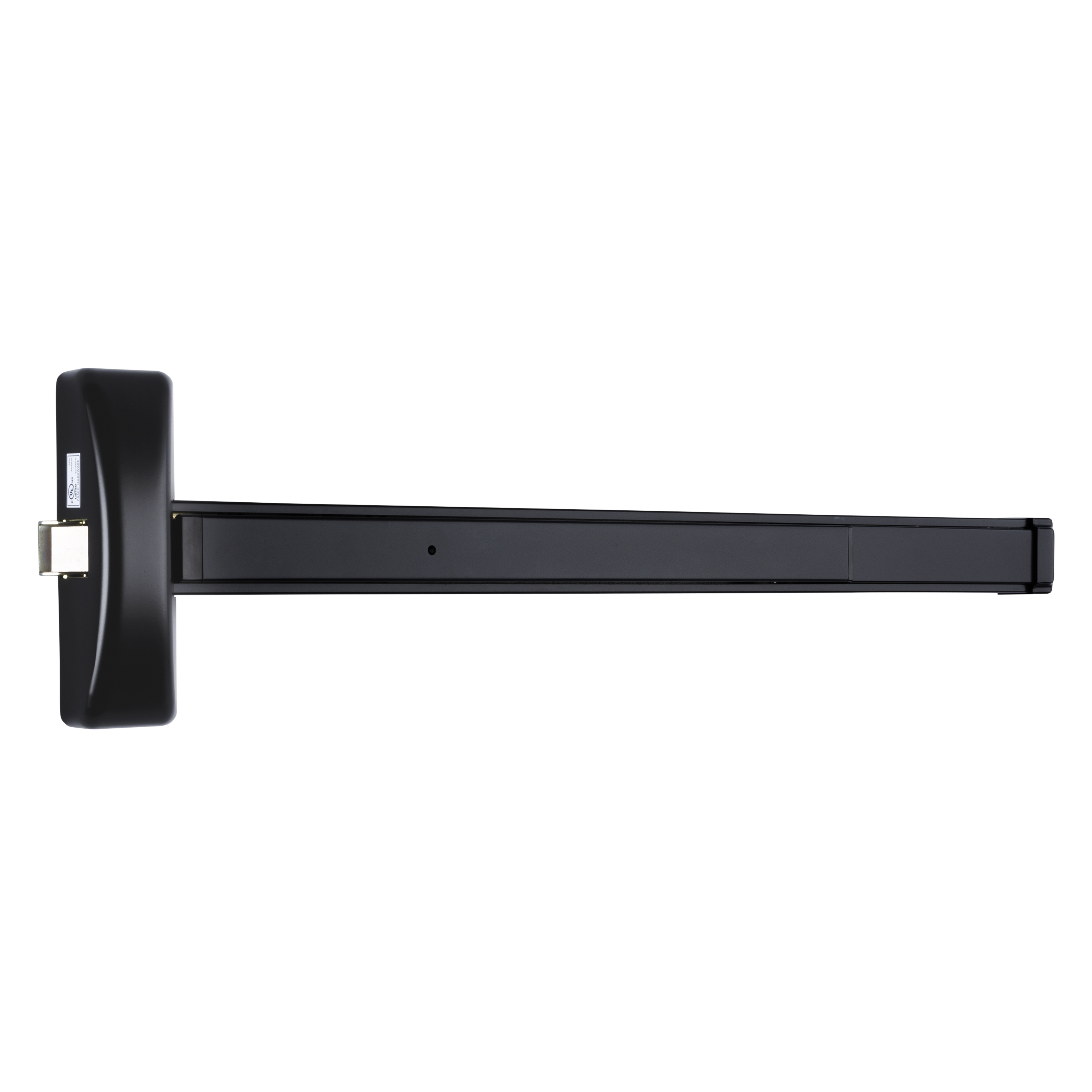

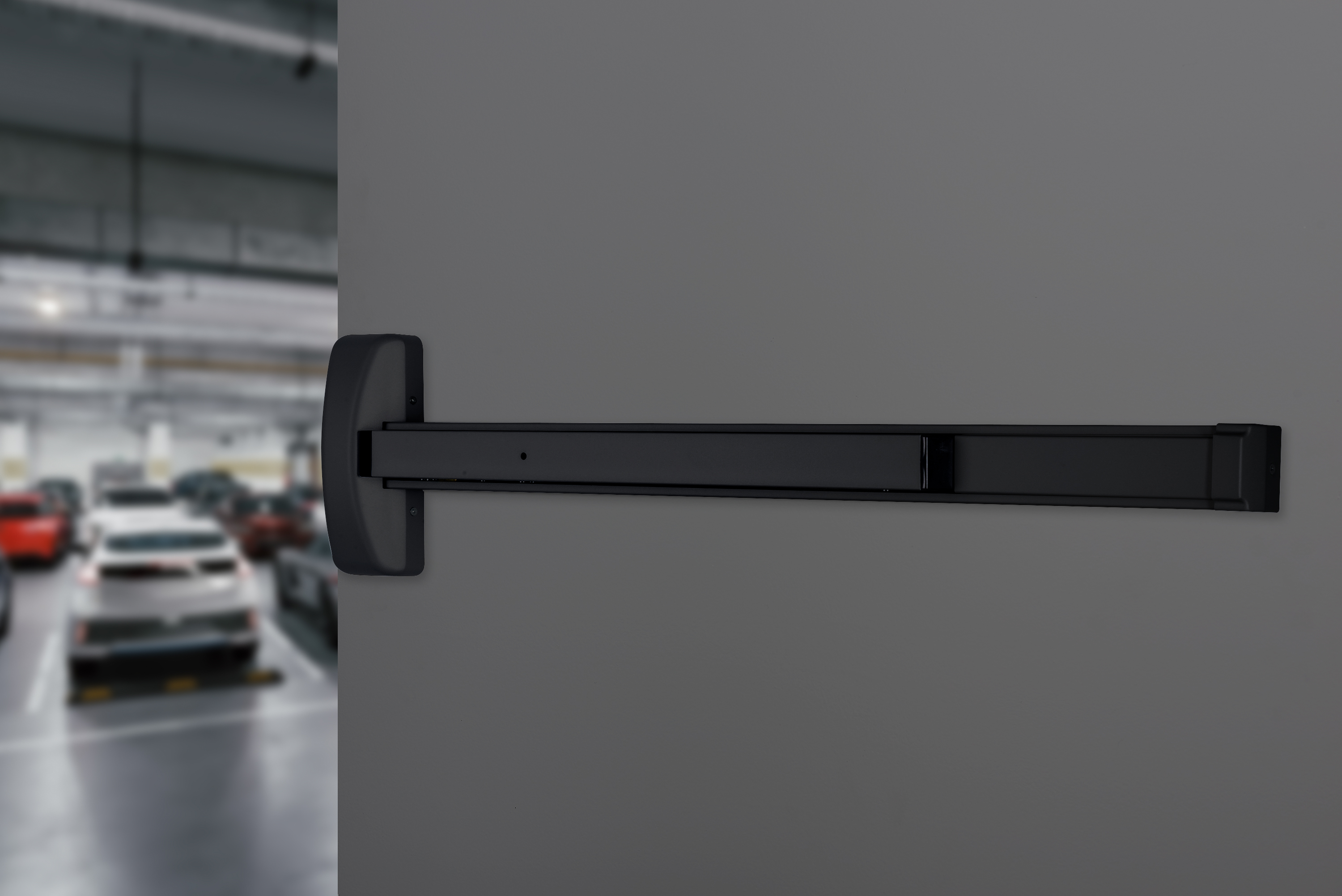

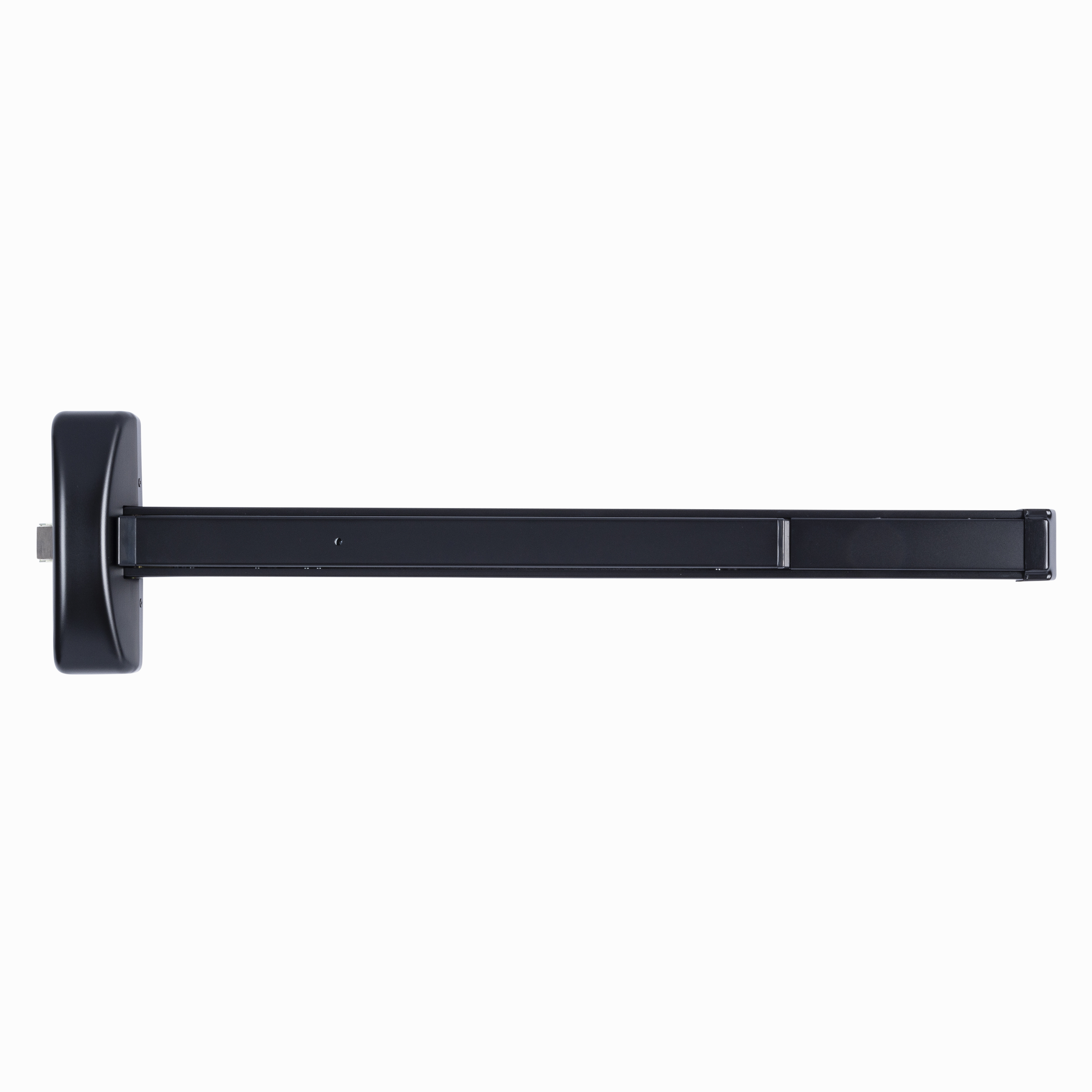

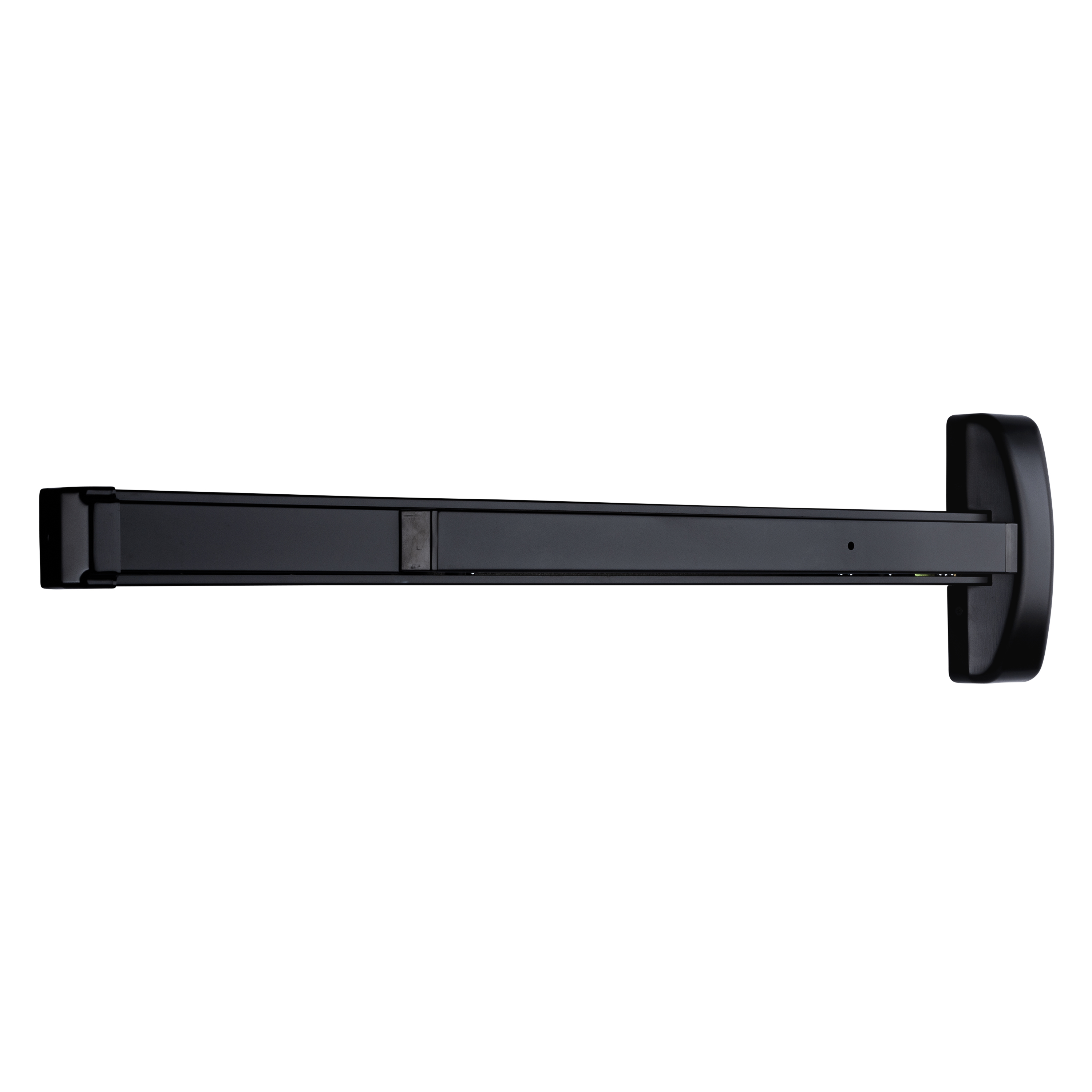

This device is reversible to work on both left- or right-handed doors. Can be adjusted with a dogging device to be constantly open. Fits doors 28” to 42” wide and comes with a deadlocking latch bolt with 5/8” projection. Meets ANSI Grade 1 standards is UL 305 Compliant and meets ADA requirements with the lever trim. This exit device includes everything needed to install and use, including the SC4 brass rim cylinder and a small steel pull plate. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.
Construction
- Steel construction for heavy duty use
- Matte black finish pairs well in all settings and decors
- Limited 10 year warranty covers finish and function
- UL 305 Compliant: Designed to facilitate the egress of persons from buildings in the event of panic or other emergency
- ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
Durability
- Included SC4 Brass Cylinder for added security and pull plate for added convenience
- Meets ANSI Grade 1 Standards
- Device is tested to exceed 500,000 cycles (ANSI Grade 1)
Installation
- Deadlocking latch bolt with 5/8" projection
- Ideal for doors with 2 3/4" backset optional shim included for doors with greater than 2 3/4" backset
- Included SC4 Brass Cylinder and pull plate for added security
- Non-Handed: Can be applied to left or right handed doors
- Dogging: Latch can be dogged in open position for high-traffic doors
- Ideal for doors up to 36"-42" wide and can be field-sized to work with 28" doors
Files
Instructions
DownloadProduct Information
Technical Details
| Function | Push |
| Color / Finish | Matte Black |
| Retail Width | 34.25 in |
| Retail Height | 2.75 in |
| Retail Depth | 6.88 in |
| Retail Weight | 9.48 lb |
| Included Hardware | Mounting Hardware, Yes |
| ANSI Grade | 1 |
| Mount Type | Surface Mount |
| Indoor Outdoor | Indoor |
| UL Listing | Yes |
| ADA Compliant | Yes |
| Warranty | 10 Year Limited Warranty |
| Country of Origin | Taiwan (TW) |
Additional Information
| SKU | BC41015 |
| UPC | 039208241069 |
| Brand | Brinks Commercial |
| Type | Exit Device |
