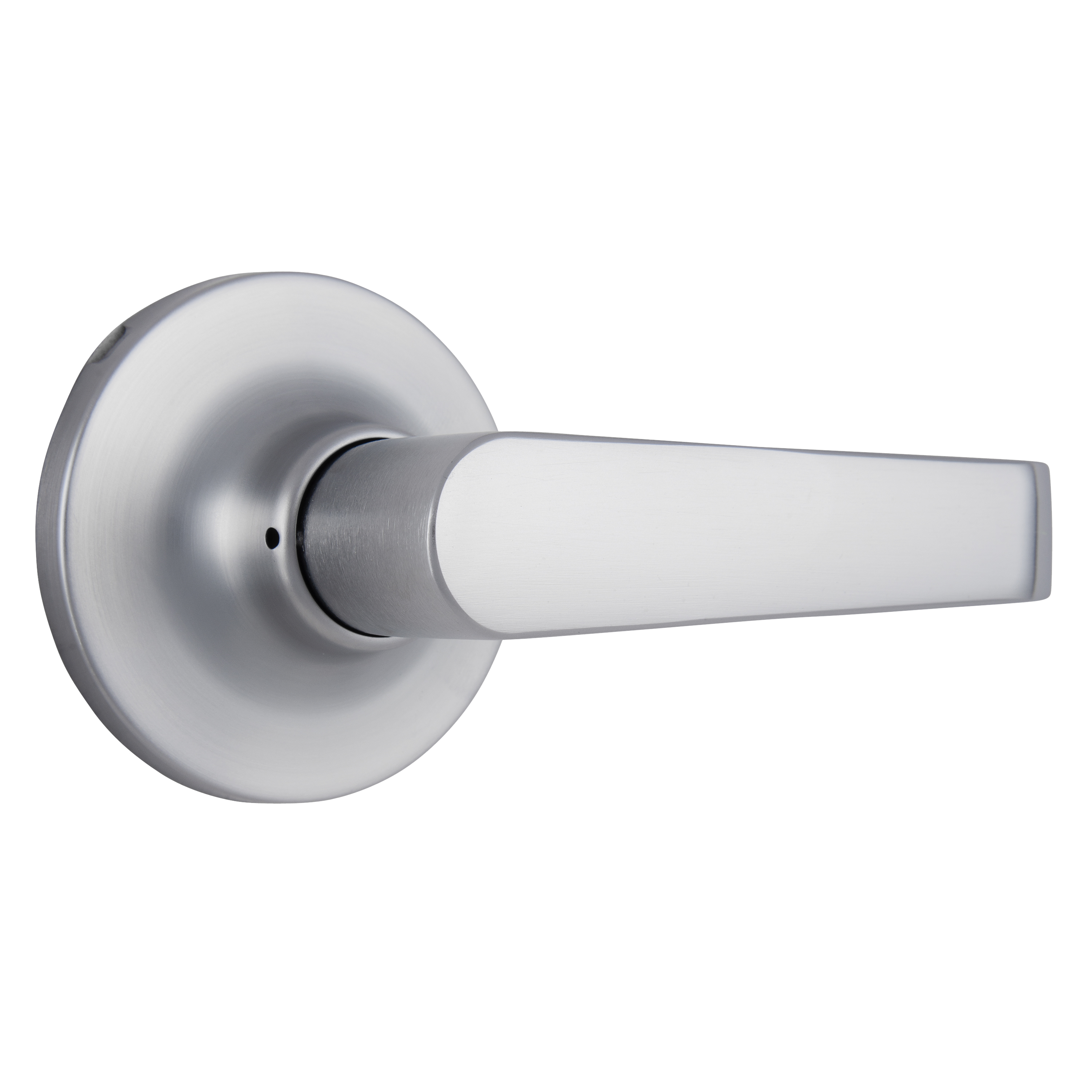

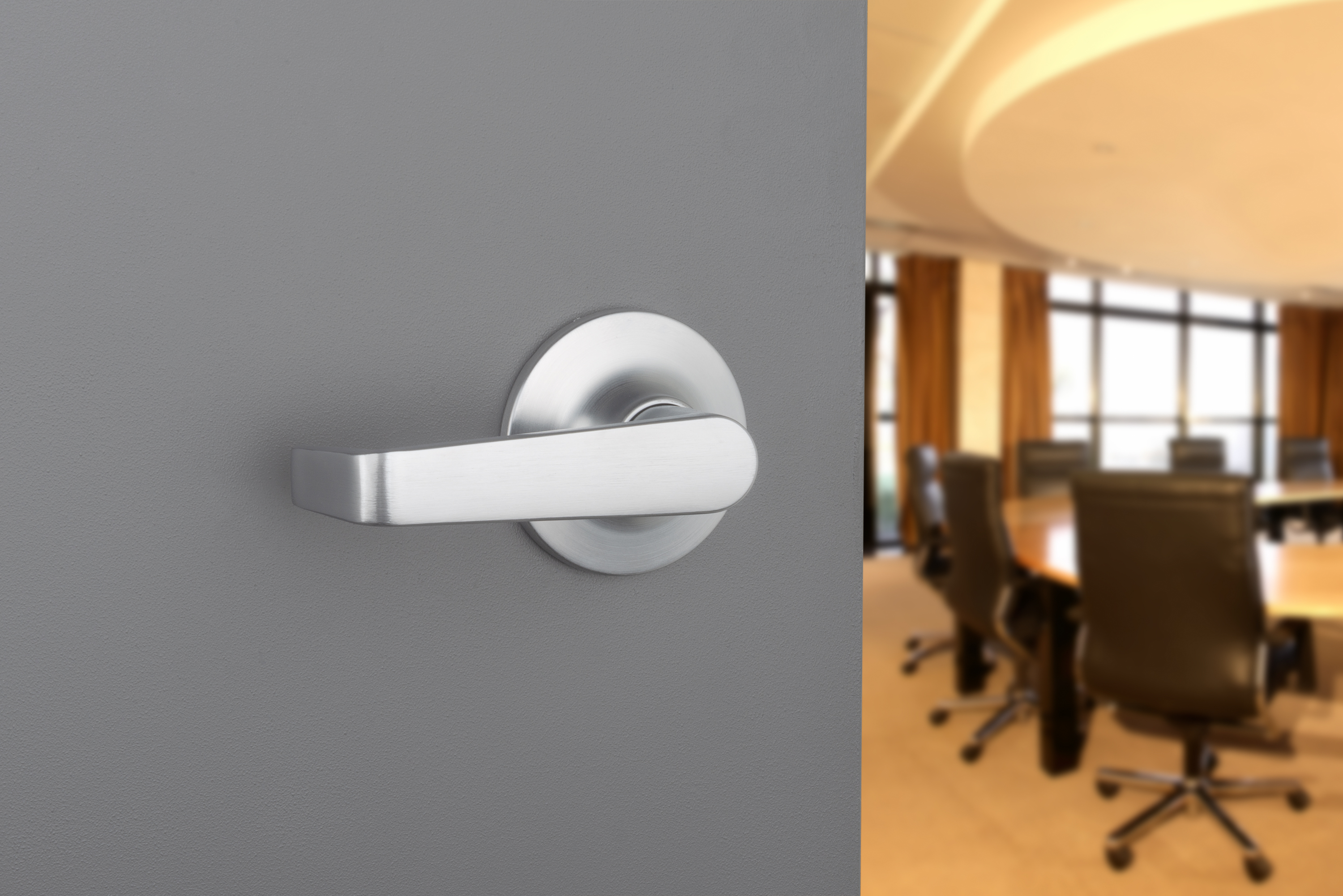

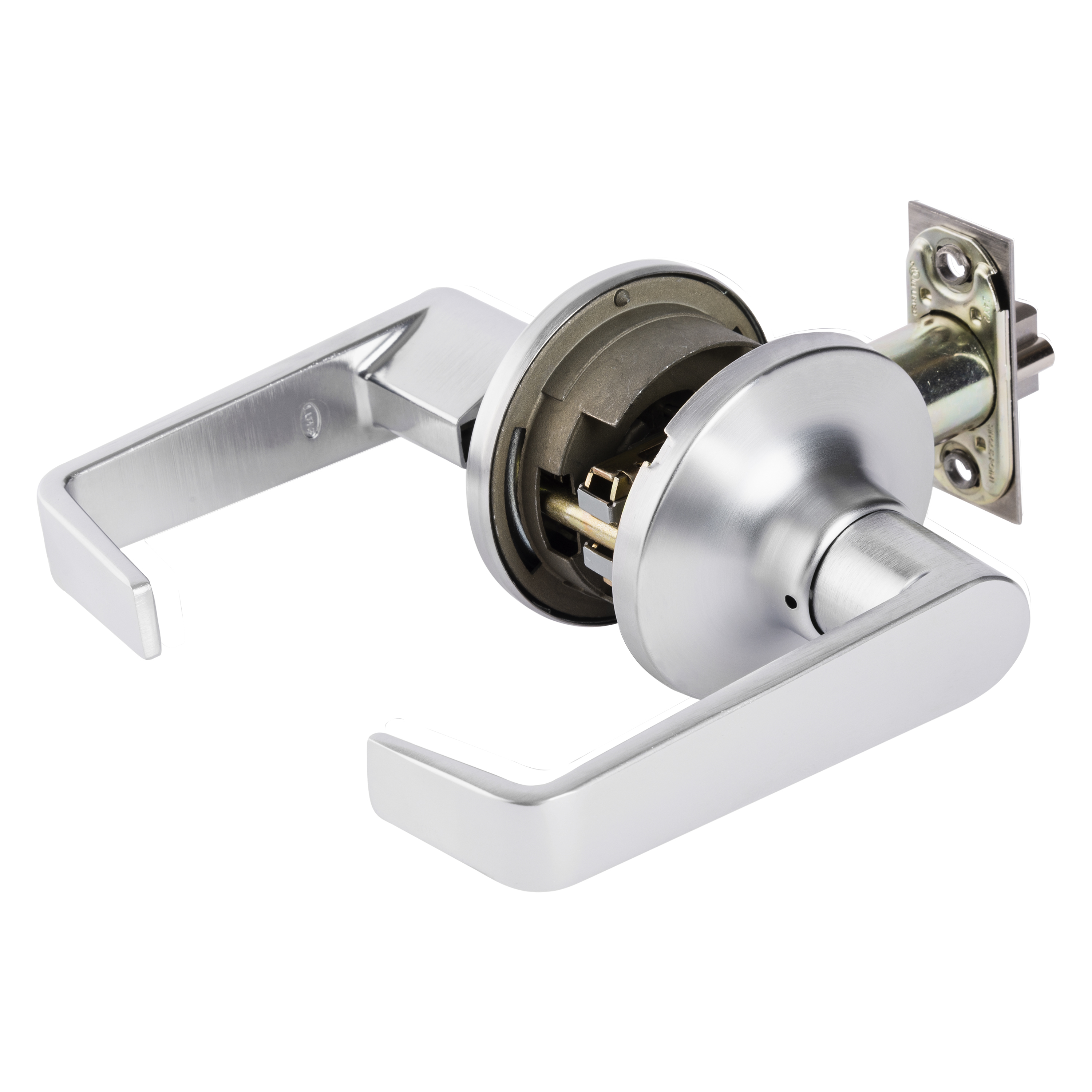

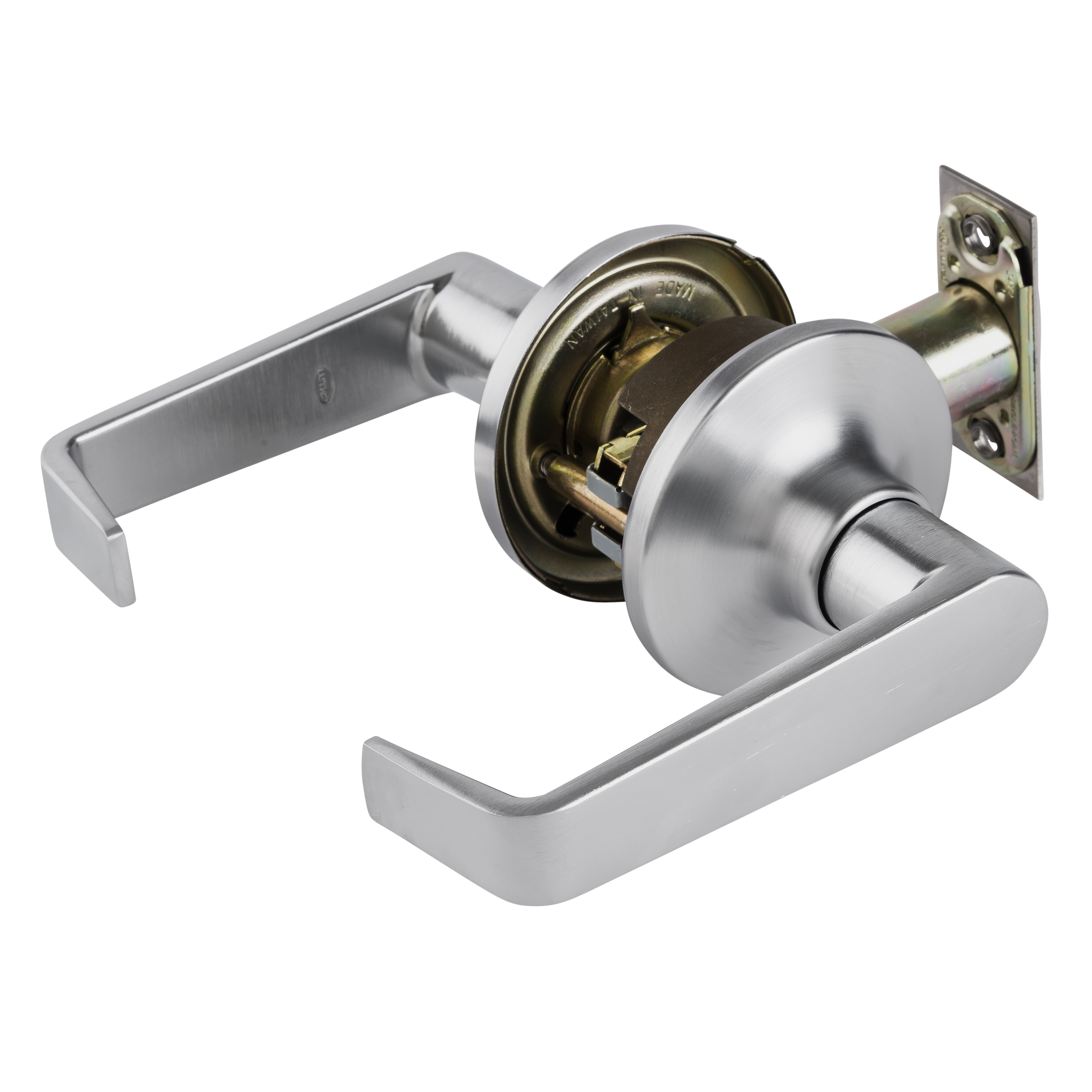

Light Duty Commercial Flat Lever

SKU UH40047
Function: Passage
Color: Satin Chrome
Find online:

Product Description

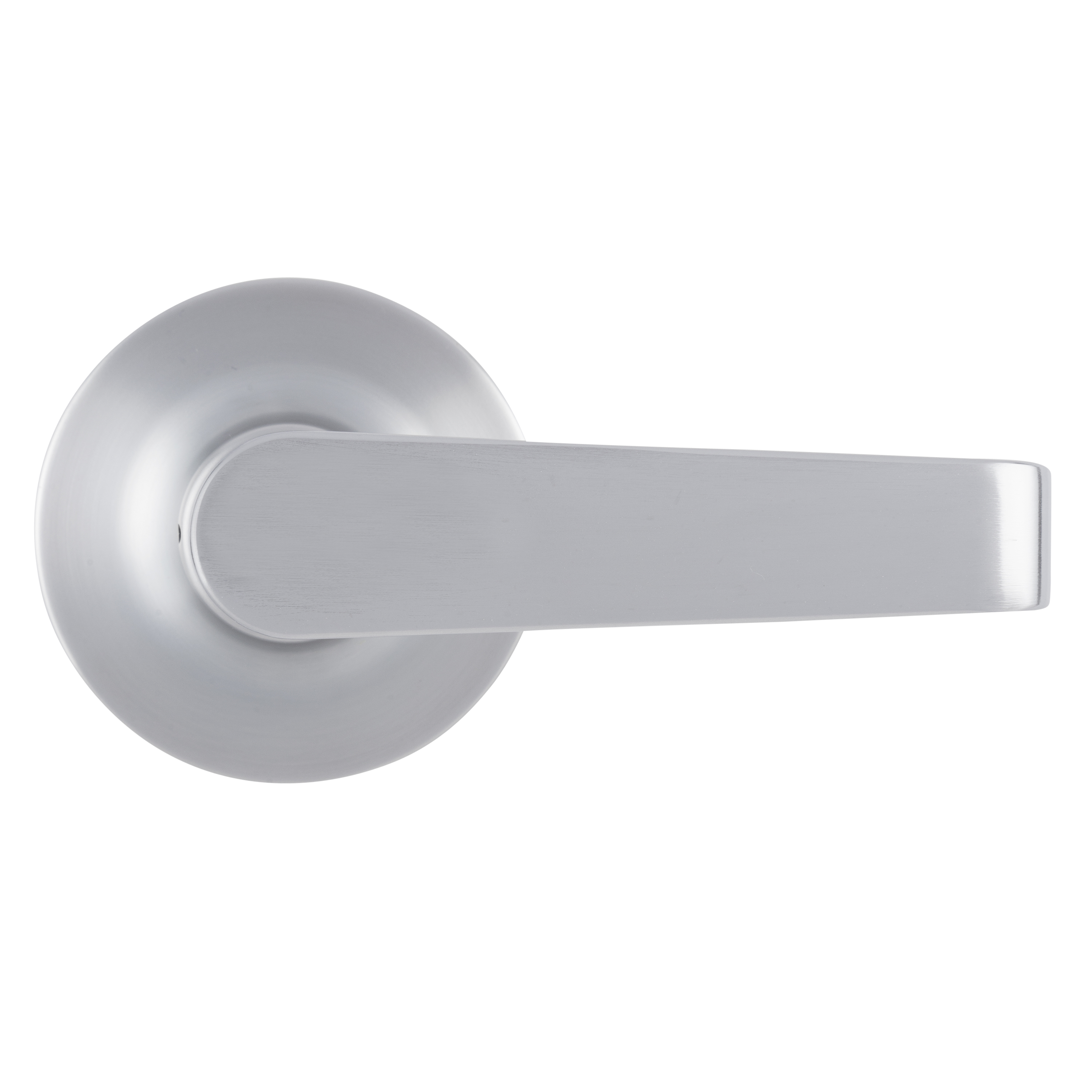

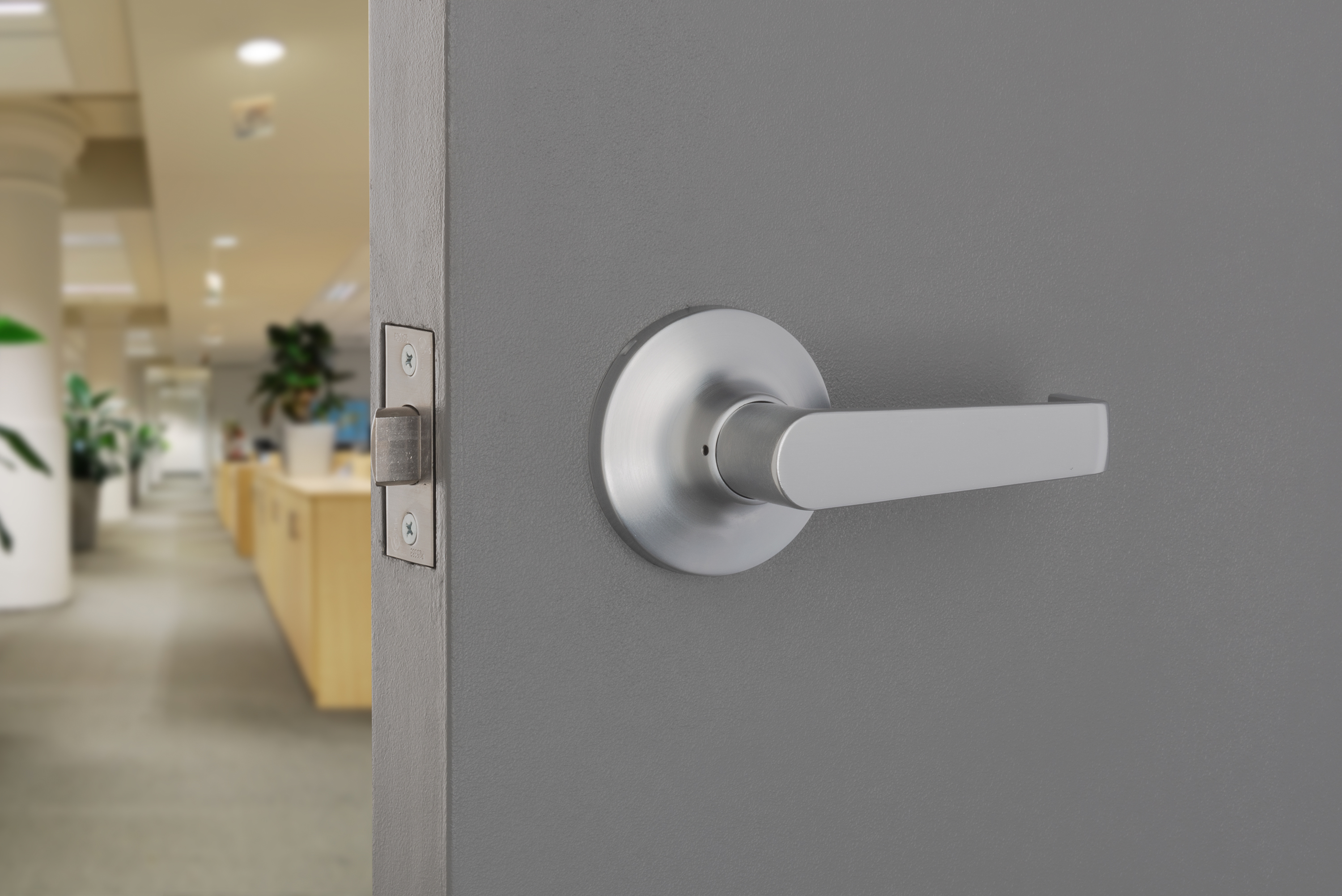

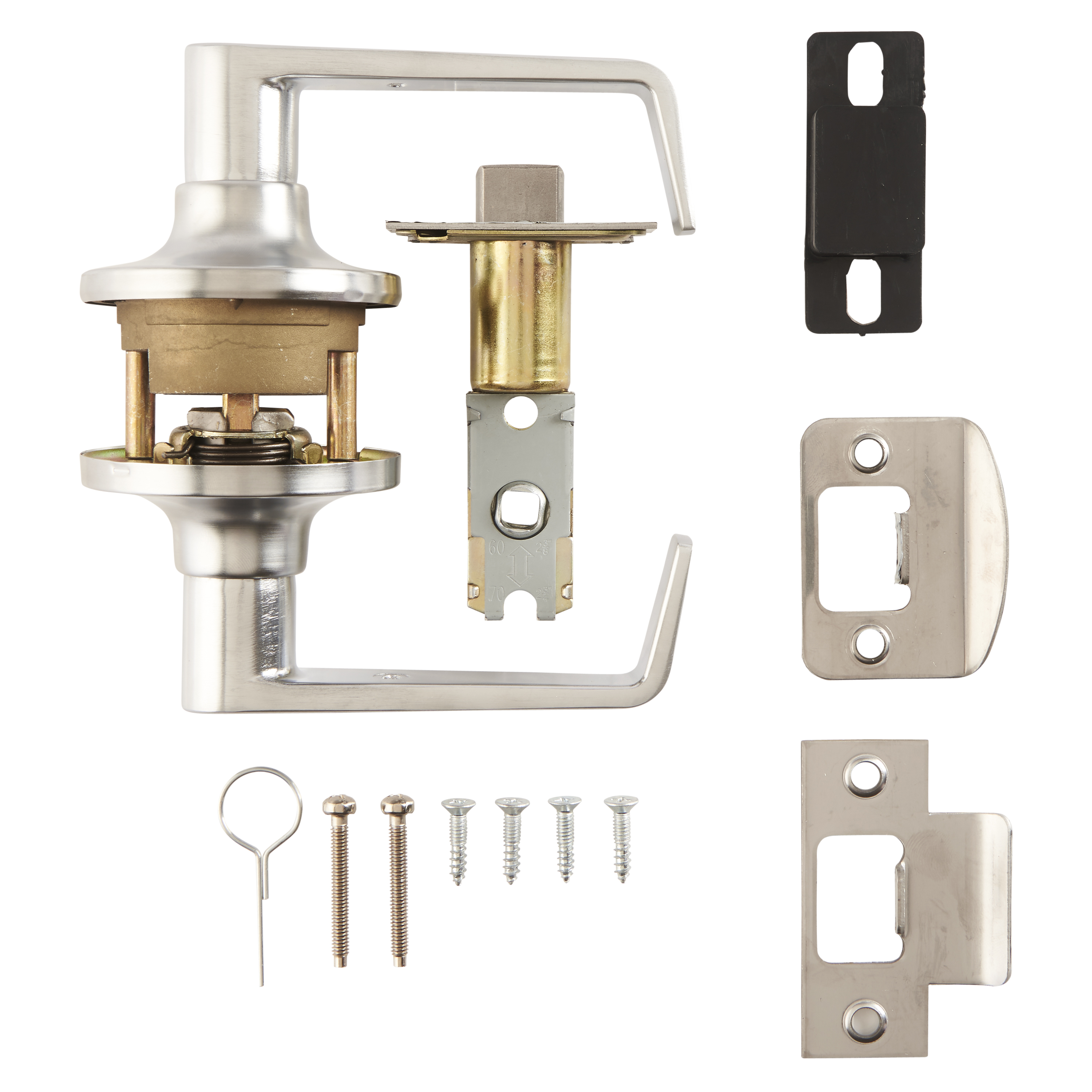

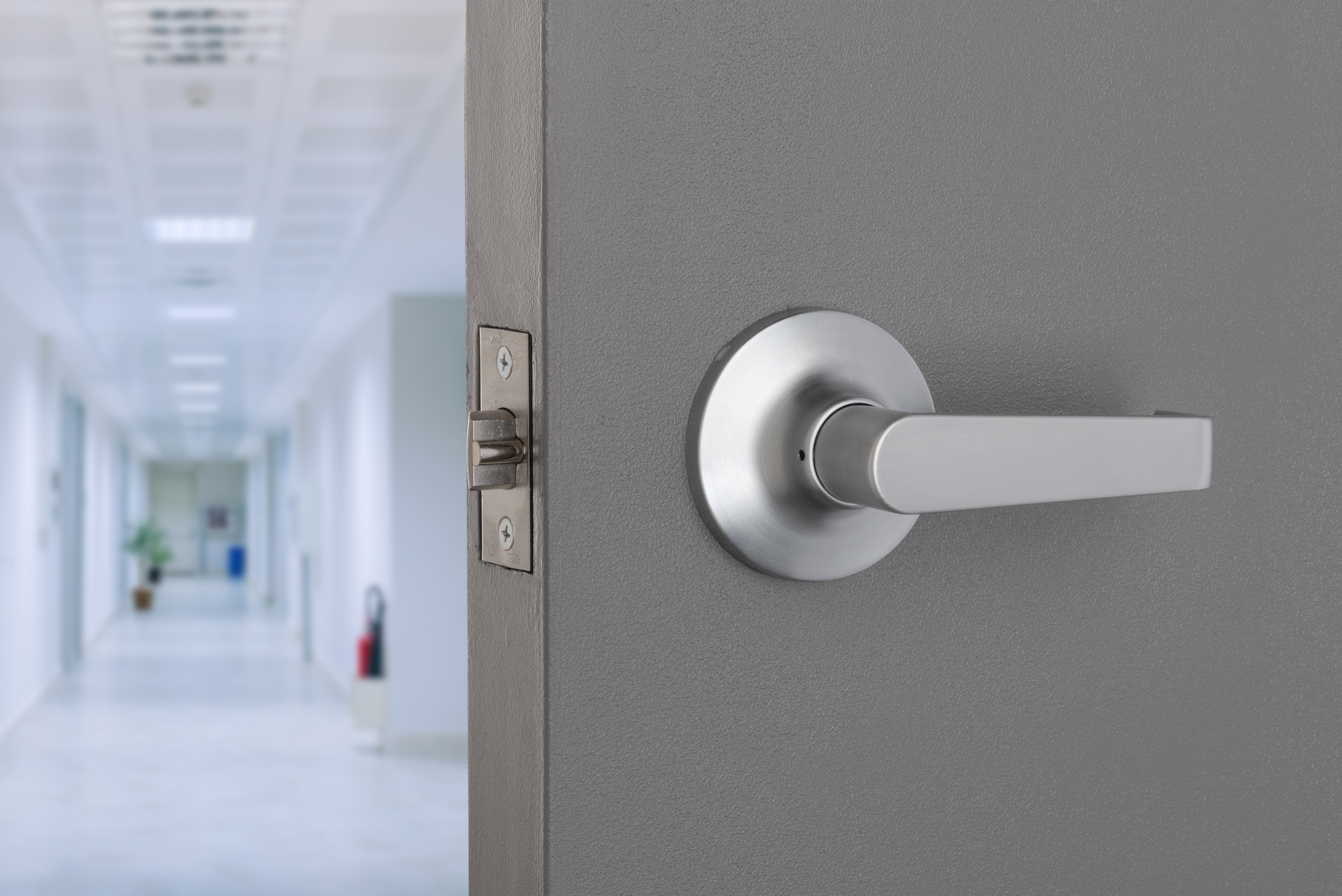

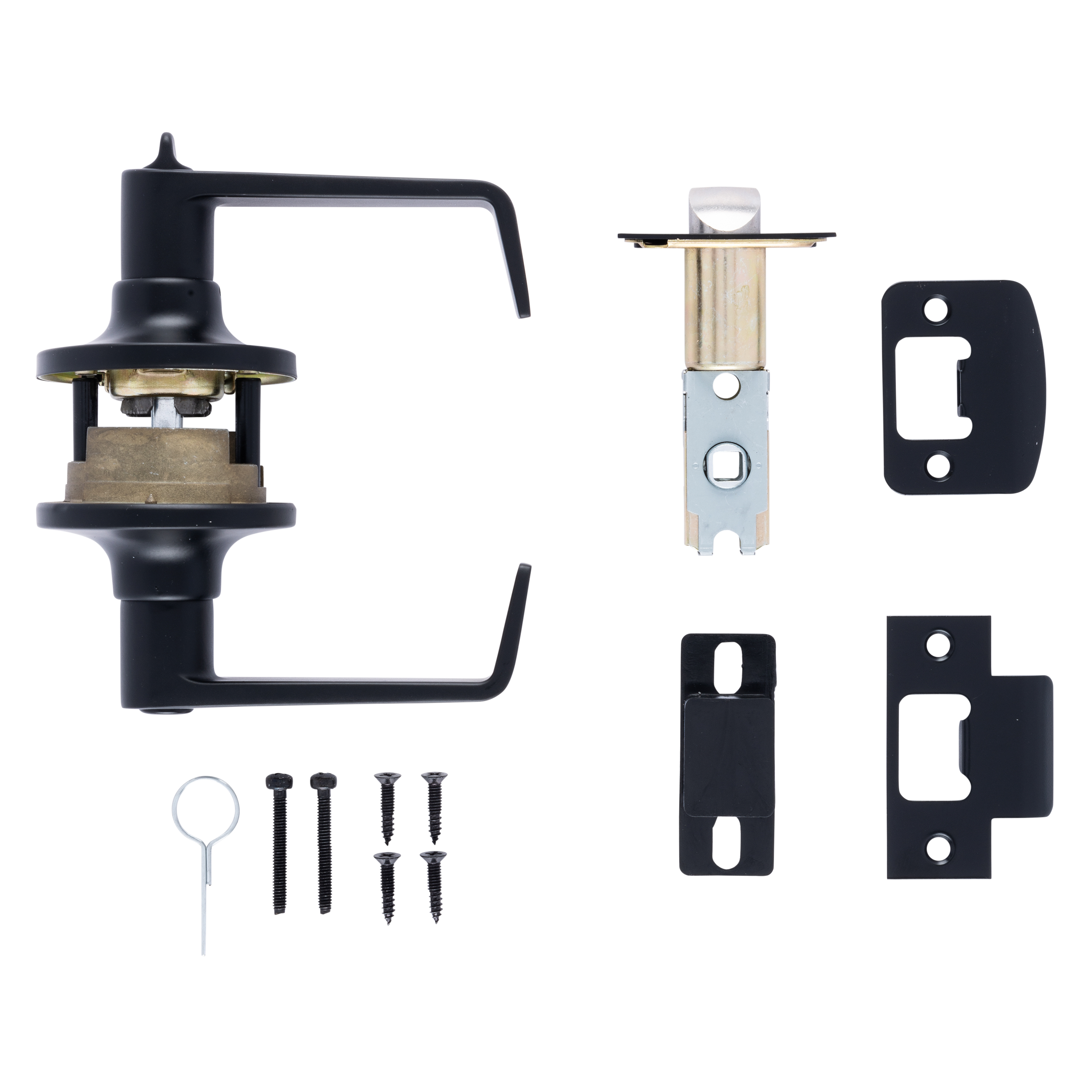

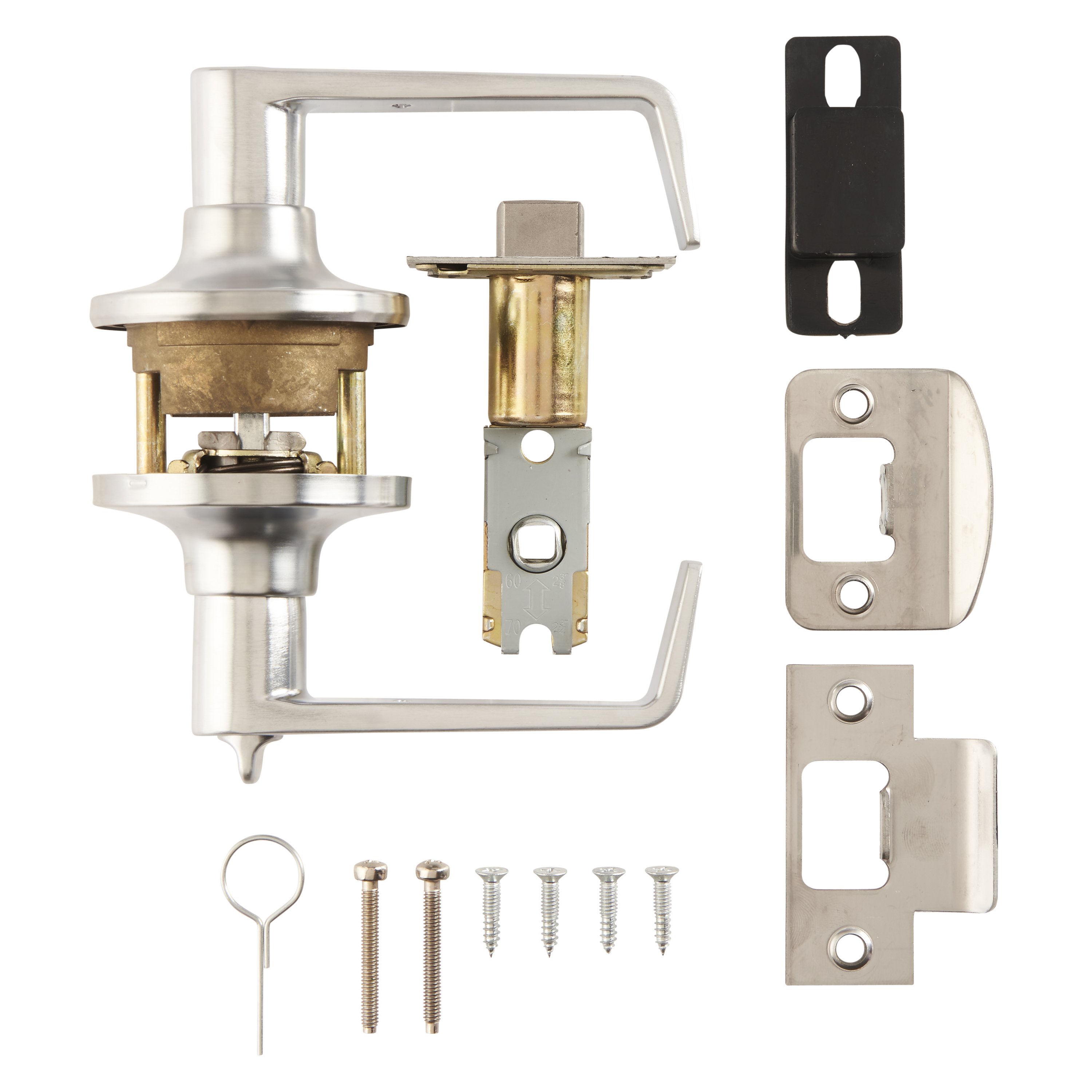

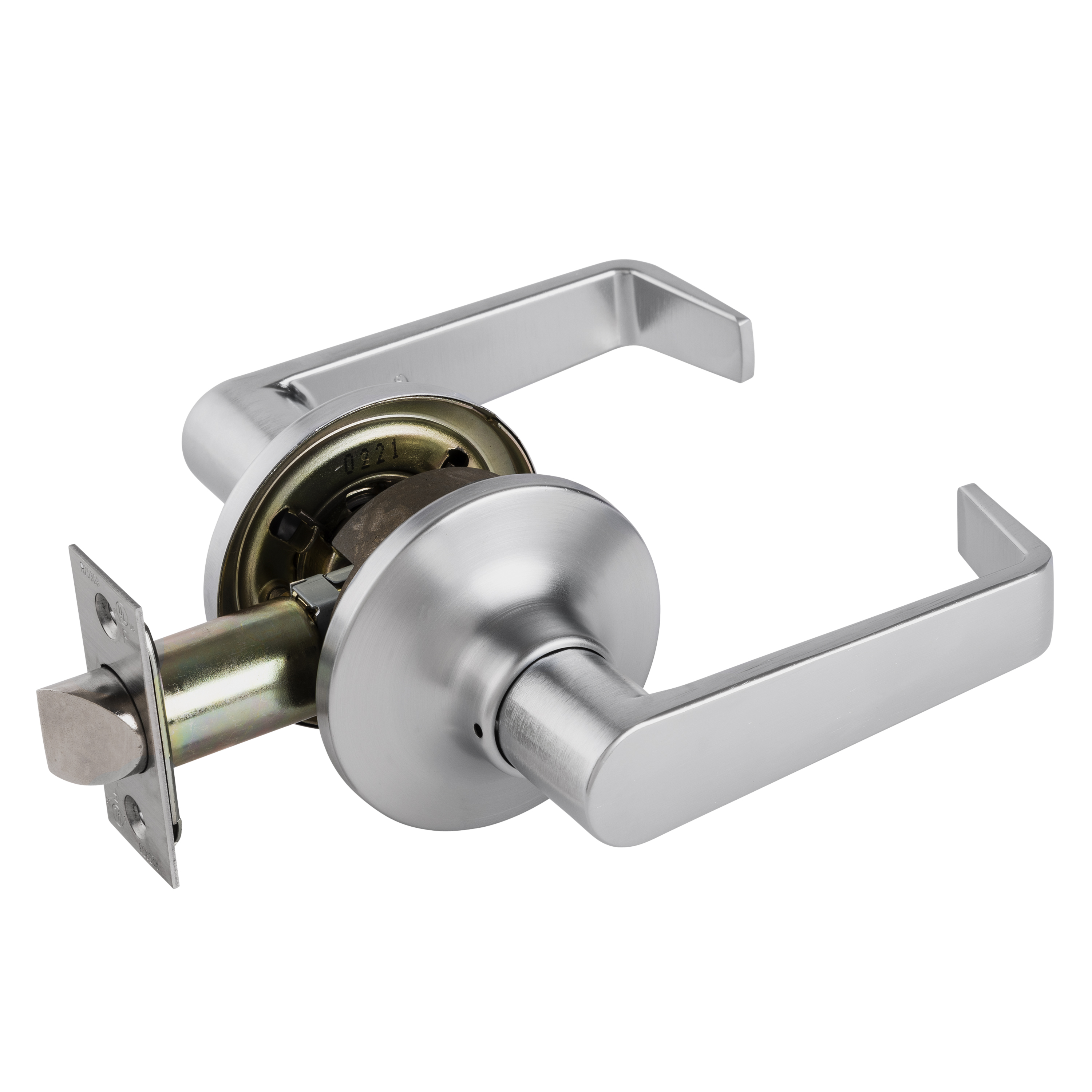

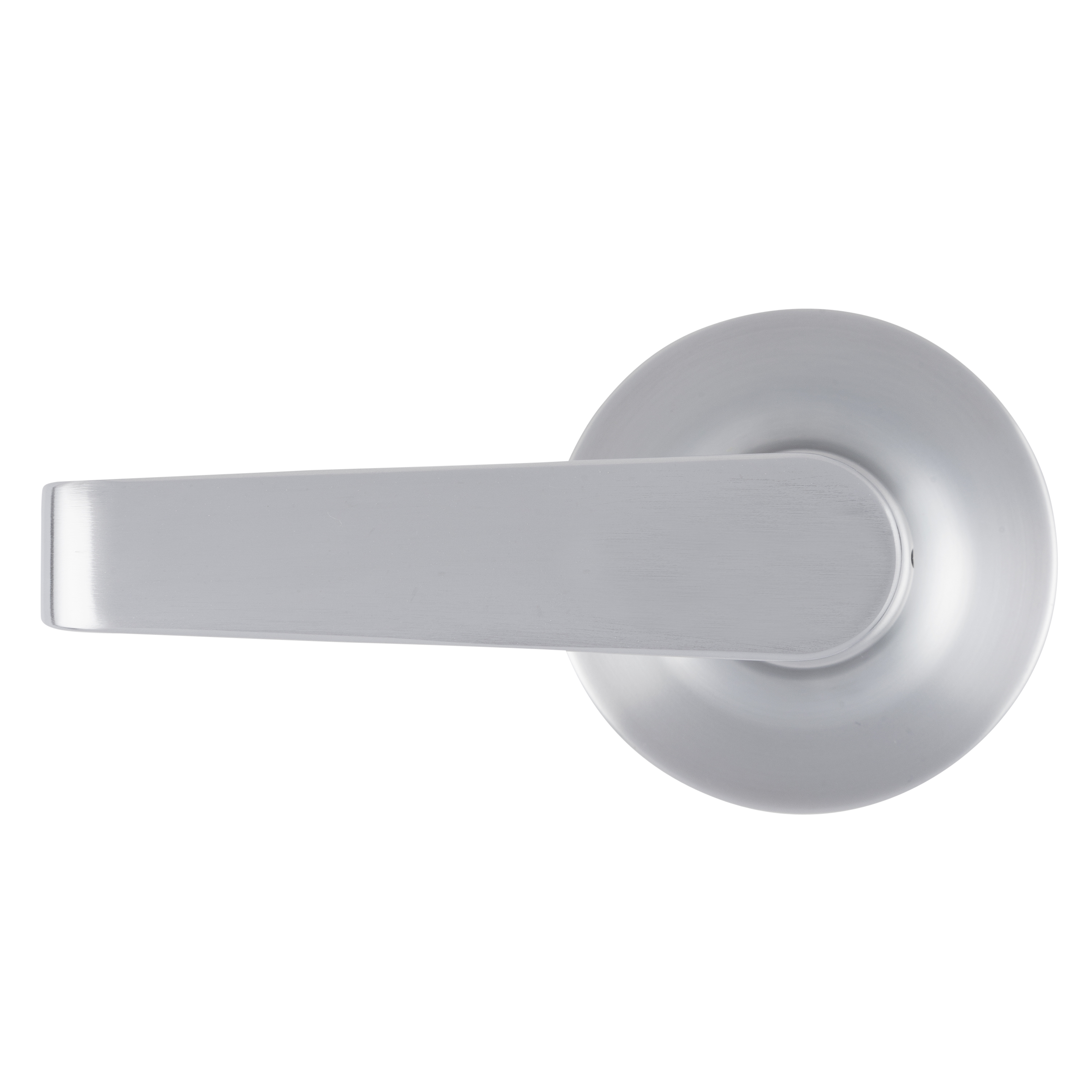

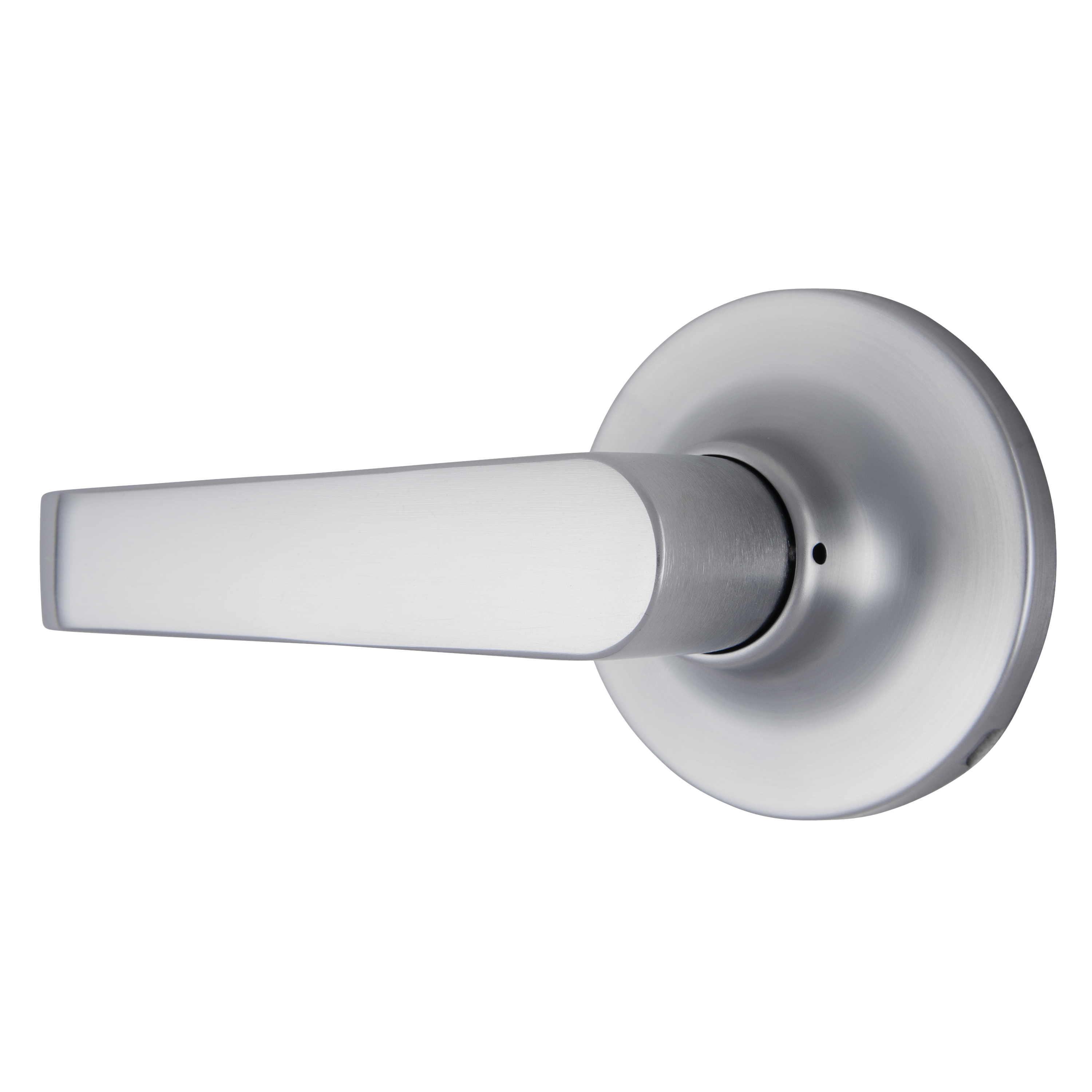

The Universal Hardware Light Duty Passage Lever is designed for doors that do not require locking such as connecting doors within office buildings, hallway doors or closets. The latch bolt is operated by the lever from either side of the door at all times. Equipped with tubular chassis for easier installation, the passage lever will fit wood or metal doors 1-3/8" to 2" thick. The Light Duty Passage Lever features 3-3/4" solid zinc diecast levers, an ANSI Grade 2 rating that's tested to exceed 500,000 cycles, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial or residential use. A T-strike, full lip strike, mounting hardware and installation instructions are included.

ANSI Badge Disability Badge Testing Level Badge UL Badge Warranty Badge

Construction

  • Equipped with 3-3/4" solid zinc diecast levers
  • Sleek satin chrome finish

Durability

  • ANSI Grade 2: Tested to exceed 500,000 cycles
  • UL Listed: 3 Hour fire rated for added protection and meeting building requirements
  • ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
  • Warranty: 10 year limited warranty covers finish and function

Installation

  • Door Type: Wood or Metal doors 1-3/8"-2" thick
  • Non-Handed: Can be applied to left or right handed doors
  • Adjustable latch fits 2-3/8" or 2-3/4" backset

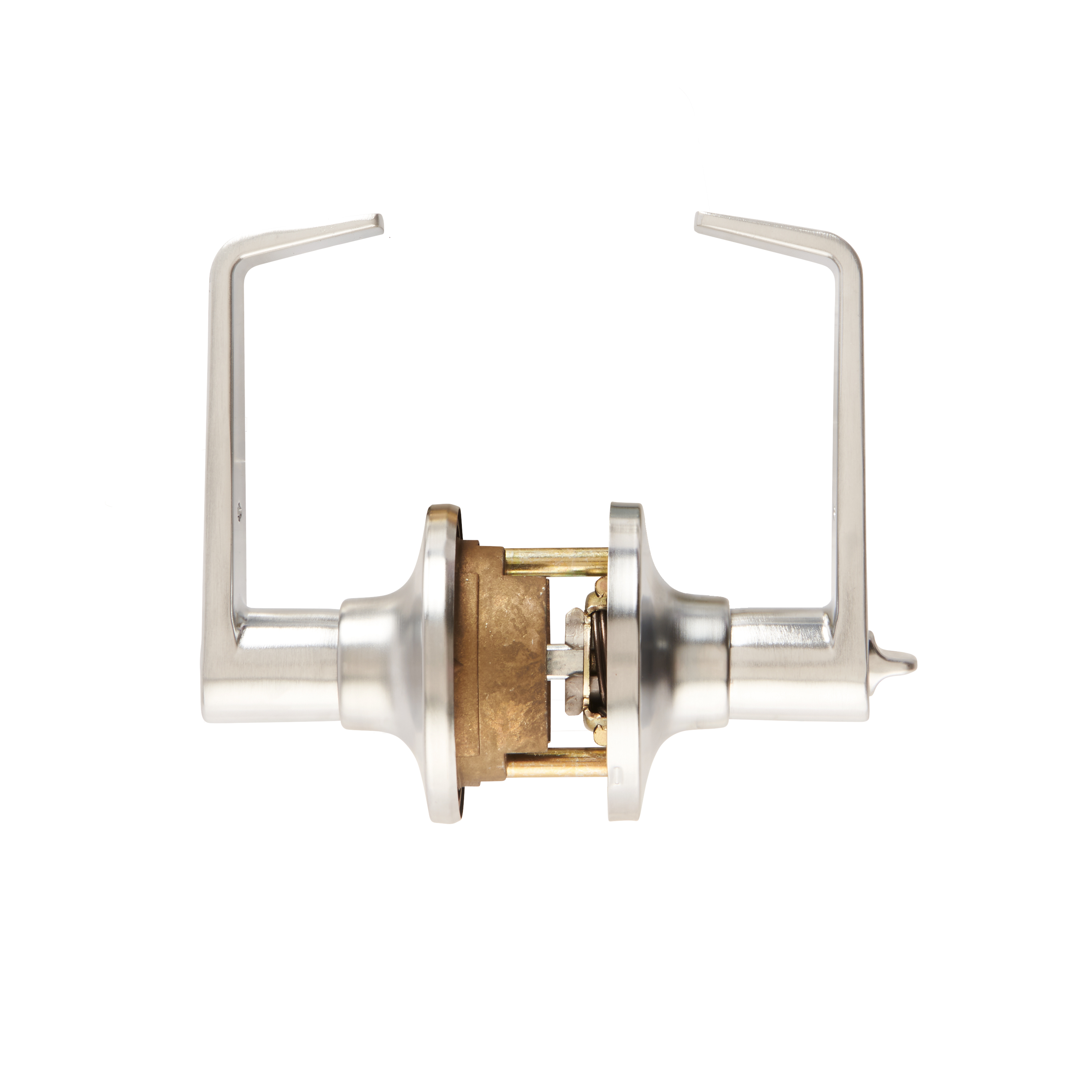

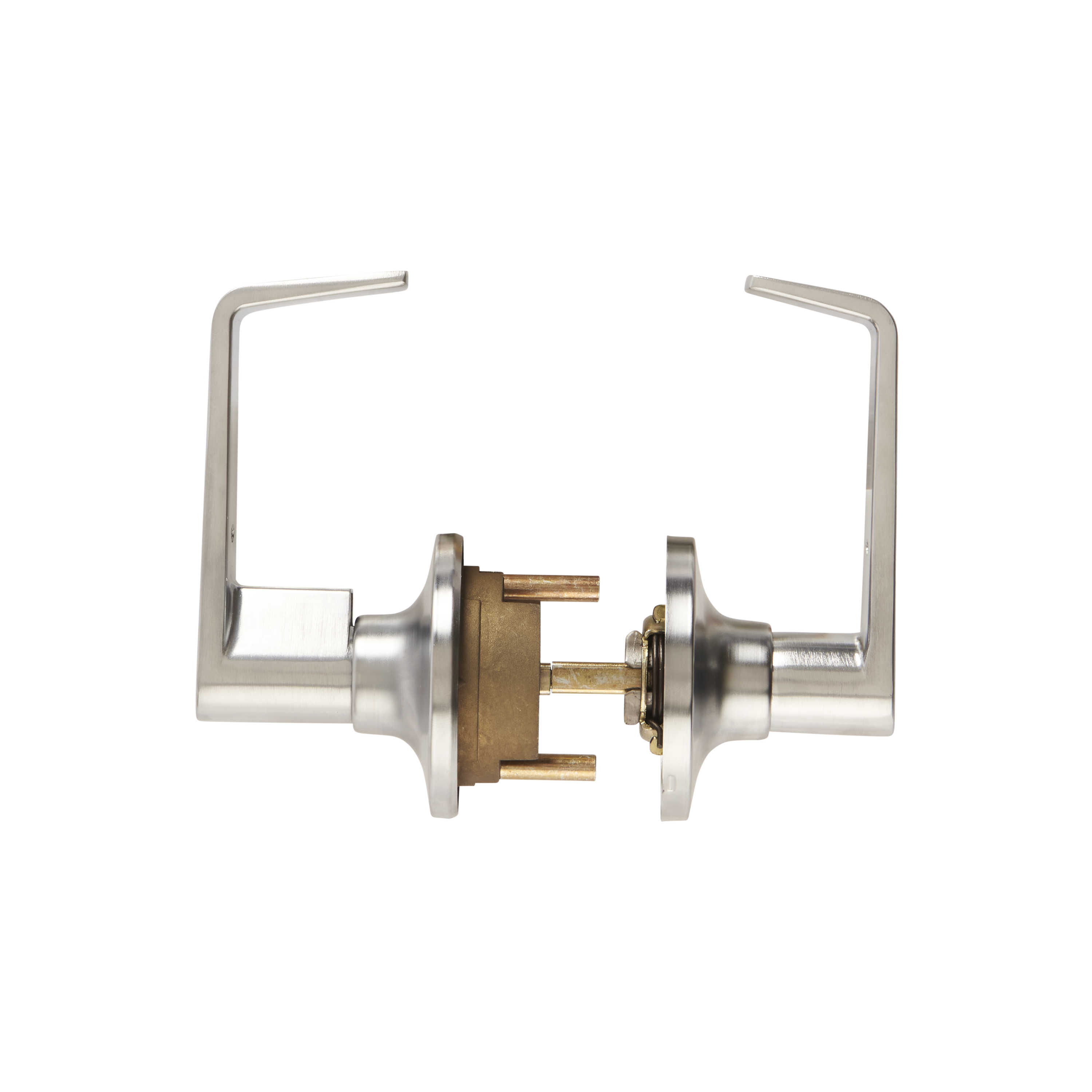

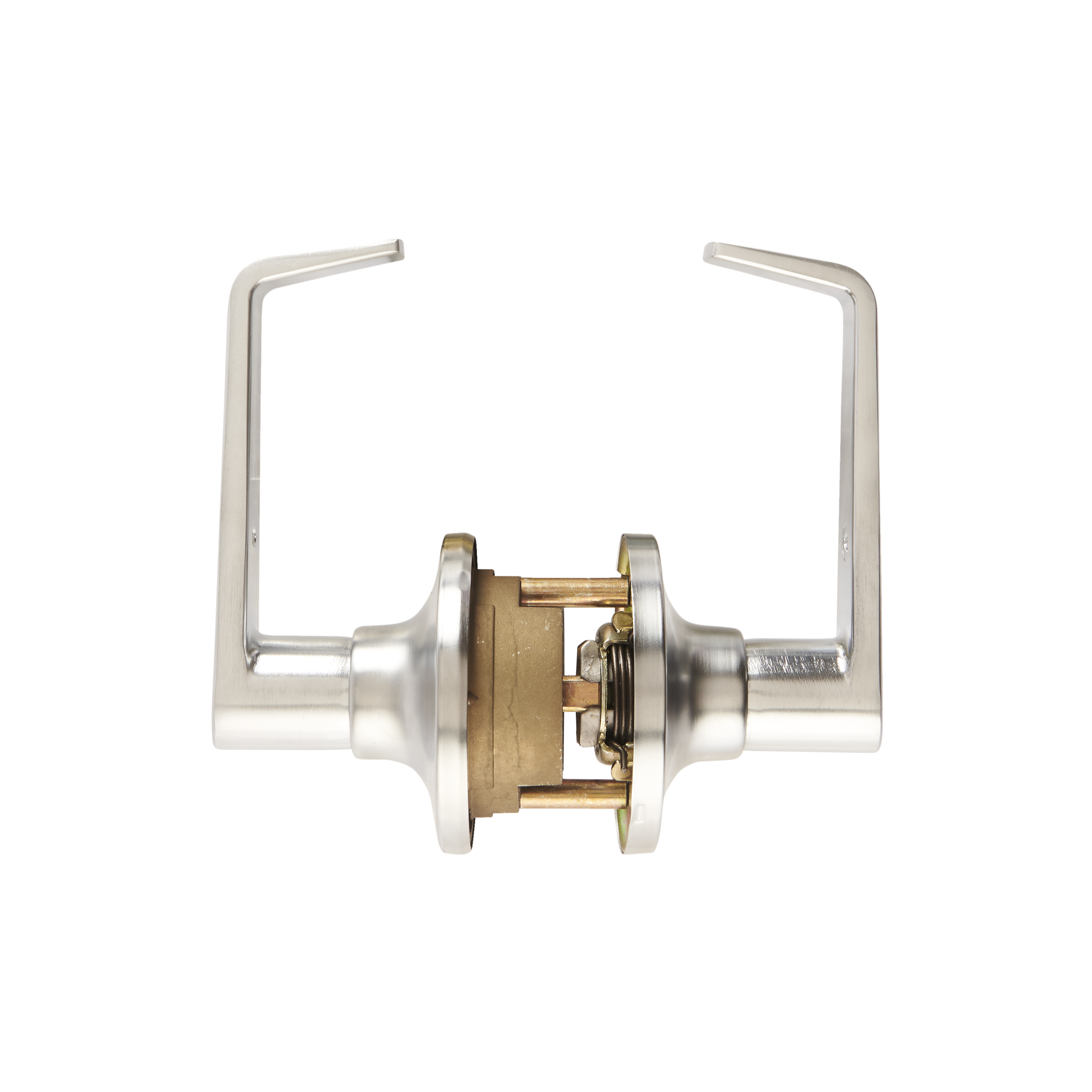

  • Tubular chassis lever helps simplify installation

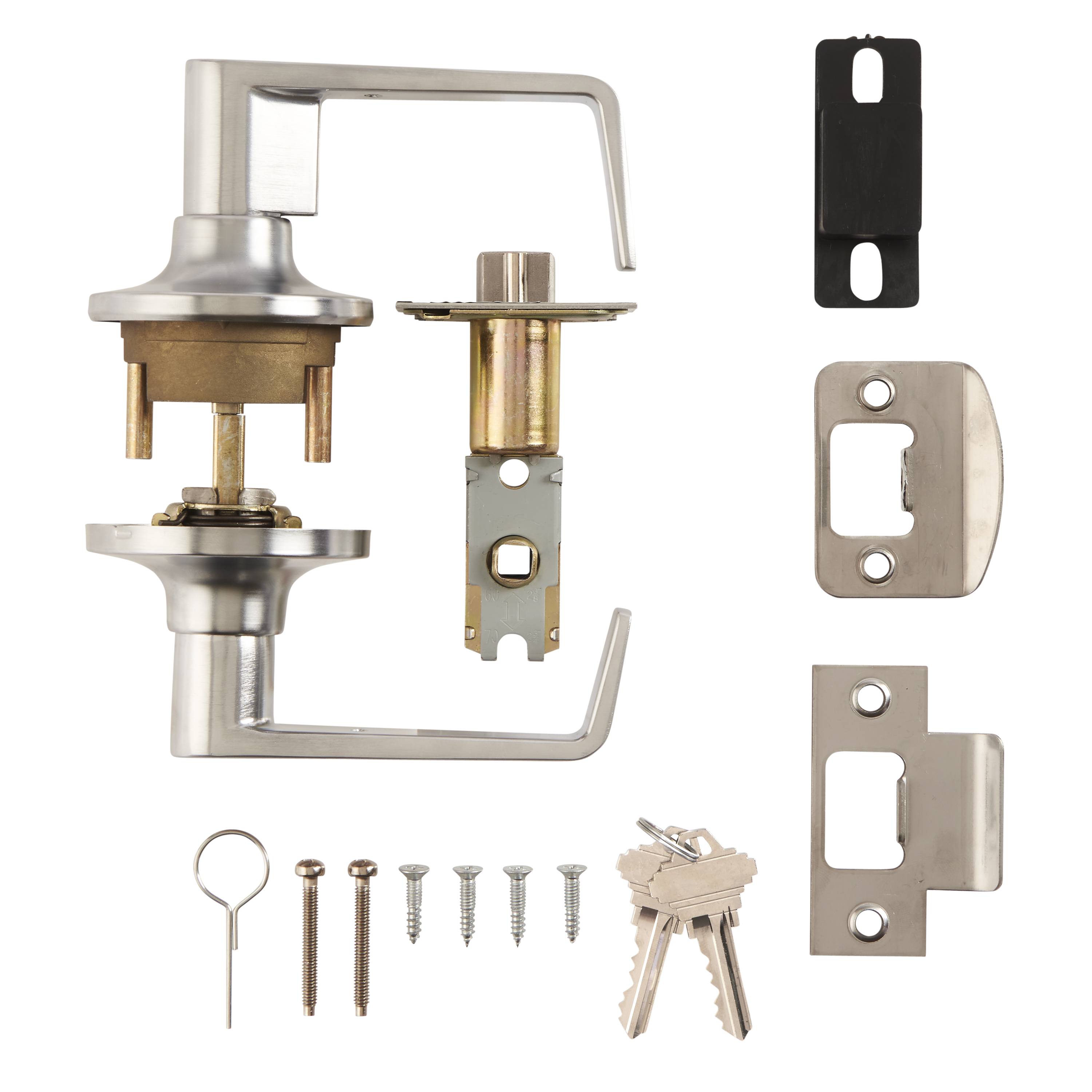

  • Included hardware: Mounting screws and installation instructions

Product Information

Technical Details

Exterior Door Compatibility Left or right handed wood or metal doors 1-3/8" - 2" thick
ANSI Grade 2
Mount Type Surface Mount
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant Yes
AX Finish Satin Chrome
Included Hardware Yes
Warranty Limited Lifetime

Additional Information

SKU UH40047
UPC 039208222976
Brand Universal Hardware
Type Door Levers
