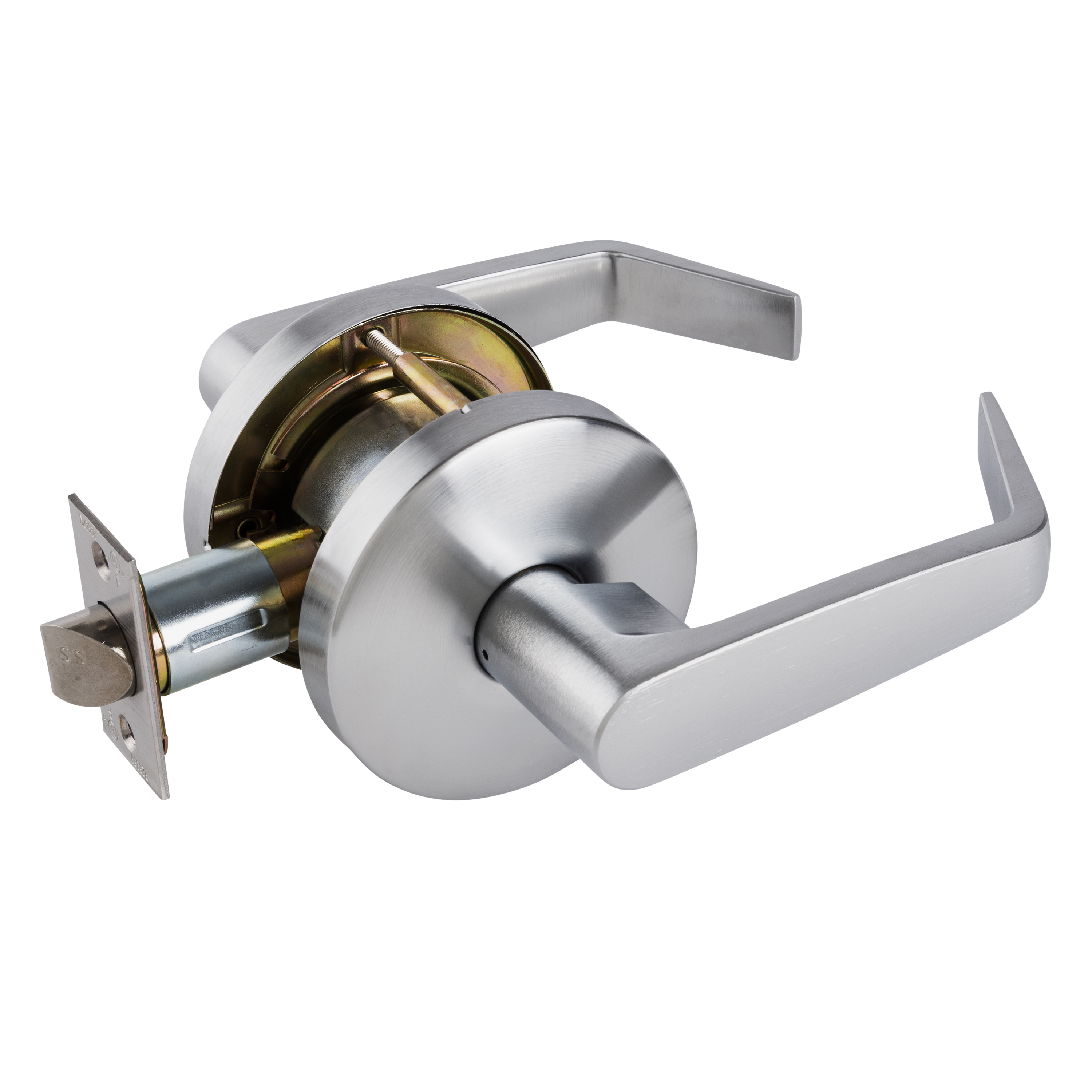

Heavy Duty Commercial Flat Lever

SKU UH40017

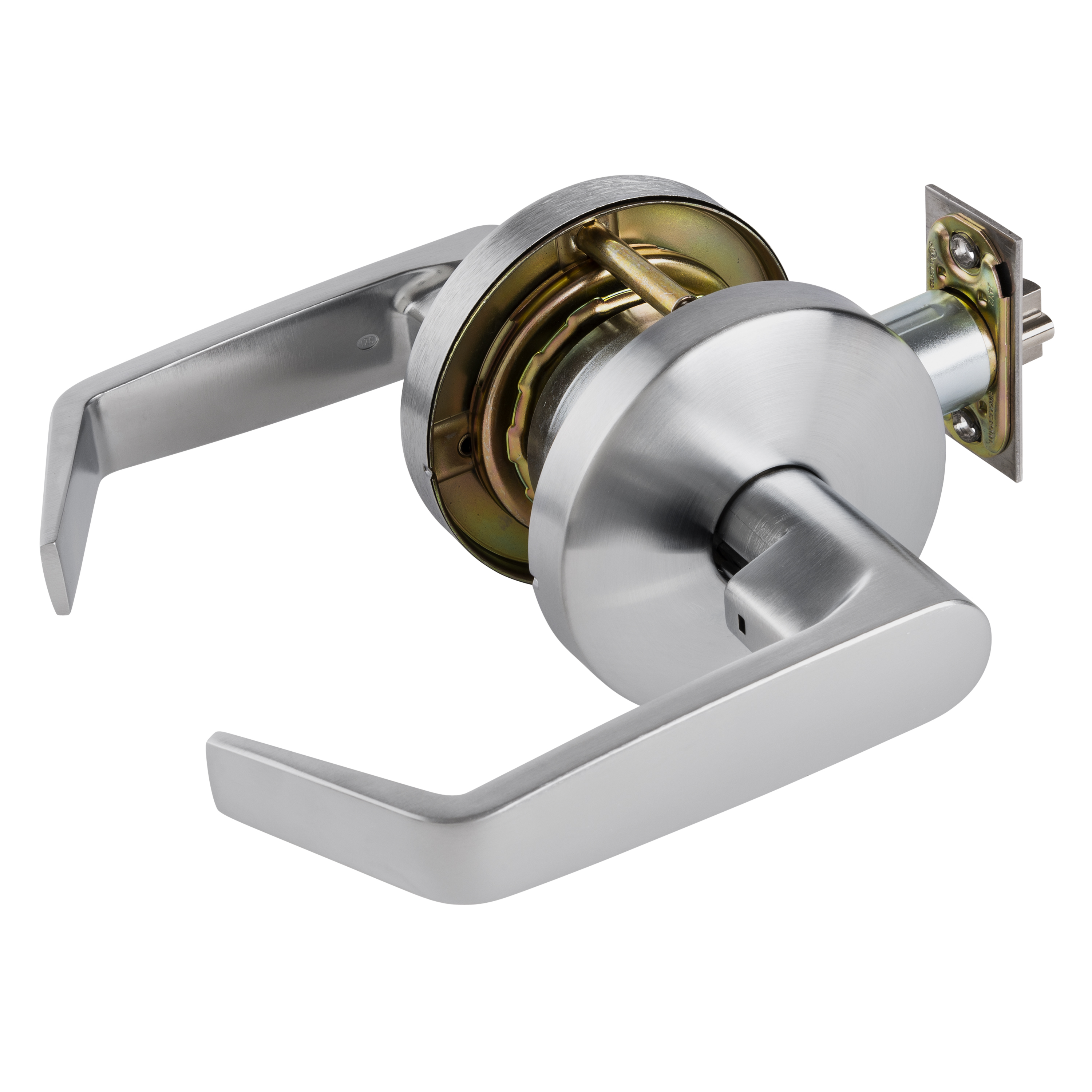

Features - This heavy duty lever is reversible to work on both left- or right-handed doors. It comes with a cylindrical chassis, making it ideal for commercial applications and medium traffic doors that do not require locking.
Measurements - Fits 1-3/8” to 2” thick doors with a fixed latch that fits 2-3/4" backset.
Specifications - Meets ANSI Grade 2 standards, meets ADA requirements, and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Passage lever does not have a locking mechanism.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

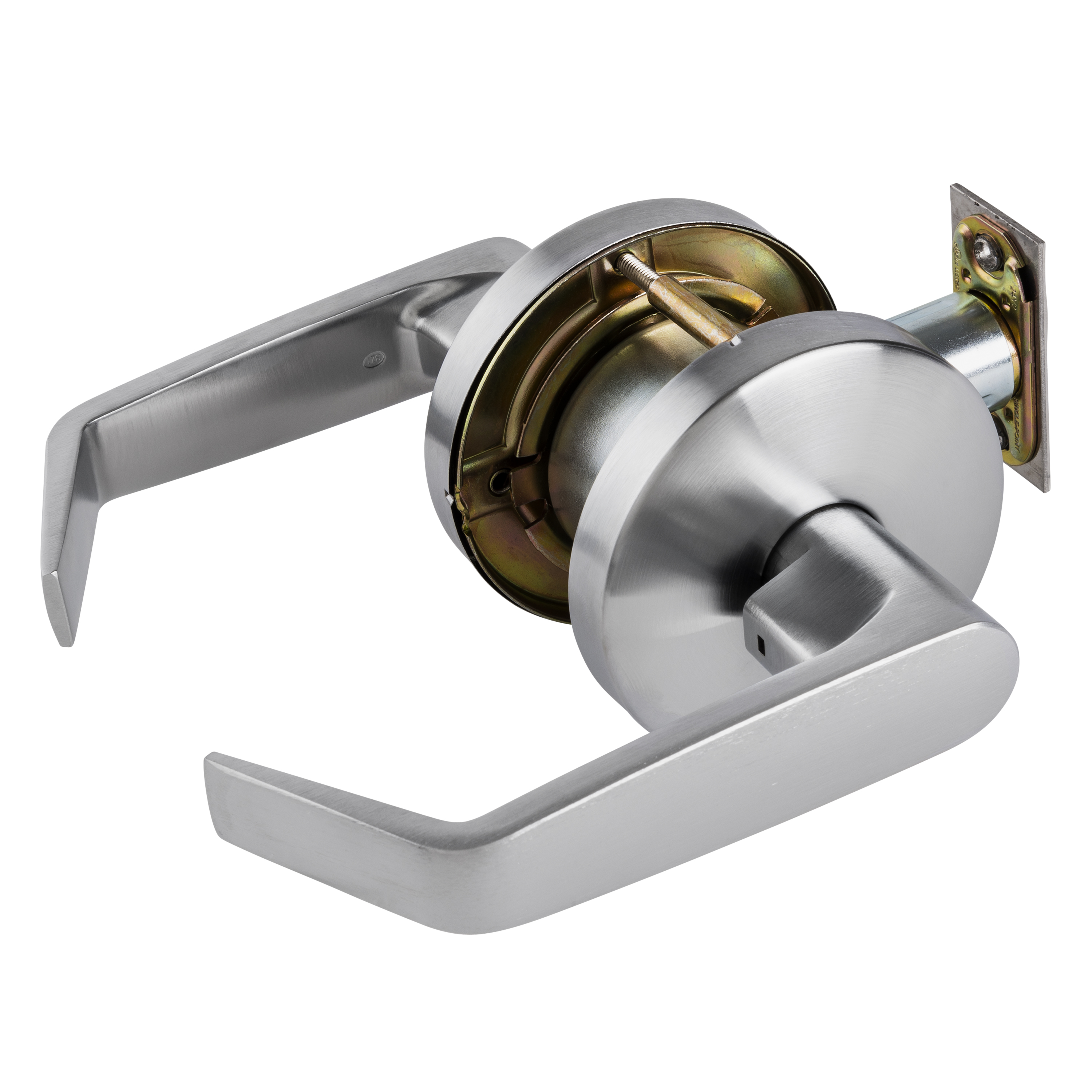

Features - This heavy duty lever is reversible to work on both left- or right-handed doors. It comes with a cylindrical chassis, making it ideal for commercial applications such as restrooms or offices.
Measurements - Fits 1-3/8” to 2” thick doors with a fixed latch that fits 2-3/4" backset.
Specifications - Meets ANSI Grade 2 standards, meets ADA requirements, and has a 3-hour UL fire rating. Made from corrosion-resistant steel.

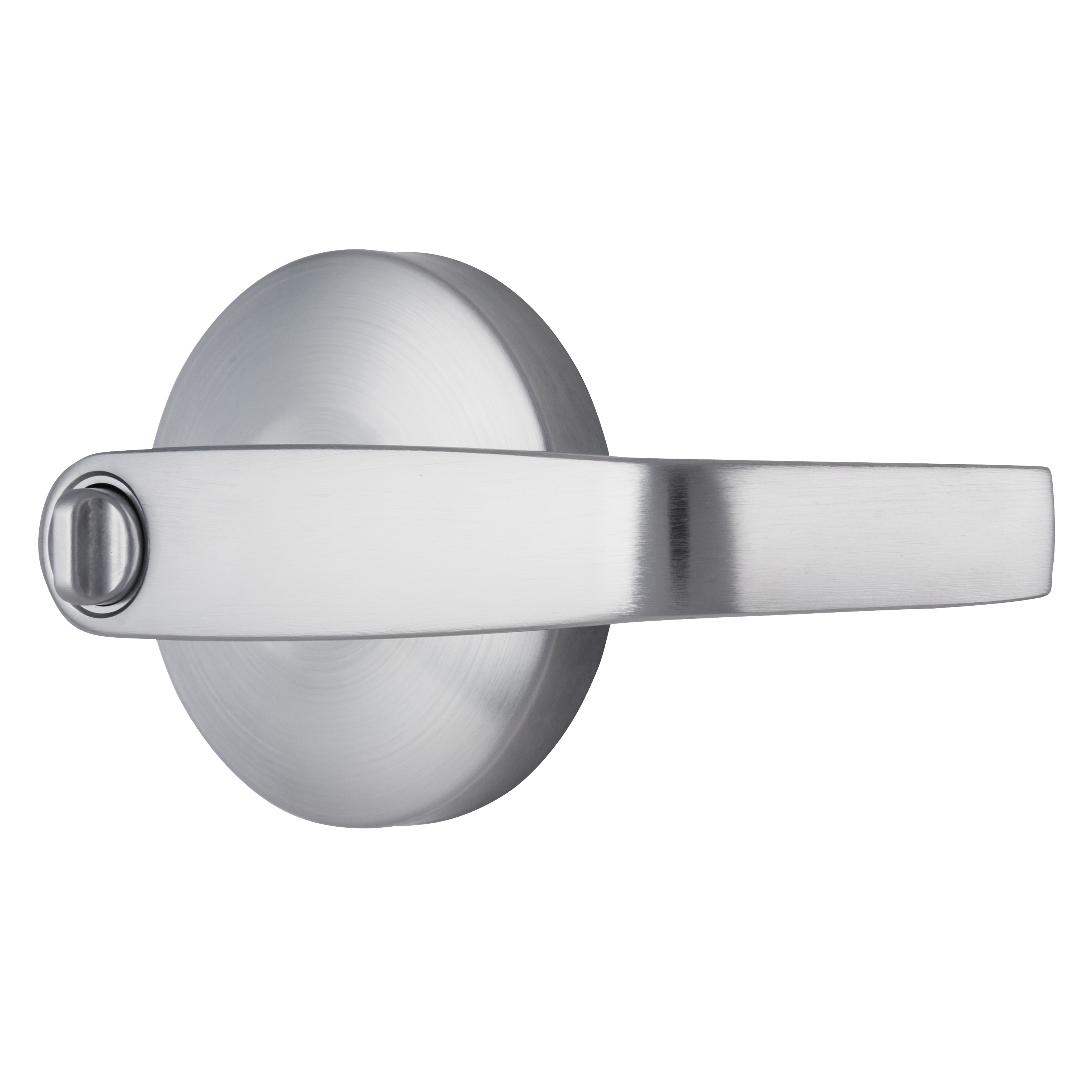

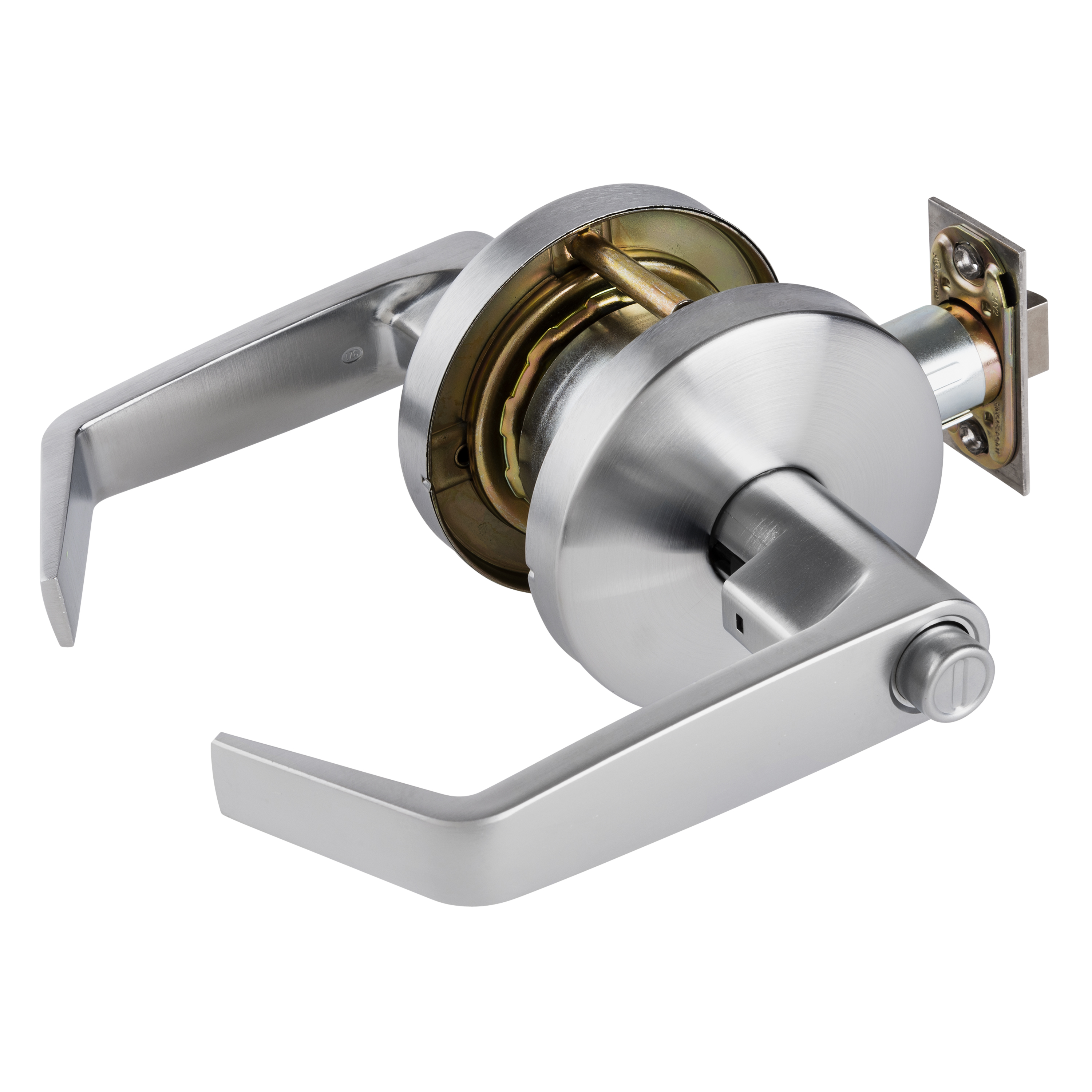

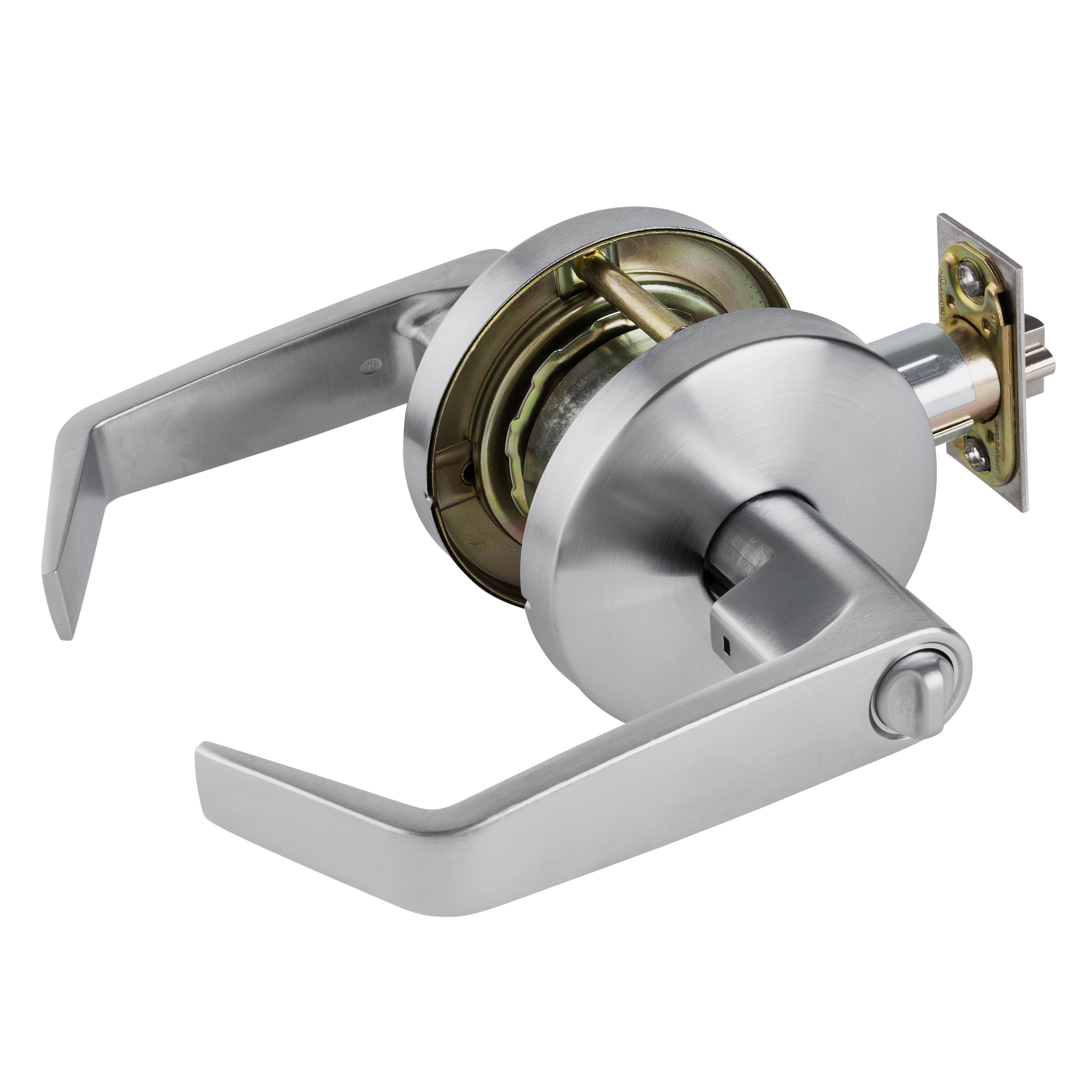

Installation - Includes T-strike and 4-7/8" ASA strike. Easy to install on wood or metal doors and has been tested to exceed 500,000 cycles. Privacy lever has a push button on the inside lever for locking.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Features - This heavy duty lever is reversible to work on both left- or right-handed doors. It comes with a cylindrical chassis, making it ideal for commercial applications and medium traffic doors such as entry doors and doors that require locking.
Measurements - Fits 1-3/8” to 2” thick doors with a fixed latch that fits 2-3/4" backset.

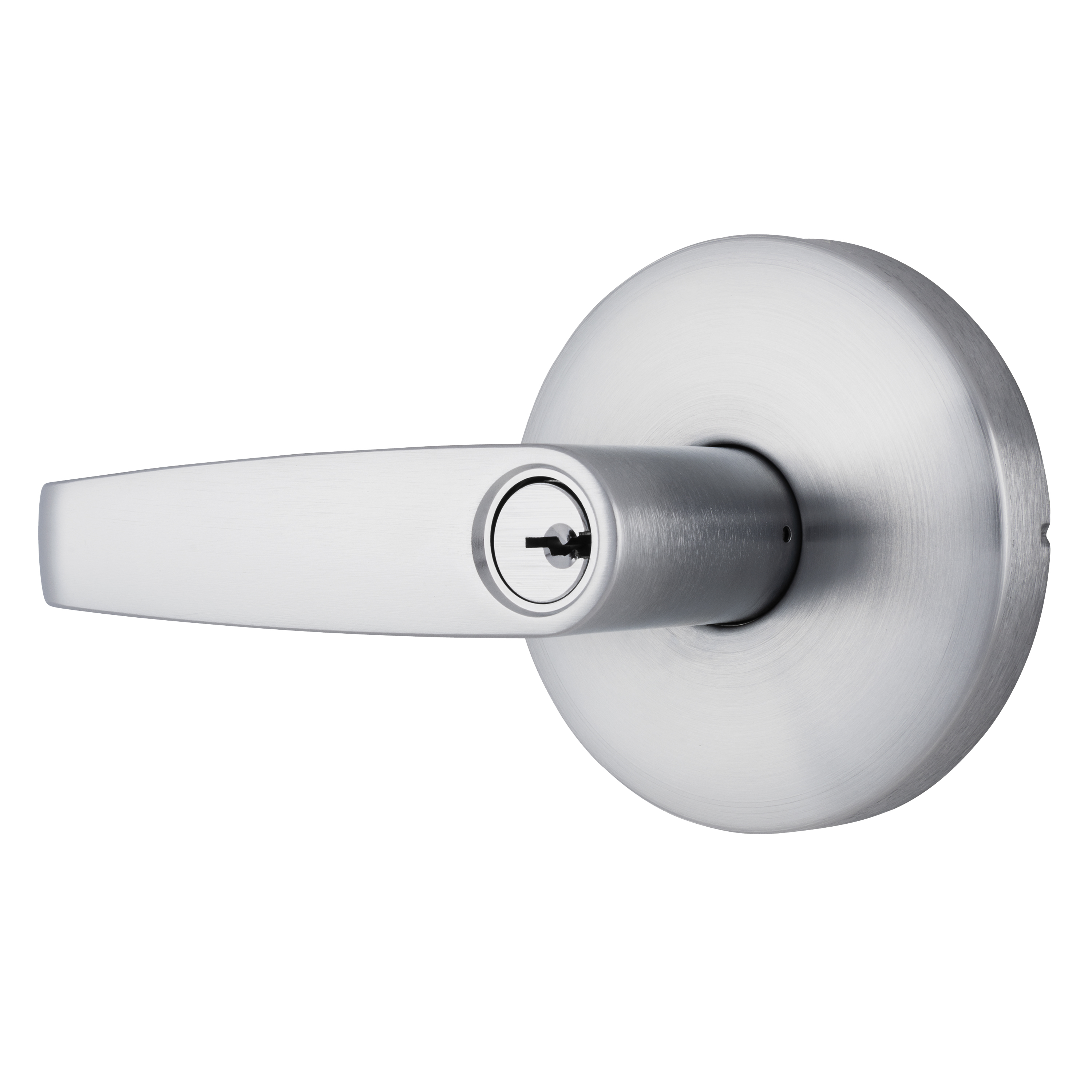

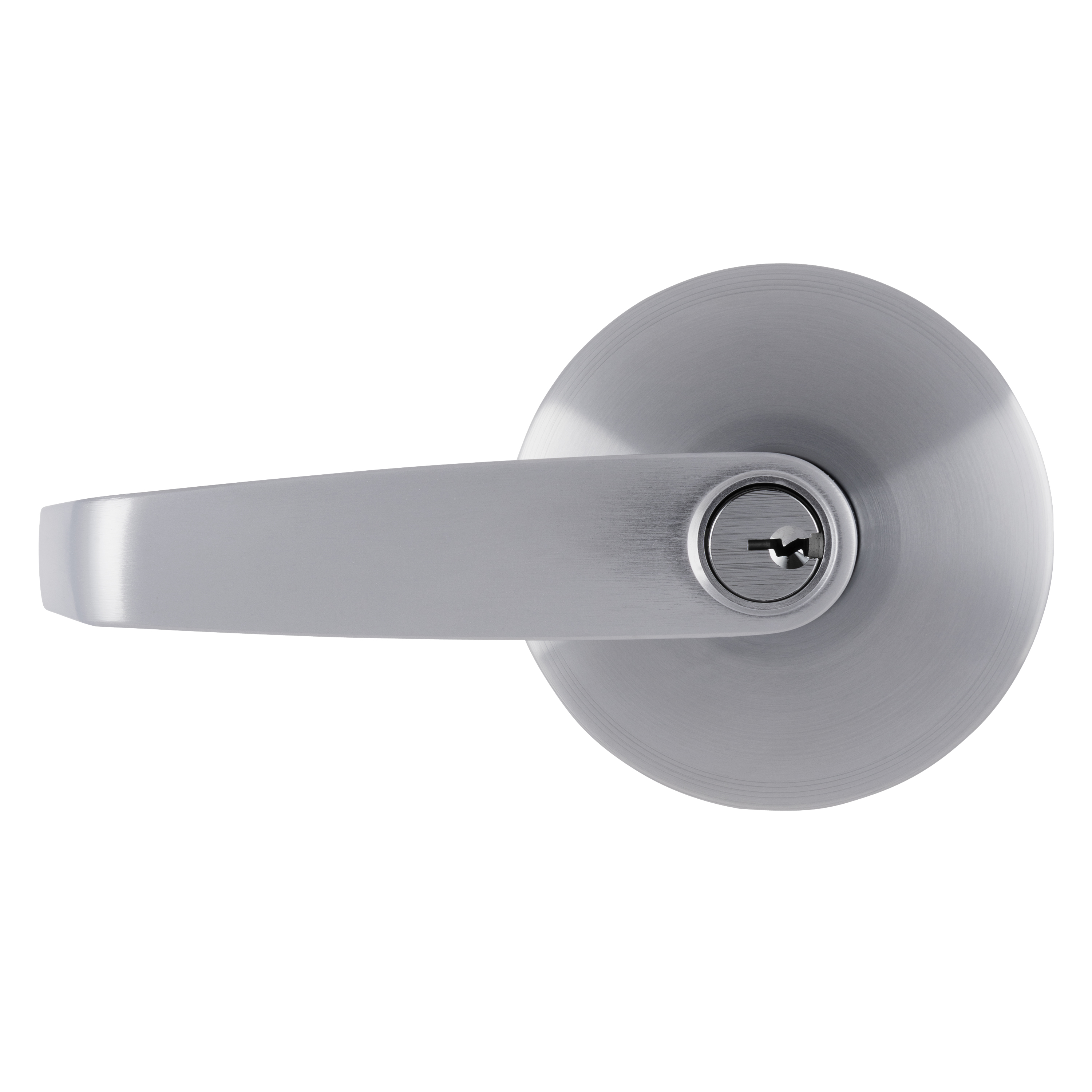

Specifications - Meets ANSI Grade 2 standards, meets ADA requirements, and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Keyed lock has a 6-pin SC4 cylinder, brass plug, and includes 2 keys.
Installation - Includes T-strike and 4-7/8" ASA strike. Easy to install on wood or metal doors and has been tested to exceed 500,000 cycles. Keyed entry lever has push/turn button locking on the interior lever.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

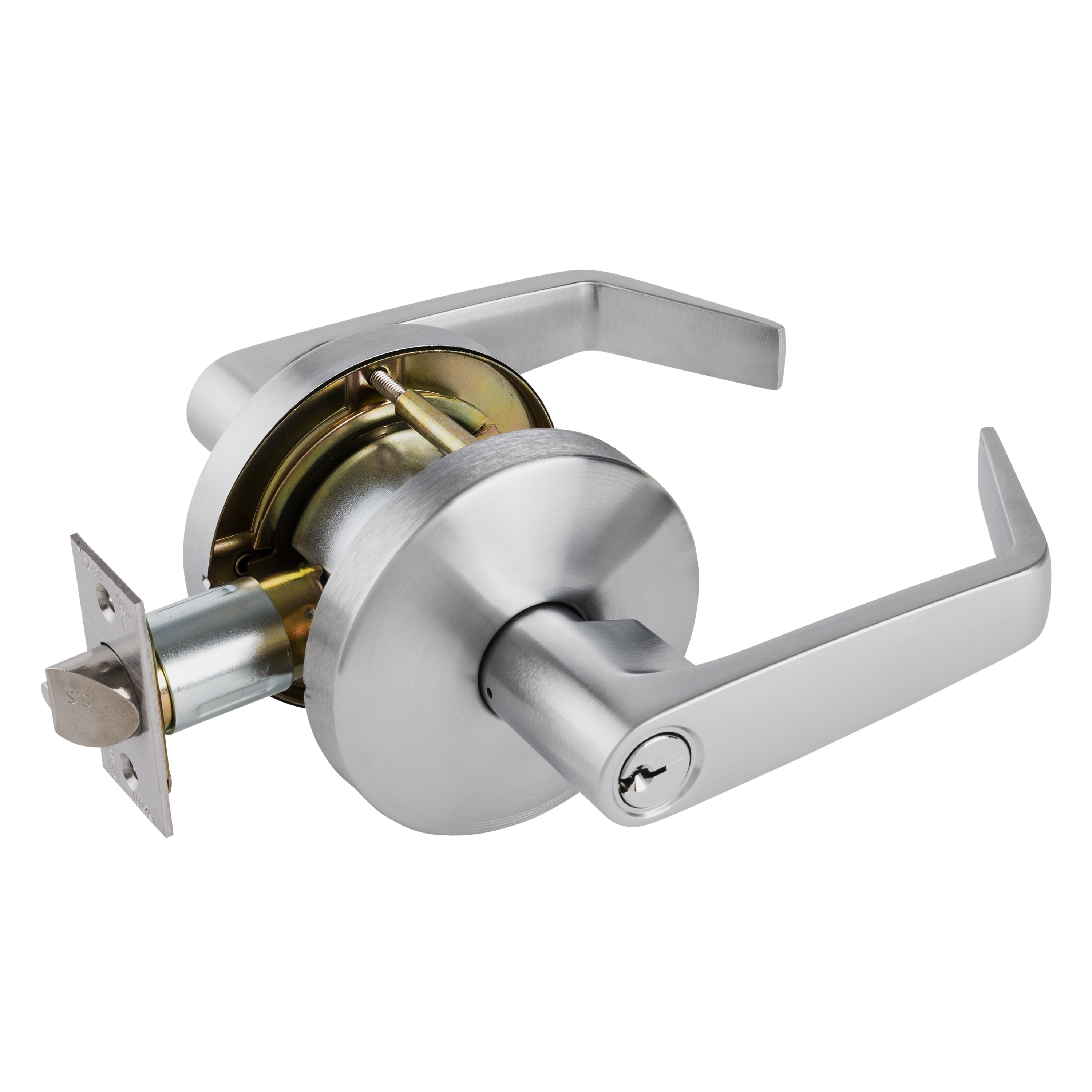

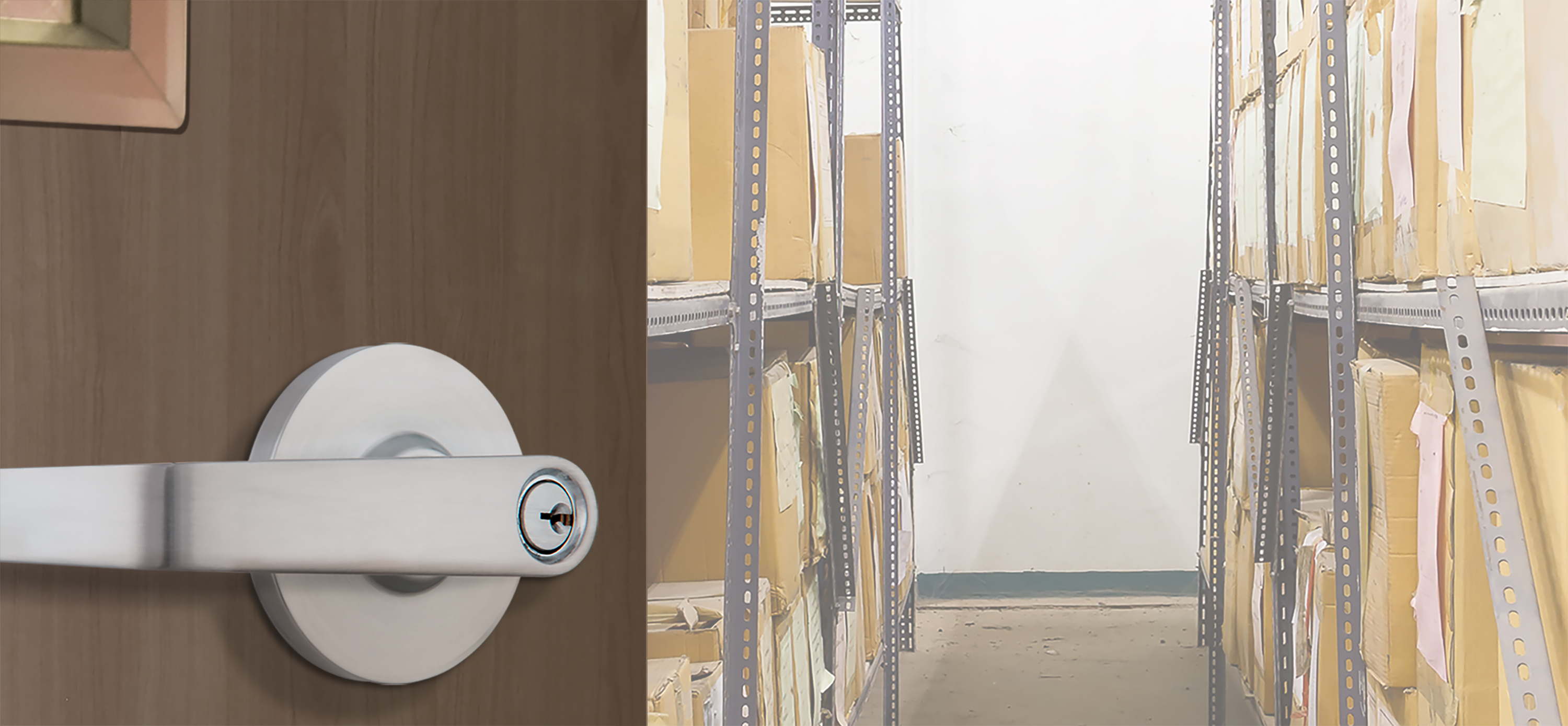

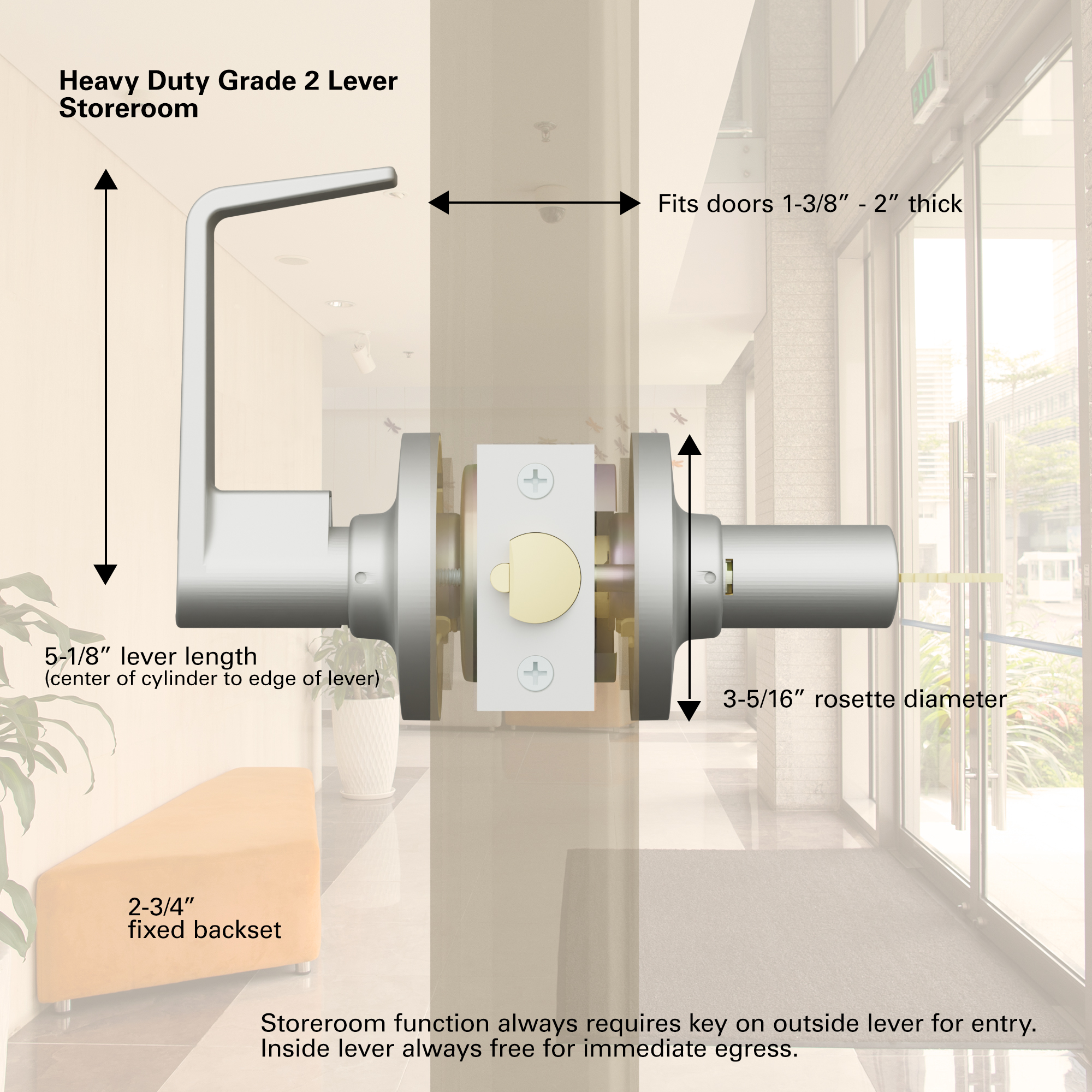

Features - This heavy duty lever is reversible to work on both left- or right-handed doors. It comes with a cylindrical chassis, making it ideal for commercial applications and medium traffic doors such as storage rooms, warehouses and maintenance rooms.
Measurements - Fits 1-3/8” to 2” thick doors with a fixed latch that fits 2-3/4" backset.

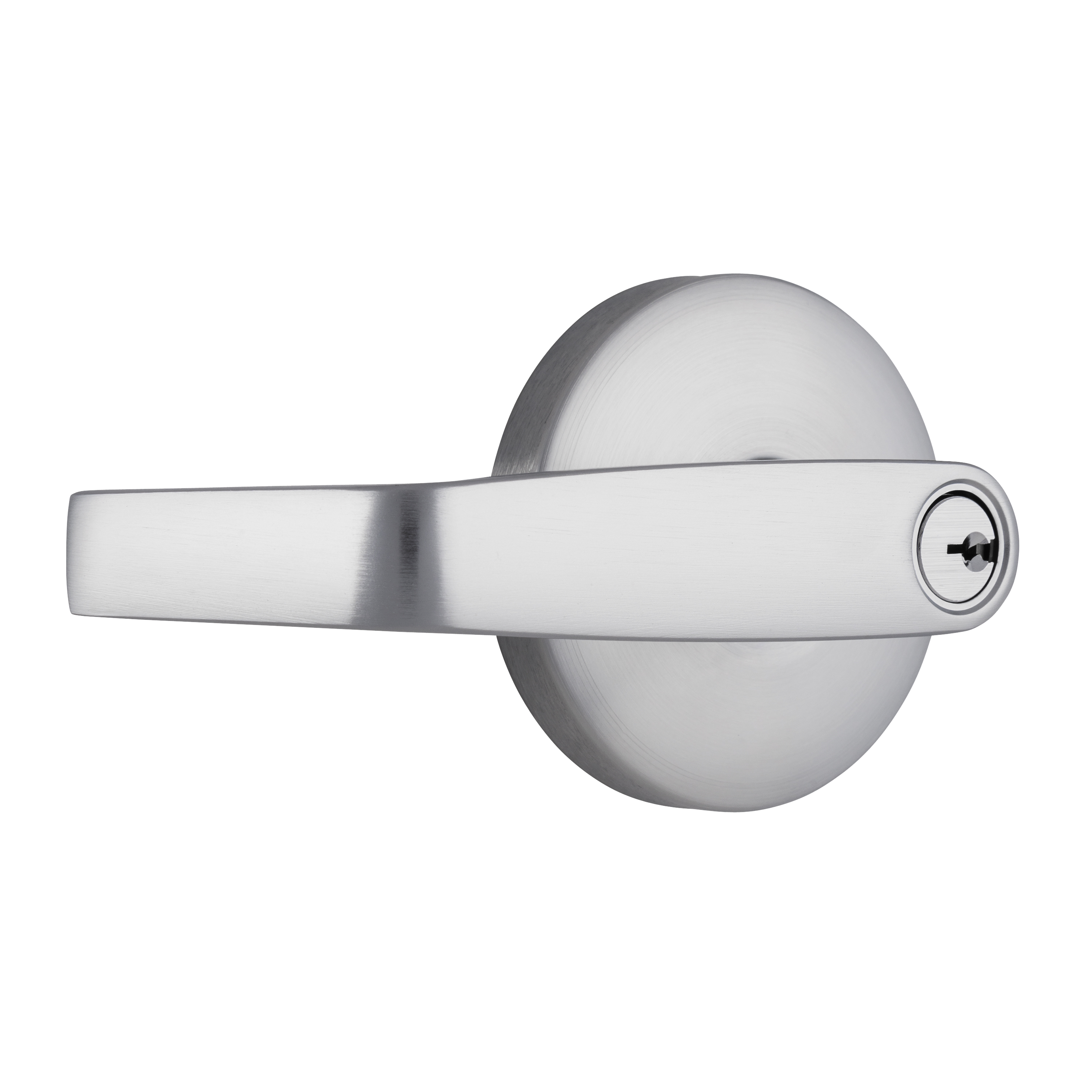

Specifications - Meets ANSI Grade 2 standards, meets ADA requirements, and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Keyed lock has a 6-pin SC4 cylinder, brass plug, and includes 2 keys.
Installation - Includes T-strike and 4-7/8" ASA strike. Easy to install on wood or metal doors and has been tested to exceed 500,000 cycles. There is no push botton on the inside lever so outside lever cannot be left unlocked. A key is always required for entry.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Find online:

Product Description

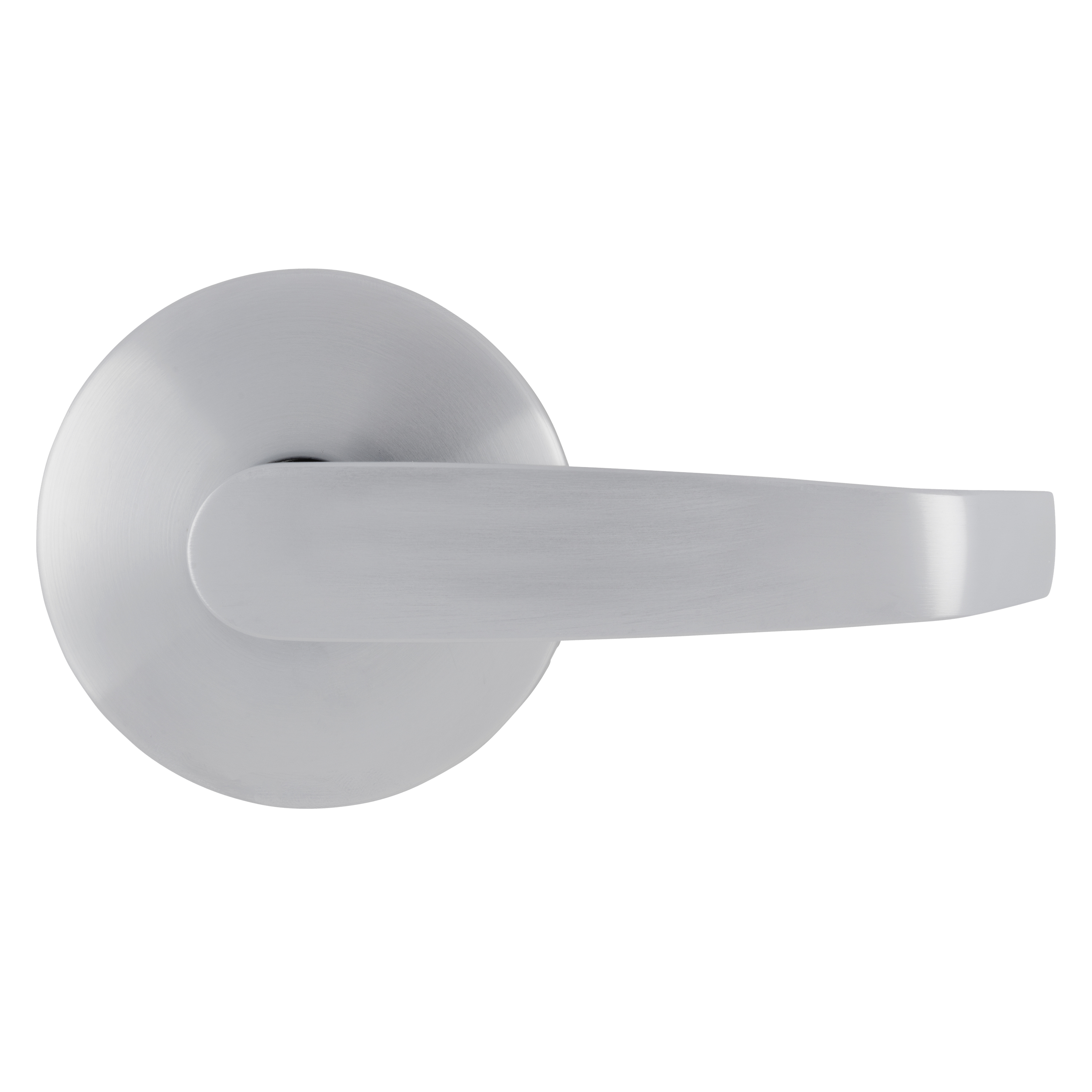

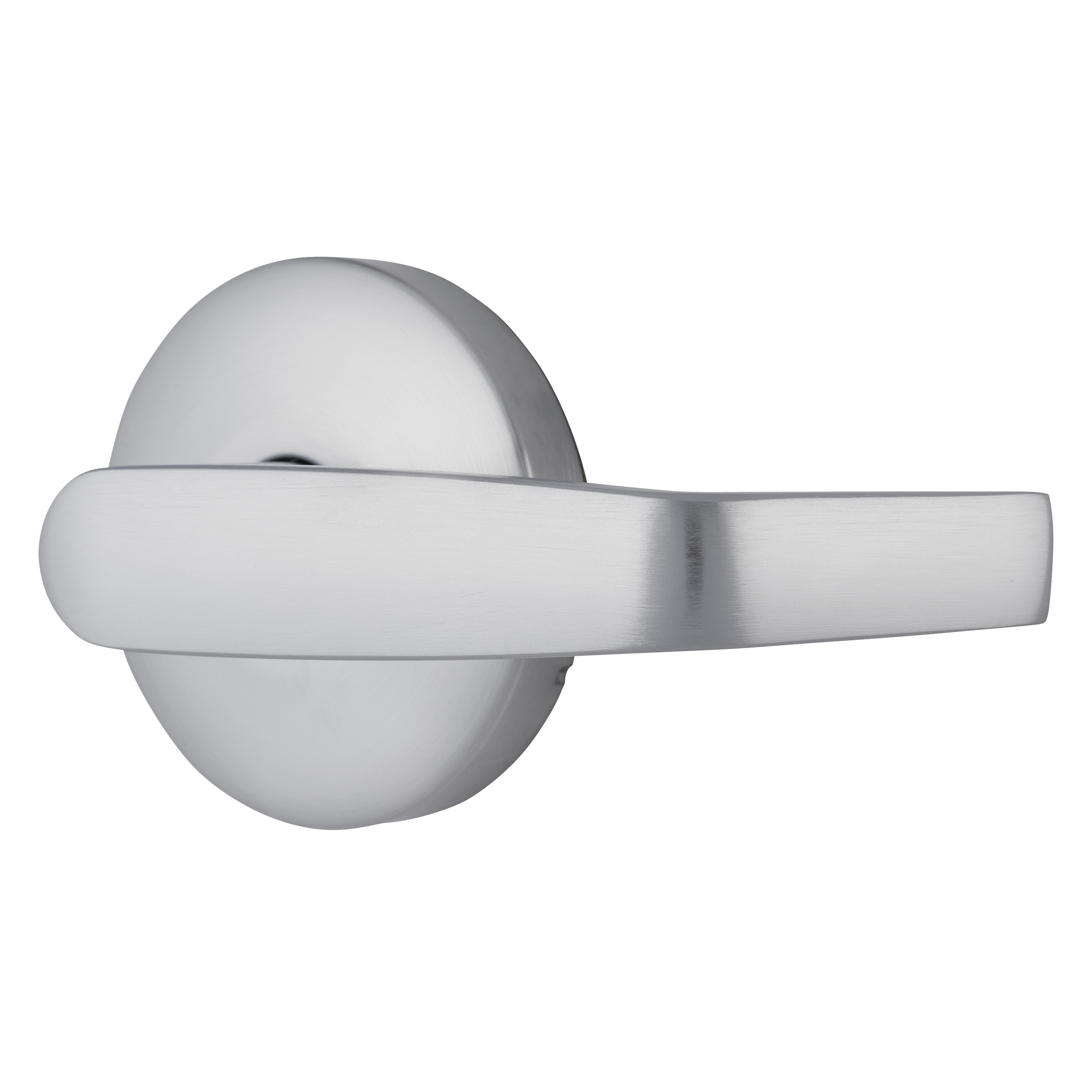

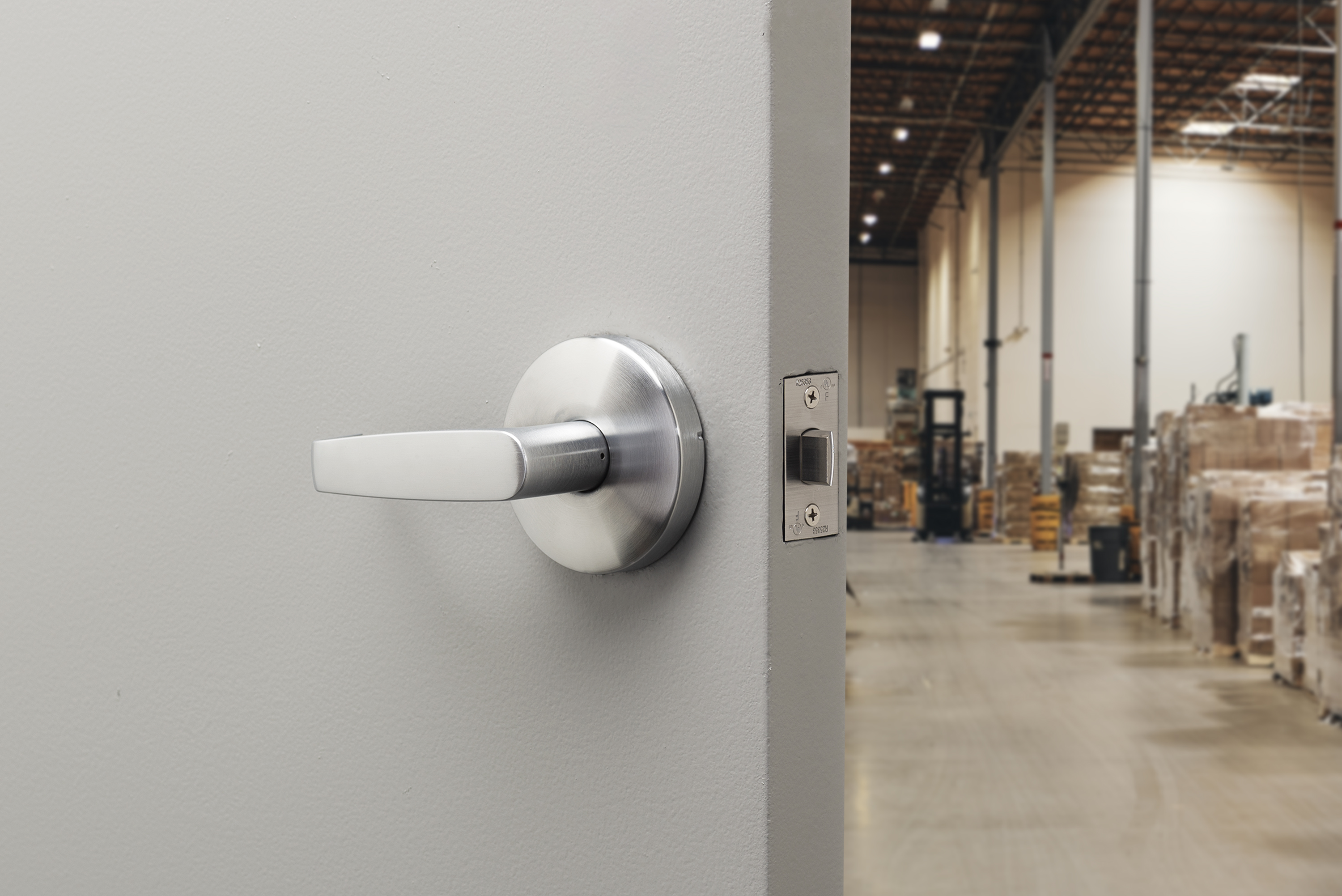

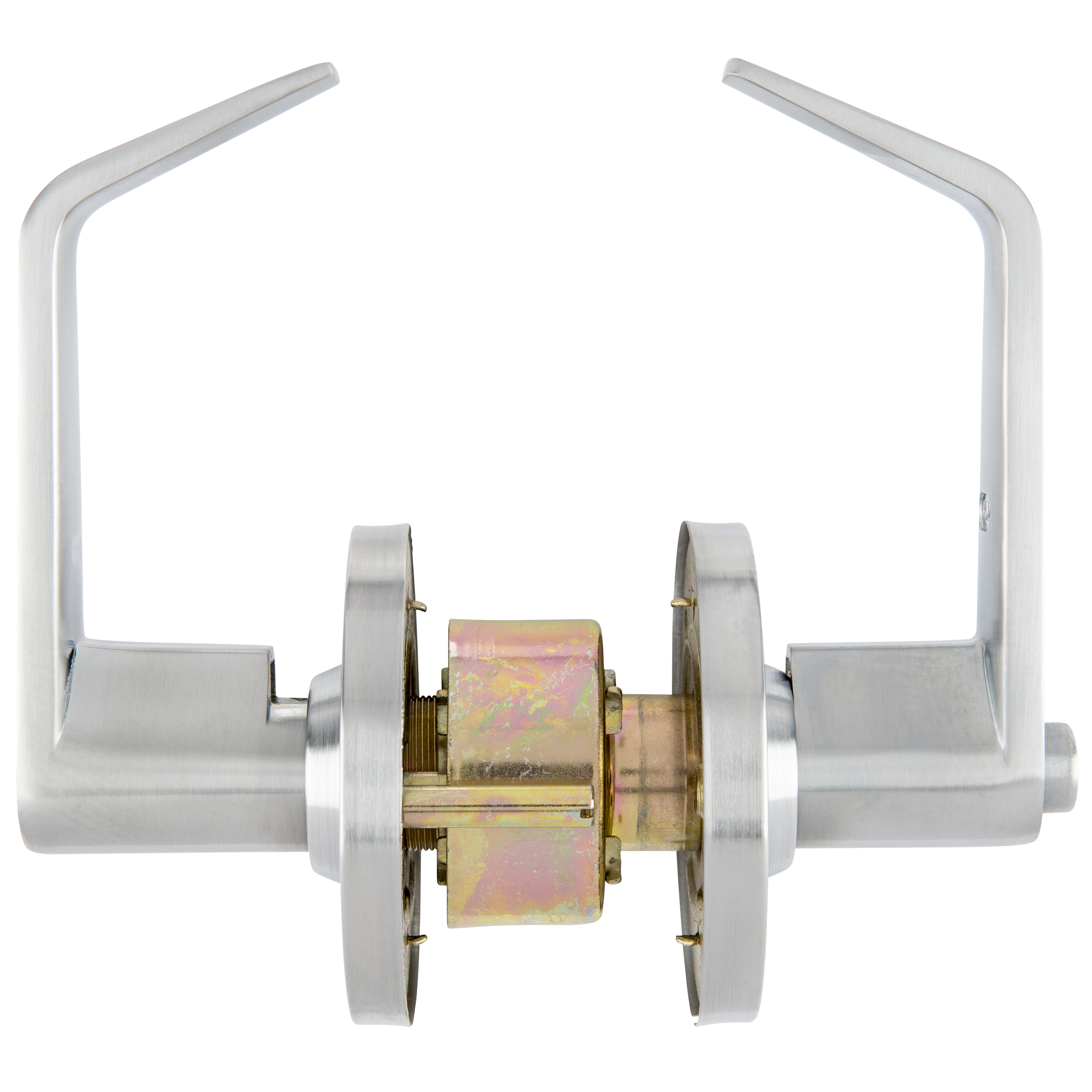

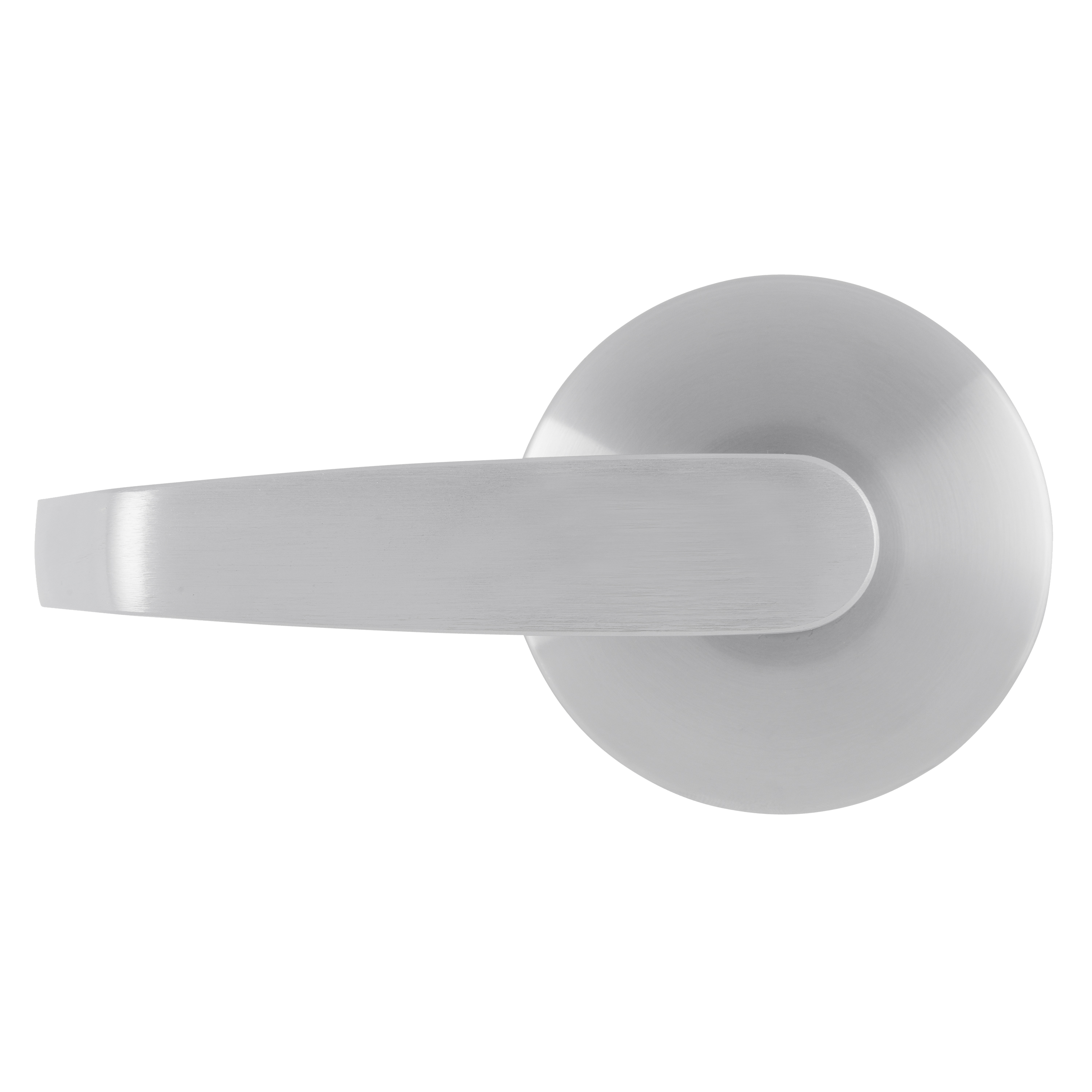

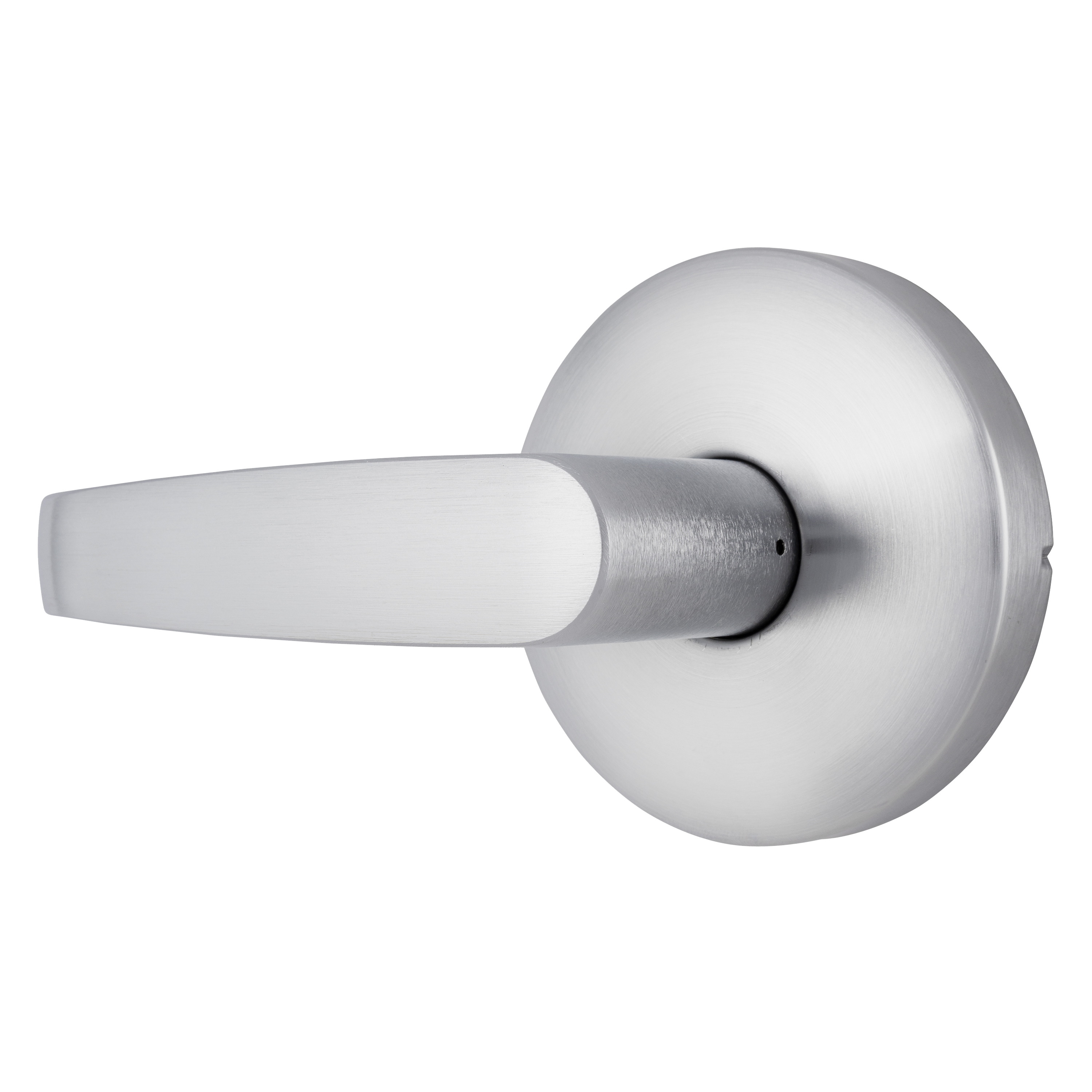

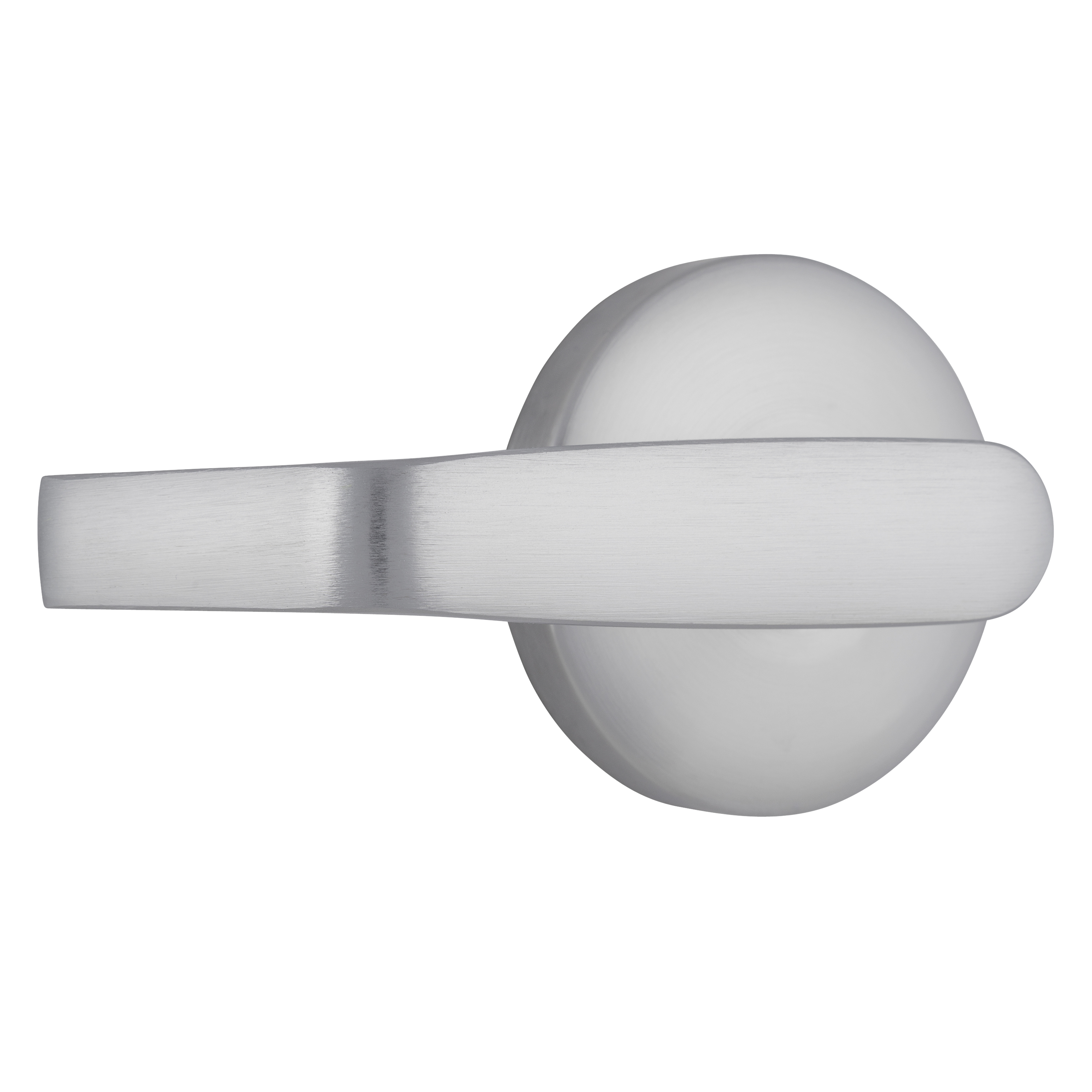

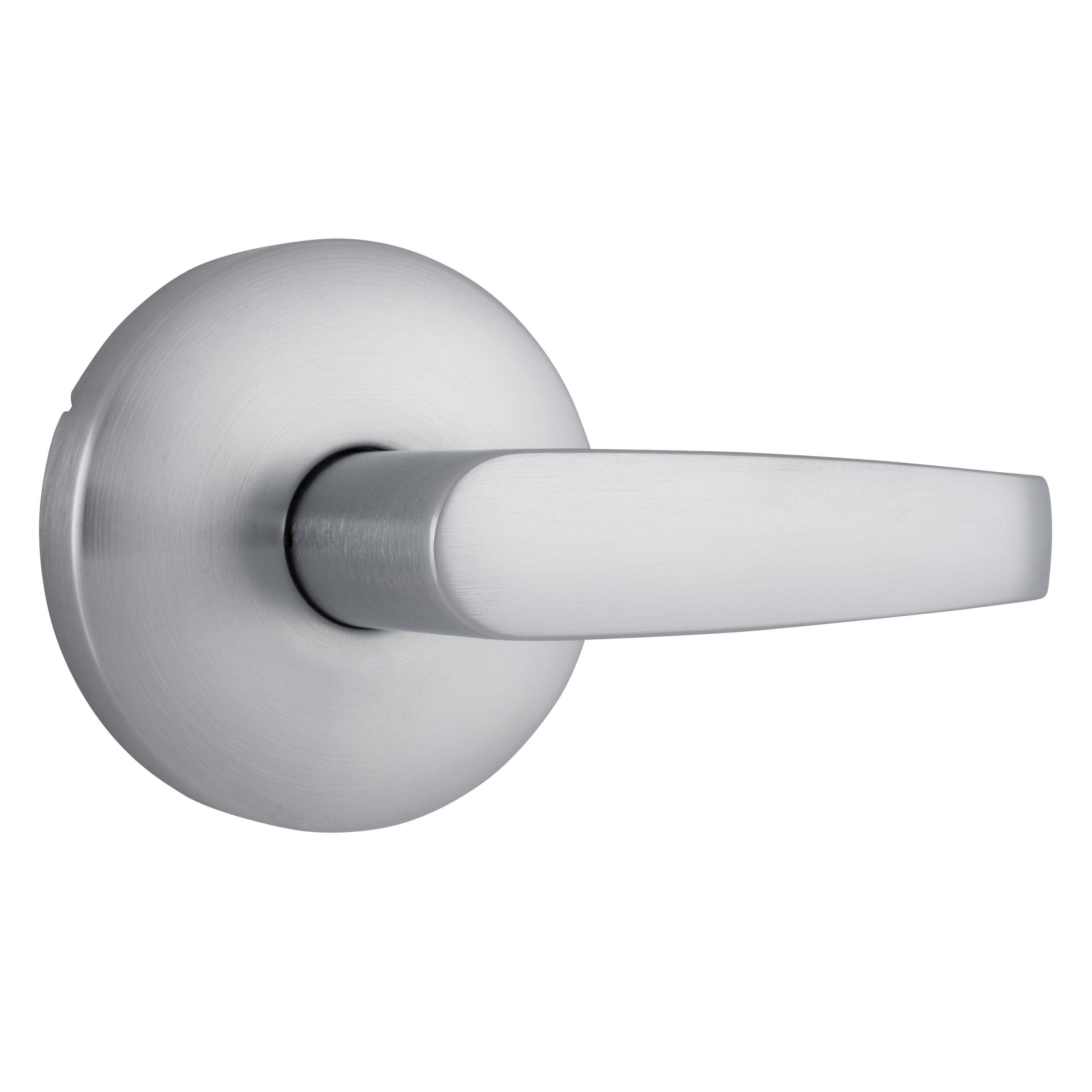

The Universal Hardware Heavy-Duty Passage Lever is designed for doors that do not require locking such as connecting doors within office buildings, hallway doors or closets. The latch bolt is operated by the lever from either side of the door at all times. Equipped with tubular chassis for easier installation, the passage lever will fit wood or metal doors 1-3/8" to 2" thick. The Heavy-Duty Passage Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating that's tested to exceed 500,000 cycles, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial or residential use. A T-strike, 4-7/8" ASA strike, mounting hardware and installation instructions are included. Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Construction

Equipped with 4-5/8" solid zinc diecast levers
Sleek satin chrome finish

Durability

ANSI Grade 2: Tested to exceed 500,000 cycles
UL Listed: 3 Hour fire rated for added protection and meeting building requirements
ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
Full lifetime warranty

Installation

Door Type: Wood or Metal doors 1-3/8"-2" thick
Non-Handed: Can be applied to left or right handed doors
Fixed 2-3/4" backset latch
Included hardware: Mounting screws and installation instructions

Additional Images

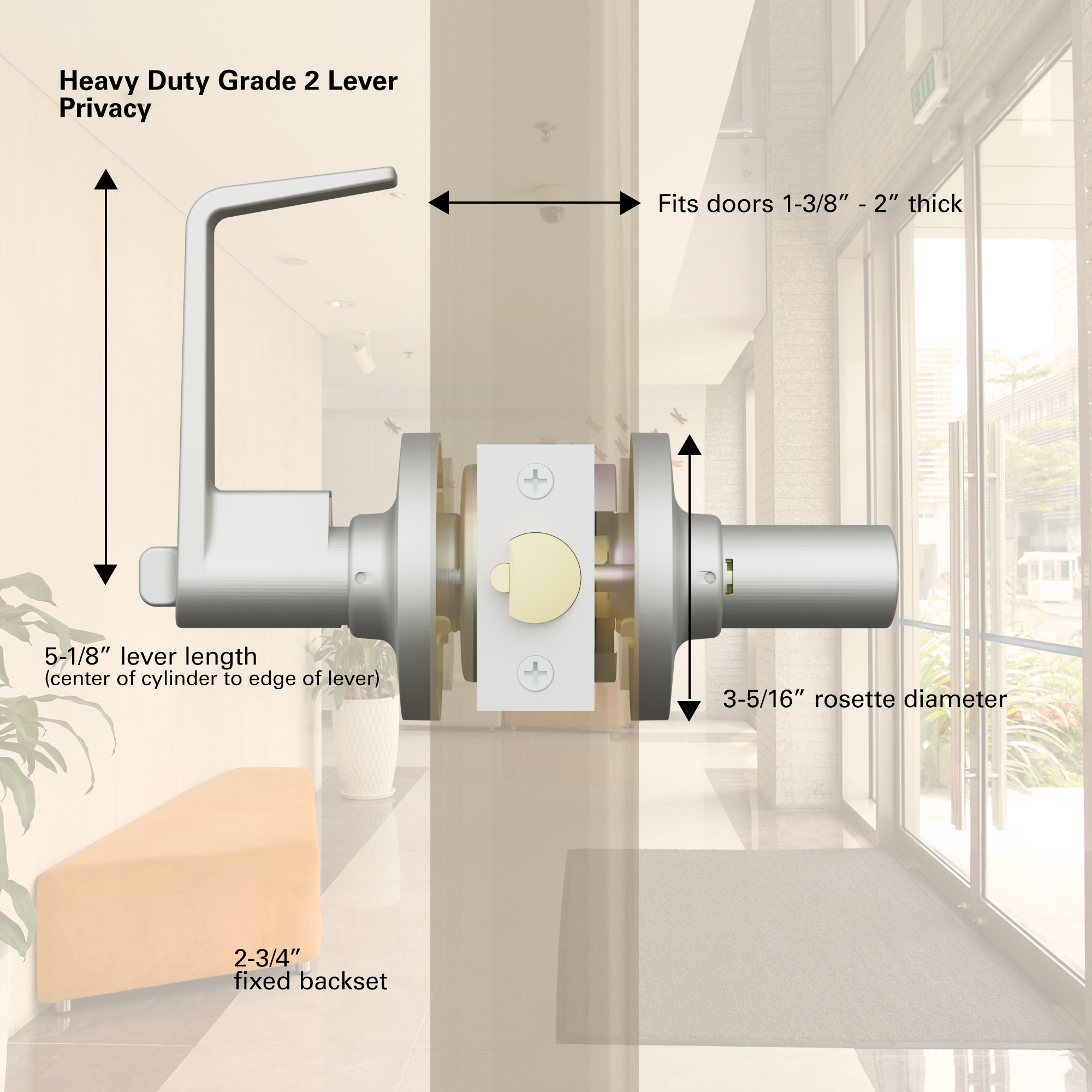

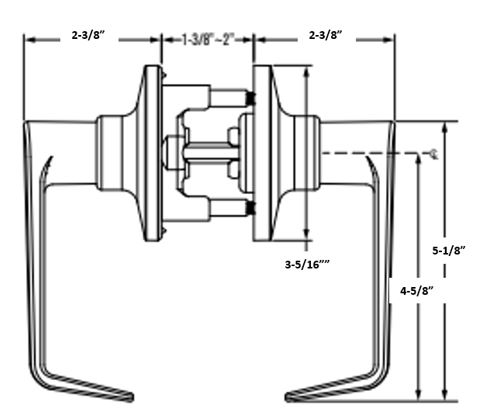

Drawings

View Full Image

Files

Instructions

Download

Installation Guide

Download

Product Information

Technical Details

Function	Passage
Color / Finish	Satin Chrome
Durability	Heavy Duty Commercial
Retail Width	9.5 in
Retail Height	9.88 in
Retail Depth	3.5 in
Retail Weight	3.27 lb
Included Hardware	Yes
Exterior Door Compatibility	Left or right handed wood or metal doors 1-3/8" - 2" thick
ANSI Grade	2
Mount Type	Surface Mount
Indoor Outdoor	Both
UL Listing	Yes, 3 Hour Fire Rated
ADA Compliant	Yes
Warranty	Full lifetime
Country of Origin	China (CN)

Additional Information

SKU	UH40017
UPC	879564400171
Brand	Universal Hardware
Type	Lever

Warranty & Support

The Hampton.Care team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.

View Product on Hampton.Care Open a Support Ticket

Product Description

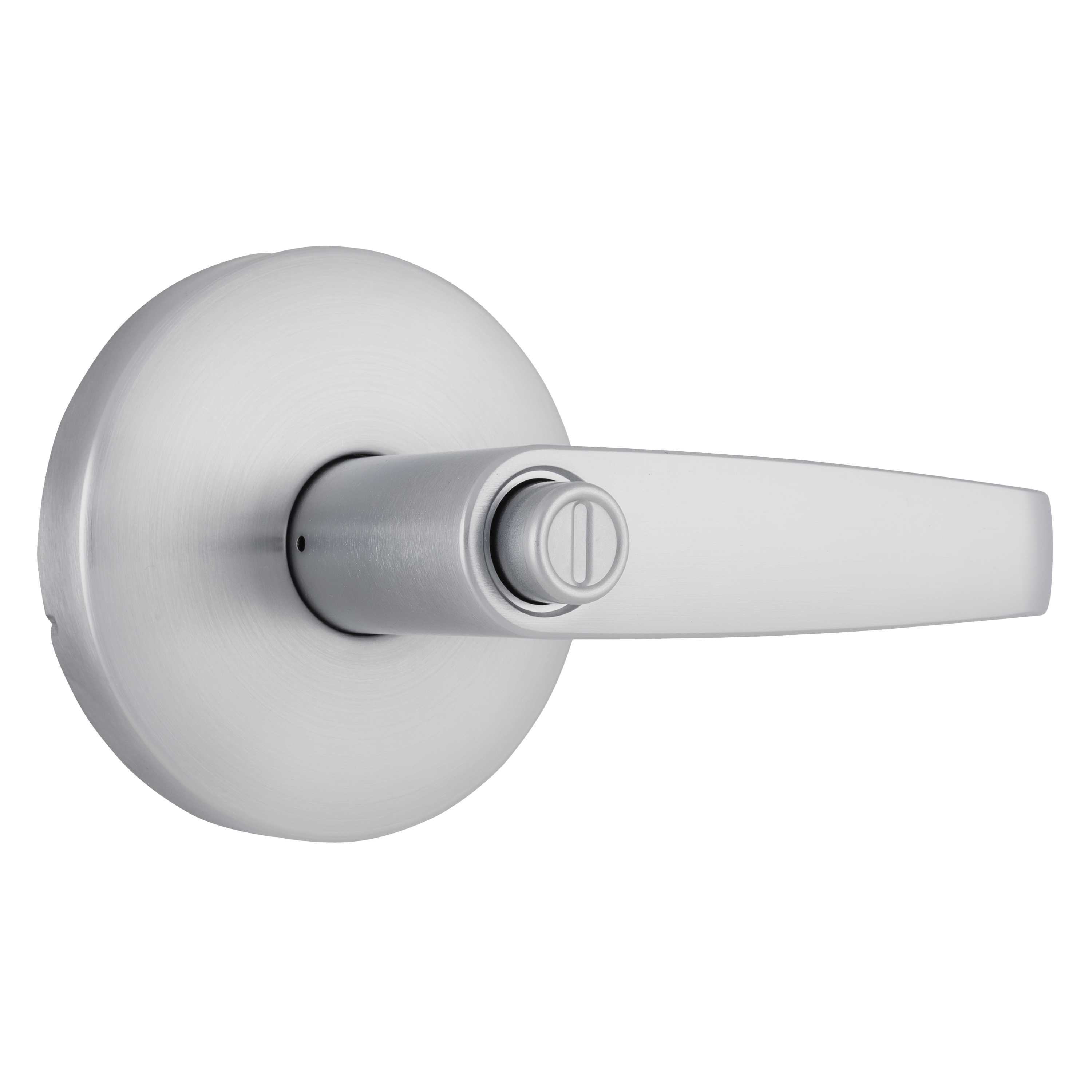

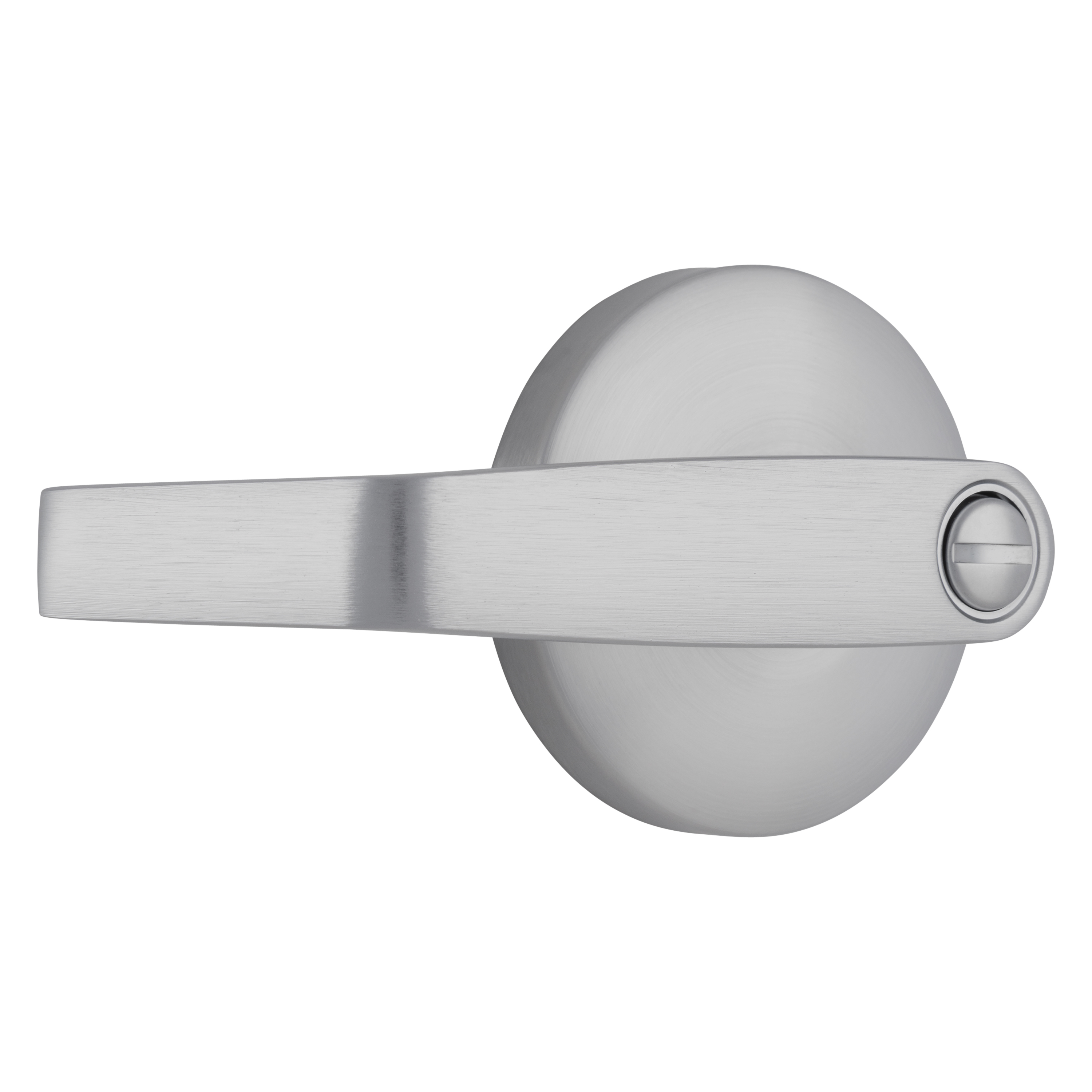

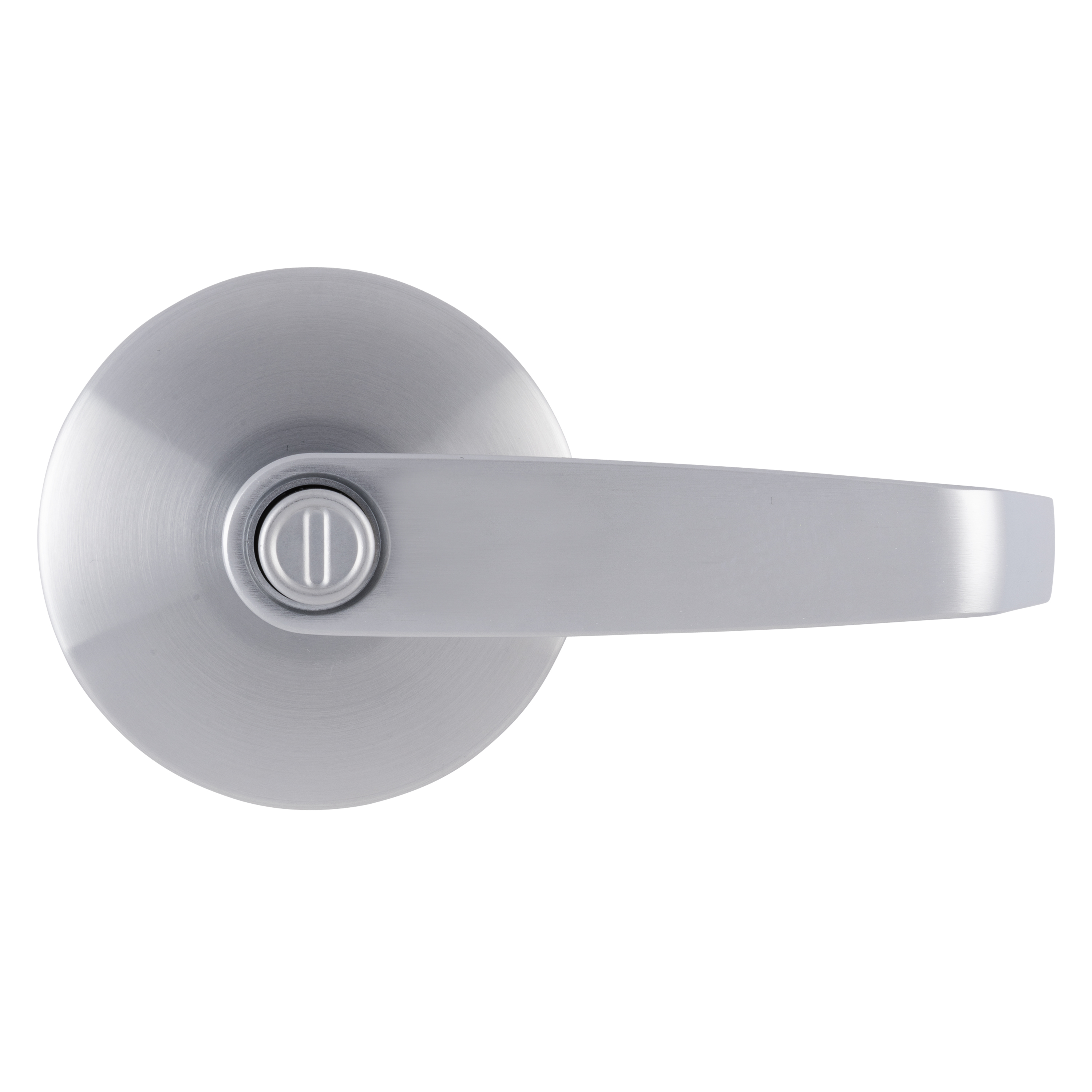

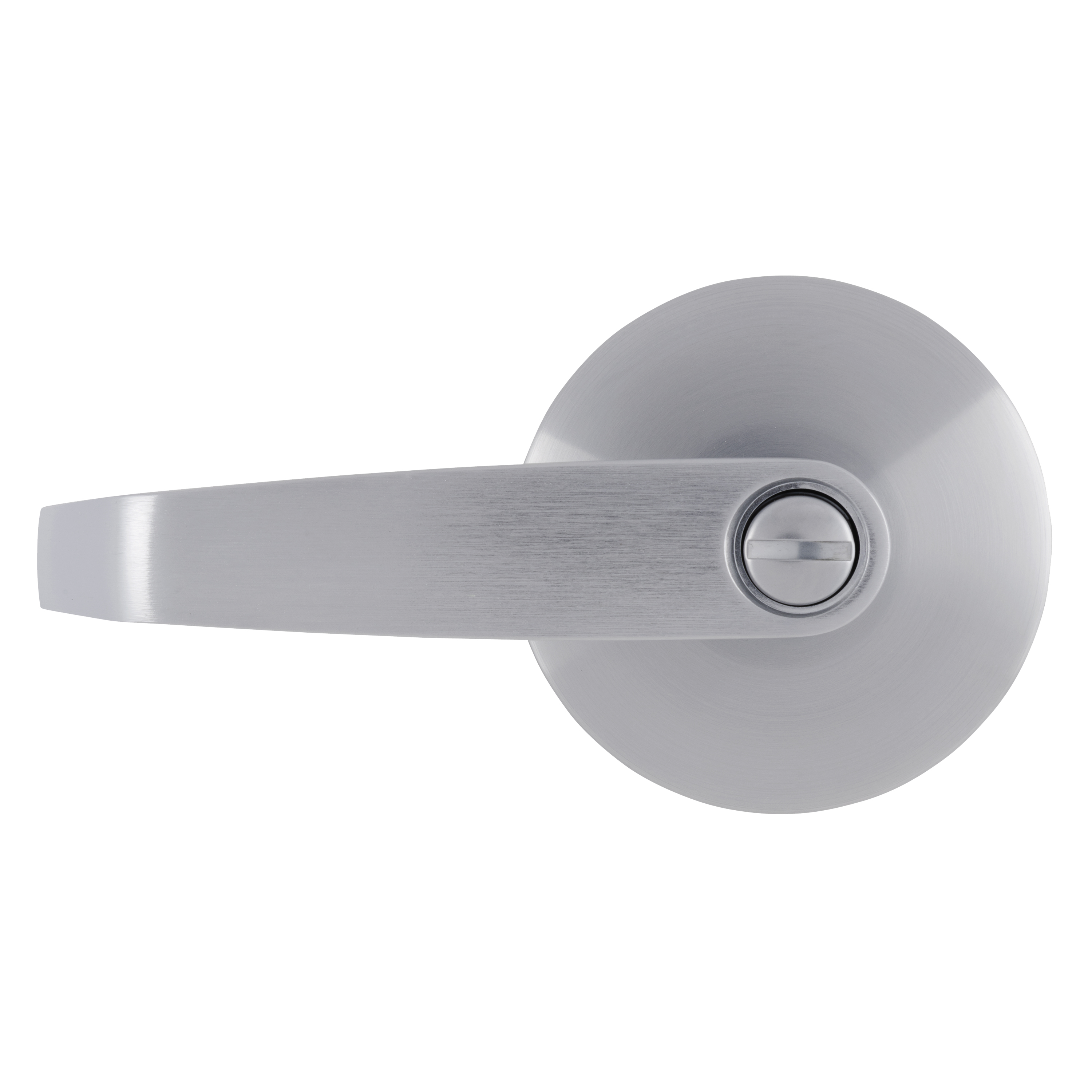

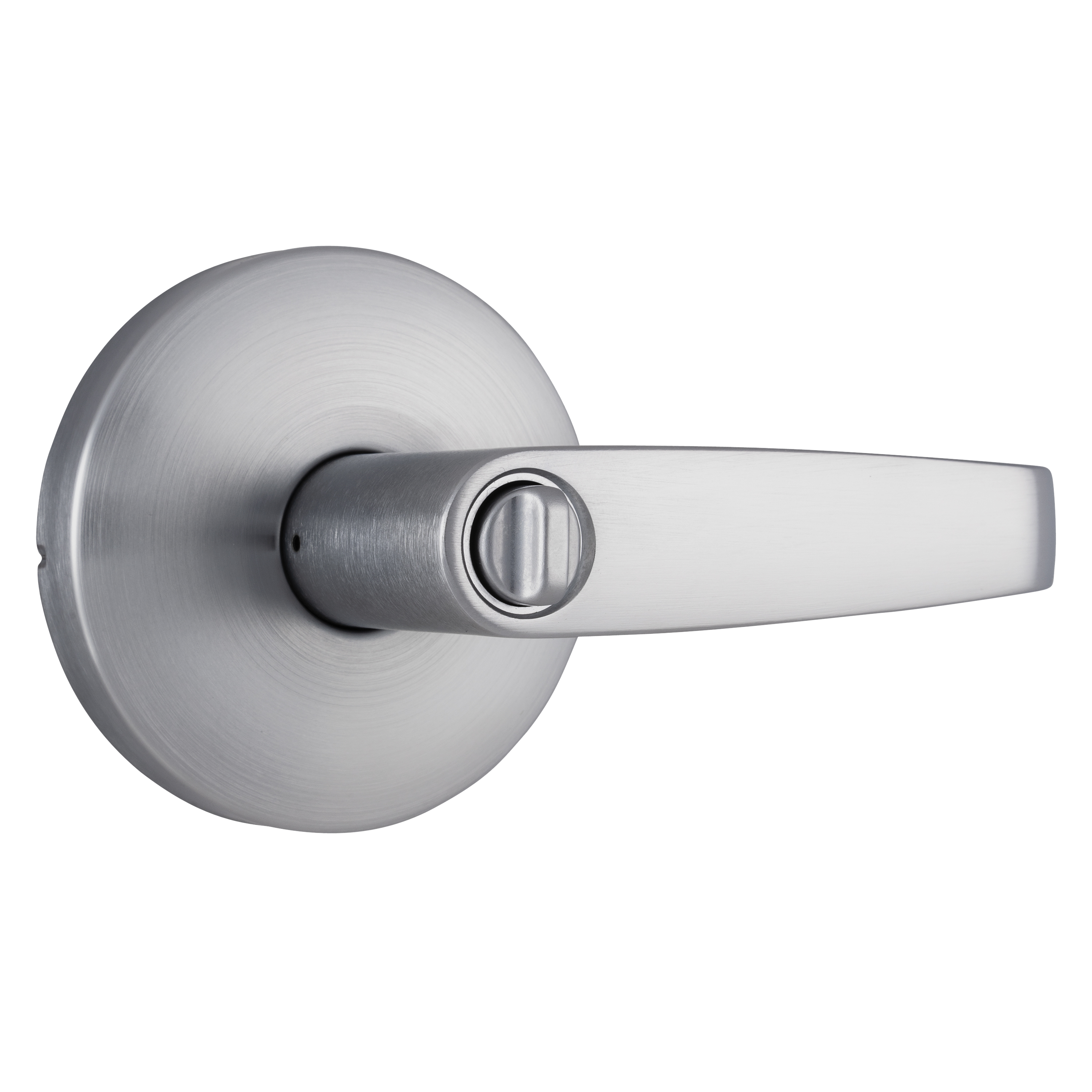

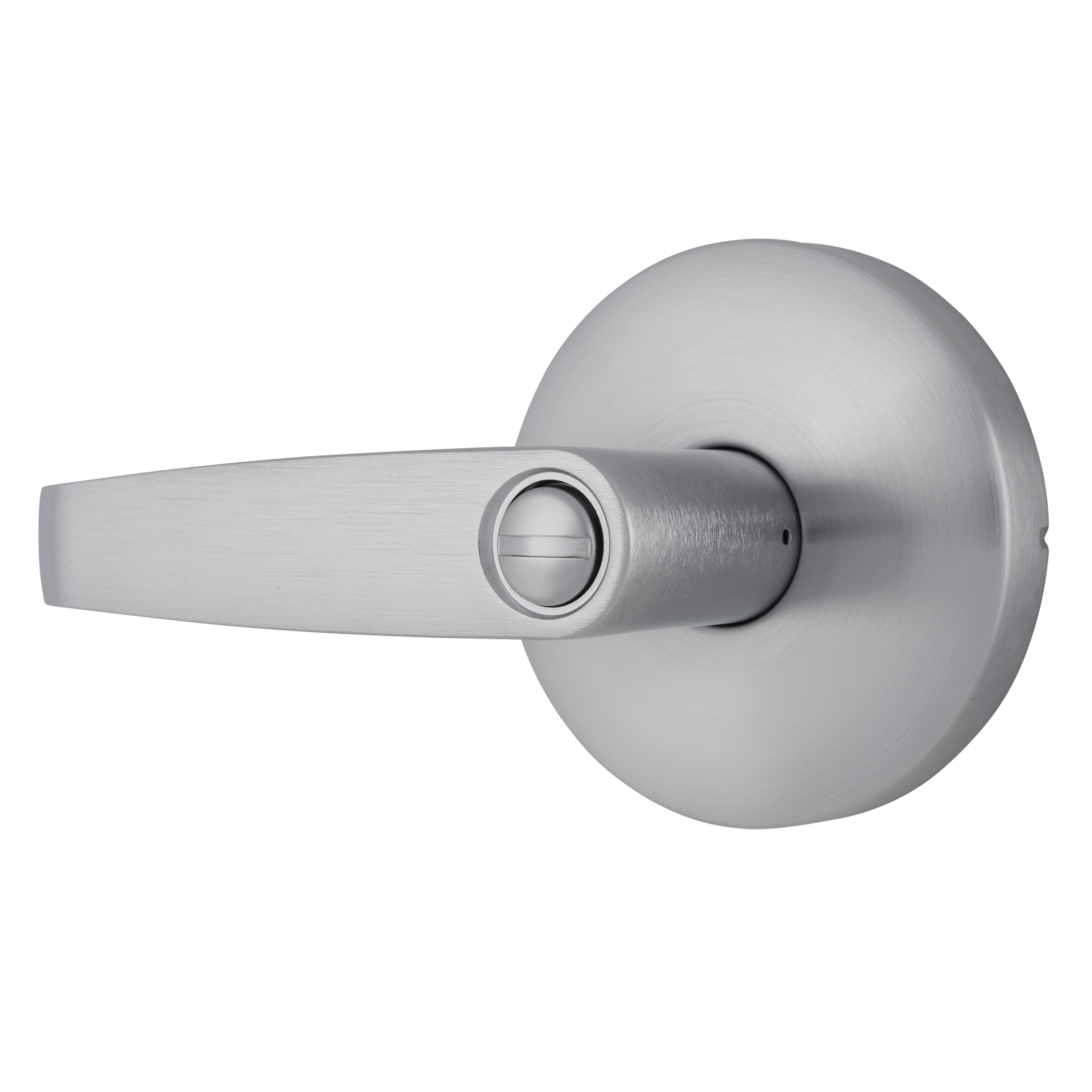

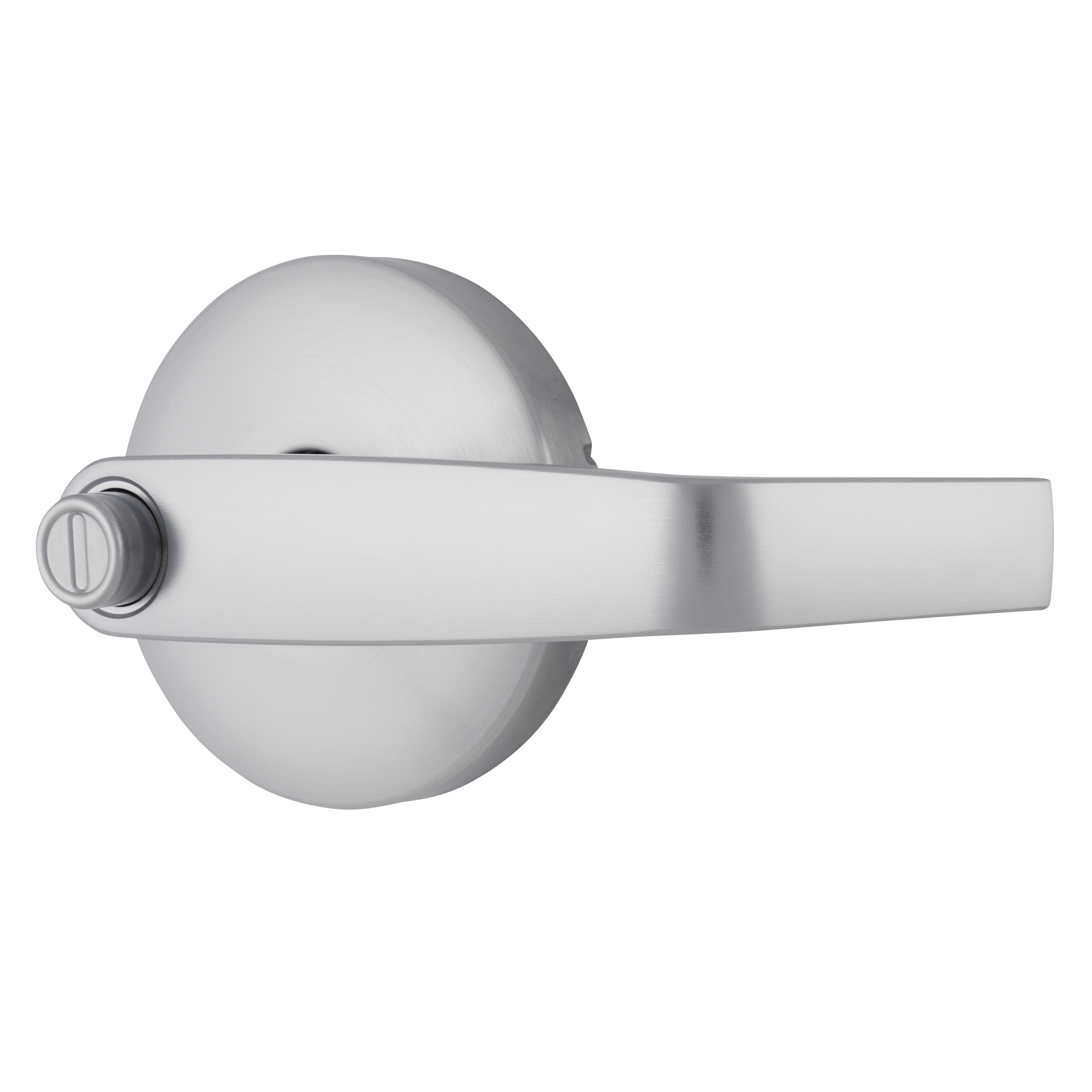

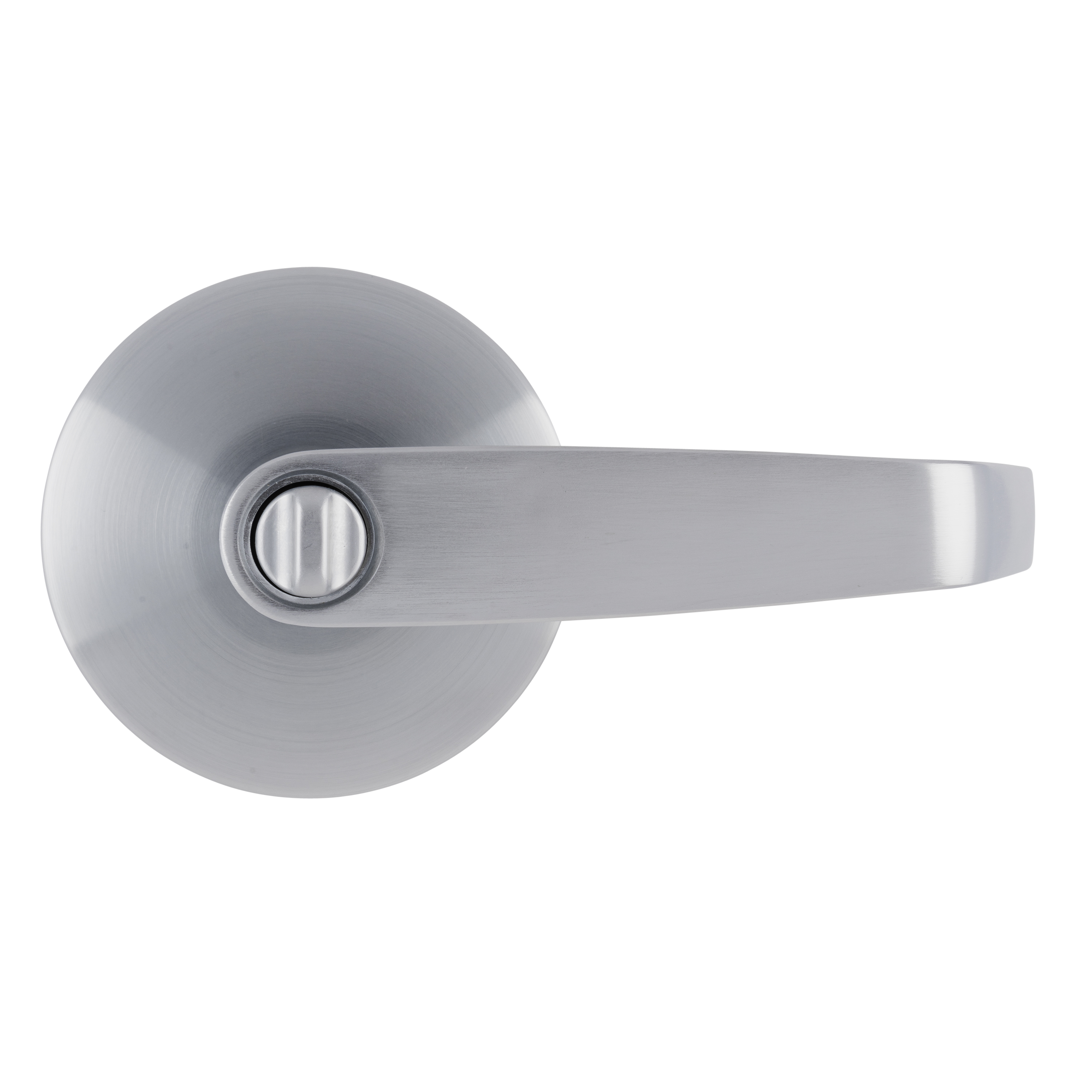

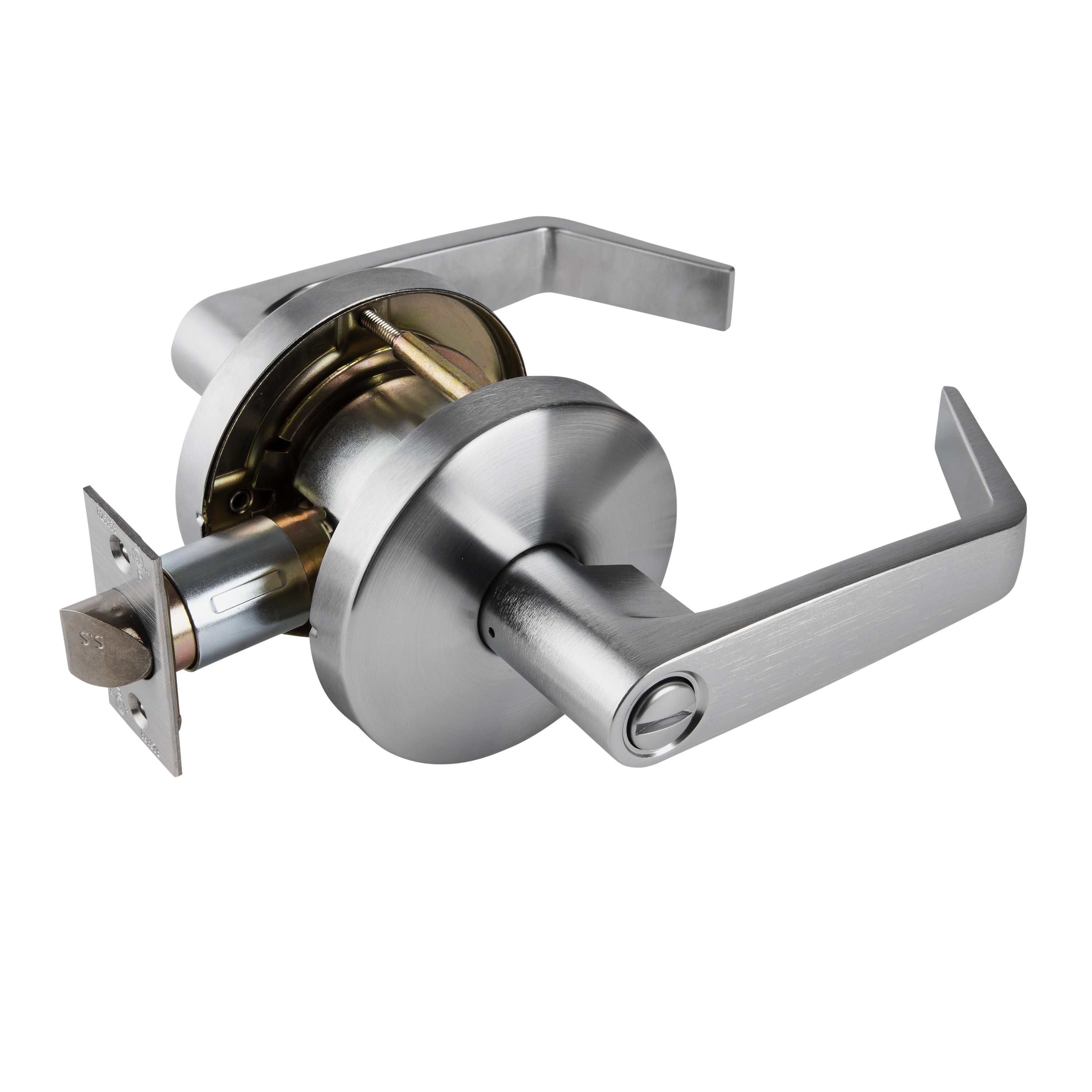

The Universal Hardware Heavy Duty Privacy Lever is designed for doors where added privacy is needed such as bathrooms or changing rooms. The latch bolt is operated by the lever from either side of the door and the outside lever is locked by the turn button on the inside or by the emergency release on the outside lever. Equipped with tubular chassis for easier installation, the privacy lever will fit wood or metal doors 1-3/8" to 2" thick. The Heavy Duty Privacy Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating that's tested to exceed 500,000 cycles, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial or residential use. A T-strike, 4-7/8" ASA strike, mounting hardware and installation instructions are included. Universal Hardware is the pro's choice for commercial door hardware and flat goods.
