Heavy Duty Commercial Closer

SKU UH4033

Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
Measurements - For exterior doors up to 200 lbs. and 42” wide and interior doors up to 200 lbs. and 54” wide.
Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for adjustment for light-very heavy applications.
Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
Measurements - For exterior doors up to 200 lbs. and 42” wide and interior doors up to 200 lbs. and 54” wide.
Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for adjustment for light-very heavy applications.
Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
Measurements - For exterior doors up to 200 lbs. and 42” wide and interior doors up to 200 lbs. and 54” wide.
Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for adjustment for light-very heavy applications.
Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Find online:

Product Description

This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 42” and interior doors up to 54”. This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable spring tension powers this closer from a Size 1 to a Size 5, allowing for power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Construction

All metal body construction for added durability
Sleek aluminum finish

Durability

Adjustable sizing 1-5: provides ability to use in a variety of applications from light to heavy duty
Grade: Meets ANSI Grade 1 standards
ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
UL Listed: 3-hour fire rated for added protection and meeting building requirements
Warranty: Limited 10 year warranty covers finish and function

Installation

Interior doors: Left or right hinged doors up to 200 lbs. and 54" wide
Exterior doors: left or right hinged doors up to 200 lbs. and 42" wide

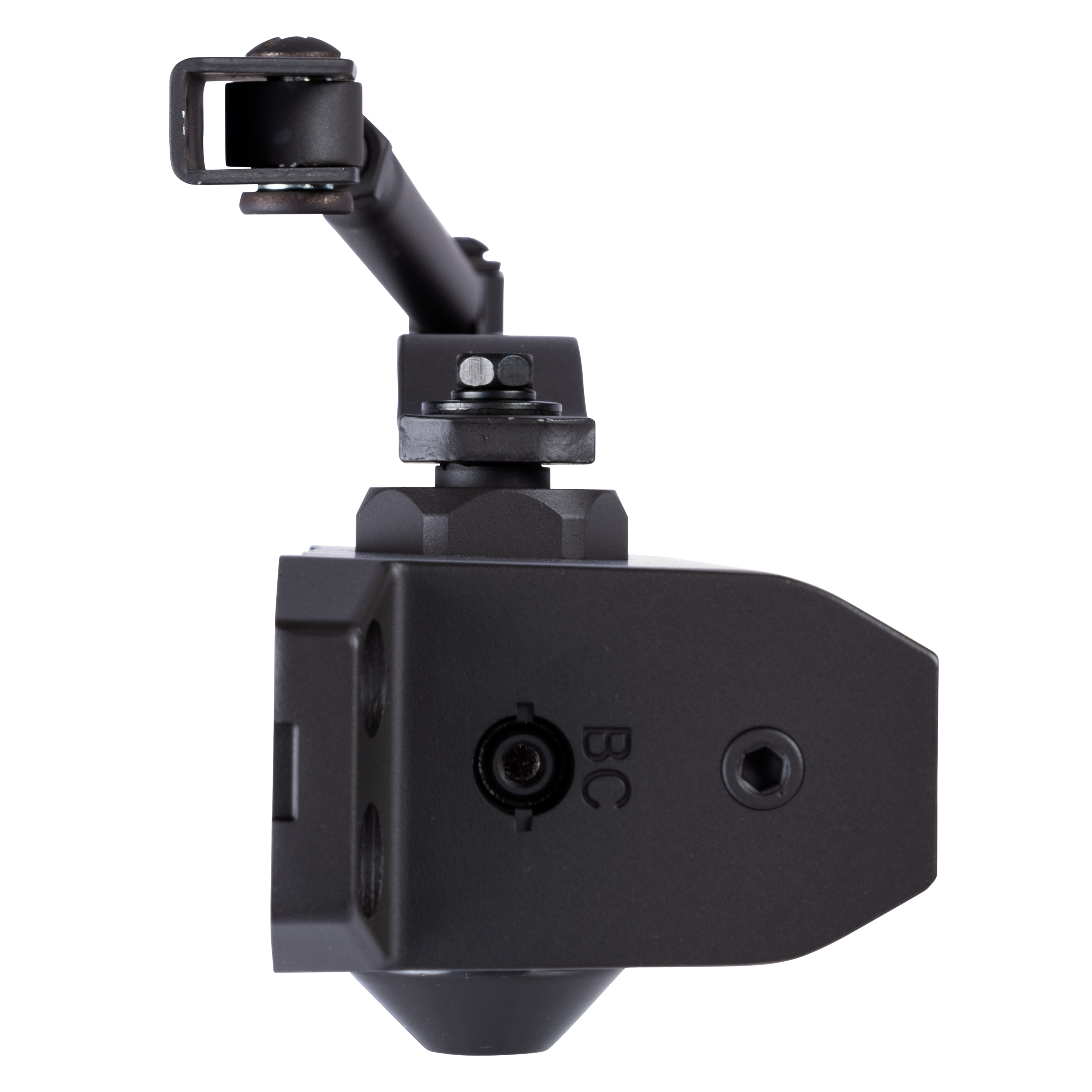

Adjustable back check helps prevent wind damage for exterior facing doors
Opening range: 180-degree for added convenience and pass-through space

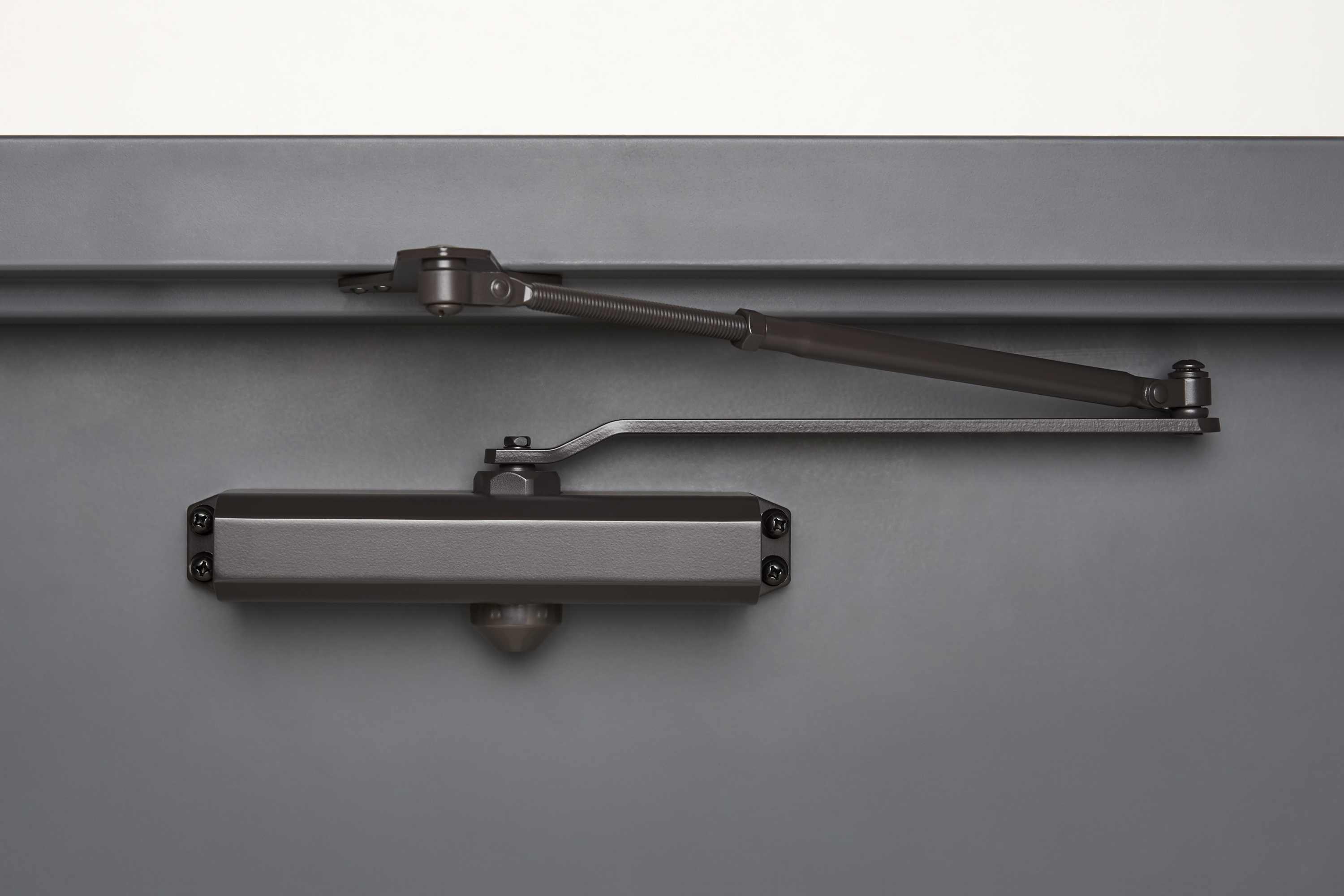

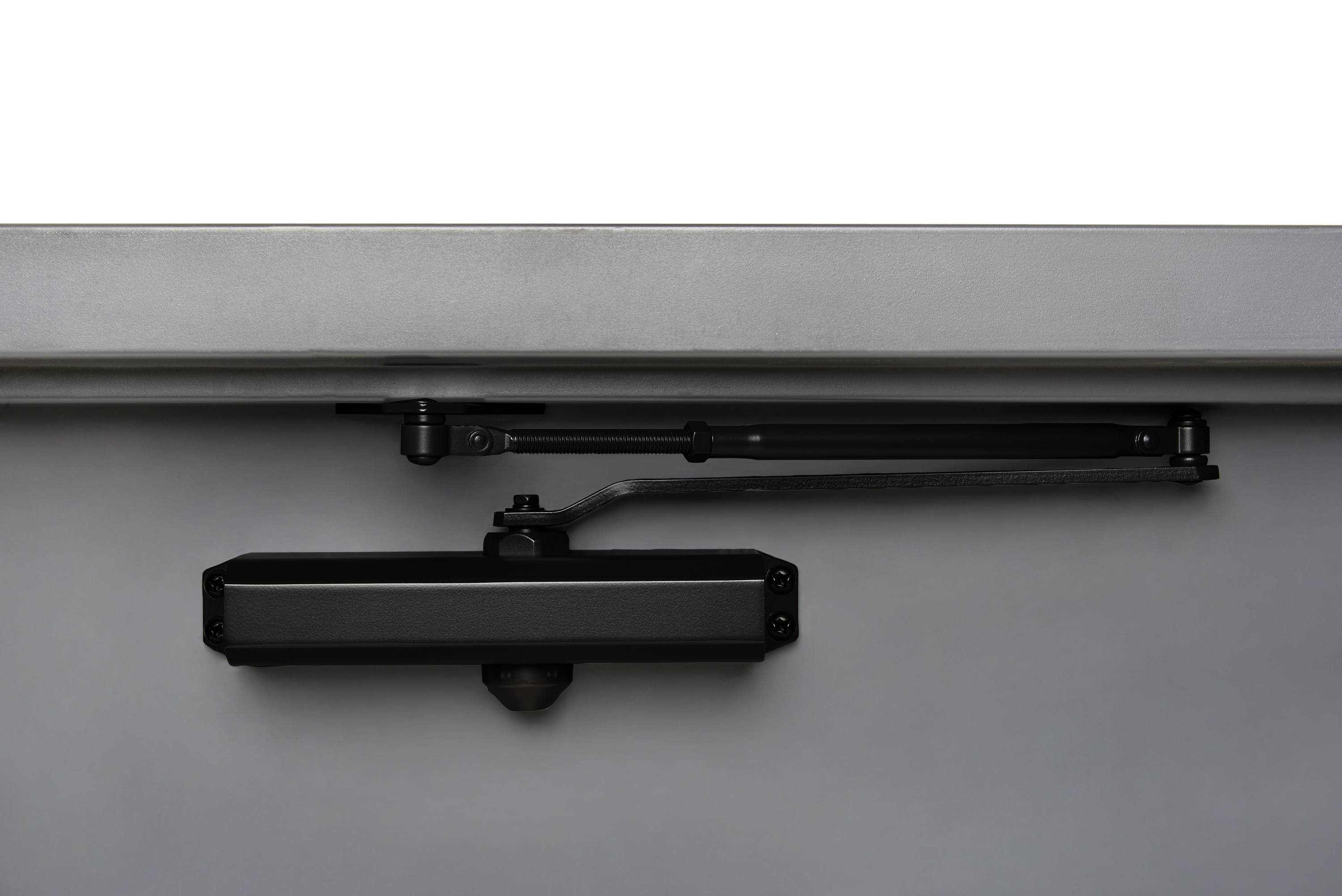

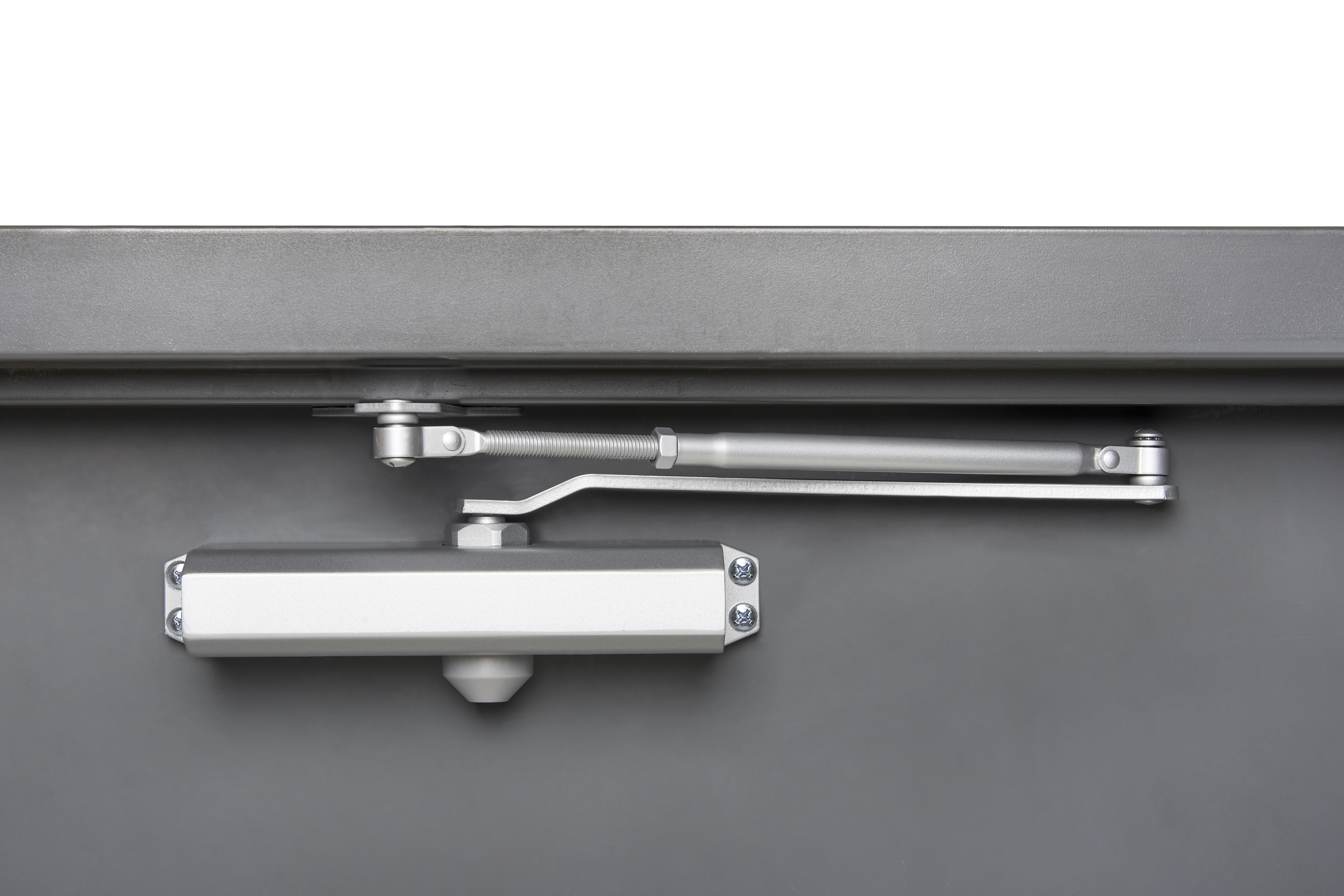

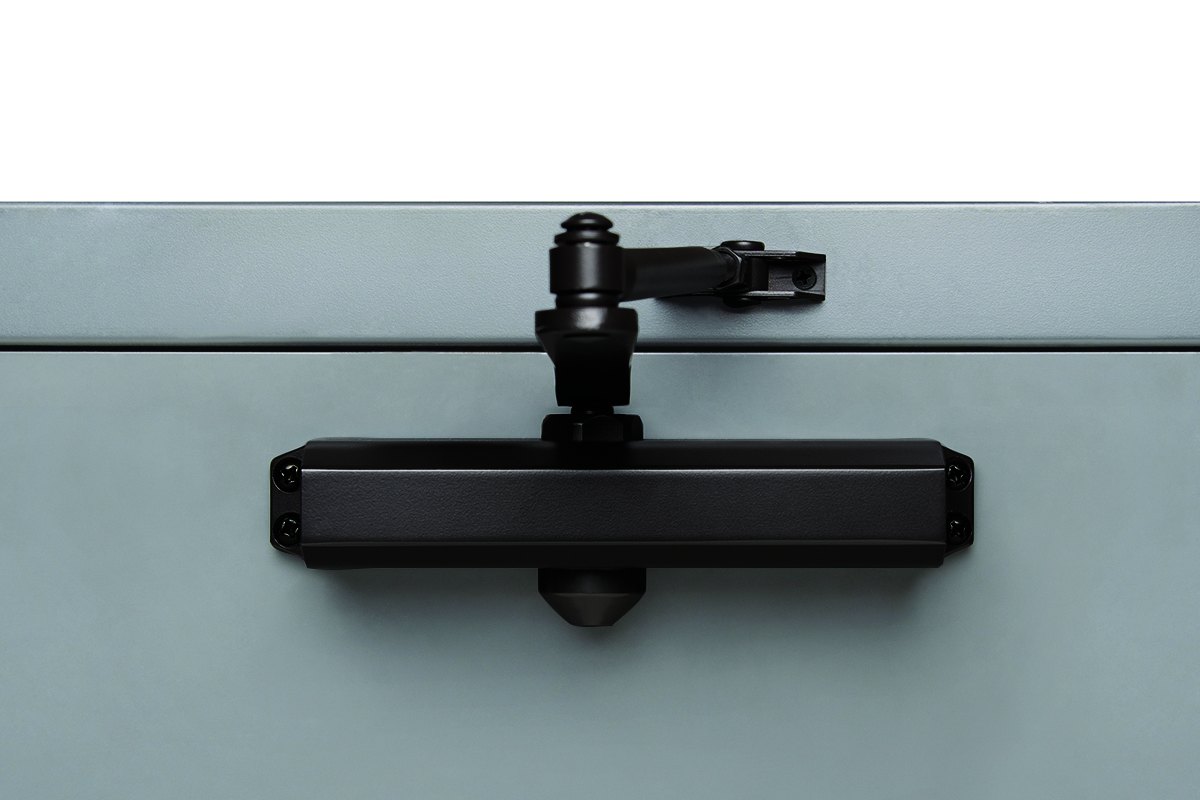

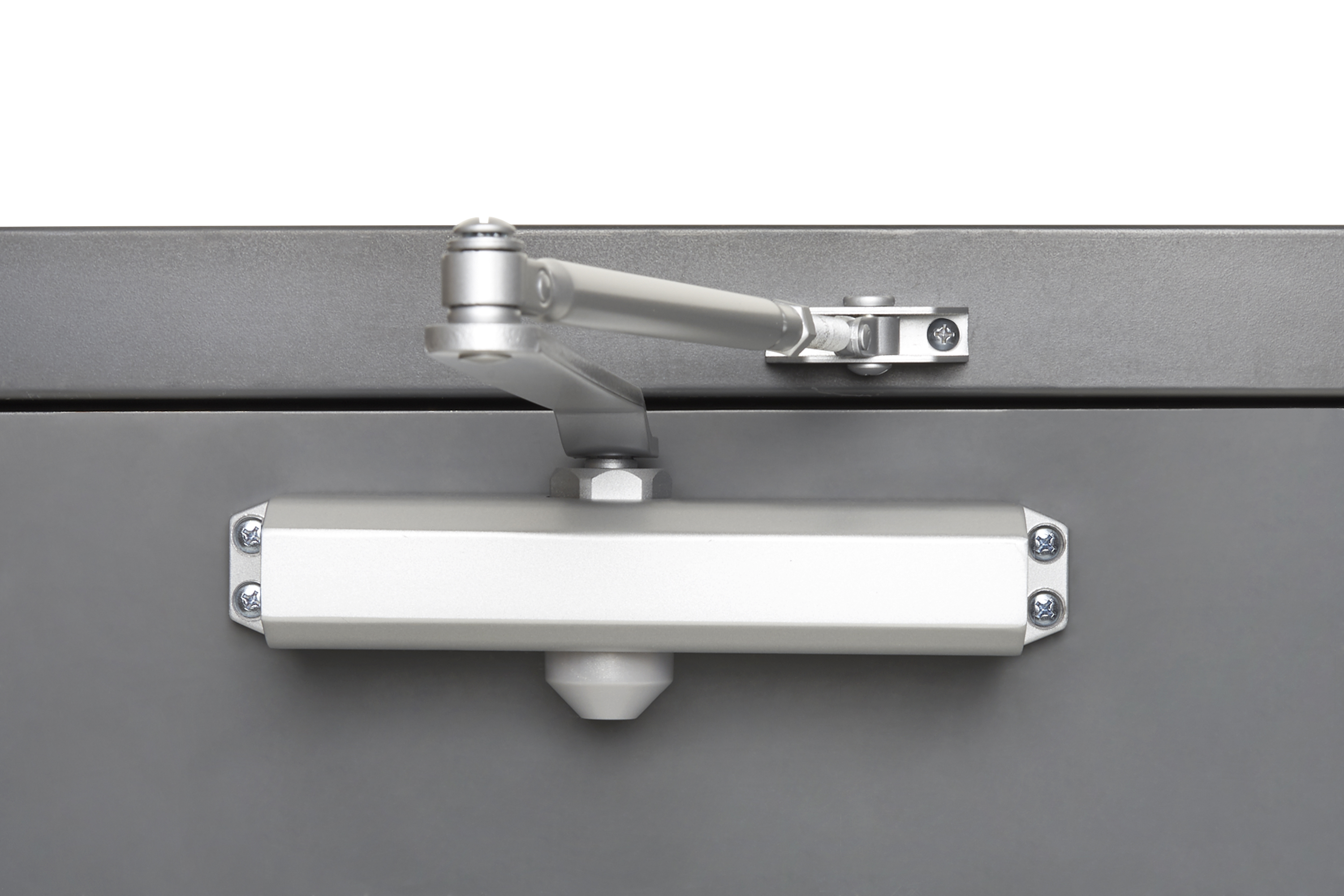

Mounting: Standard, top jamb or parallel mounting

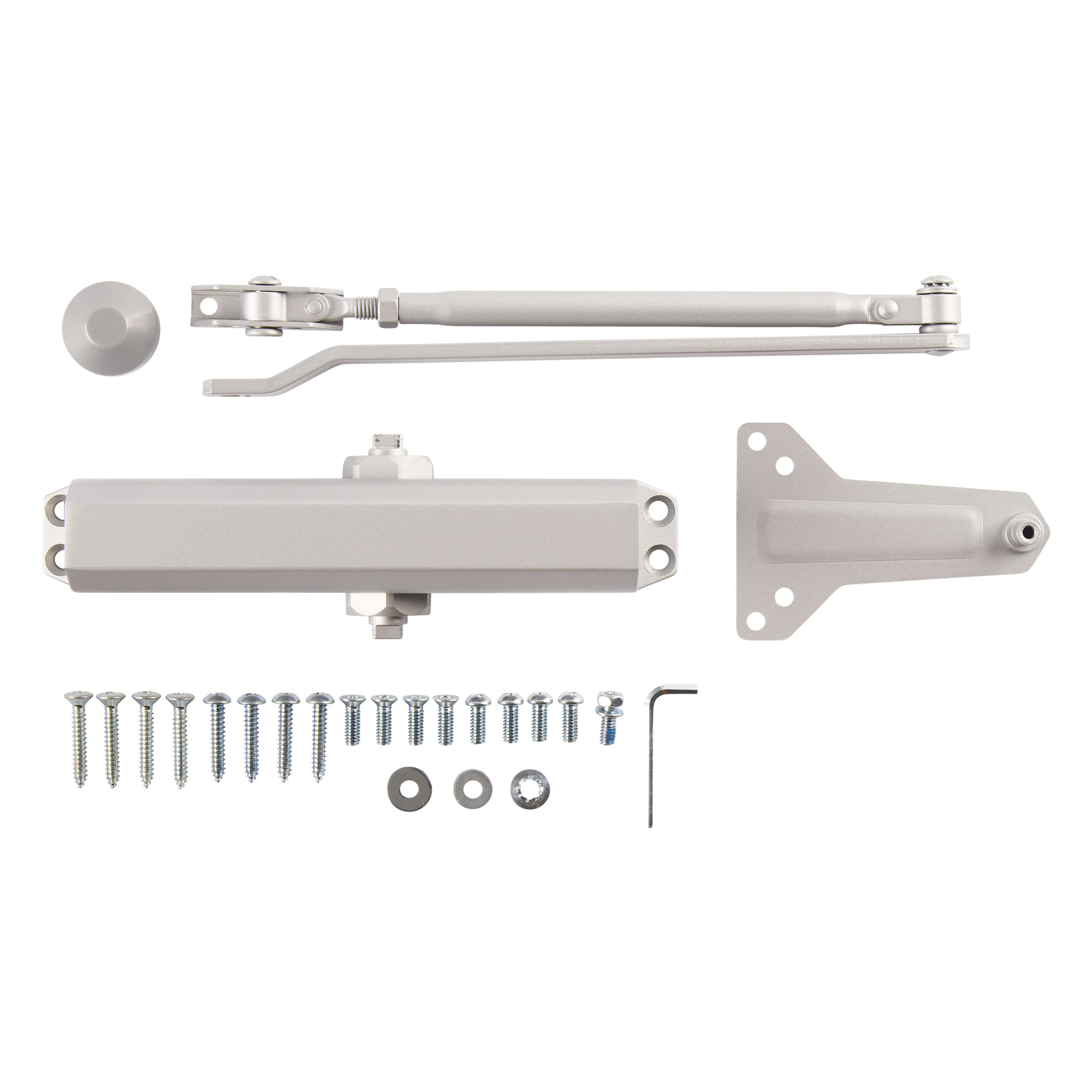

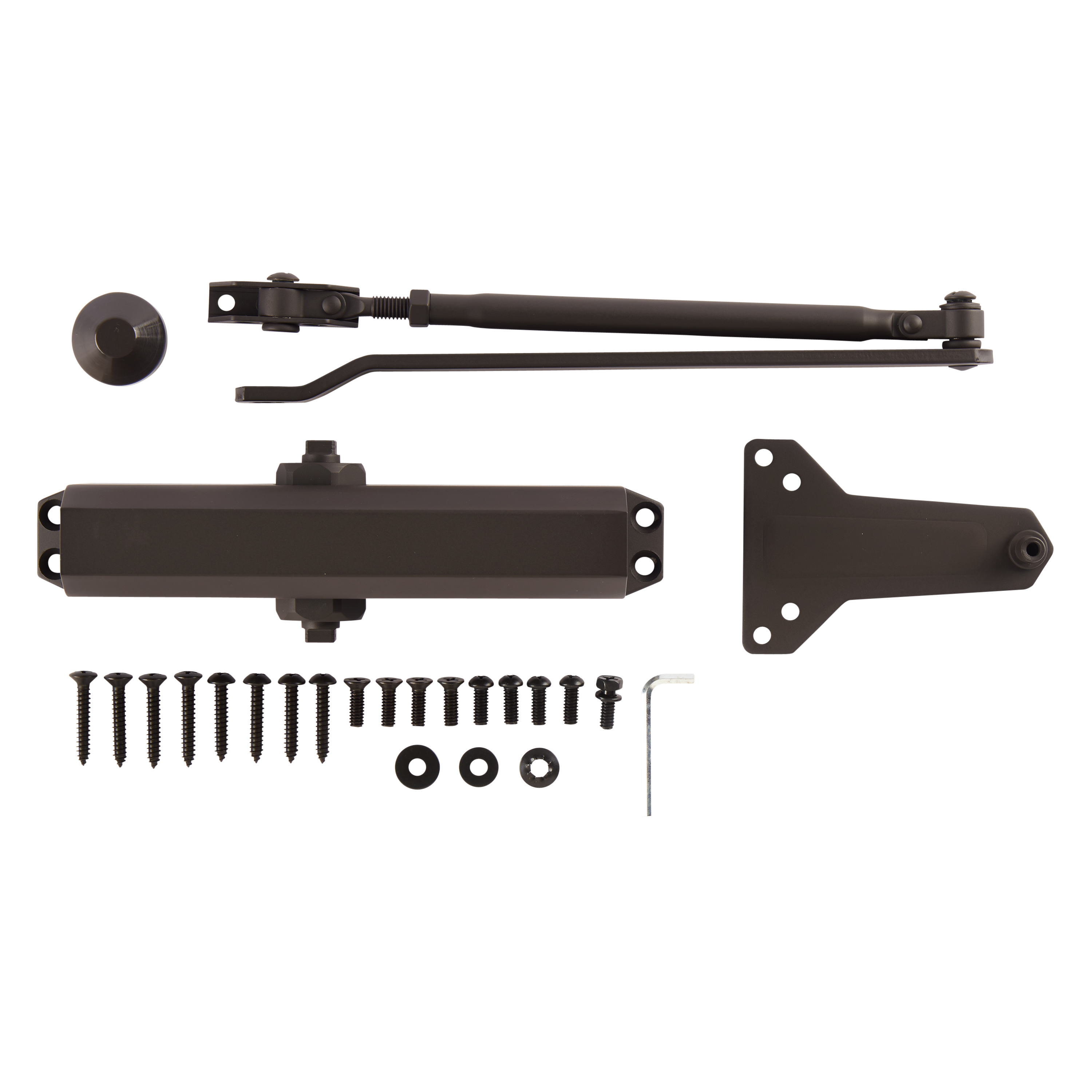

Included hardware: finish matched closer body, mounting screws and installation instructions

Additional Images

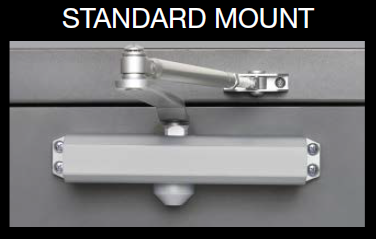

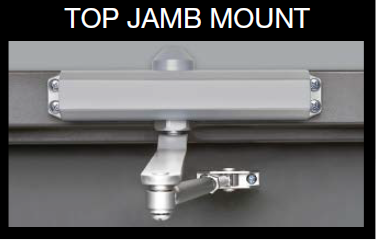

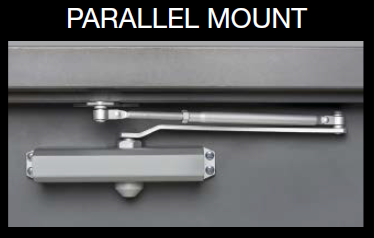

Mounting Configurations

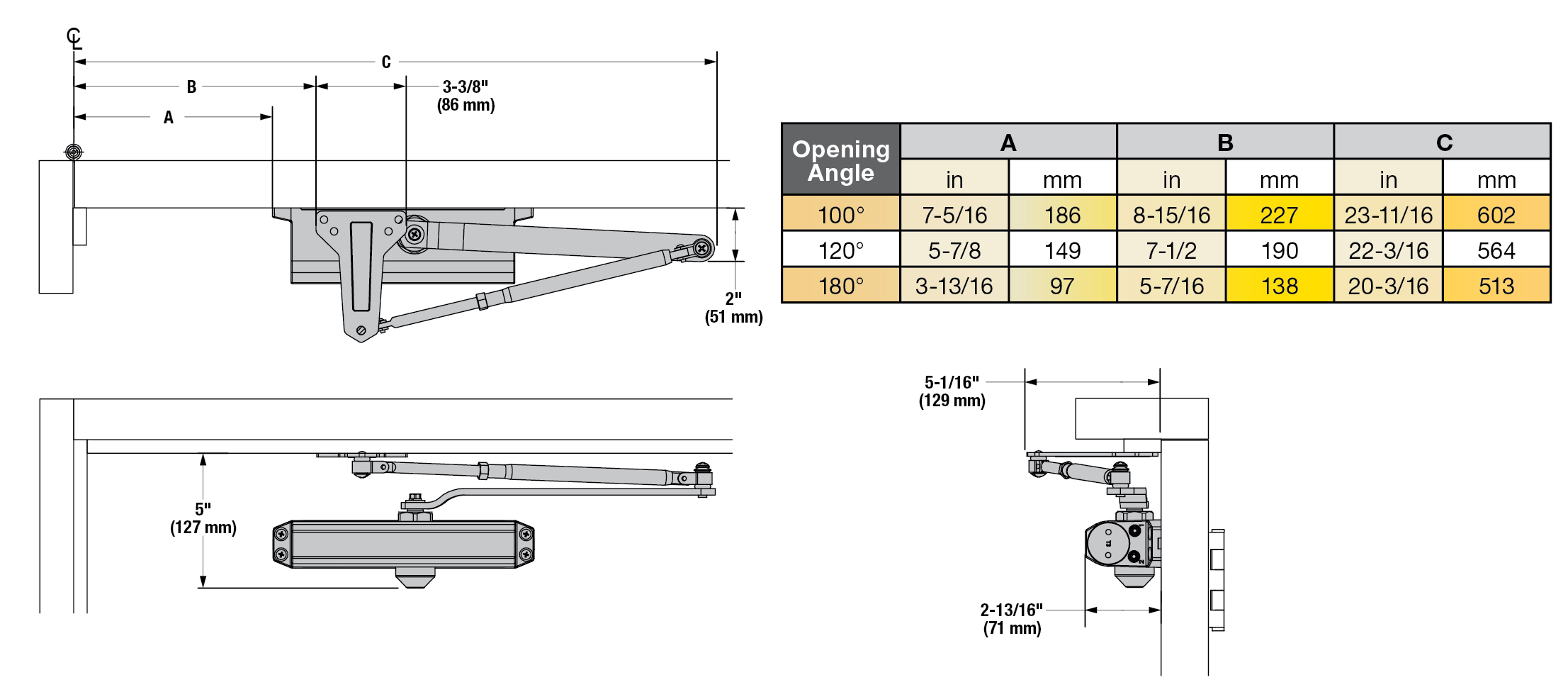

Drawings

View Full Image

Files

Instructions 1

Download

Instructions 2

Download

Product Information

Technical Details

Color / Finish	Aluminum
Fineline	Commercial Closer
Durability	Heavy Duty
Retail Width	12.75 in
Retail Height	3.63 in
Retail Depth	4.25 in
Retail Weight	6.27 lb
Included Hardware	Yes
Exterior Door Compatibility	Left or right hinged doors up to 42" wide
Closer Rating	Adjustable Size 1-5
ANSI Grade	1
OpeningRange	180 Degrees
Mount Type	Standard, Top Jamb, Parallel
Closing and Latching Speed	Adjustable Closing
Indoor Outdoor	Both
UL Listing	Yes, 3 Hour Fire Rated
ADA Compliant	Yes
Warranty	10 Year Limited Warranty

Additional Information

SKU	UH4031
UPC	879564040315
Brand	Universal Hardware
Type	Closer
