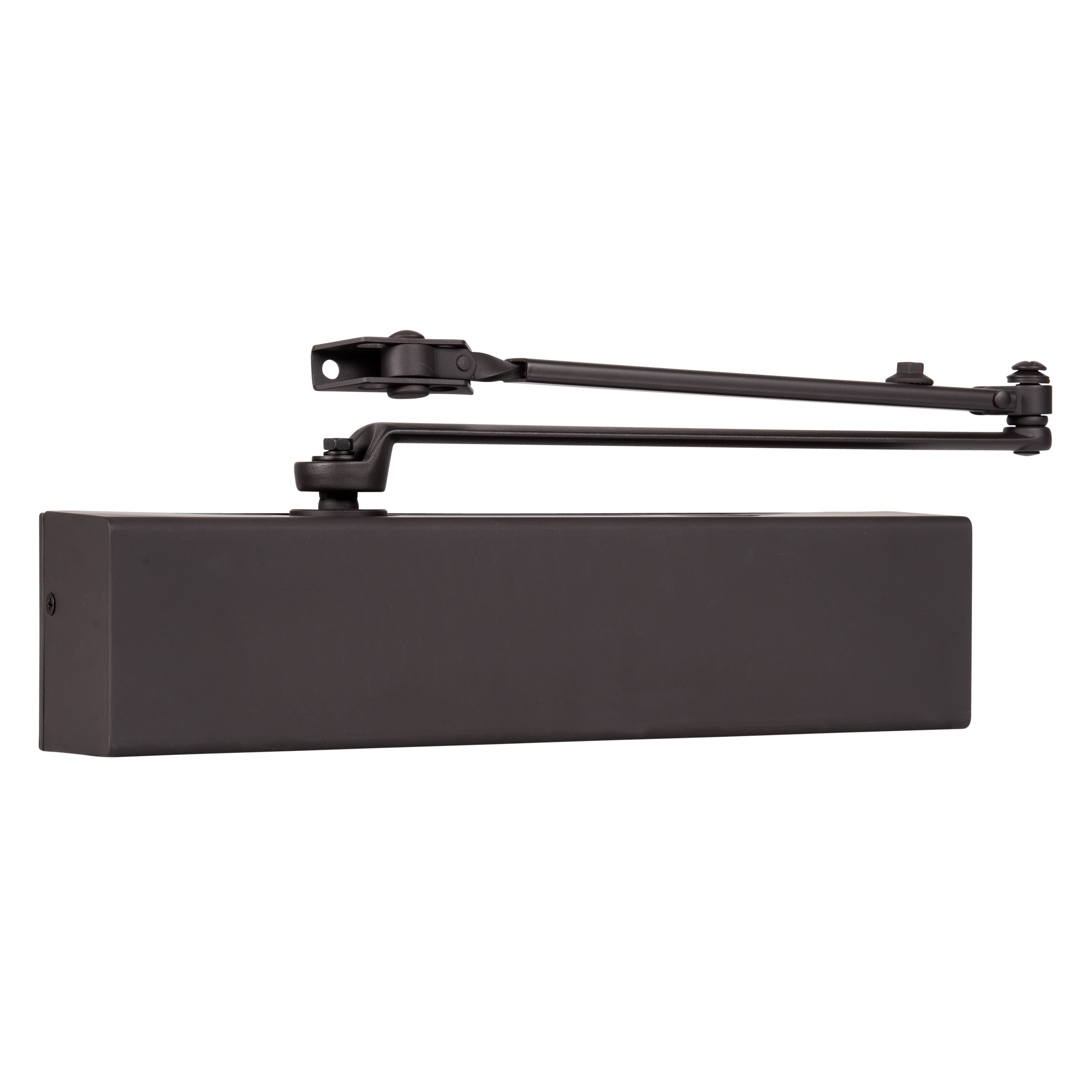

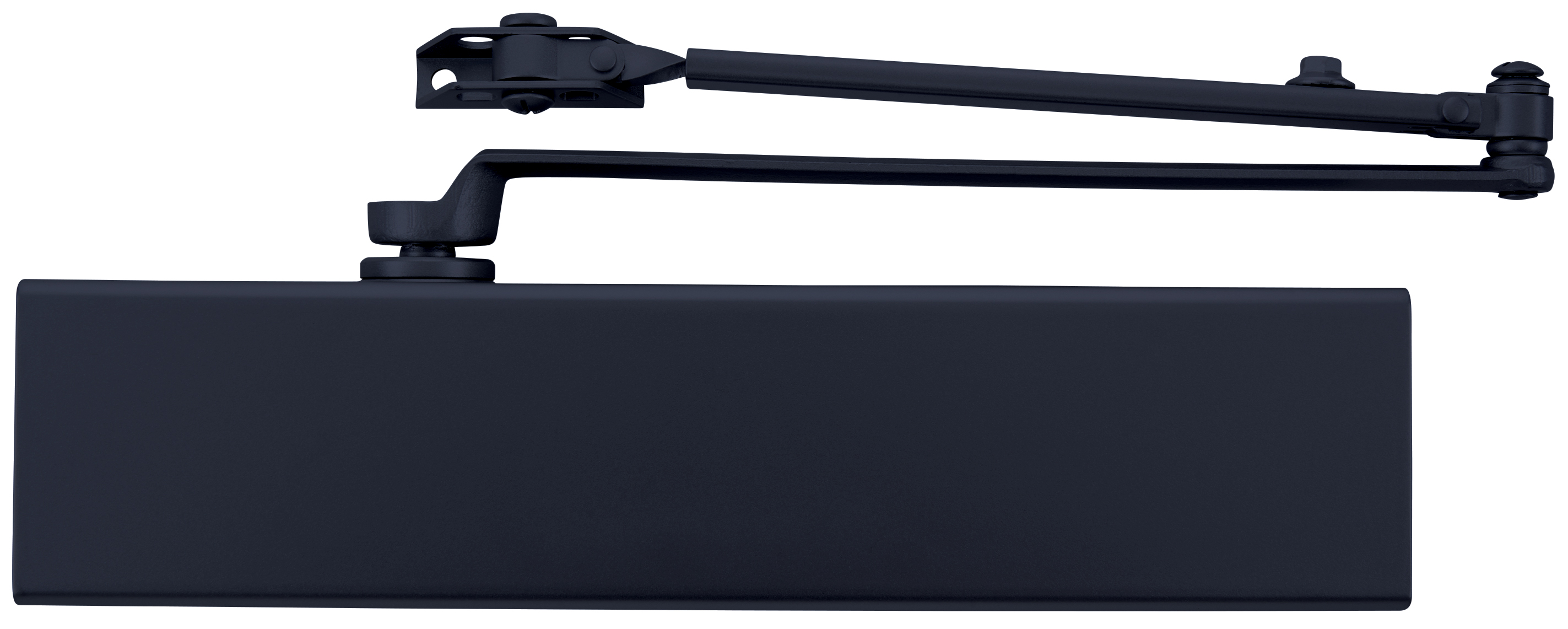

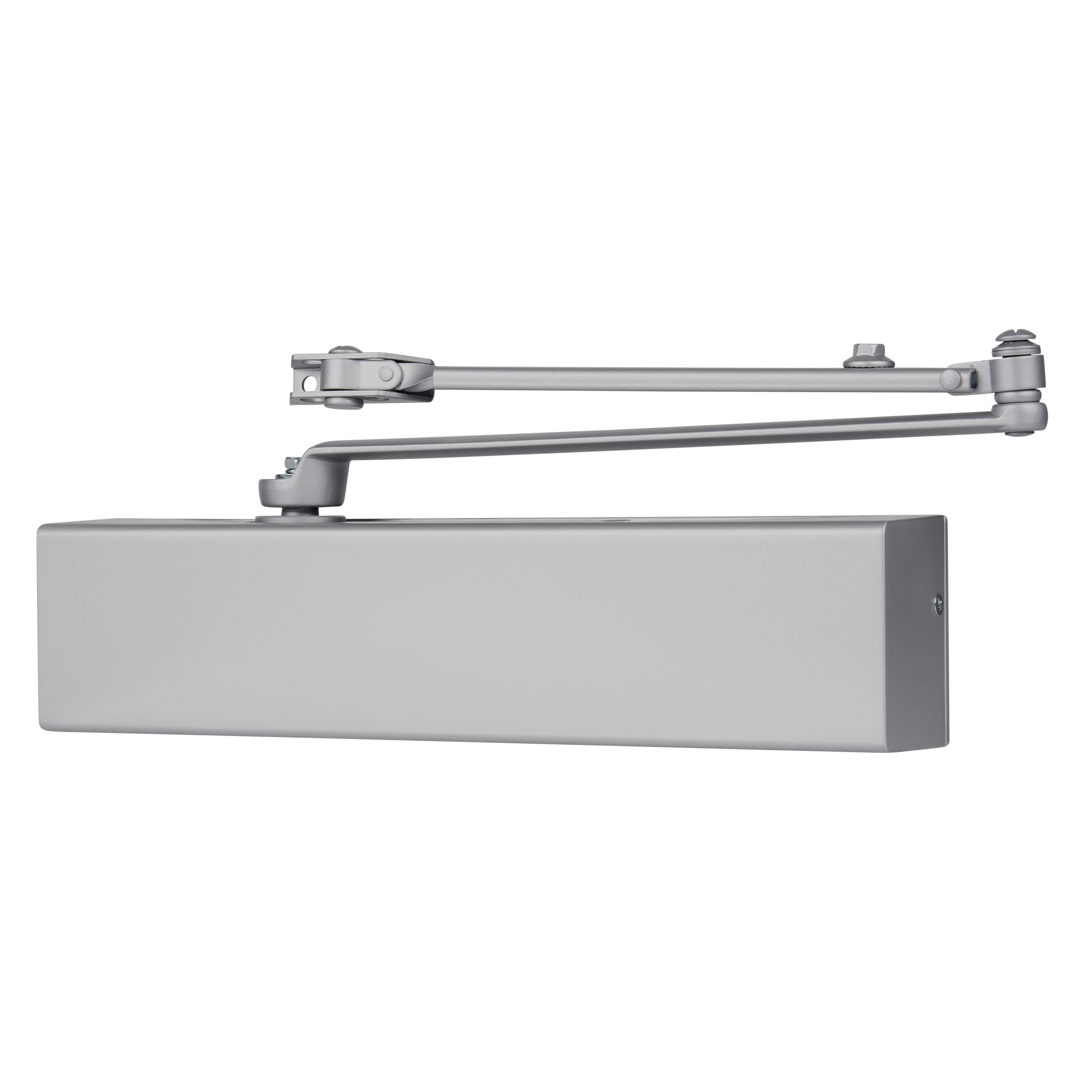

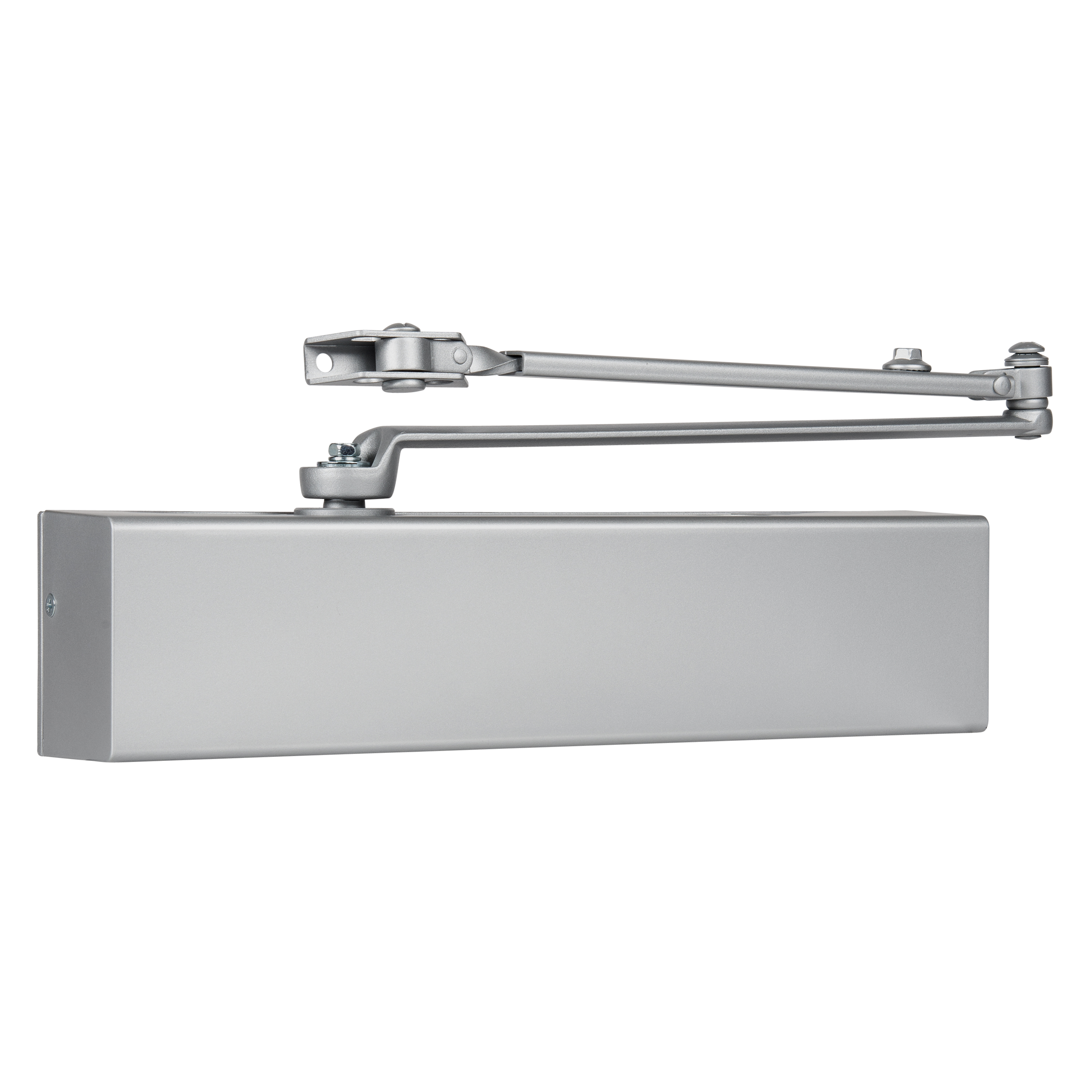

Heavy Duty All-In-One Commercial Door Closer

SKU UH4063

Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
Measurements - For exterior doors up to 250 lbs. and 48” wide and interior doors up to 250 lbs. and 60” wide
Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. The adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide adjustment for light to heavy applications.
Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb, and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers on the market.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
Measurements - For exterior doors up to 250 lbs. and 48” wide and interior doors up to 250 lbs. and 60” wide
Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. The adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide adjustment for light to heavy applications.
Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb, and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers on the market.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Features - This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety.
Measurements - For exterior doors up to 250 lbs. and 48” wide and interior doors up to 250 lbs. and 60” wide.
Specifications - This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. The adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide adjustment for light to heavy applications.
Installation - Compatible with most commercial doors, and can be utilized in standard, top jamb, and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers on the market.
Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Find online:

Product Description

This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 48” and interior doors up to 60”. This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable closing, latching and backcheck speeds, and the adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers in the market, so you can replace a broken closer without drilling new holes in an expensive or fire-rated door. Universal Hardware is the pro's choice for commercial door hardware and flat goods.

Construction

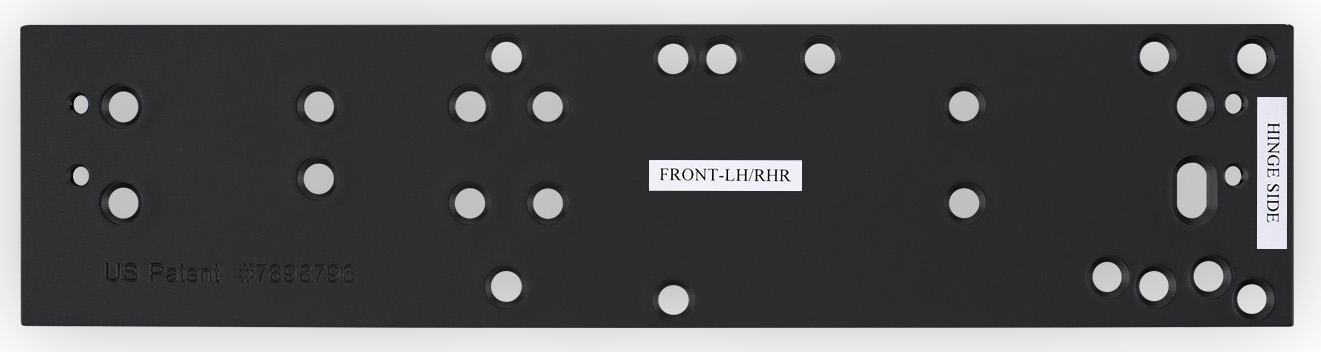

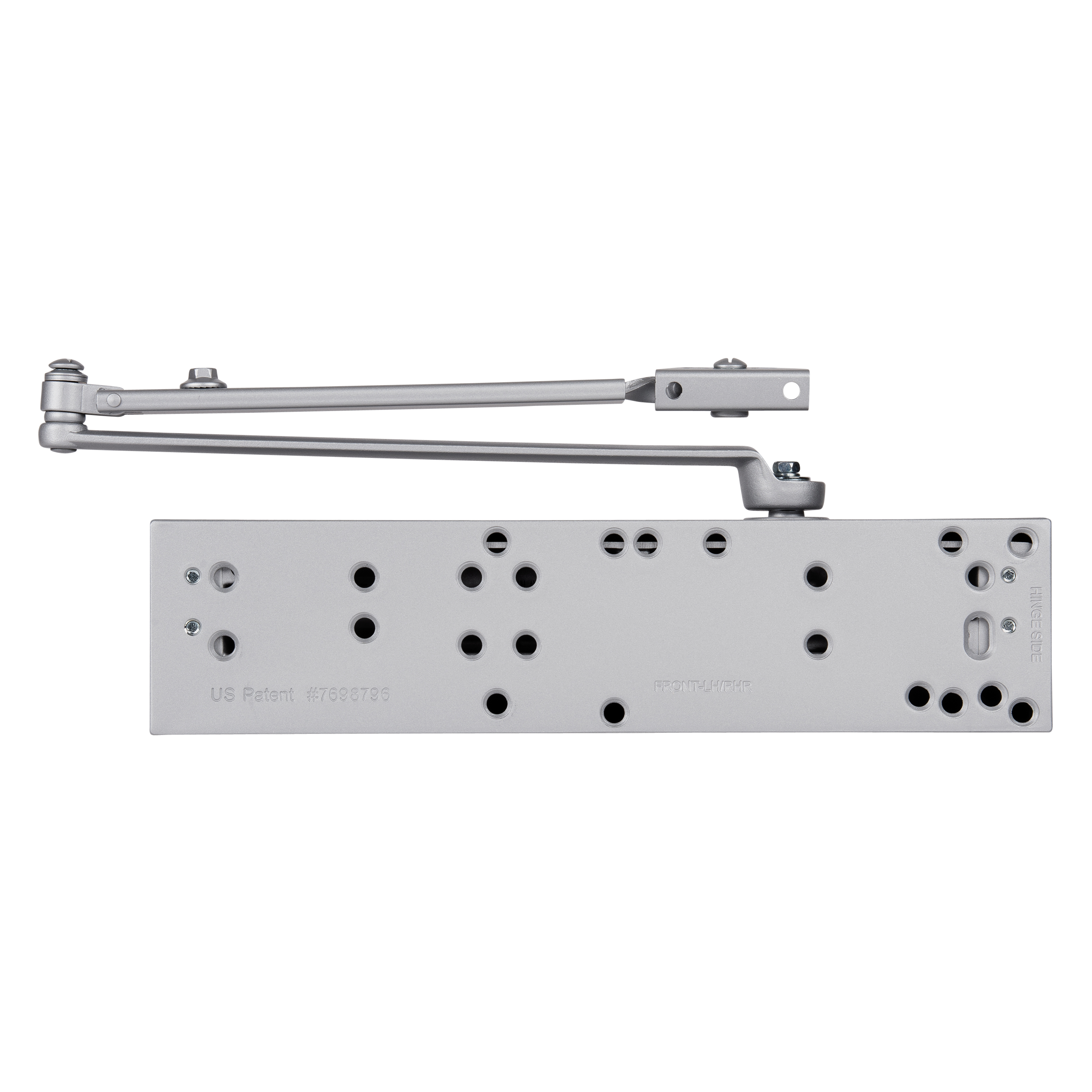

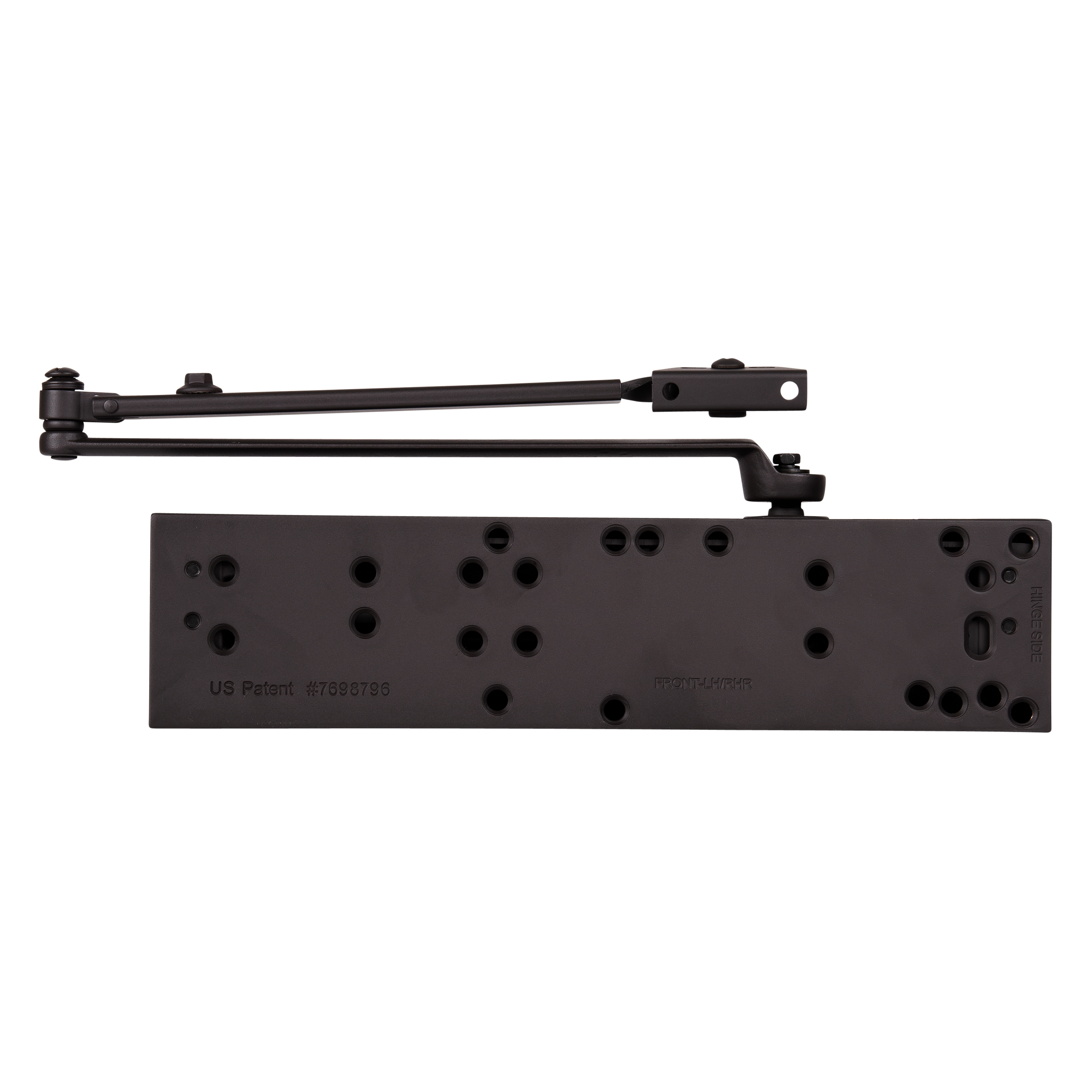

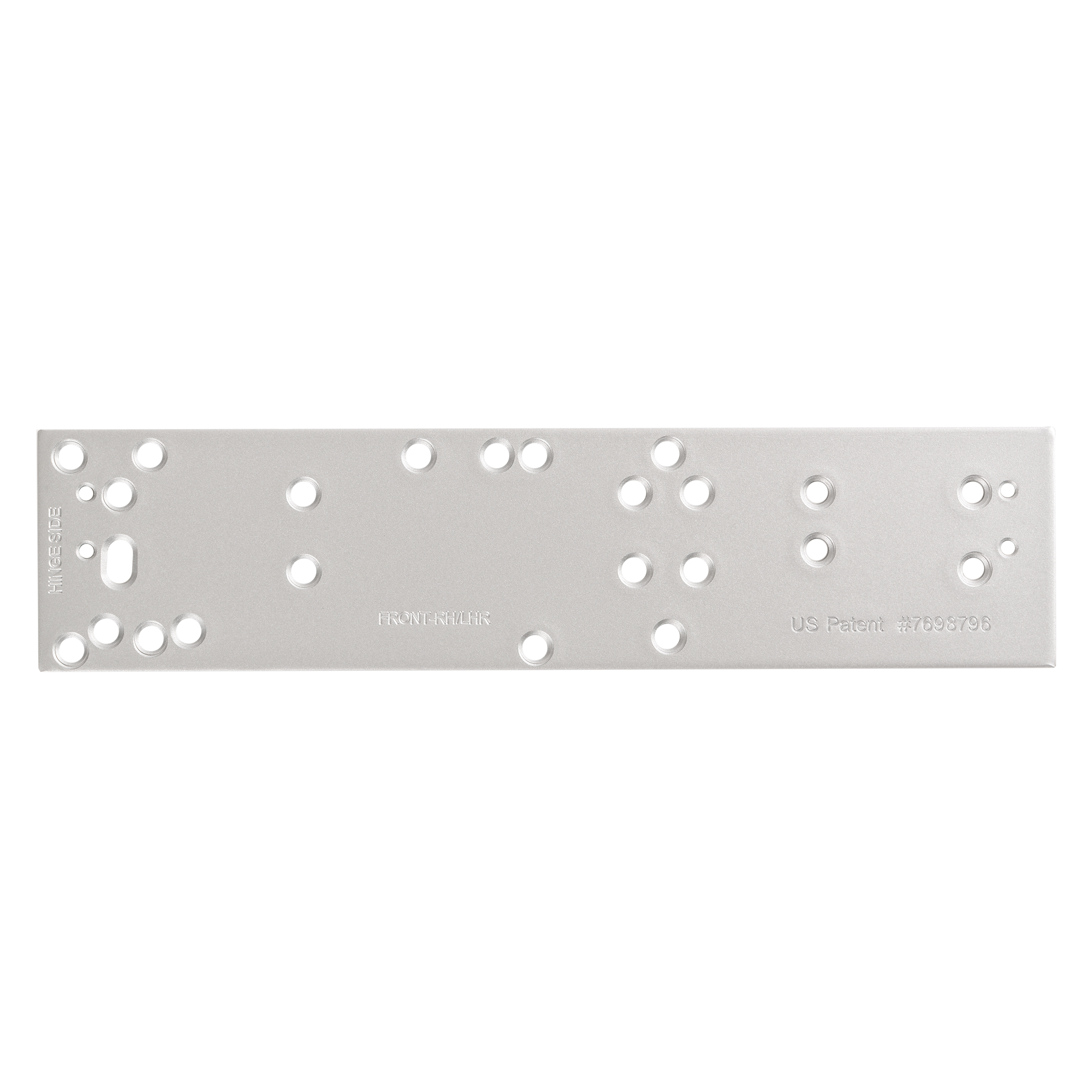

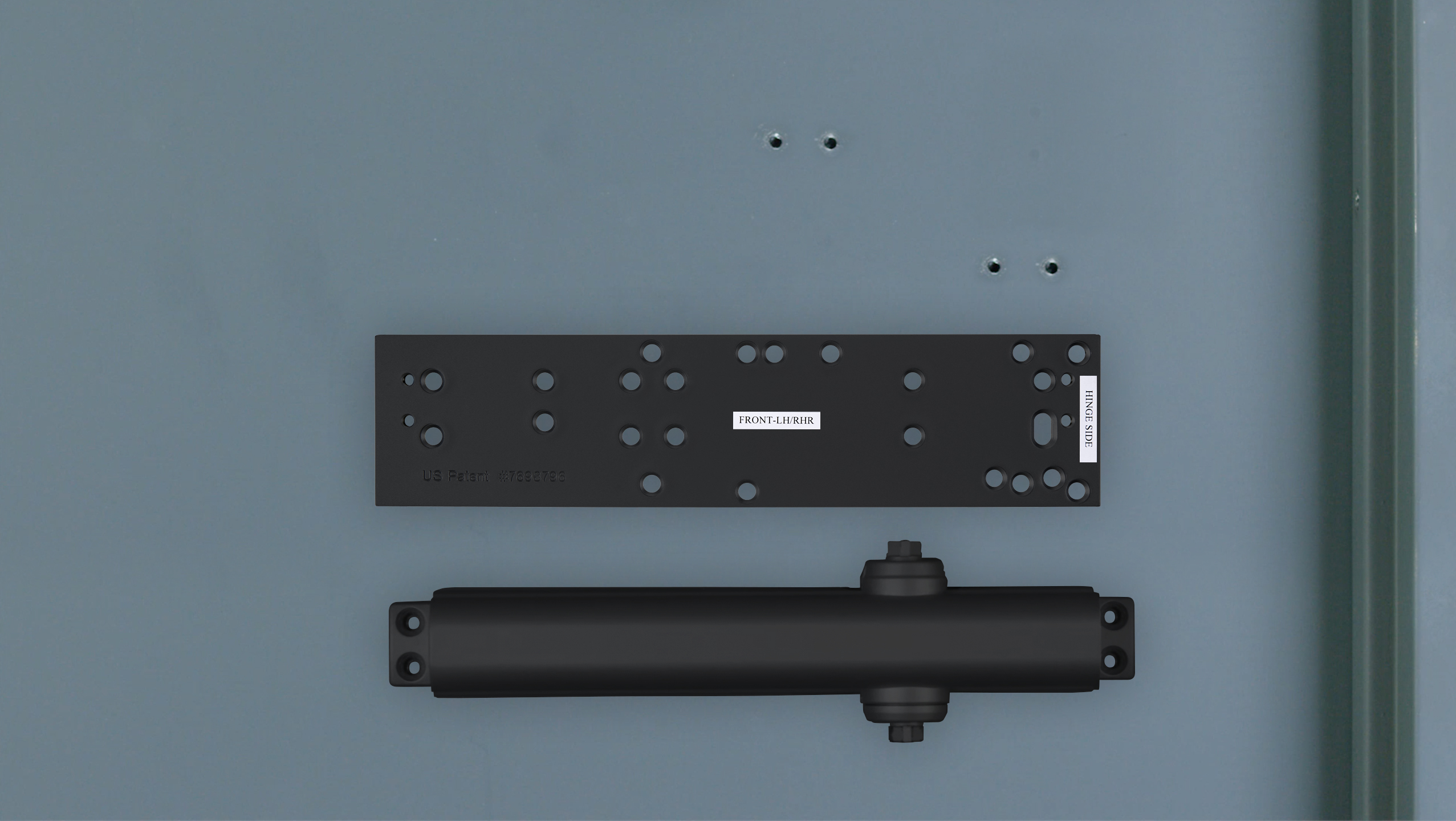

Universal mounting plate: Pre-drilled steel plate matches hole patterns of most closers in the market
All metal body construction for added durability
Sleek aluminum finish

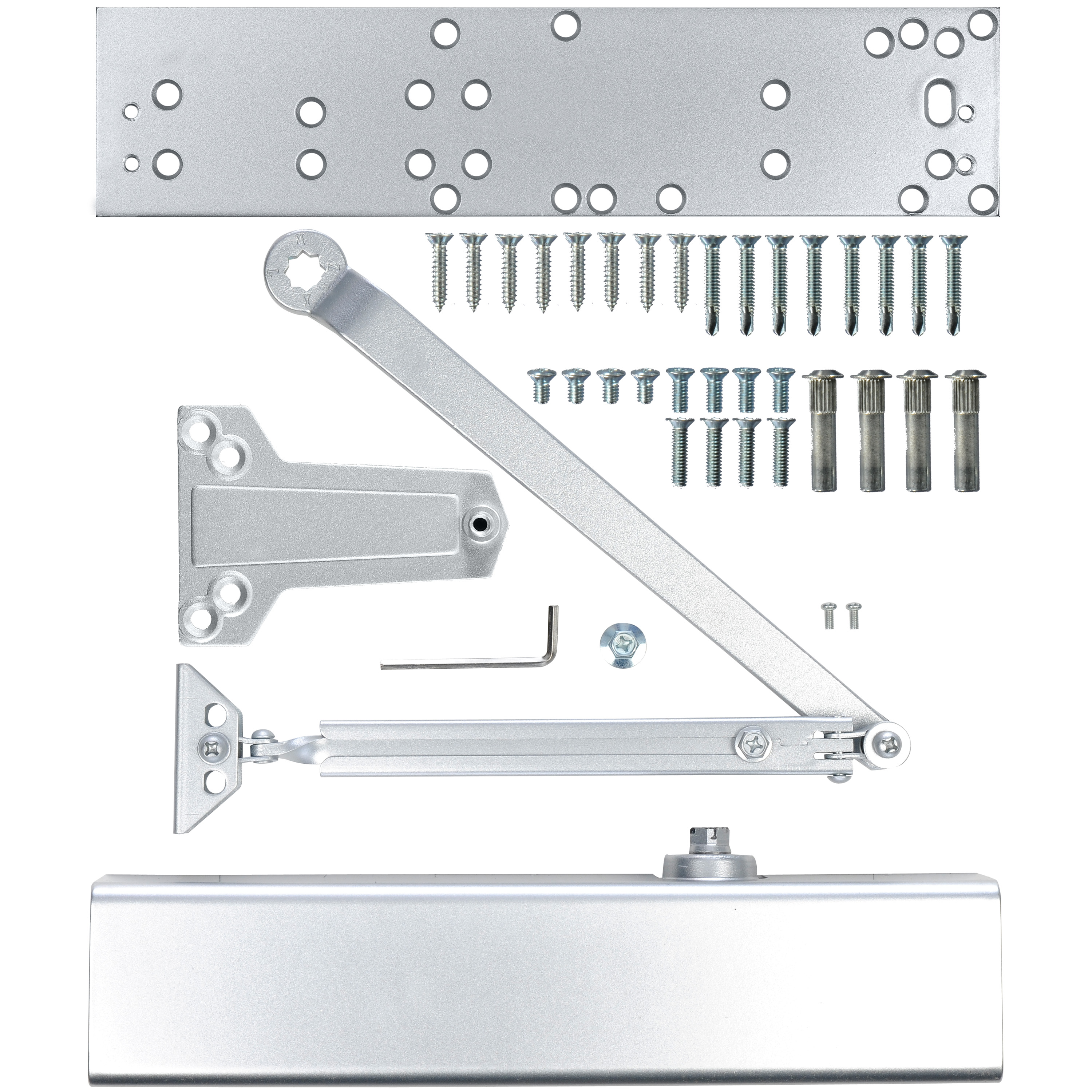

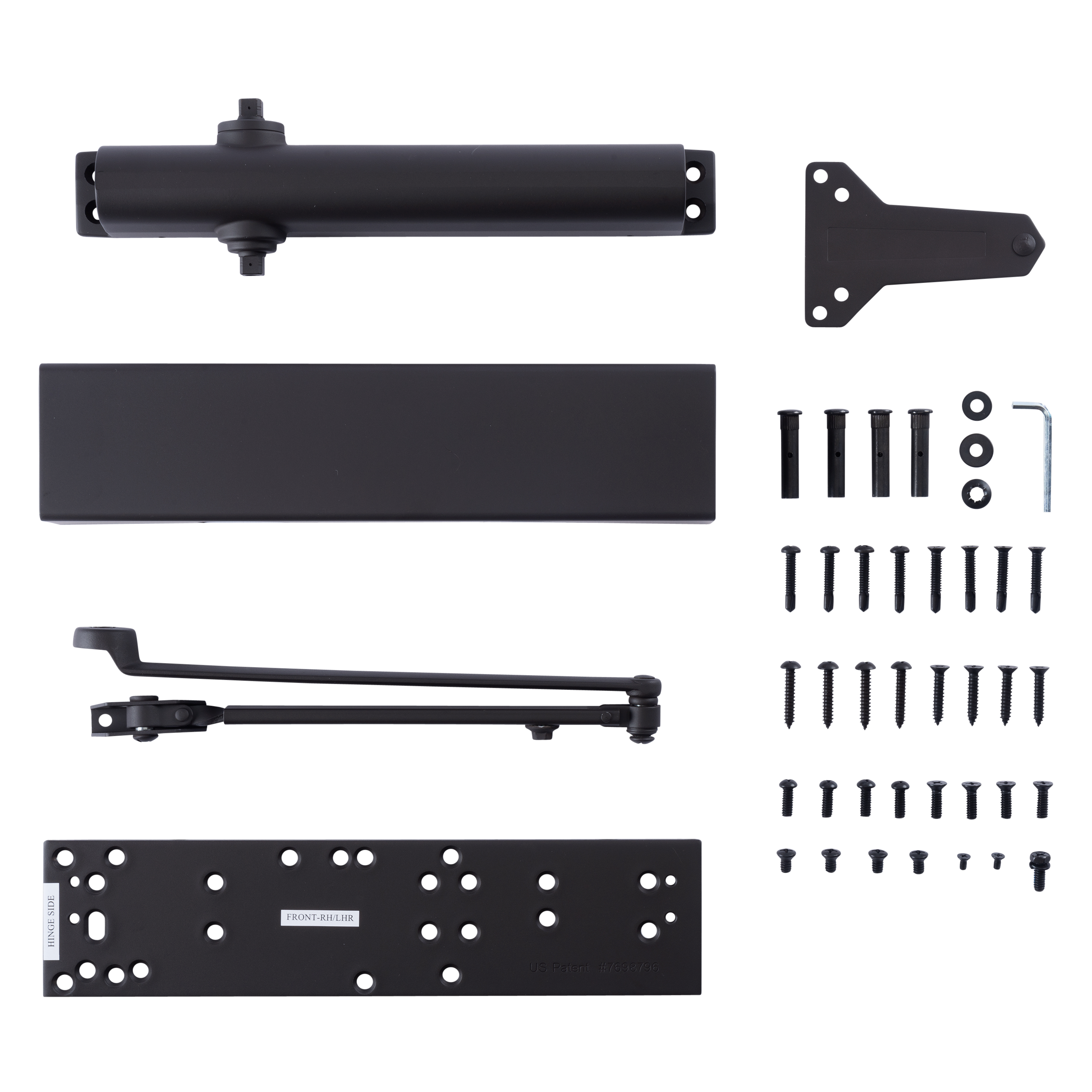

Included hardware: finish matched closer body, mounting screws, and installation instructions

Durability

Meets ANSI Grade 1 standards for heavy-duty use
Able to be used indoors or outdoors
Warranty: Limited 10-year warranty covers finish and function
UL Listed: 3-hour fire rated for added protection and meeting building requirements

Installation

Adjustable closing and latching speeds eliminate door slamming
Adjustable back check helps prevent wind damage for exterior facing doors
Opening range: 180-degree for added convenience and pass-through space

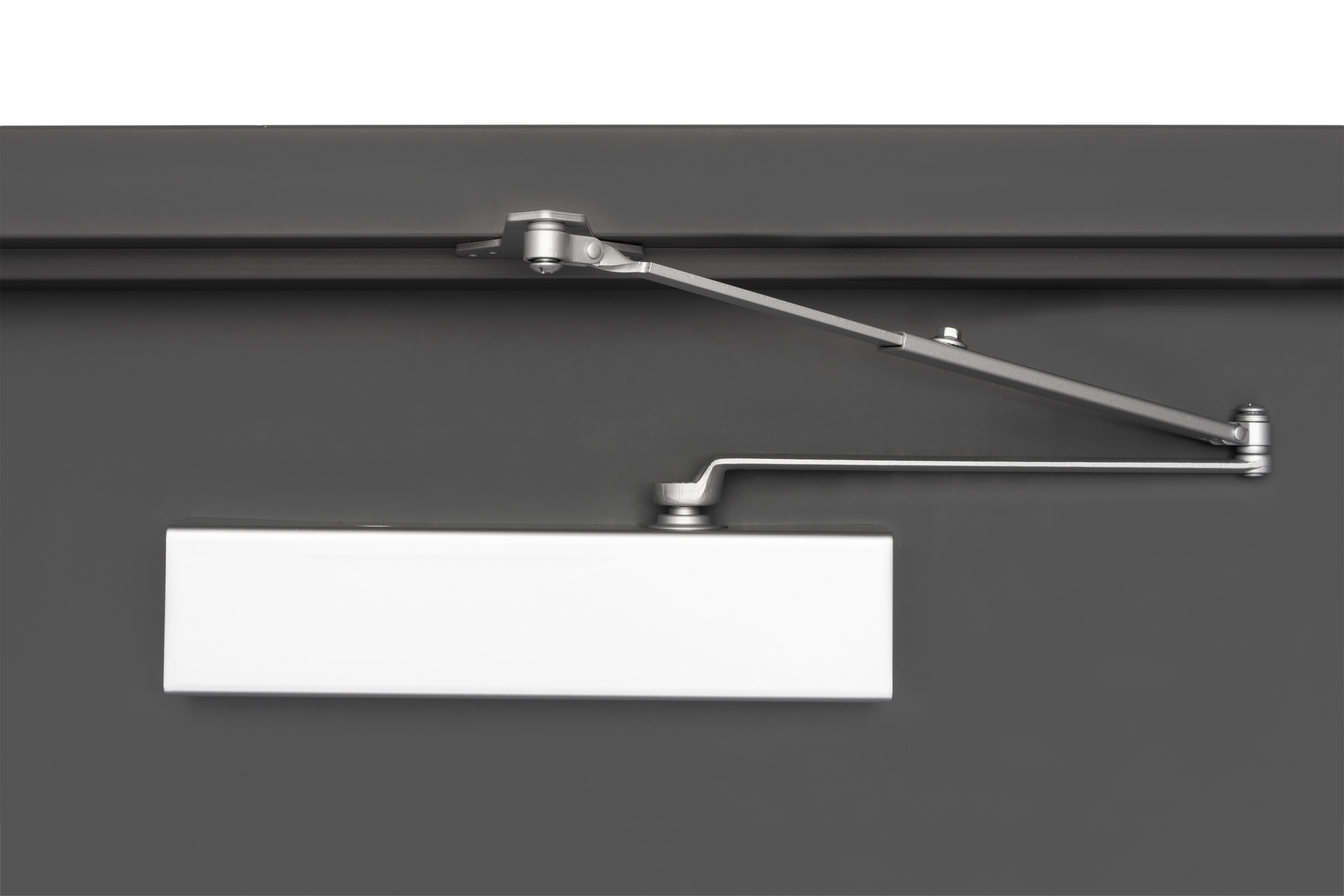

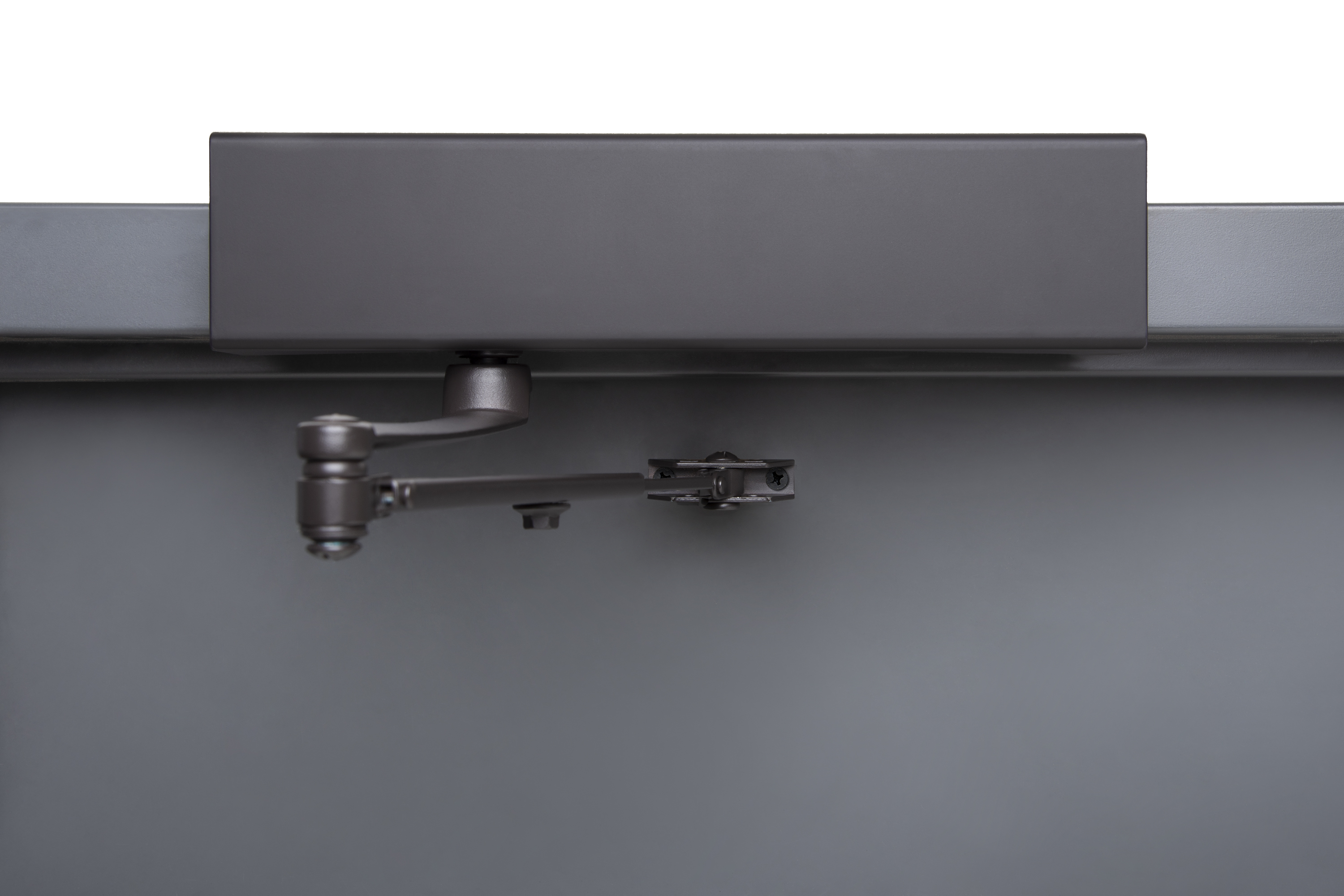

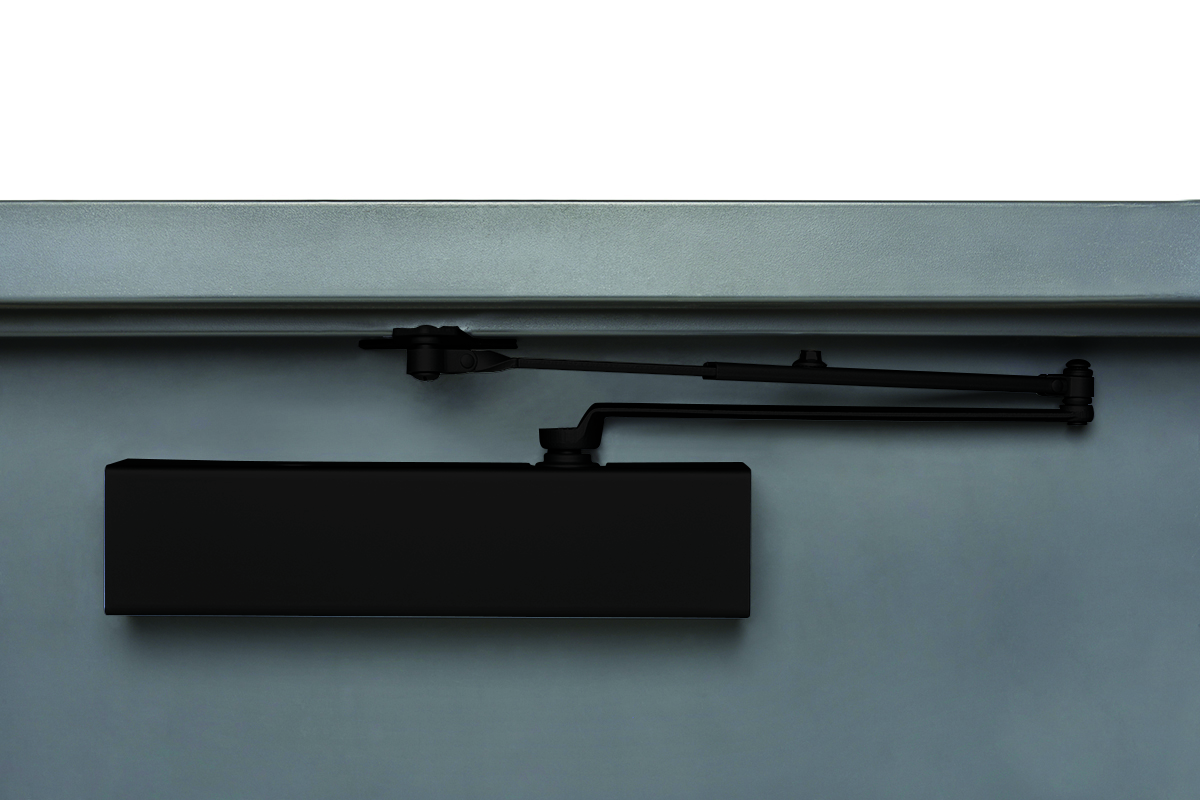

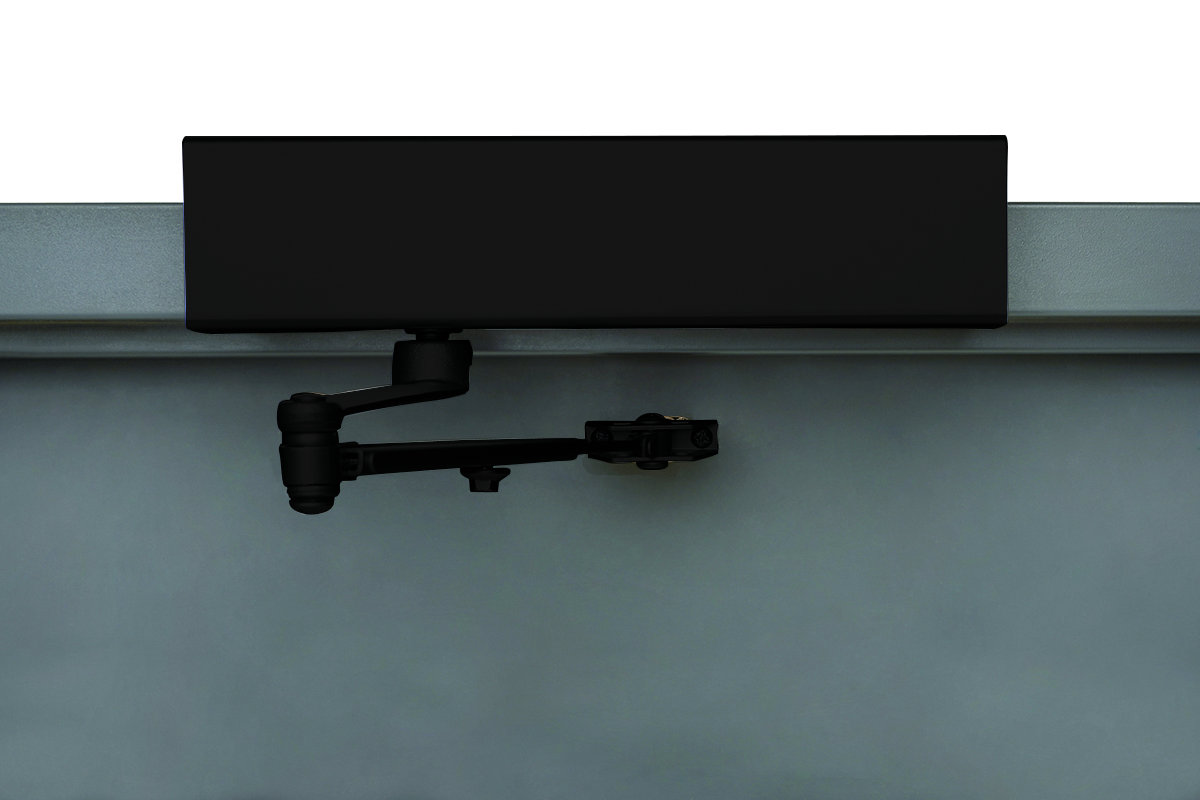

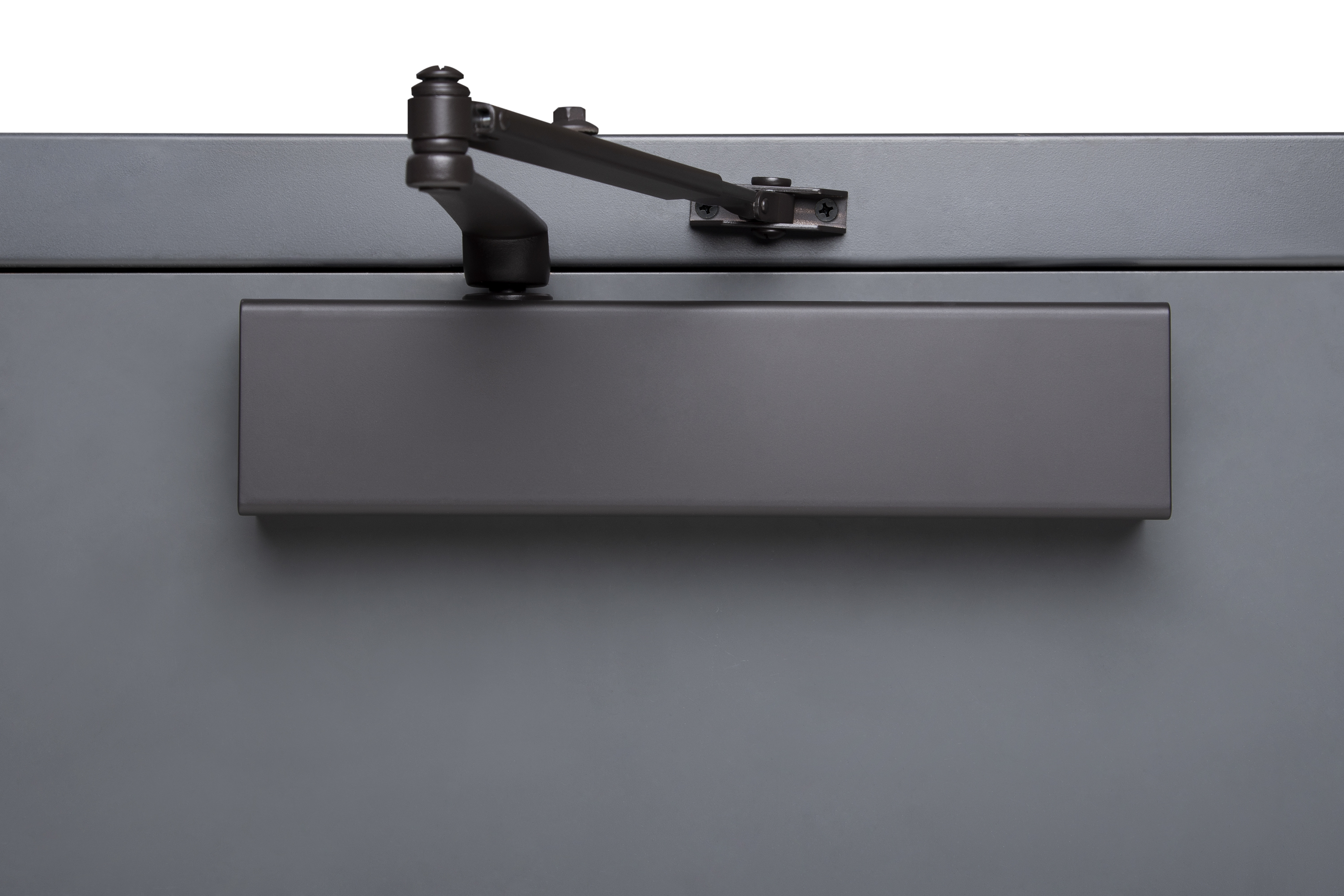

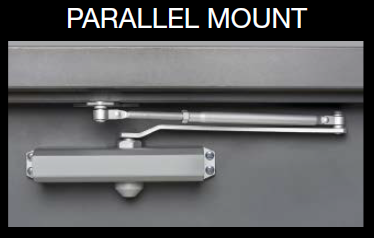

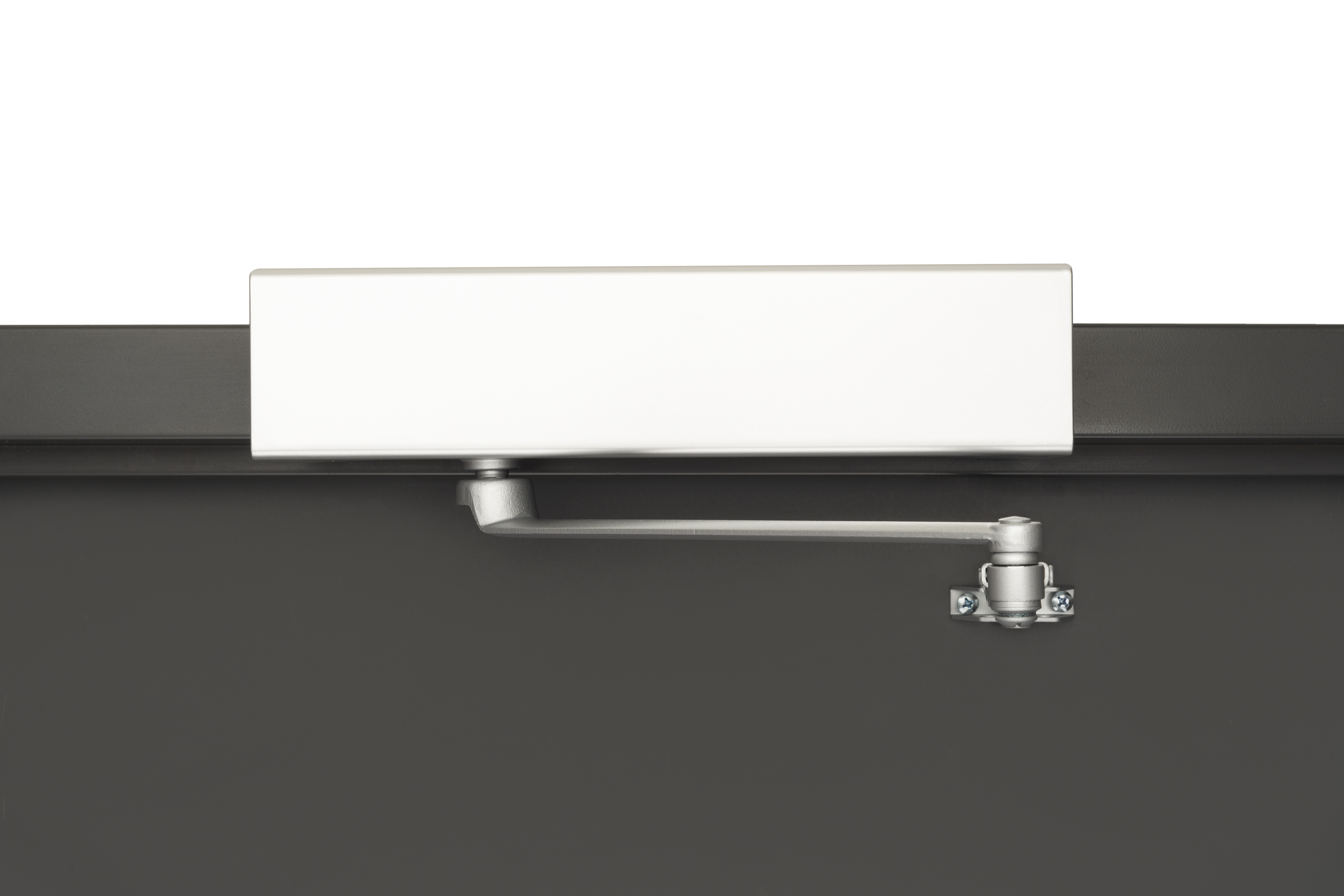

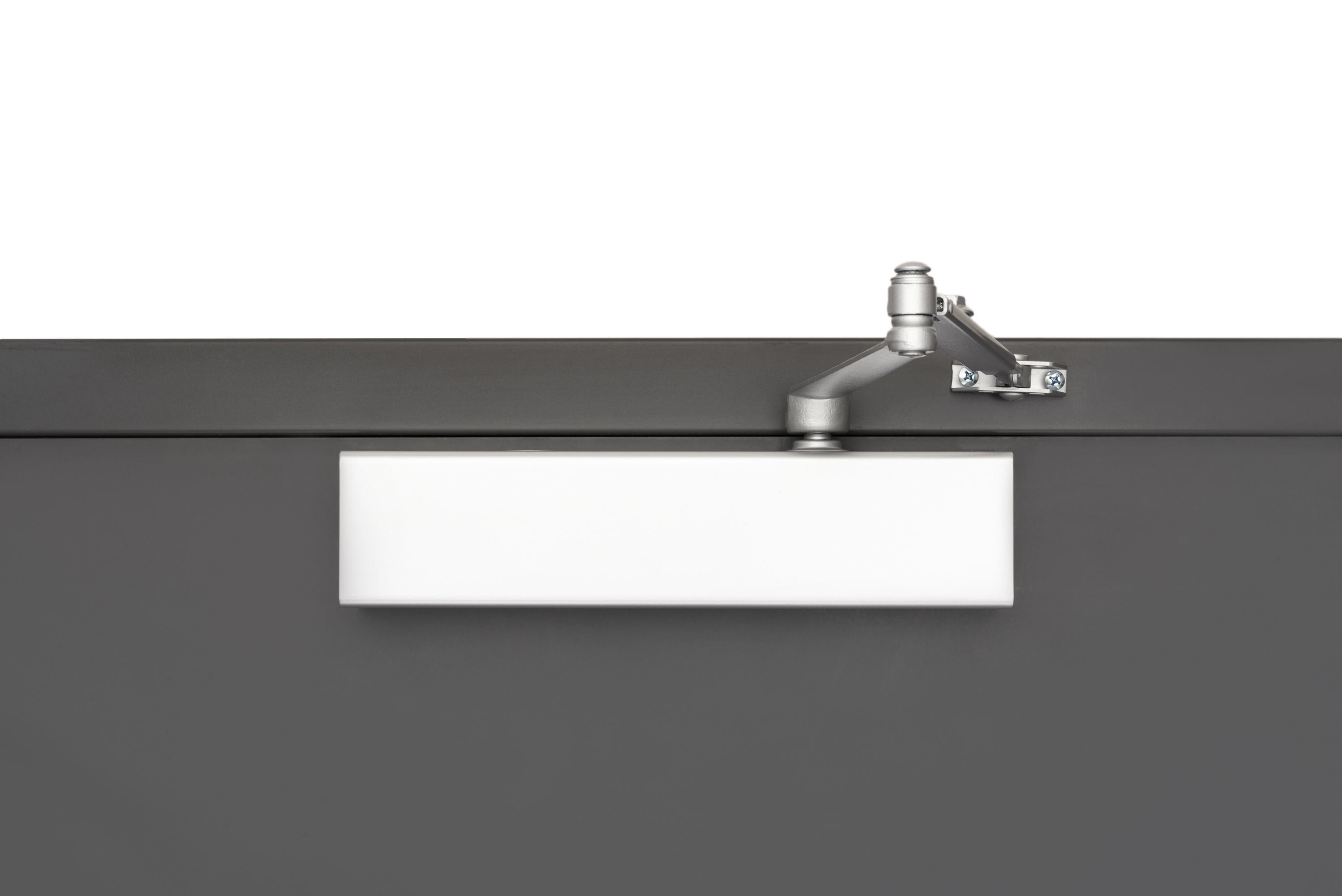

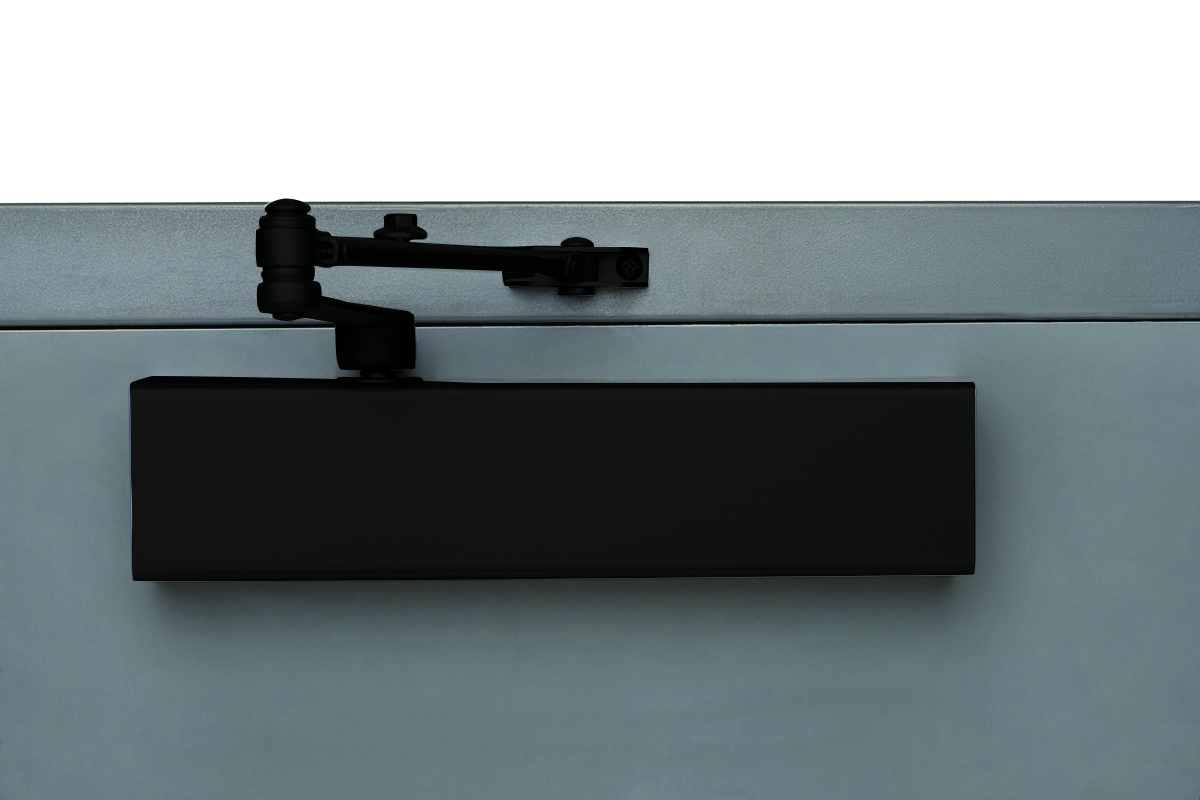

Mounting: Standard, top jamb or parallel mounting
Adjustable sizing 1-6: Provides ability to use in a variety of applications from light to heavy duty
Interior doors: Left or right hinged doors up to 250 lbs and 60" wide
Exterior doors: Left or right hinged doors up to 250 lbs. and 48" wide

Additional Images

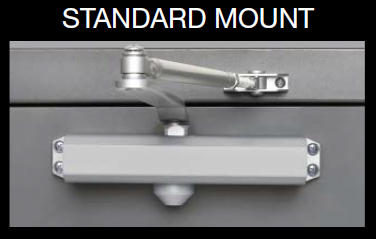

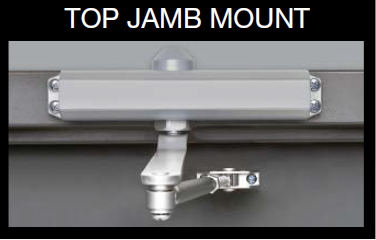

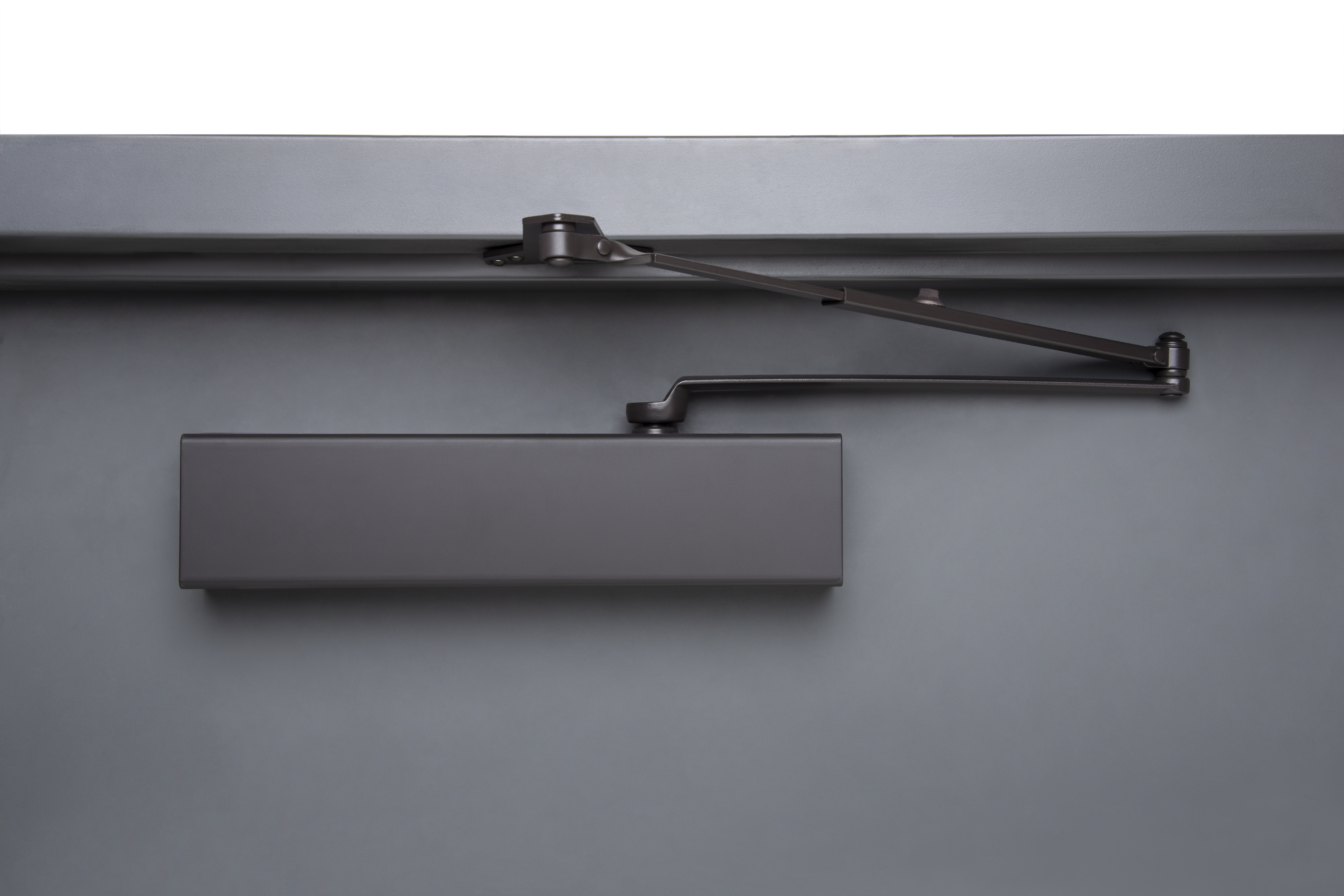

Mounting Configurations

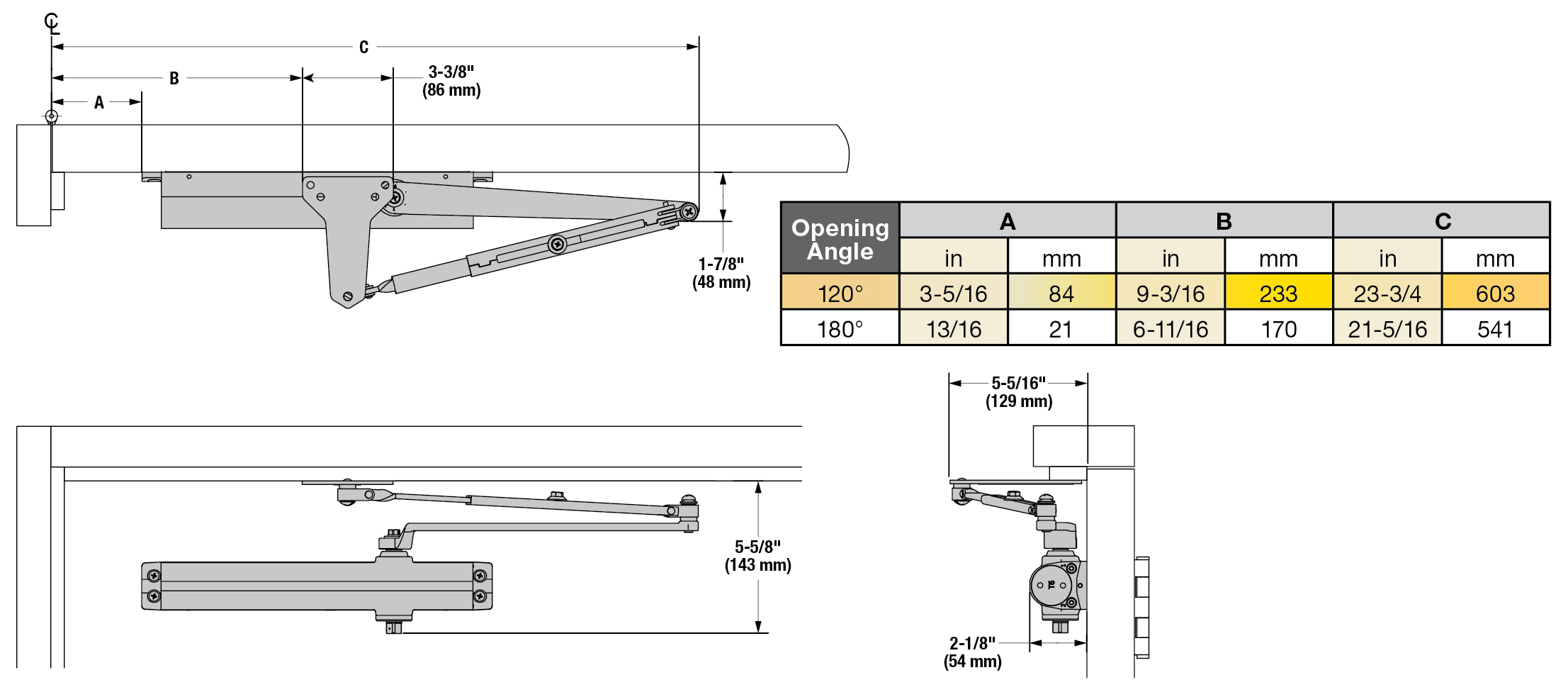

Drawings

View Full Image

Files

Instructions 1

Download

Instructions 2

Download

Instructions 3

Download

Installation Guide

Download

Product Information

Technical Details

Color / Finish	Aluminum
Fineline	Commercial Closer
Durability	Heavy Duty All-In-One
Retail Width	13.88 in
Retail Height	3.25 in
Retail Depth	5.25 in
Retail Weight	9.8 lb
Included Hardware	Yes
Exterior Door Compatibility	Left or right hinged doors up to 250 lbs. and 48" wide
Closer Rating	Adjustable Size 1-6
ANSI Grade	1
Backcheck	Adjustable
OpeningRange	180 Degrees
Mount Type	Standard, Top Jamb, Parallel
Closing and Latching Speed	Adjustable Closing
Indoor Outdoor	Both
UL Listing	Yes, 3 Hour Fire Rated
ADA Compliant	Yes
Warranty	10 Year Limited Warranty
Country of Origin	Taiwan (TW)

Additional Information

SKU	UH4061
UPC	879564040414
Brand	Universal Hardware
Type	Closer
