Lever Combo Grade 2 HD Flat Keyed Entry, Satin Chrome
SKU BC40032
Product Description

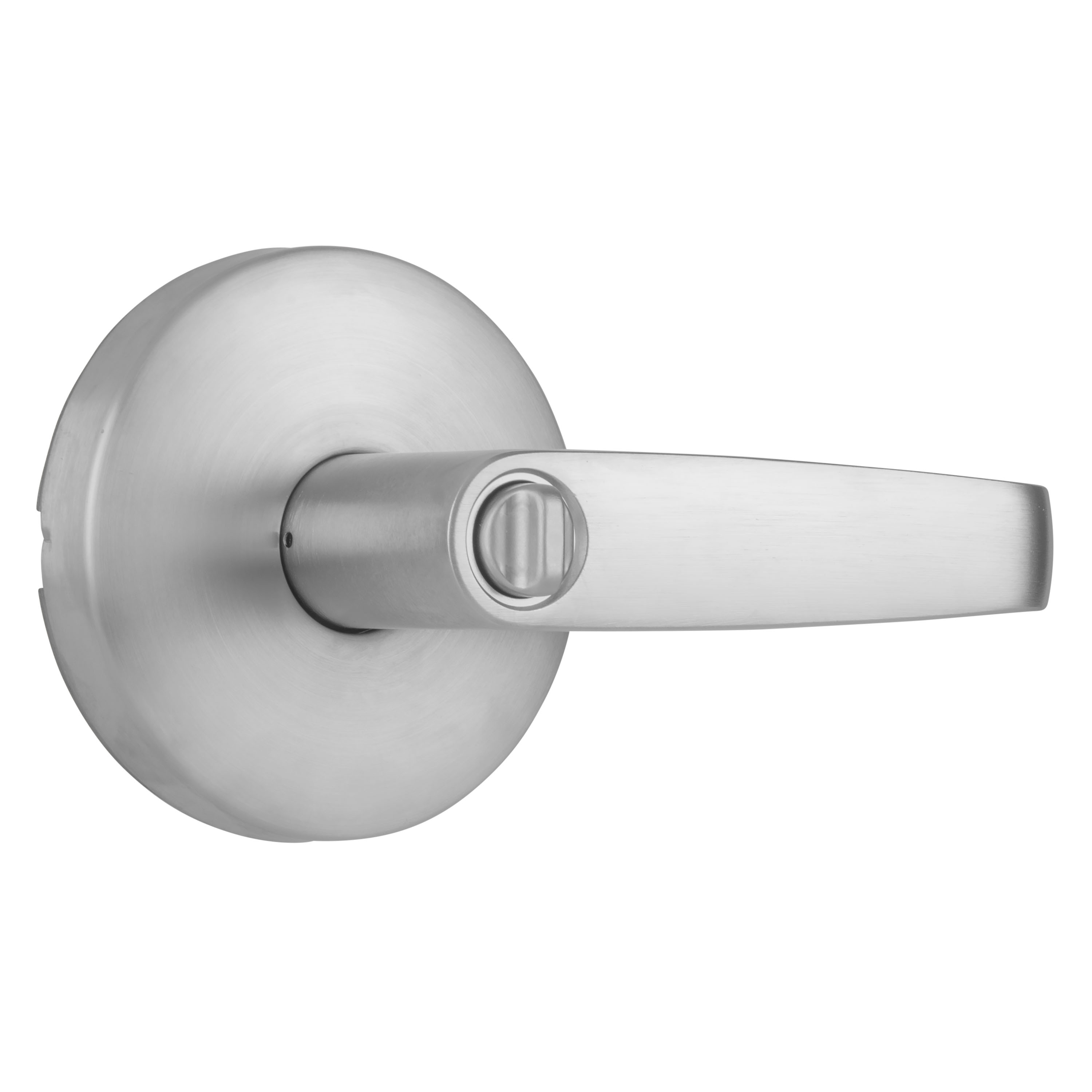

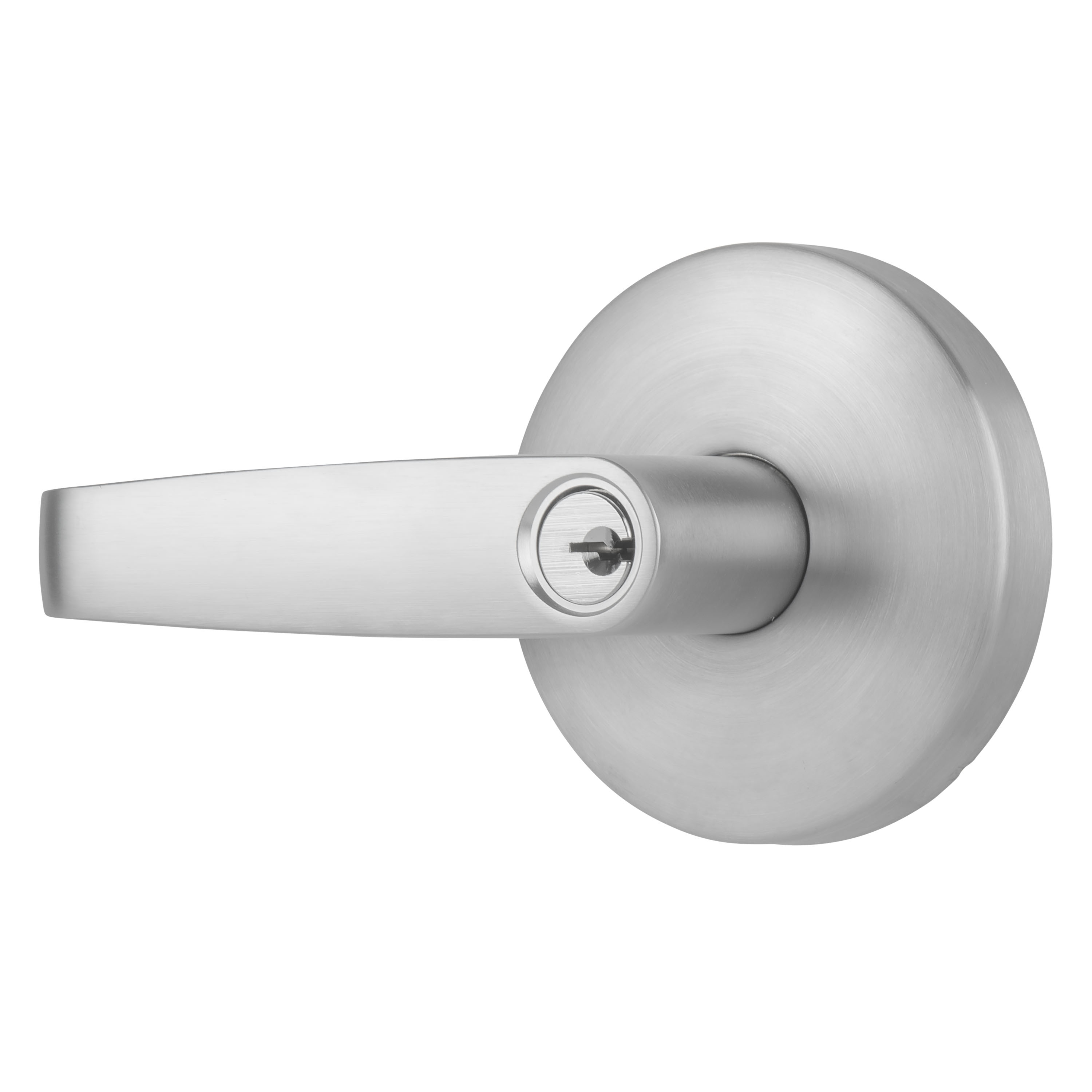

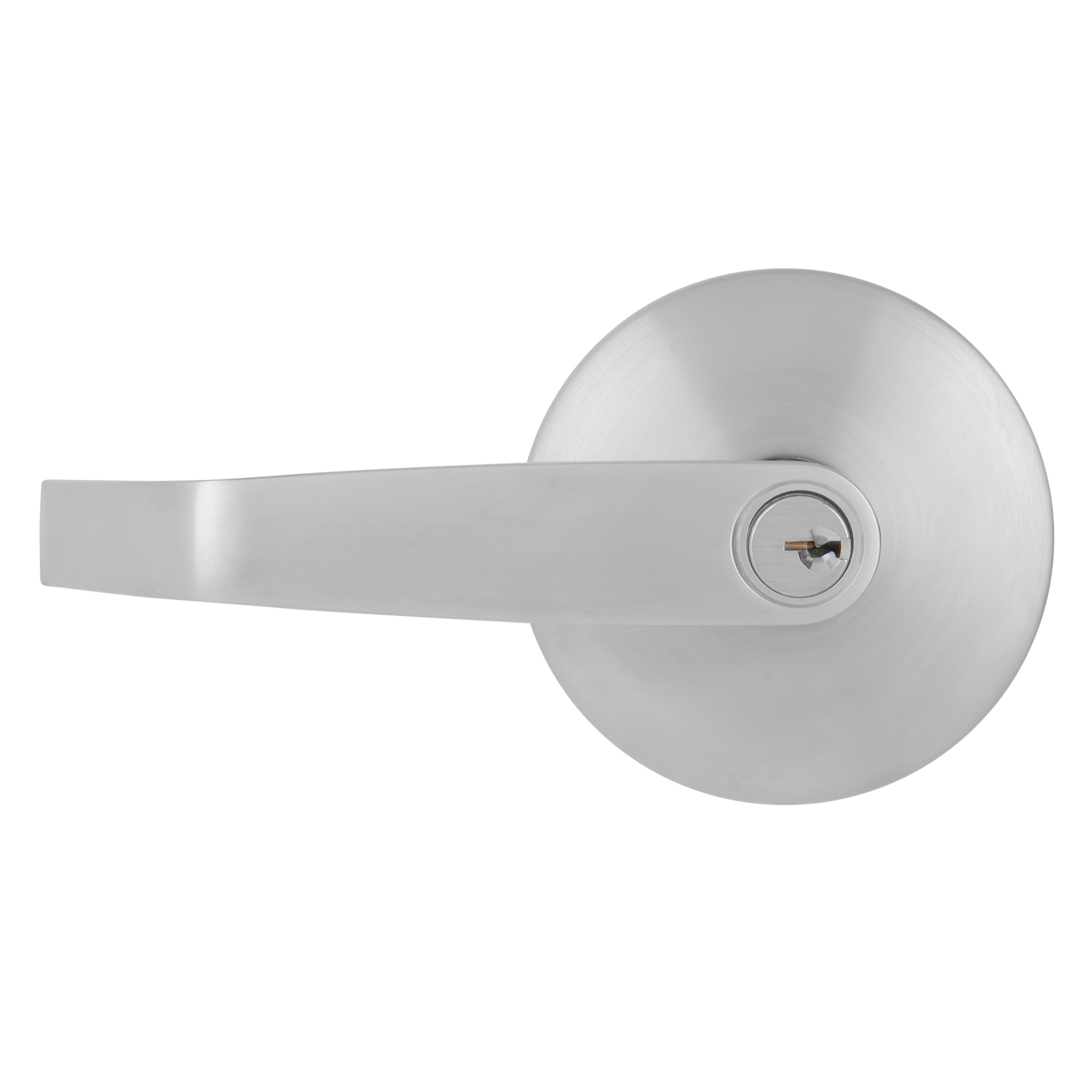

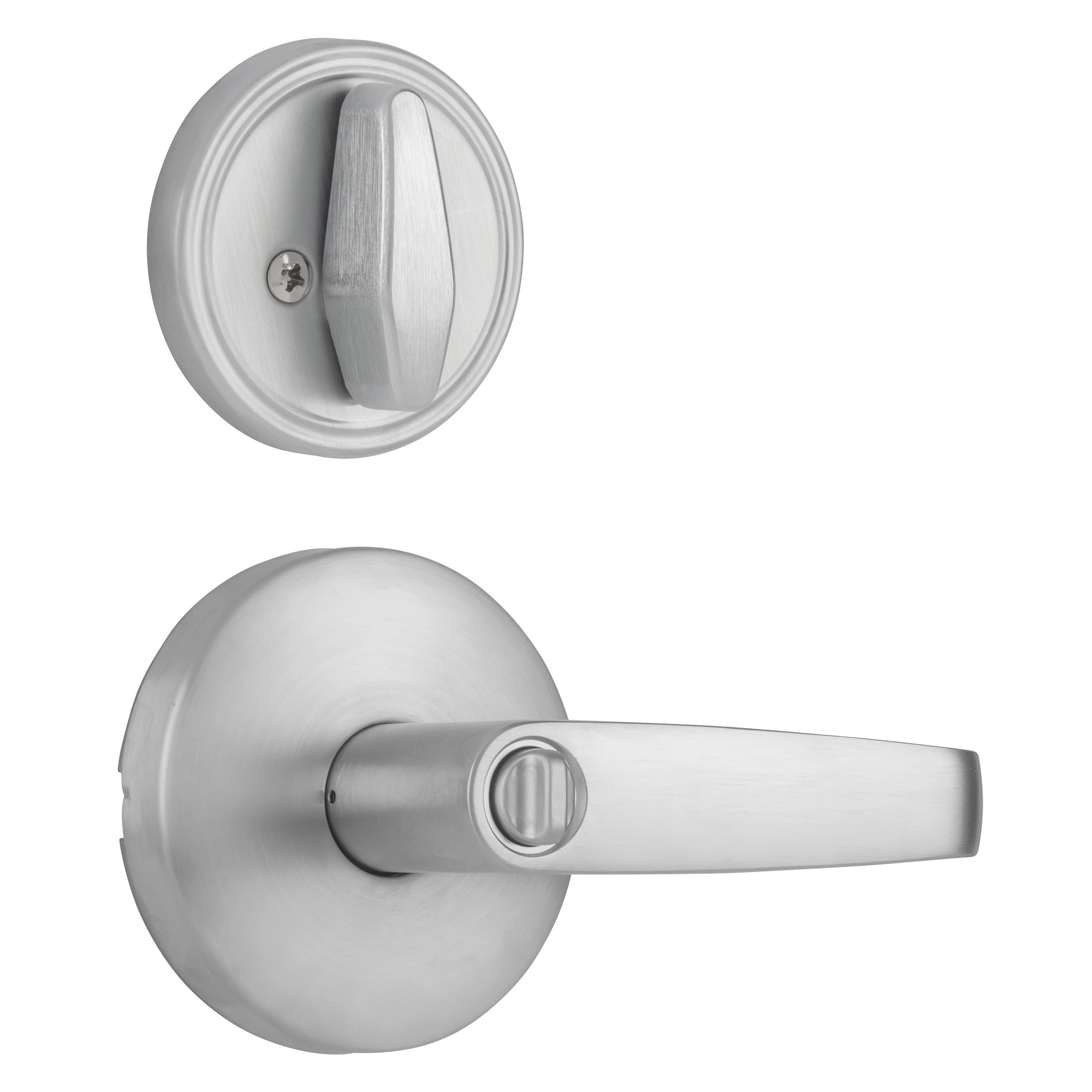

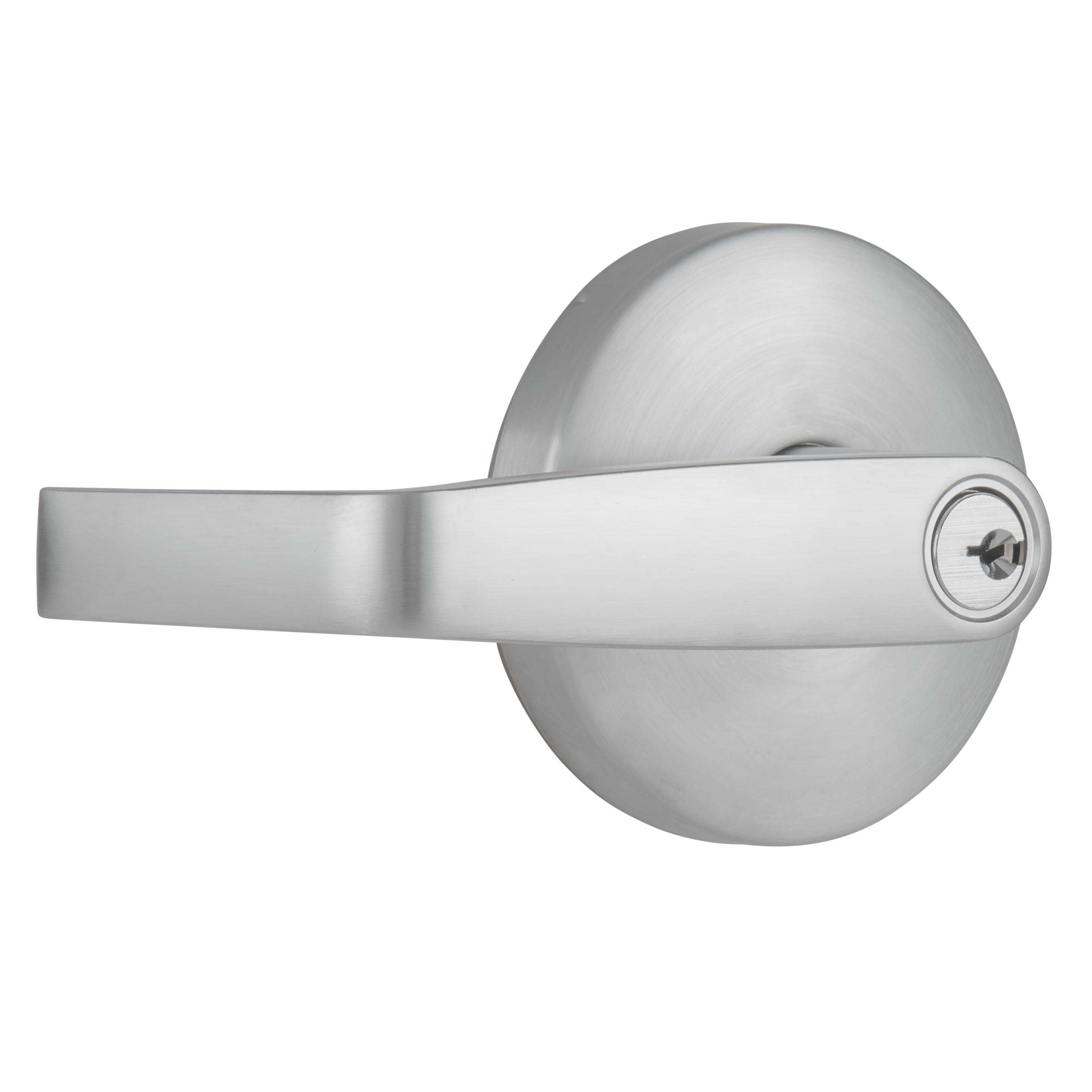

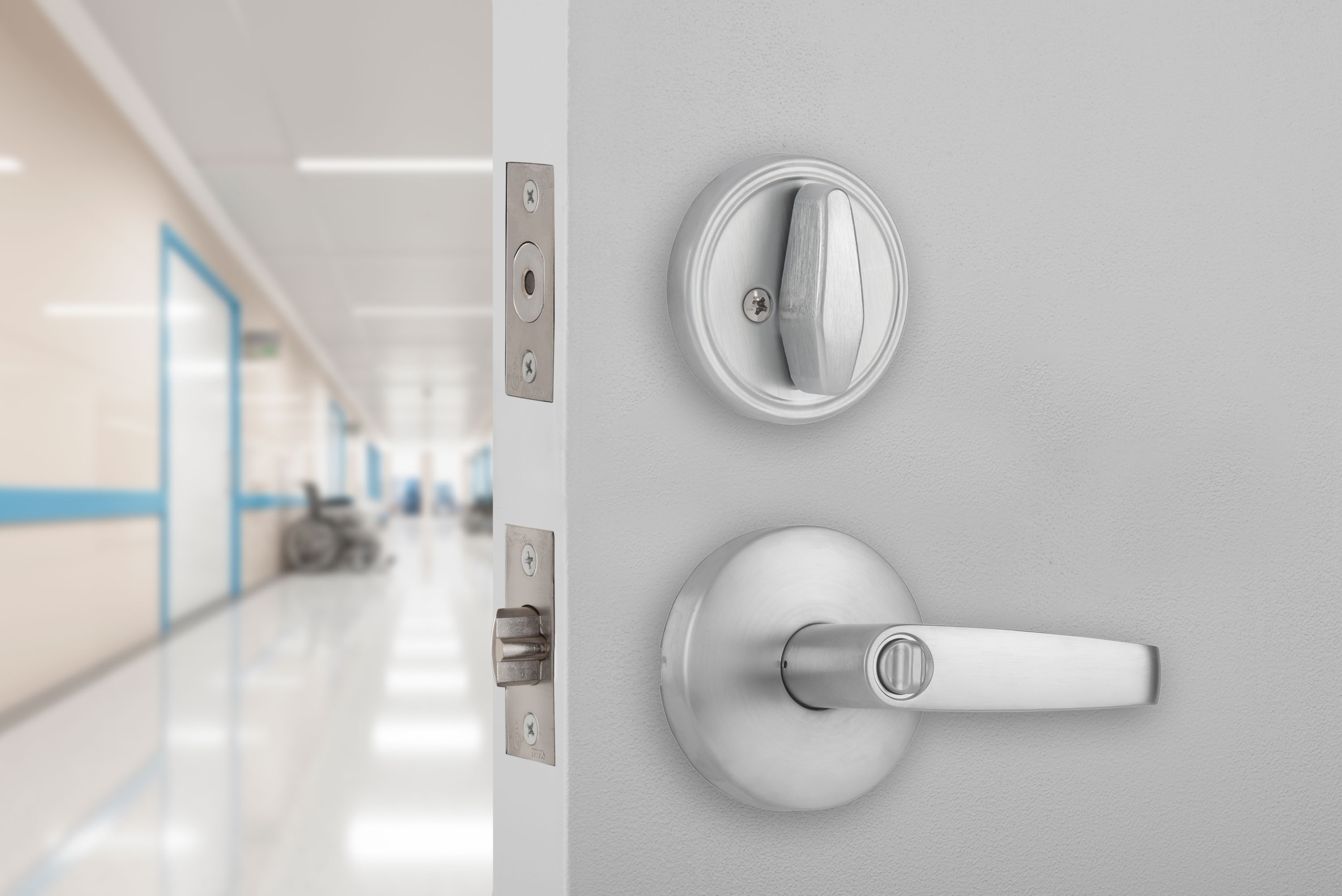

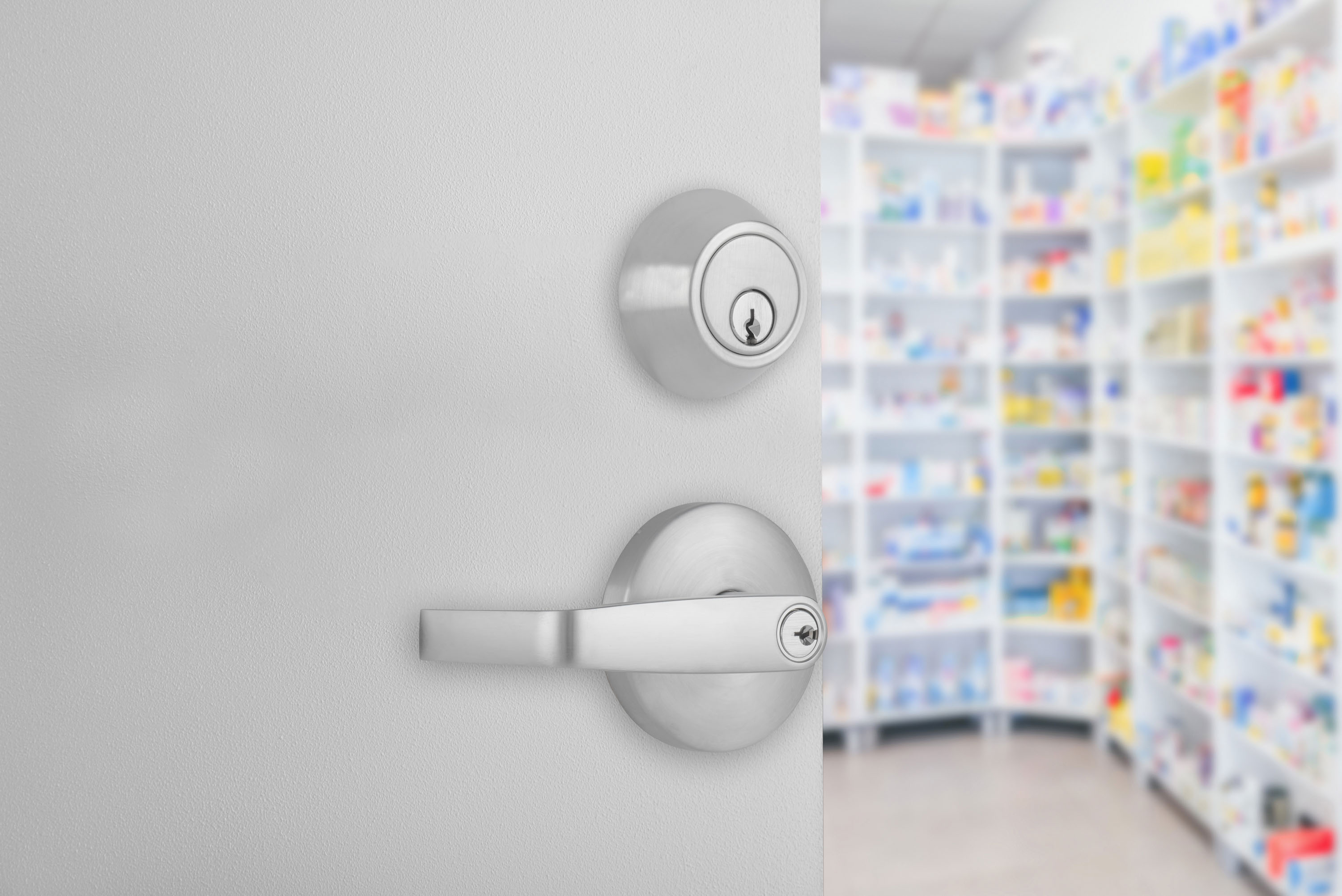

The Brinks Commercial Heavy Duty Keyed Entry Lever and Deadbolt Combo is designed for entry doors or doorways where added security is needed. Turning the inside button locks outside lever until unlocked with a key or turn button is manually unlocked. A 5-Pin SC1 cylinder and brass plug provide added security and peace of mind. Equipped with a cylindrical chassis for commercial use, the keyed entry lever will fit wood or metal doors 1-3/4" to 2" thick. The Heavy Duty Keyed Entry Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial. The deadbolt features a saw-resistant deadbolt latch and an adjustable 2-3/8" or 2-3/4" backset. A T-strike, 4-7/8" ASA strike, Deadbolt strike, 2 keys, mounting hardware and installation instructions are included.
Construction

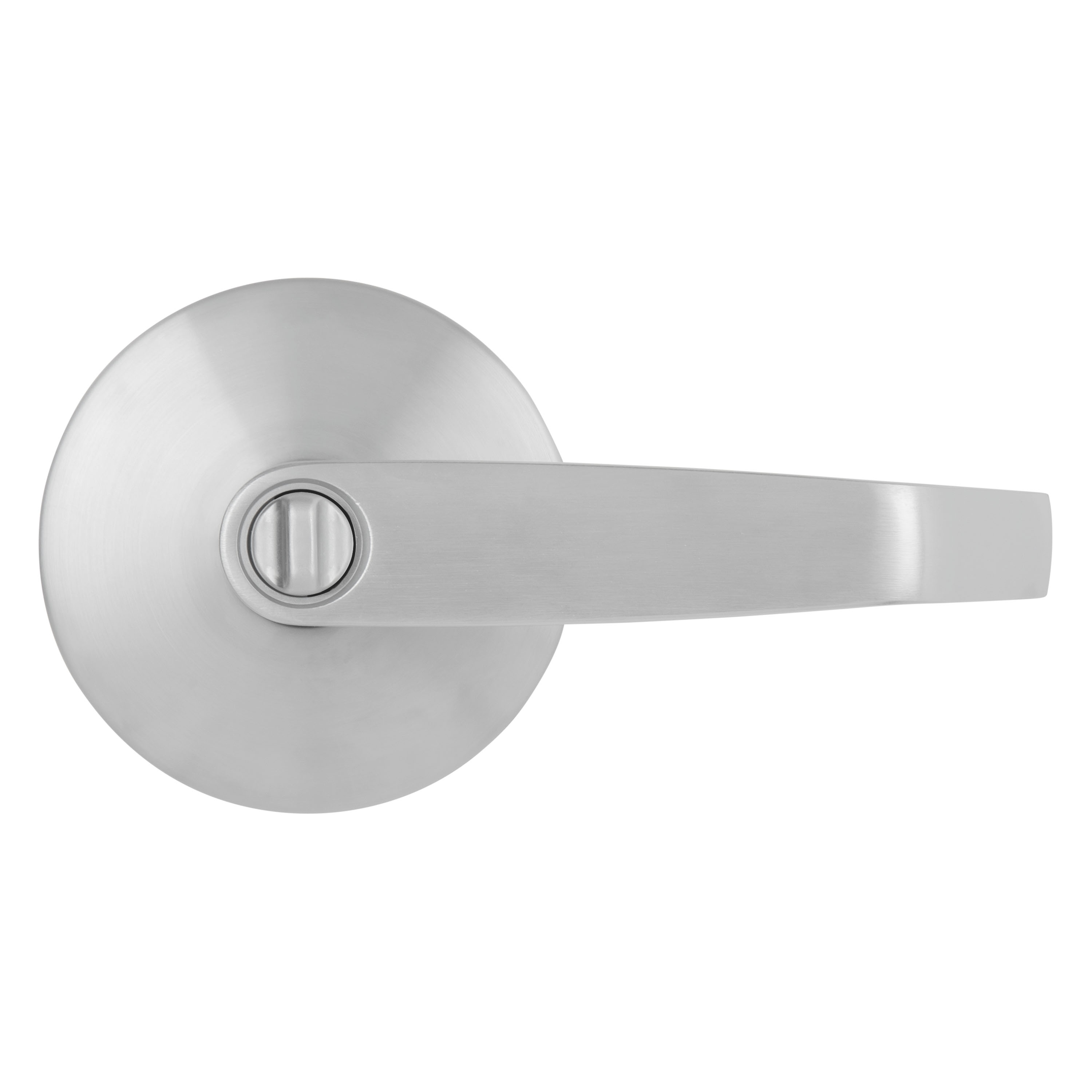

- Equipped with 4-5/8"solid zinc diecast levers
- Sleek satin chrome finish
- Heavy duty cylindrical construction
- Packaged with 4-7/8" ASA ANSI strike and T-strike
- Saw-resistant deadbolt latch
- Lever latch: 2-3/4" fixed backset
- Deadbolt latch: 2-3/8" or 2-3/4" backset
- 6-Pin SC4 Brass cylinder
- Optional through-bolt design
Durability
- ANSI Grade 2 rating for commercial use
- UL Listed: 3 Hour fire rated for added protection and meeting building requirements
- ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
- Full lifetime warranty
Installation
- Door Type: Wood or Metal doors 1-3/4"-2" thick
- Non-Handed: Can be applied to left or right-handed doors

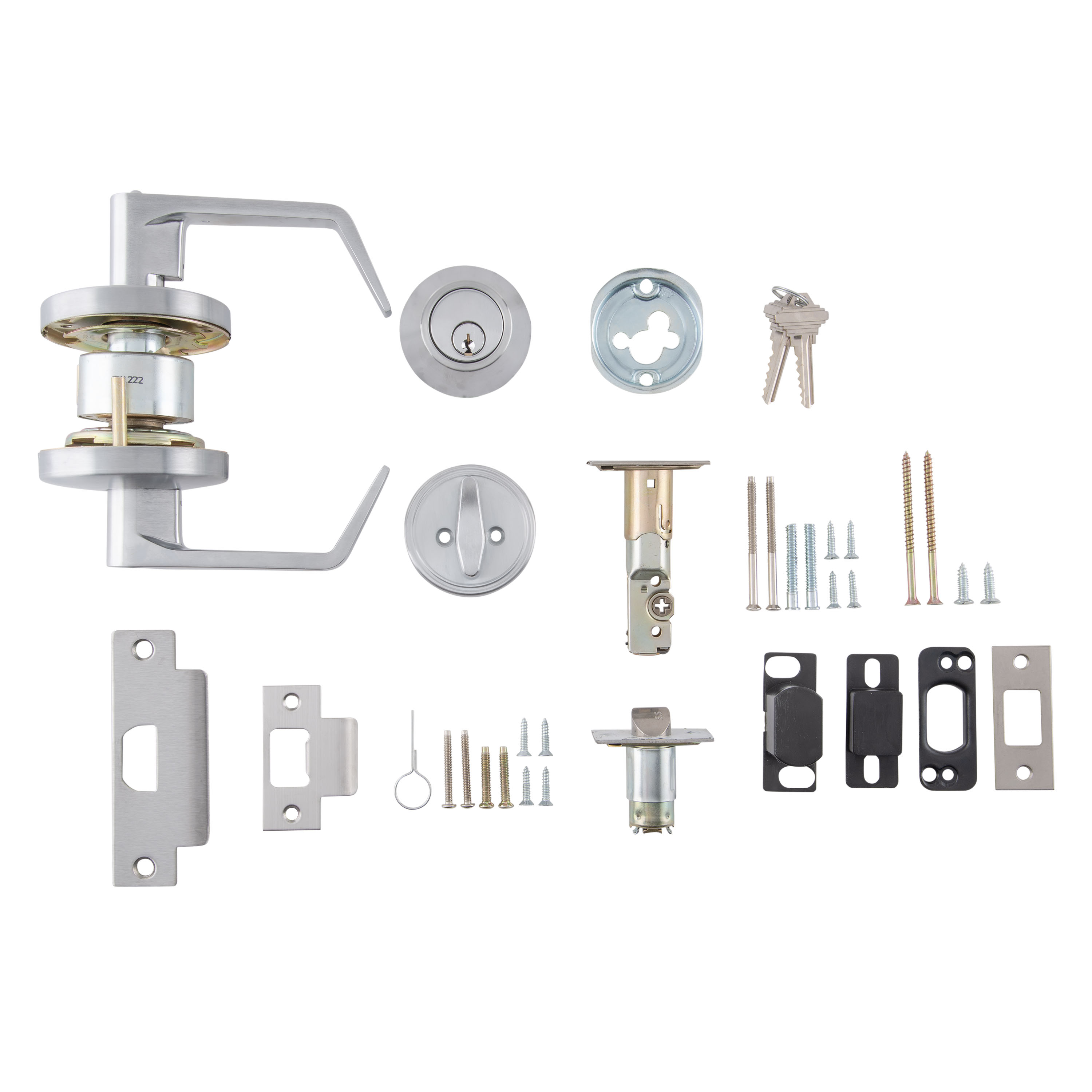

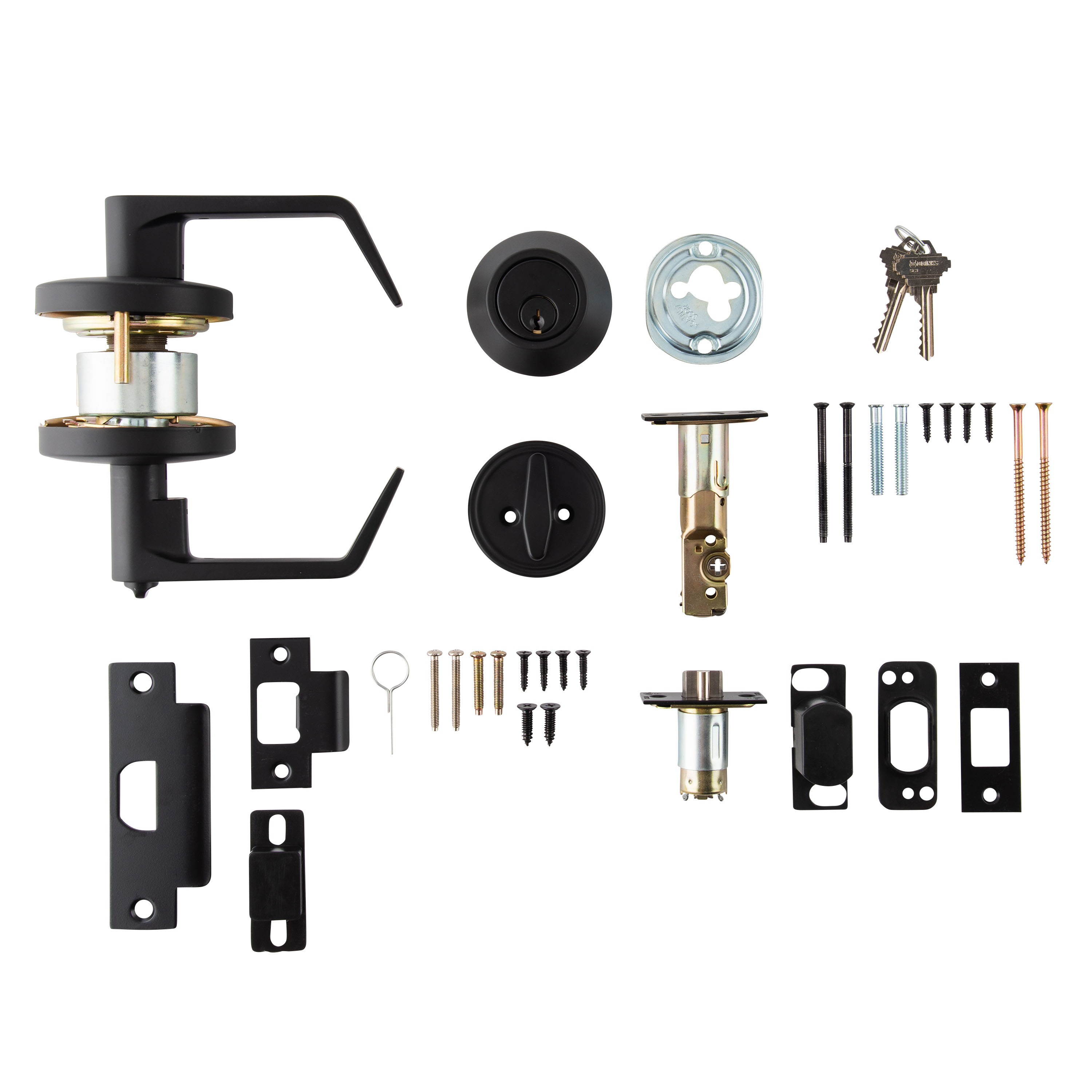

- Included hardware: Mounting screws, 2 keys, and installation instructions
Product Information
Technical Details
| Included Hardware | Mounting Hardware, Yes |
| Exterior Door Compatibility | Left or right handed wood or metal doors 1-3/4" - 2" thick |
| ANSI Grade | 2 |
| Mount Type | Surface Mount |
| Indoor Outdoor | Both |
| UL Listing | Yes, 3 Hour Fire Rated |
| ADA Compliant | Yes |
| Warranty | 10 Year Limited Warranty |
Additional Information
| SKU | BC40032 |
| Brand | Brinks Commercial |
| Type | Lever |
Warranty & Support
Our support team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.
Open a Support TicketProduct Description

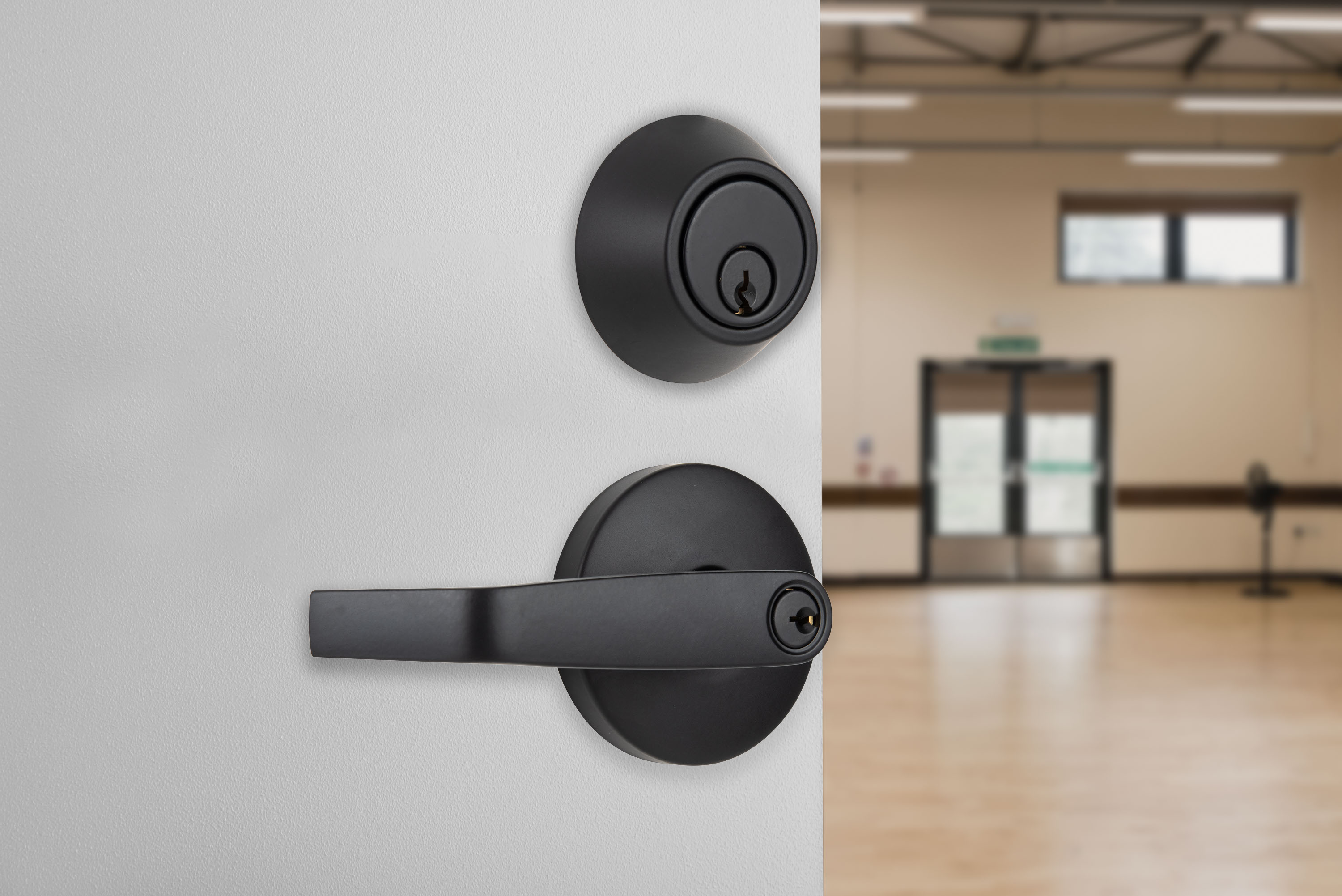

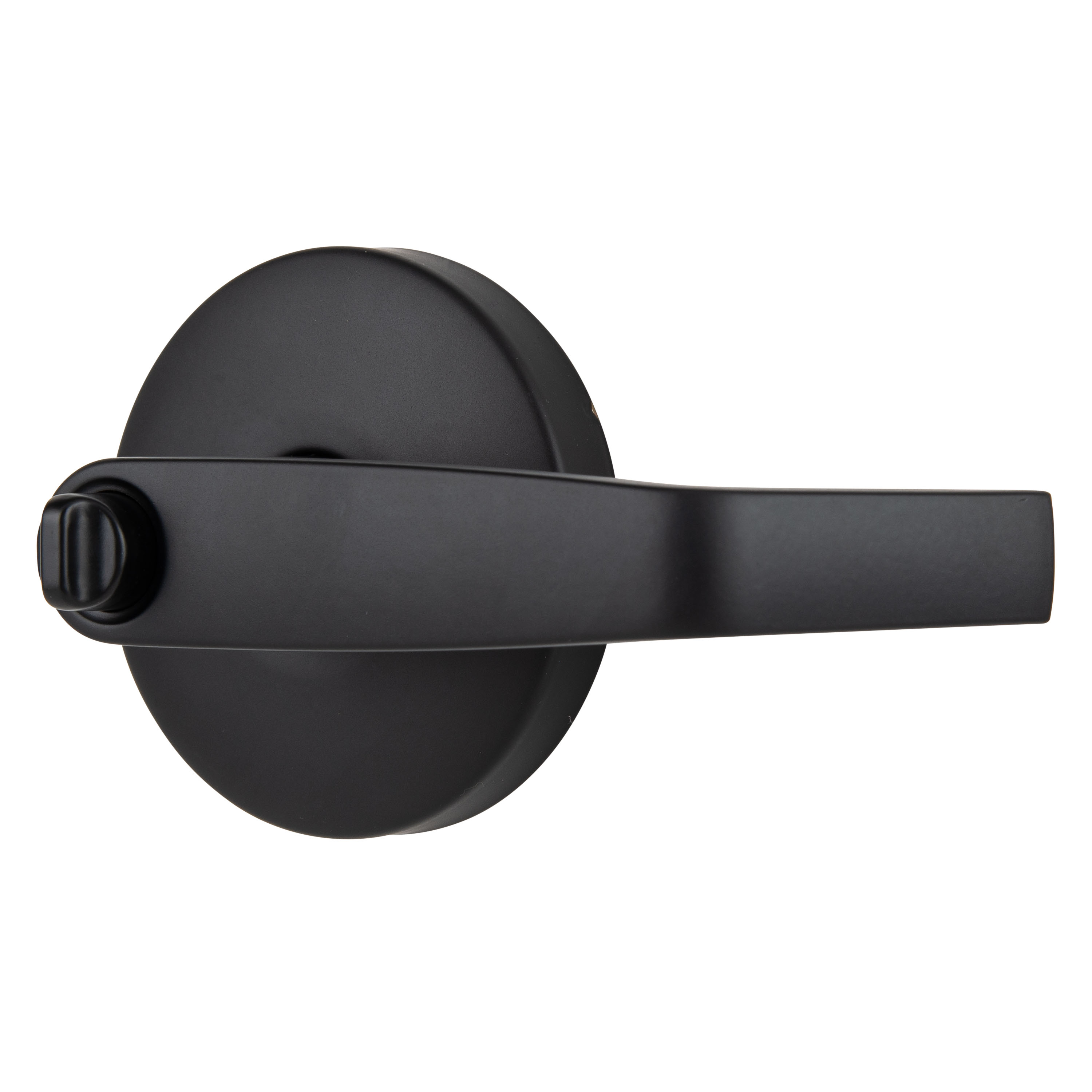

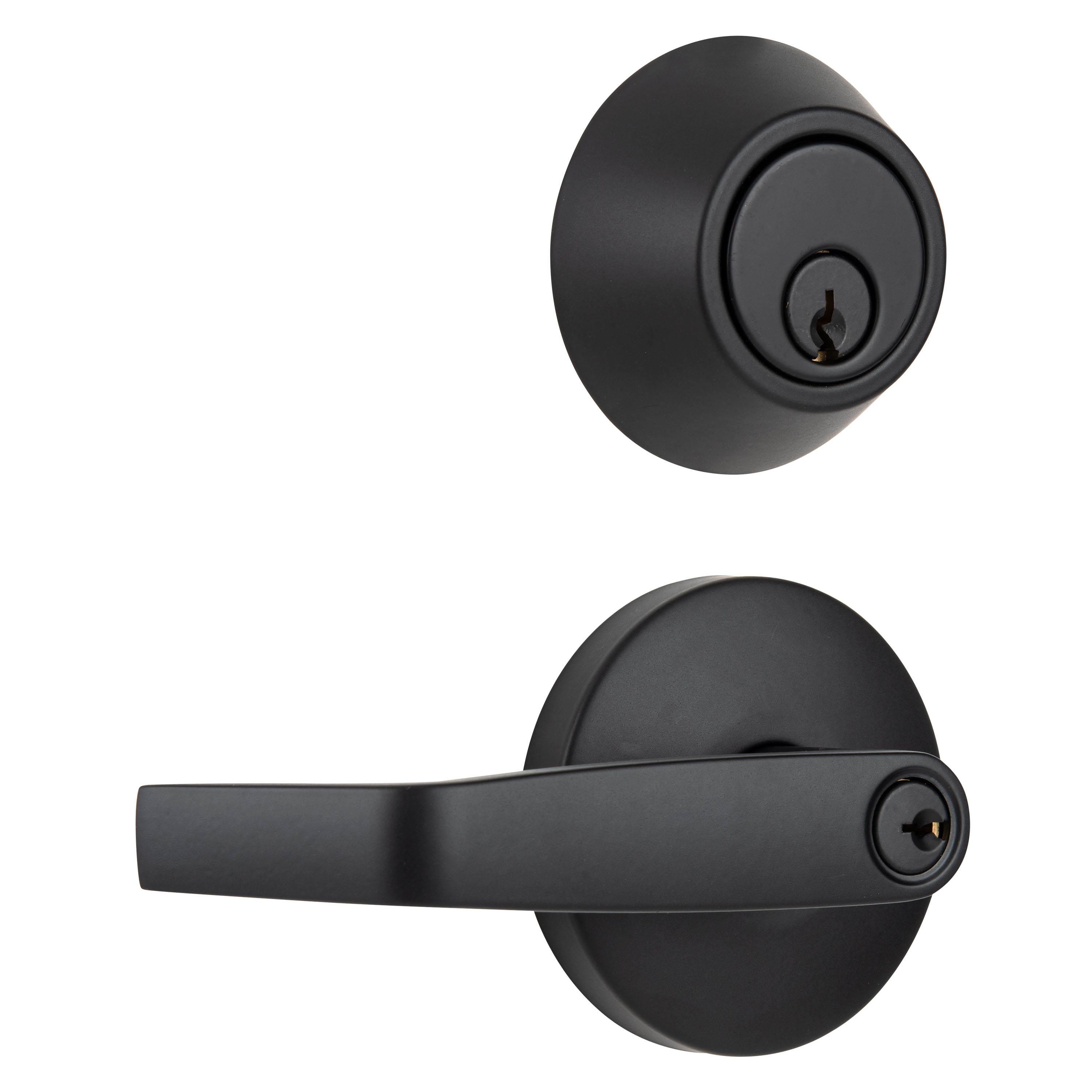

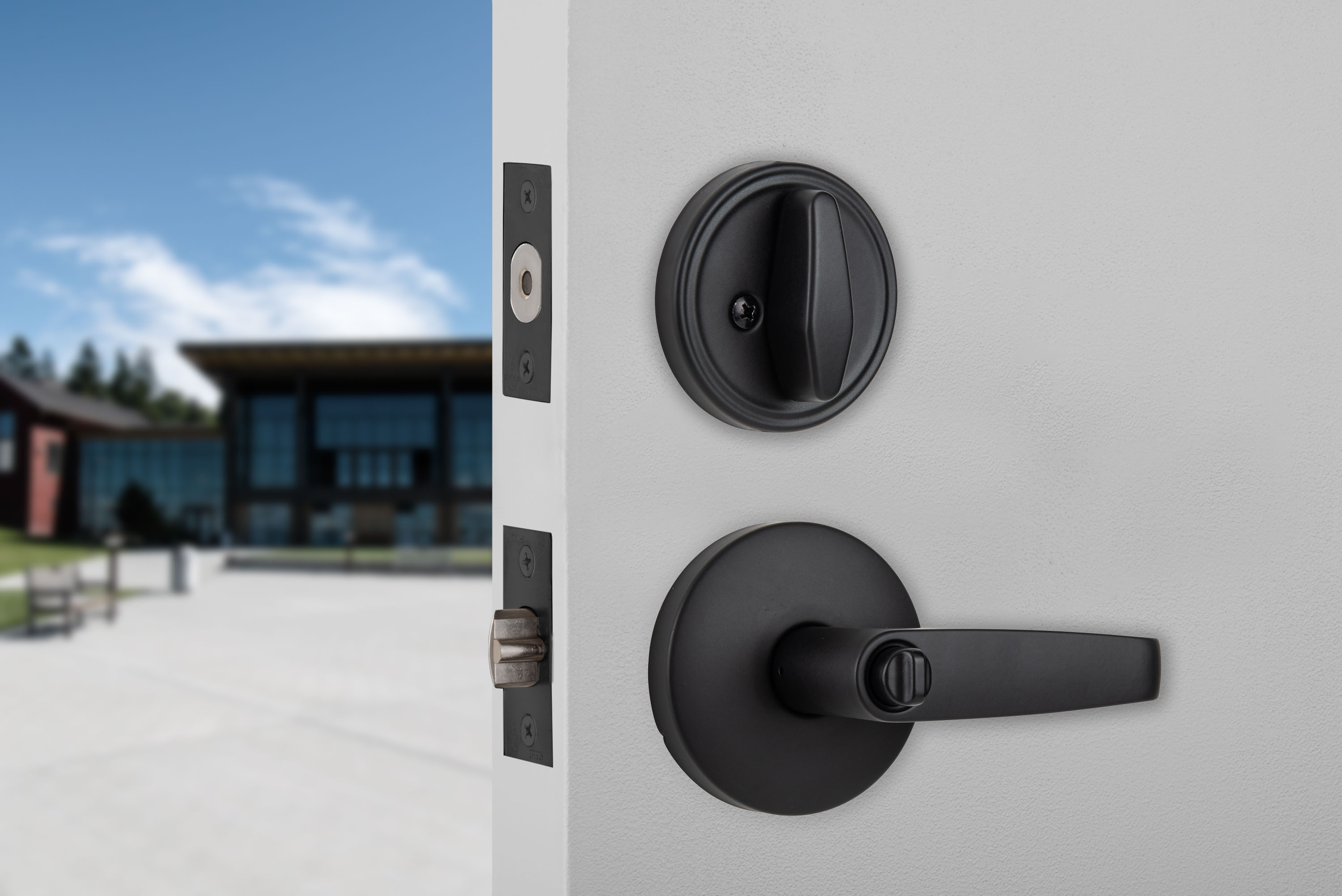

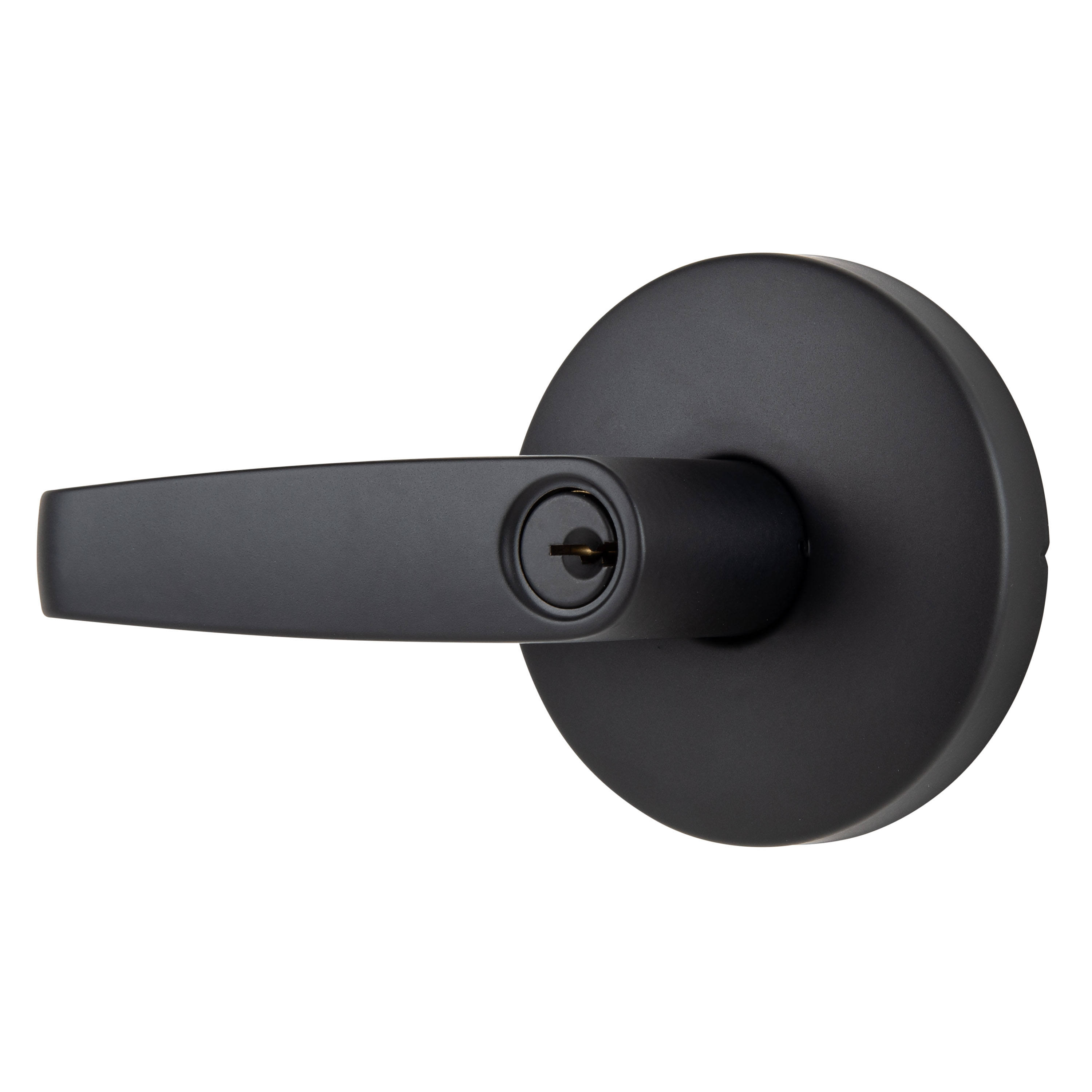

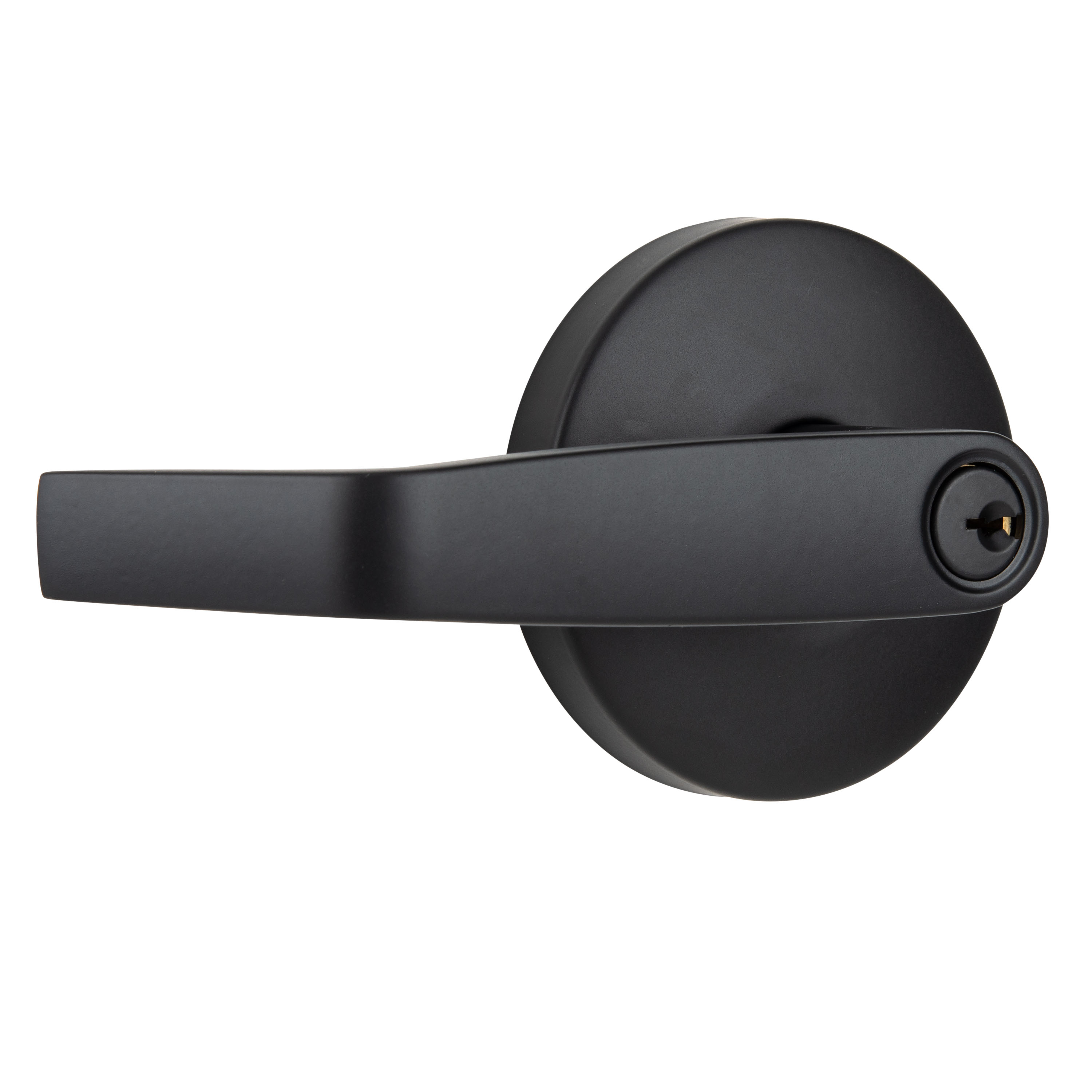

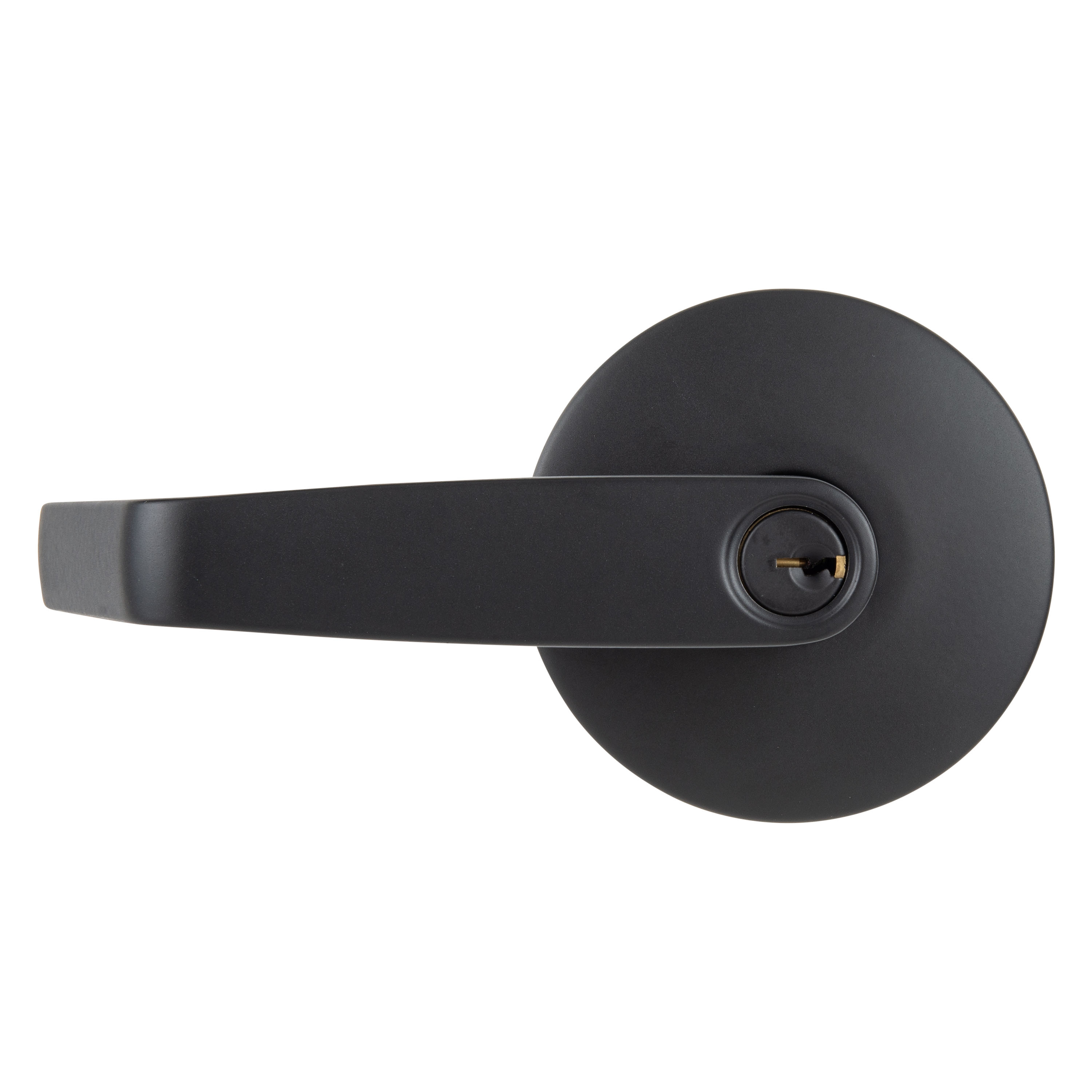

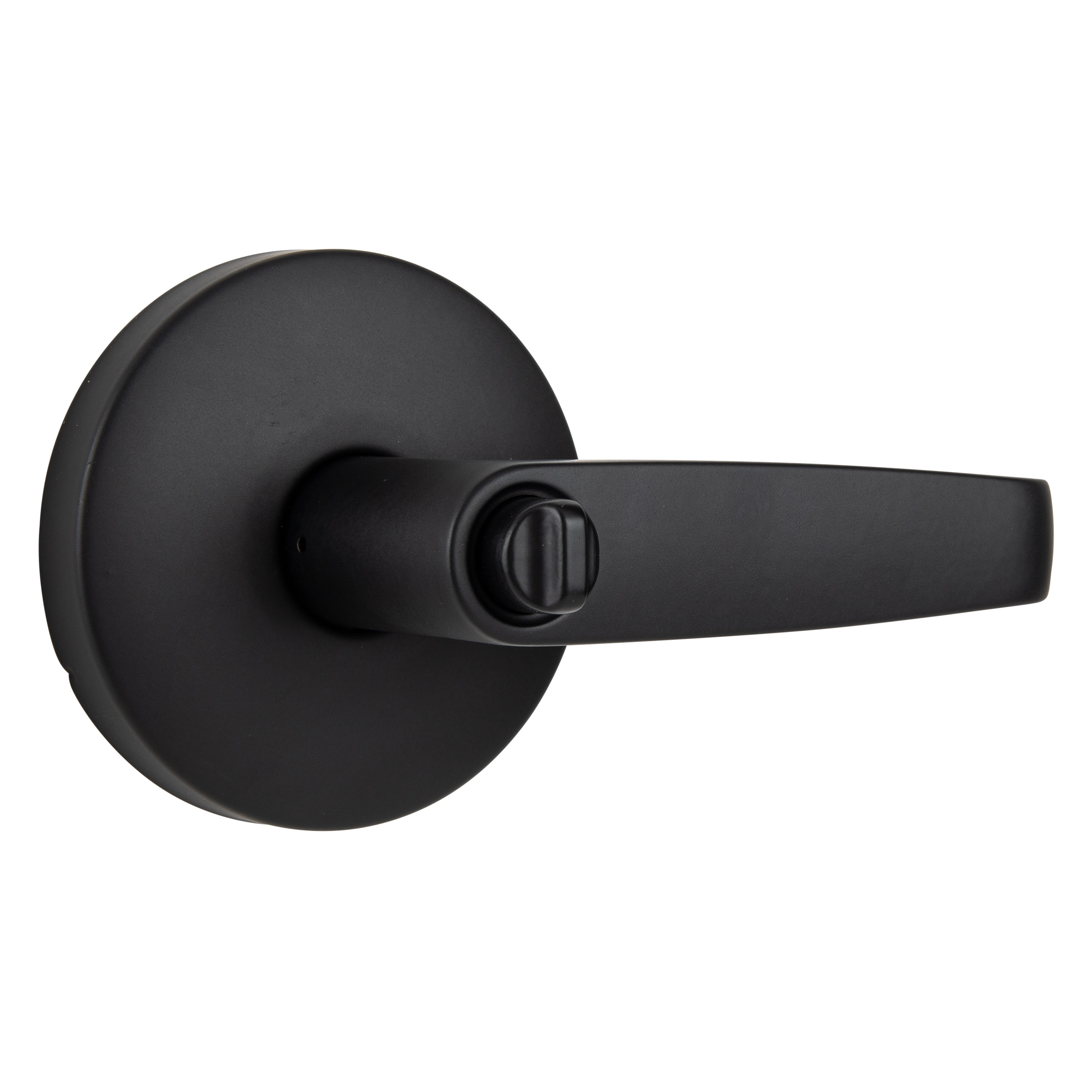

The Brinks Commercial Heavy Duty Keyed Entry Lever and Deadbolt Combo is designed for entry doors or doorways where added security is needed. Turning the inside button locks outside lever until unlocked with a key or turn button is manually unlocked. A 5-Pin SC1 cylinder and brass plug provide added security and peace of mind. Equipped with cylindrical chassis for commercial use, the keyed entry lever will fit wood or metal doors 1-3/4" to 2" thick. The Heavy Duty Keyed Entry Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating, a 3 hour fire rating (UL Listed) and is ADA compliant for commercial. The deadbolt features a saw-resistant deadbolt latch and an adjustable 2-3/8" or 2-3/4" backset. A T-strike, 4-7/8" ASA strike, Deadbolt strike, 2 keys, mounting hardware, and installation instructions are included.
Construction
- Equipped with 4-5/8"solid zinc diecast levers

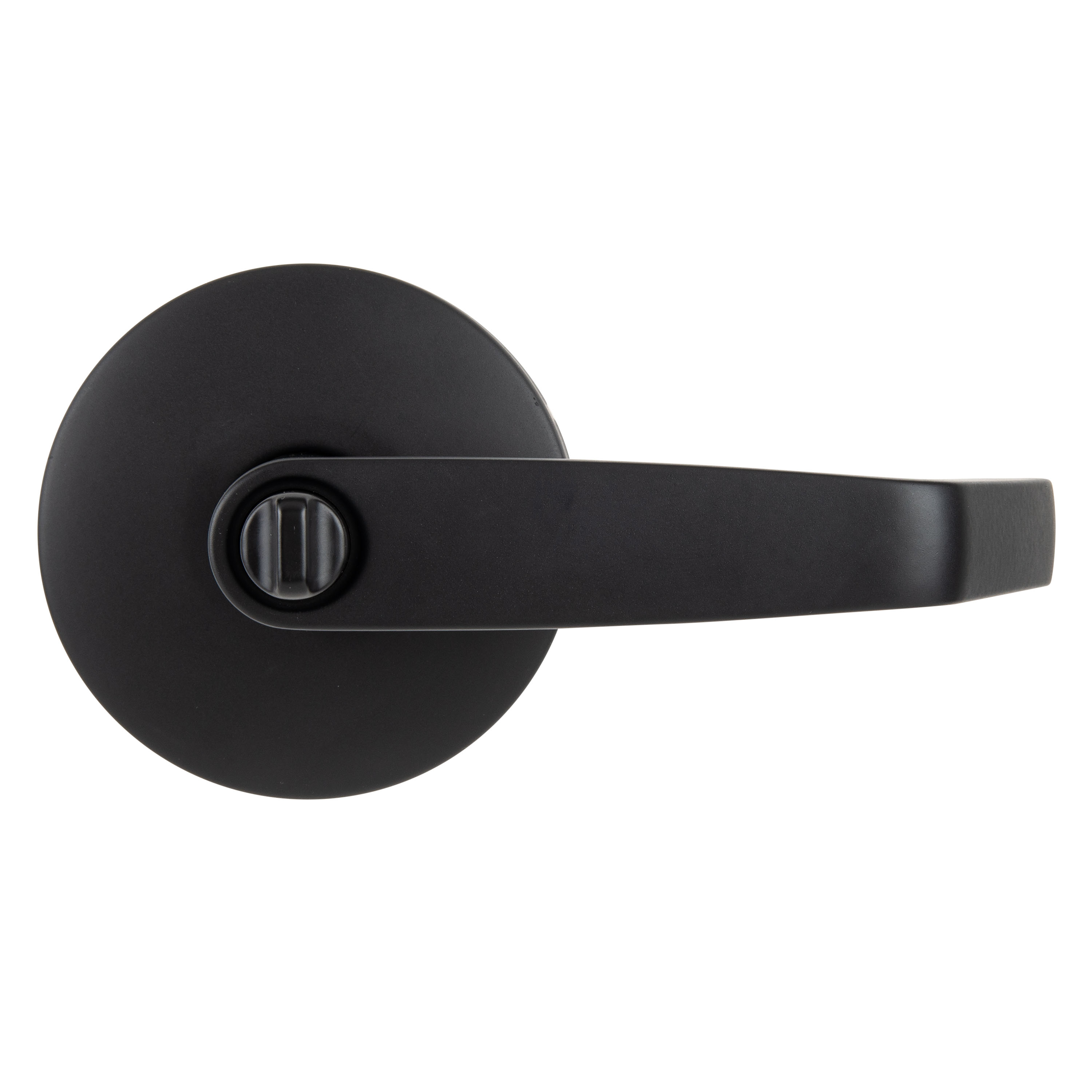

- Sleek matte black finish
- Heavy duty cylindrical construction
- Packaged with 4-7/8" ASA ANSI strike and T-strike
- Saw-resistant deadbolt latch
- Lever latch: 2-3/4" fixed backset
- Deadbolt latch: 2-3/8" or 2-3/4" backset
- 6-Pin SC4 Brass cylinder
- Optional through-bolt design
Durability
- ANSI Grade 2 rating for commercial use
- UL Listed: 3 Hour fire rated for added protection and meeting building requirements
- ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
- Full lifetime warranty
Installation
- Door Type: Wood or Metal doors 1-3/4"-2" thick
- Non-Handed: Can be applied to left or right-handed doors
- Included hardware: Mounting screws, 2 keys, and installation instructions
Product Information
Additional Information
| SKU | BC40114 |
| Brand | Brinks Commercial |
| Type | Lever |
