KAC1500,110/120V AC Electric Winch, 1500lb Single Line Pull

SKU KAC15042
Pack: 1 Pack

Product Description

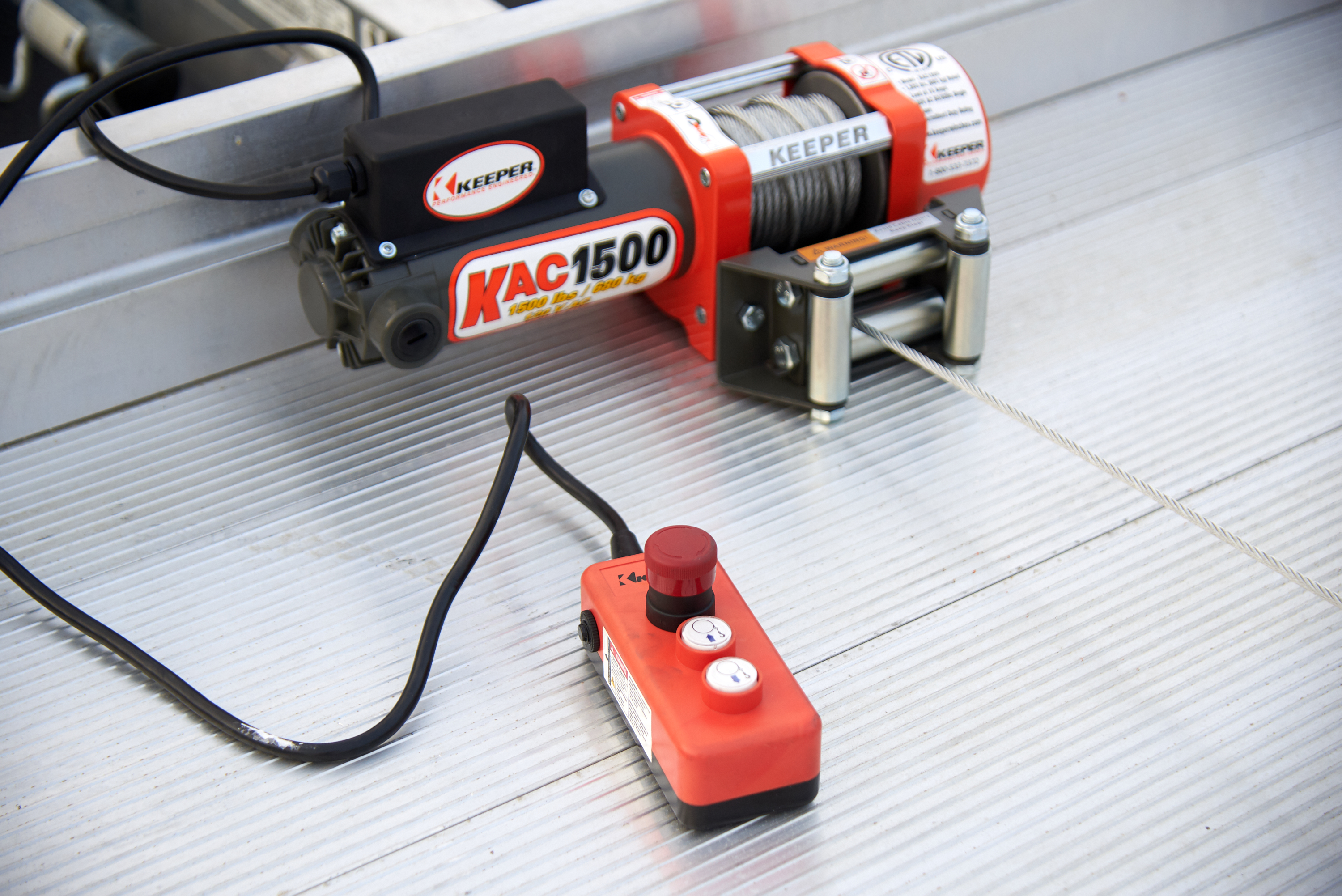

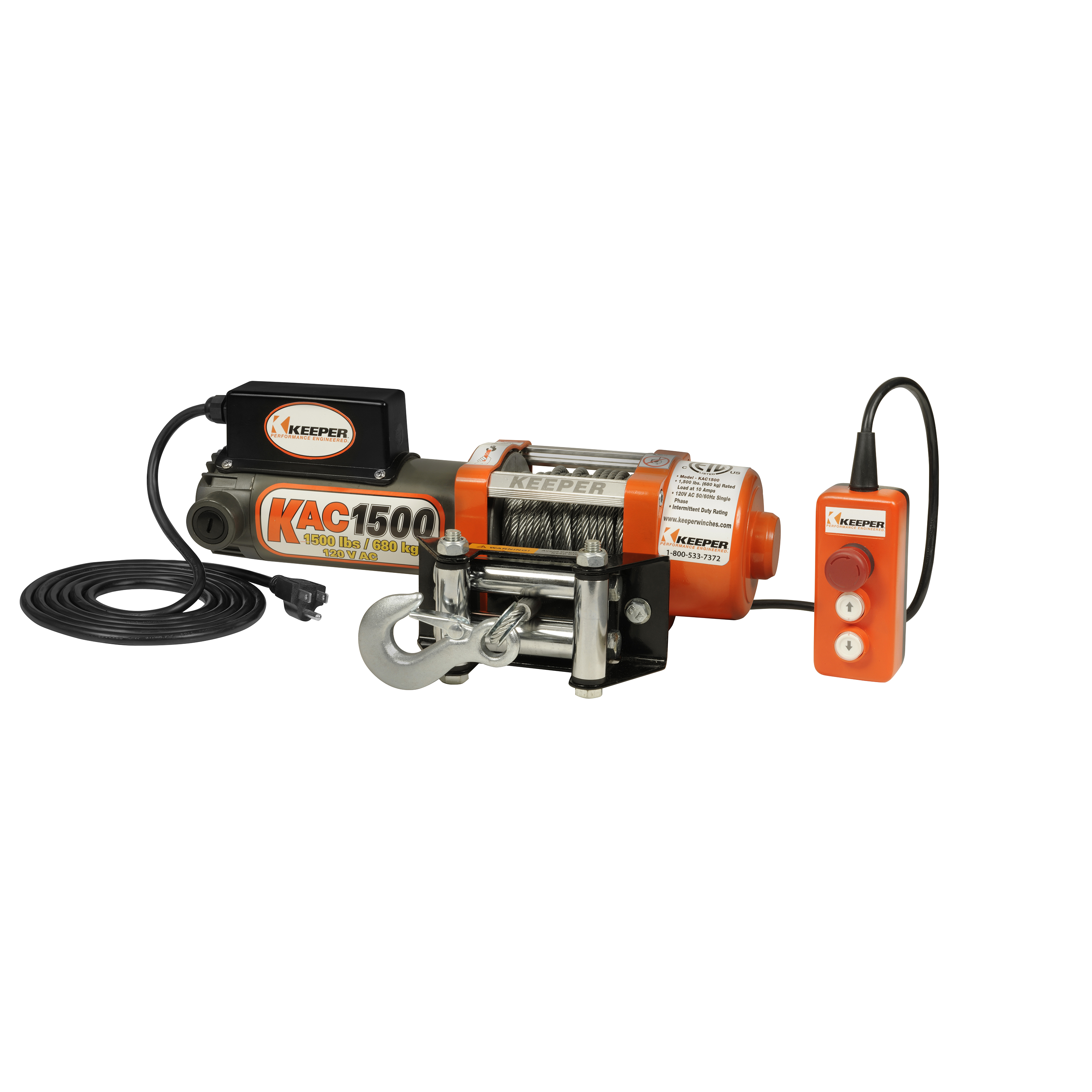

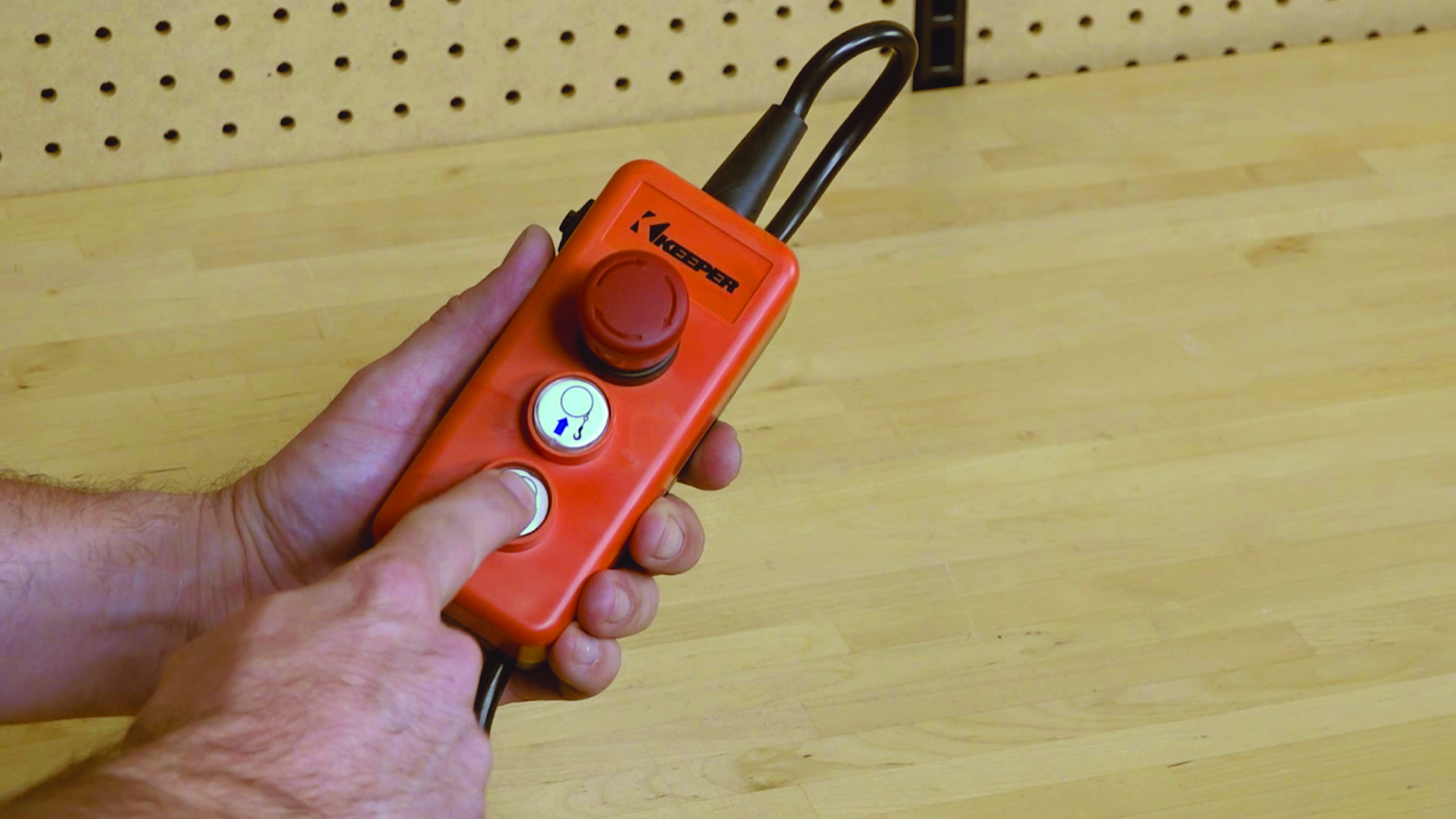

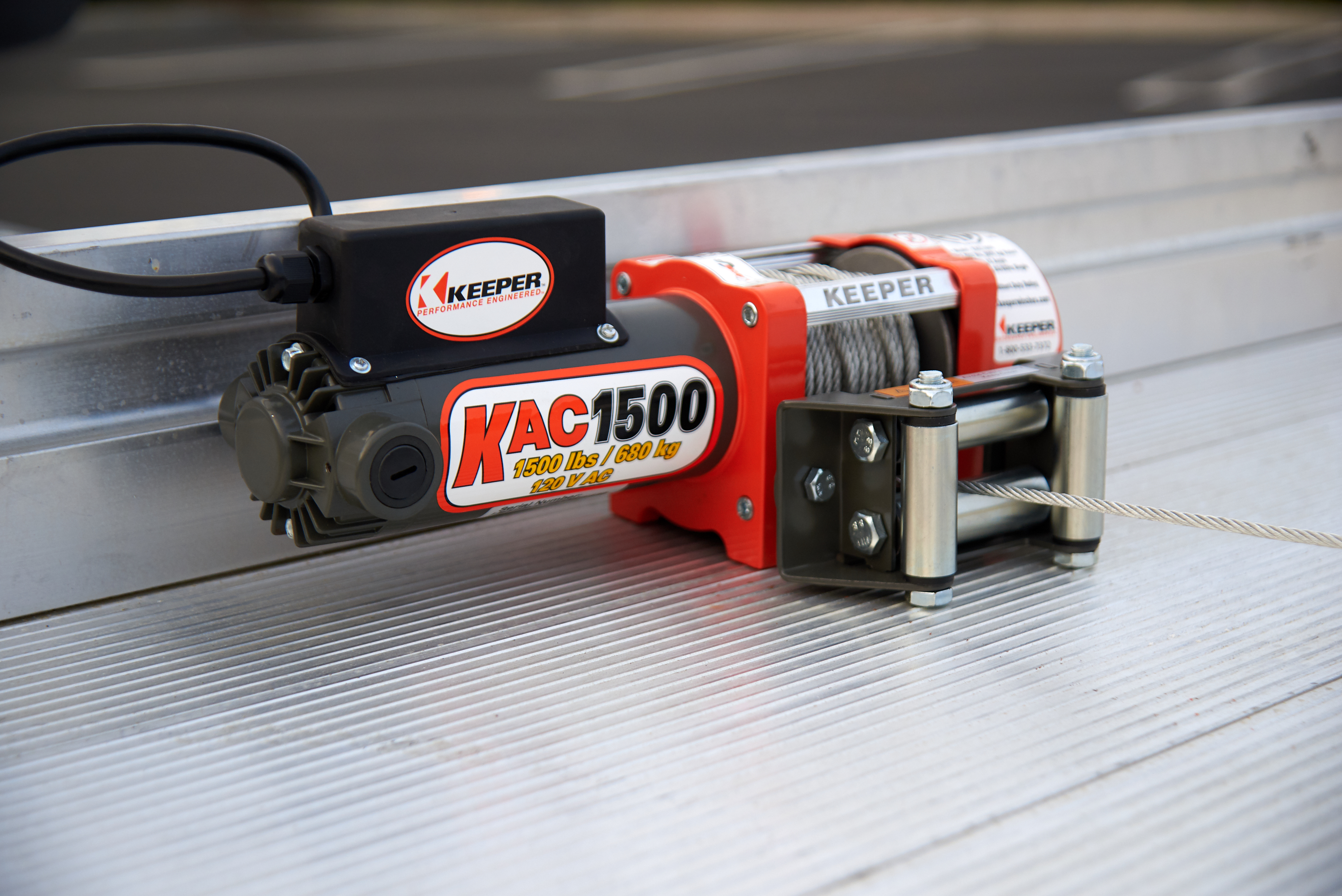

Keeper KAC1500 Electric Winch is the perfect addition to any garage or workshop, packed with all the features needed for an easy and safe operation. Built for 1,500 lbs. single layer line pull. The electric winch is equipped with an 8 ft. power cord compatible with 110/120V AC 3-prong outlet rated for 15 amps or higher. The 1.2 HP 120V AC motor draws 9.2 amps at full load with quick change brush caps. Installation is easy with the supplied mounting plate, cable tension plate, and mount for the 4-way roller fairlead. Comes with 42 ft. of 3/16 in. galvanized wire rope with a hook and safety latch. To operate, use the handheld pendant which includes power in/out, resettable emergency shut-off switch, thermal motor reset button, and 12 ft. cord for free movement while operating. Additional Features - The electric winch has a 3-stage planetary gear box, 262:1 gear ratio, and all metal gear train. Full-load holding mechanical brake for safety. ETL-certified to meet UL and CSA standards.

Product Information

Technical Details

Quantity Per Retail SKU 1
Fineline AC Series
Retail Width 18.25 in
Retail Height 7.63 in
Retail Depth 9.88 in
Retail Weight 25.21 lb
Warranty Limited 90-Day Warranty
Country of Origin China (CN)

Additional Information

SKU KAC15042
UPC 051643351608
Brand Keeper Products
Type Winch
