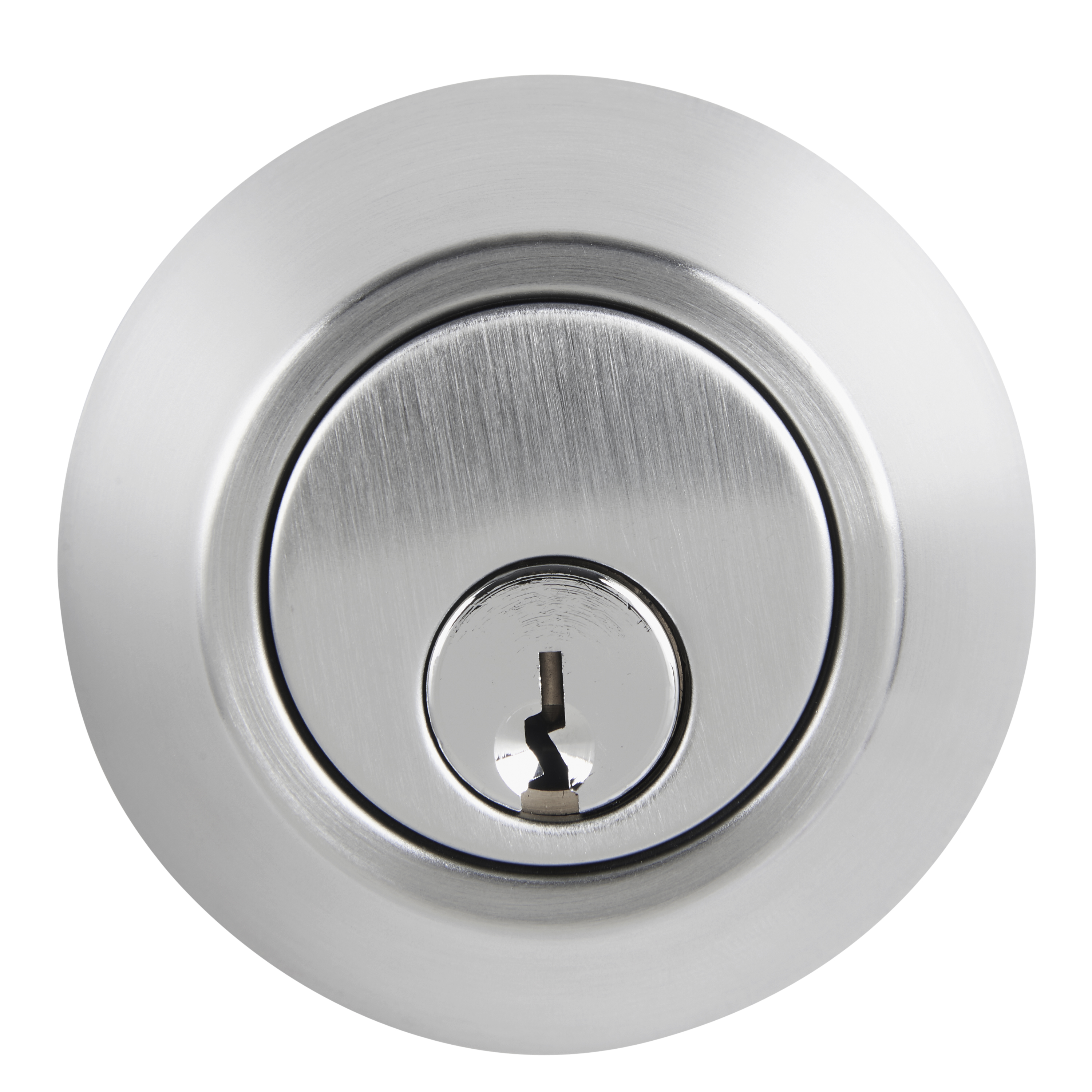

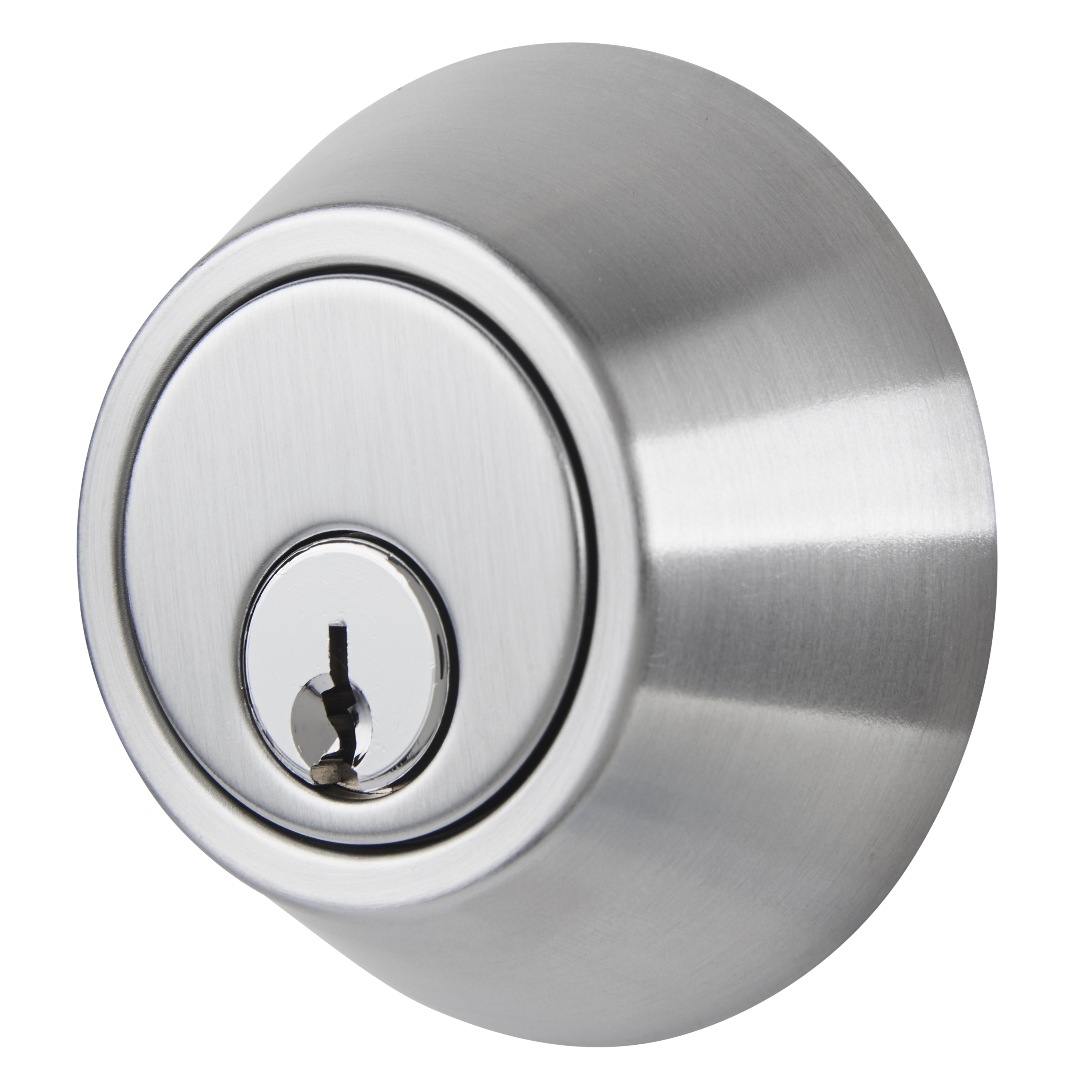

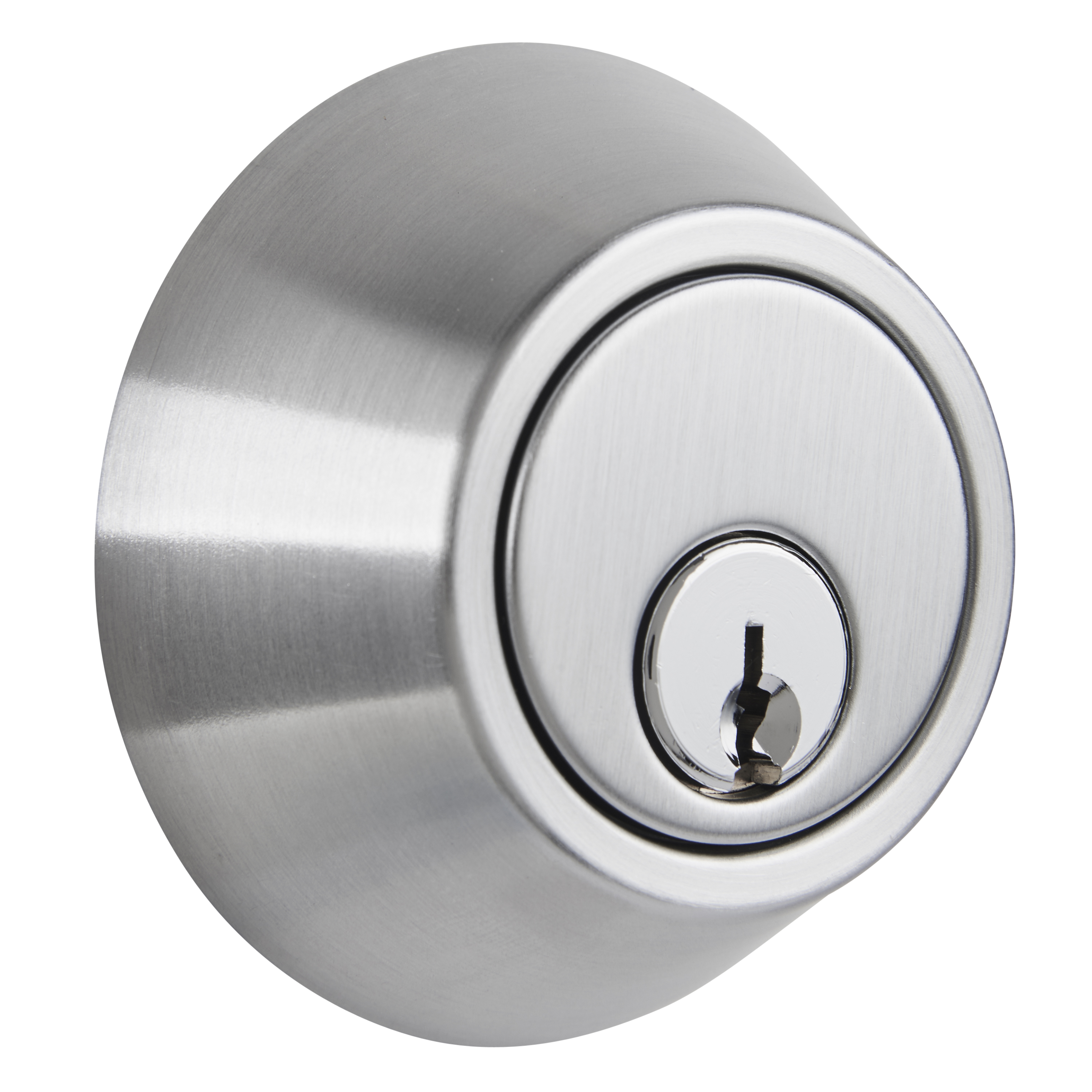

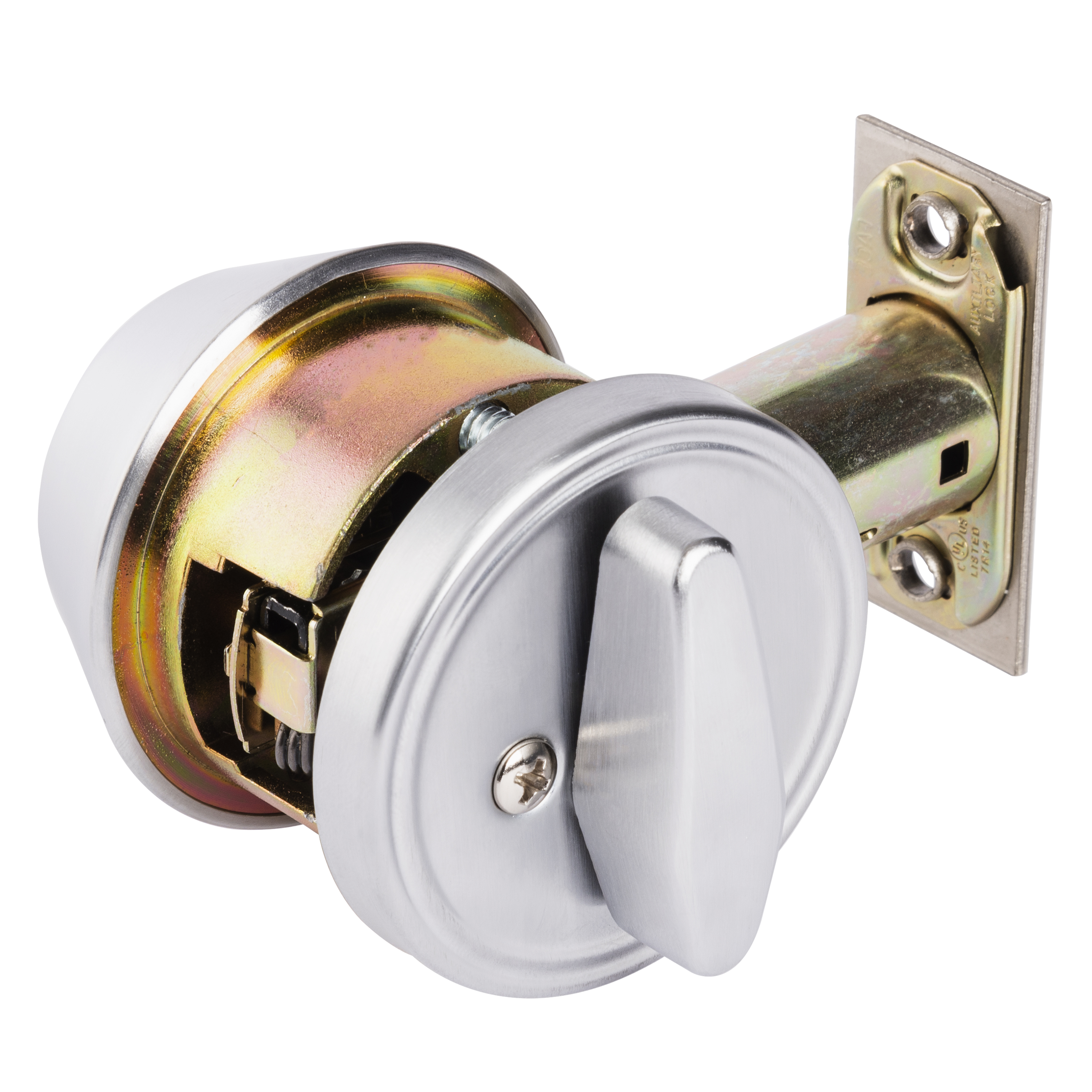

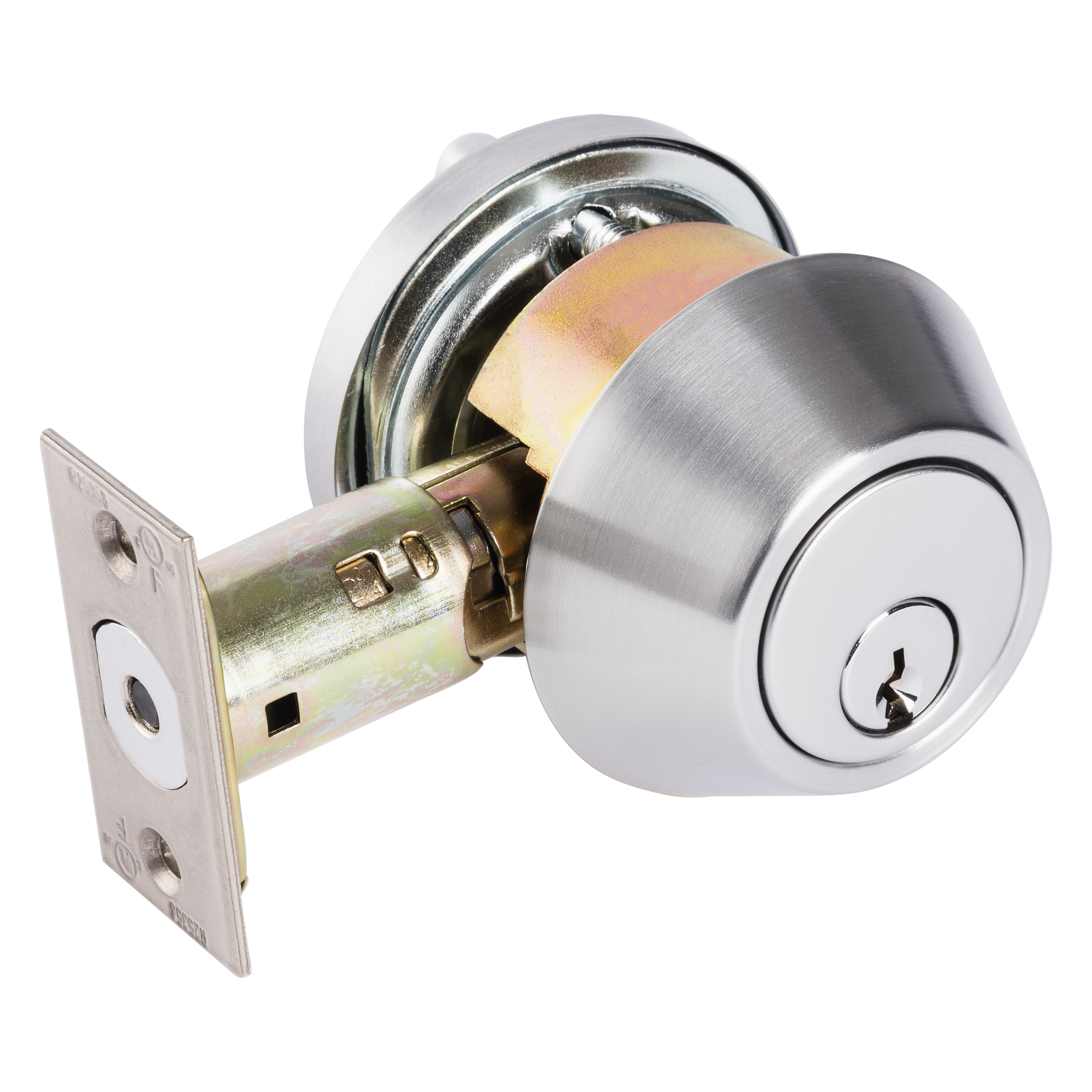

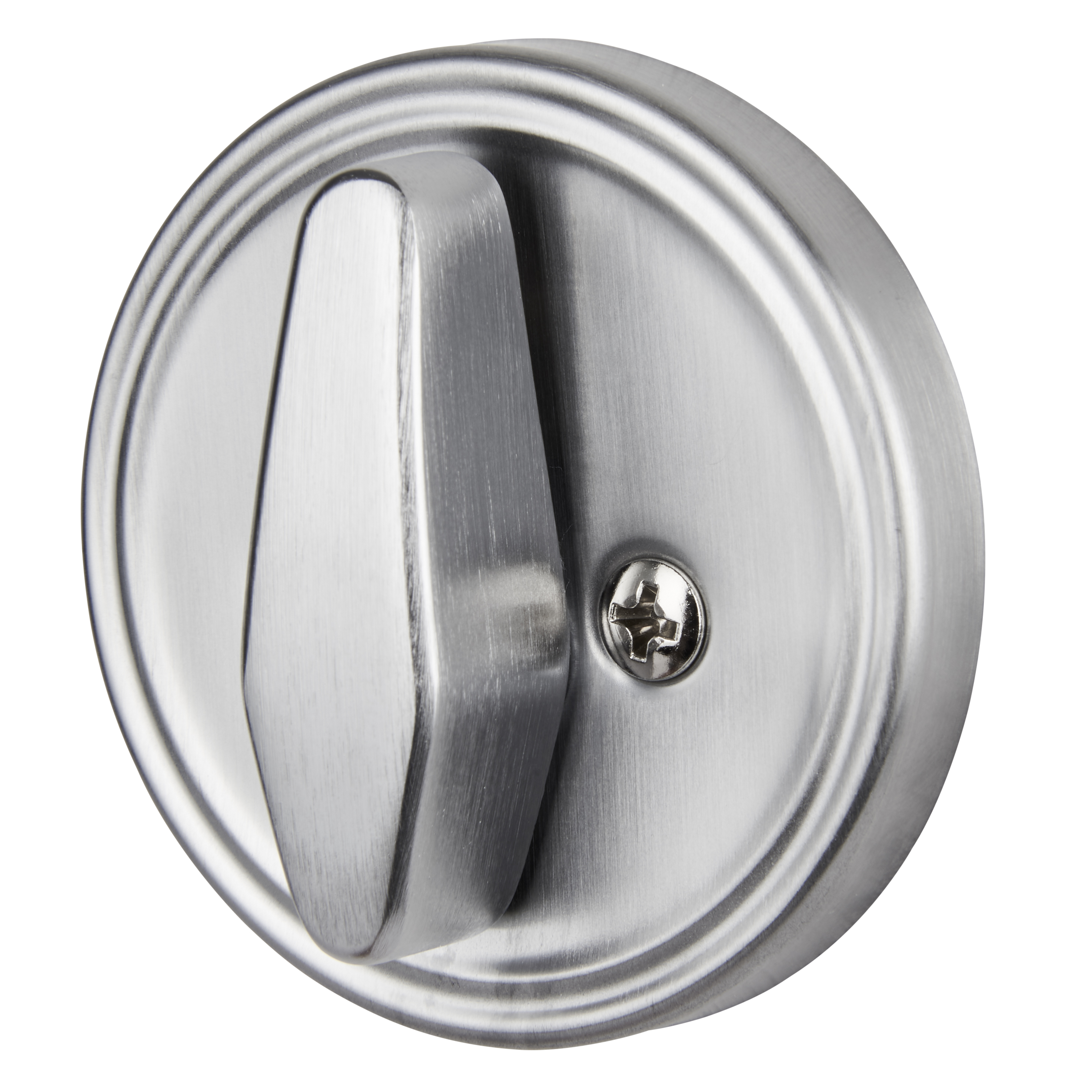

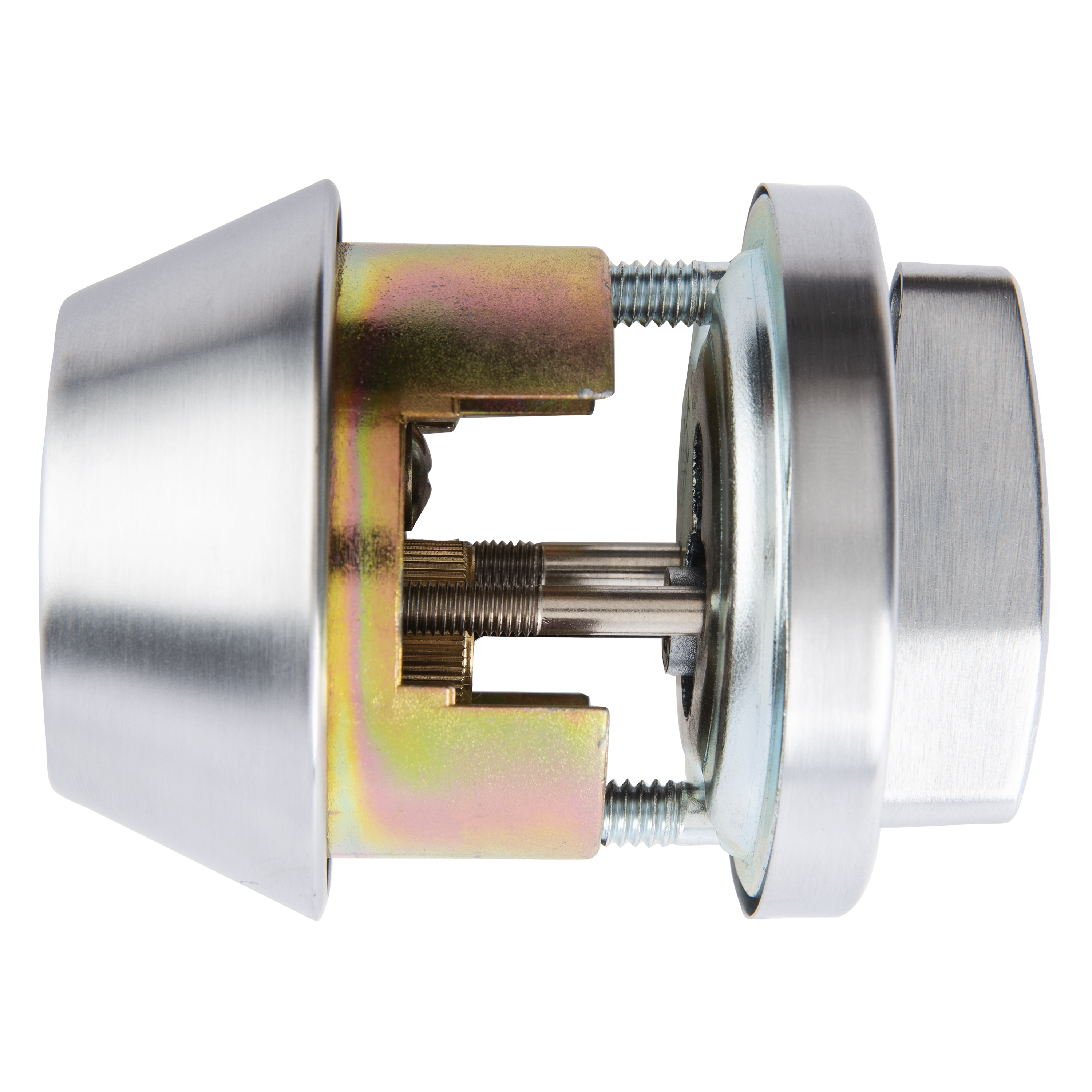

Single Cylinder Deadbolt

SKU BC40055
Find online:
Color: Satin Chrome

Product Description

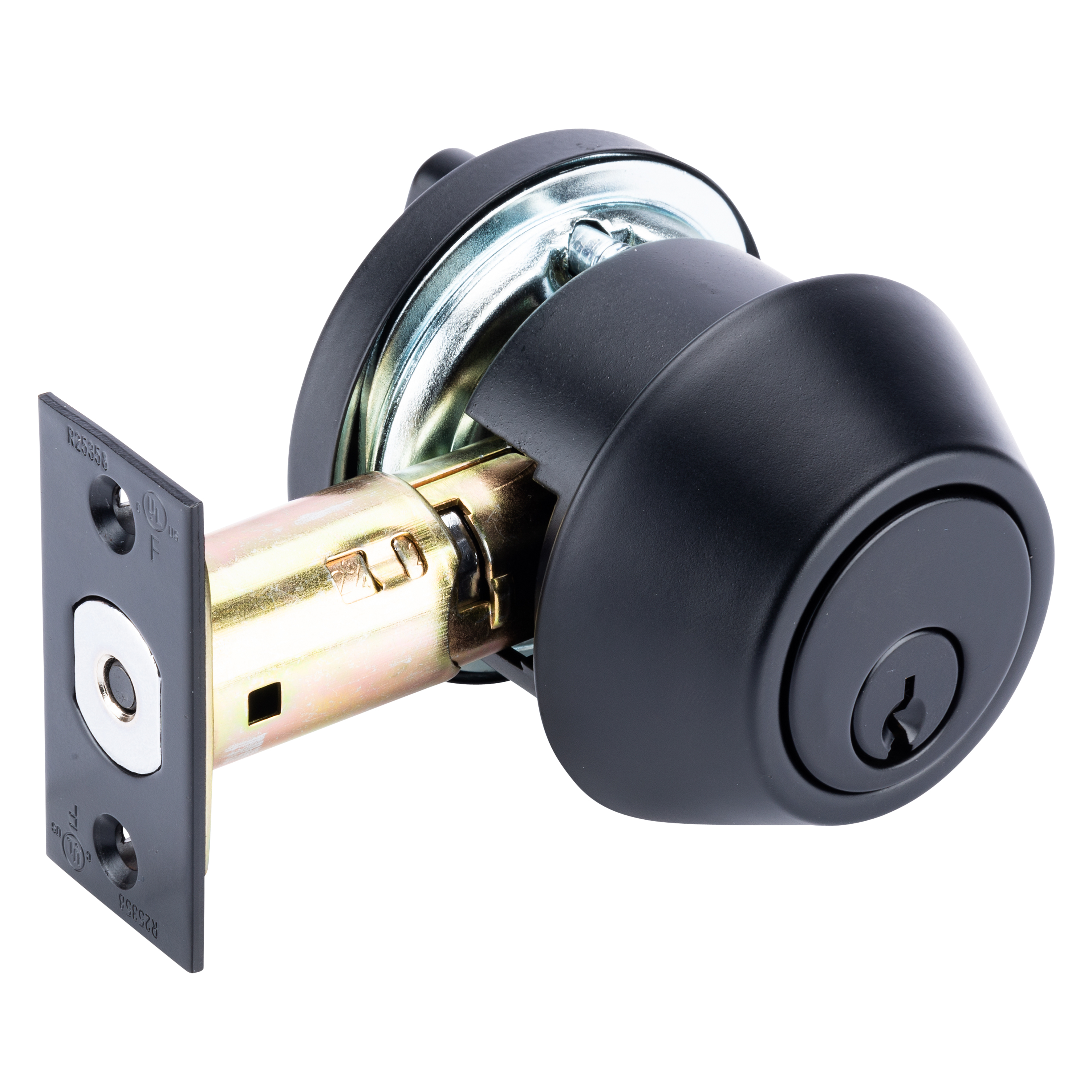

This single cylinder deadbolt is designed for interior or exterior applications where security is important. Fits 1-3/8” to 2” thick doors with an adjustable latch that fits 2-3/8" or 2-3/4" backset. Meets ANSI Grade 1 standards and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Keyed lock has a 6-pin SC4 brass cylinder in the deadbolt and includes 2 keys. Compatible with most interior residential and commercial doors, with a saw resistant deadbolt latch and anti-pry metal collar. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.

ANSI Badge Testing Level Badge UL Badge Warranty Badge

Construction

  • Constructed with corrosion resistant steel for added durability
  • Saw resistant deadbolt and metal collar helps stop intruders and provides peace of mind
  • Sleek satin chrome finish

Durability

  • ANSI Grade 1: Tested to exceed 250,000 cycles
  • UL Listed: 3 Hour fire rated for added protection and meeting building requirements
  • Included 6-Pin SC4 brass cylinder includes 2-keys
  • Warranty: 10 year limited warranty covers finish and function

Installation

  • Door Type: Wood or Metal doors 1-3/8"-2" thick
  • Non-Handed: Can be applied to left or right handed doors
  • Adjustable latch fits 2-3/8" or 2-3/4" backset

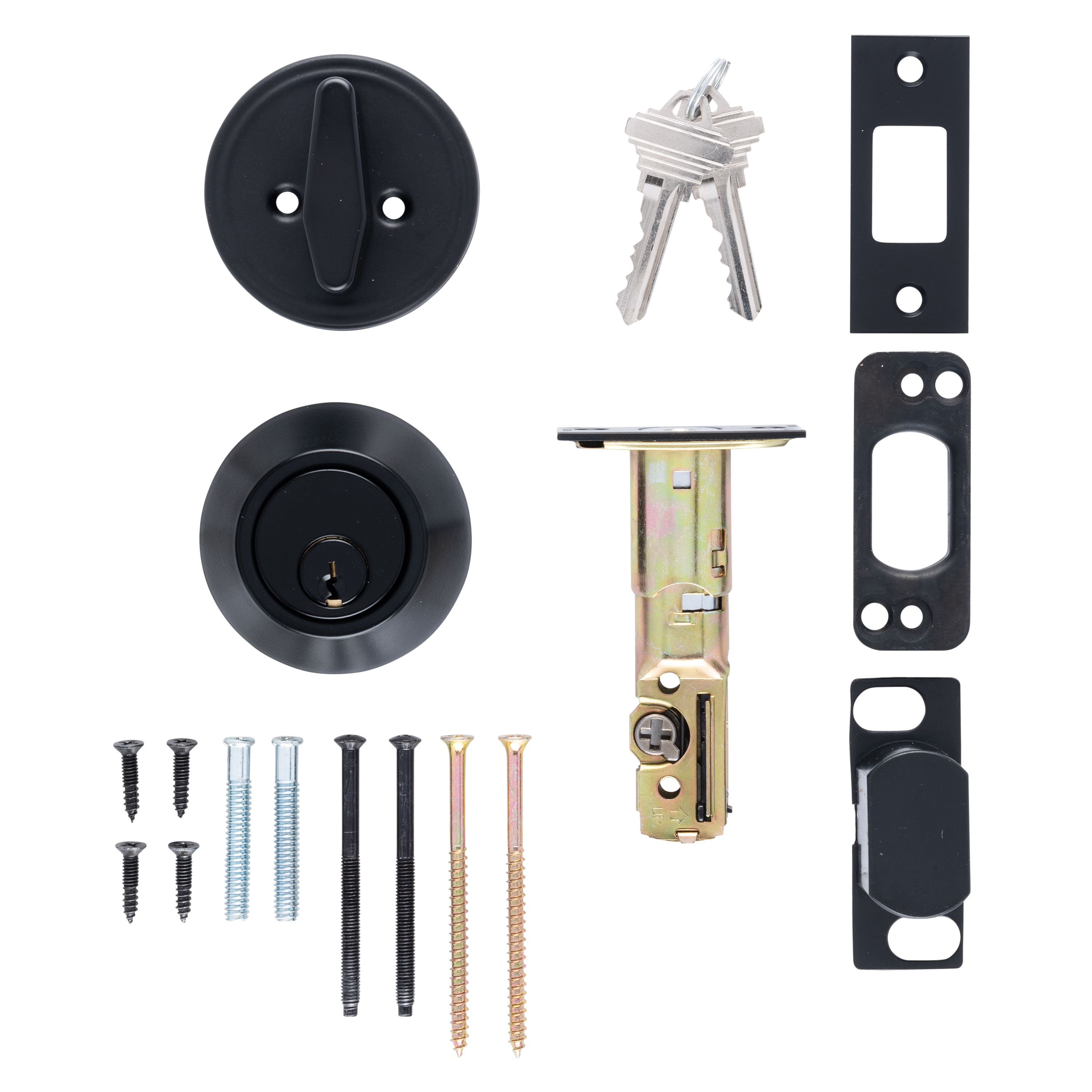

  • Included hardware: mounting screws, 2 keys and installation instructions

Additional Images

Drawings

Files

Instructions

Download

Product Information

Technical Details

Function Single Cylinder Deadbolt
Retail Width 6 in
Retail Height 10 in
Retail Depth 3 in
Retail Weight 2.05 lb
Included Hardware Mounting Hardware, Yes
Exterior Door Compatibility Left or right handed wood or metal doors 1-3/8" - 2" thick
ANSI Grade 1
Mount Type Surface Mount
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant No
Warranty 10 Year Limited Warranty

Additional Information

SKU BC40055
UPC 039208237246
Brand Brinks Commercial
Type Deadbolts
