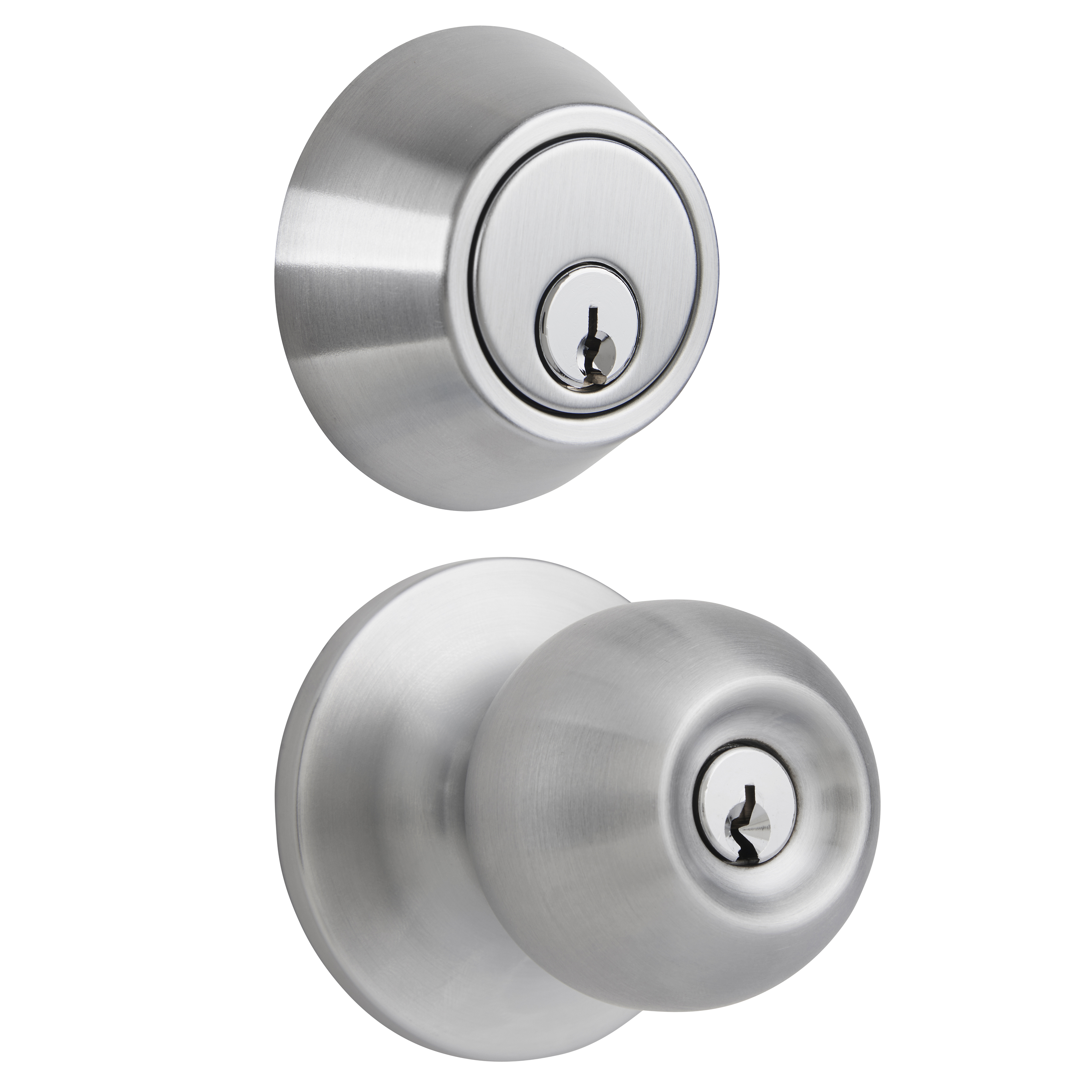

Keyed Entry Knob with Deadbolt

SKU BC40054
Find online:
Color: Satin Chrome

Product Description

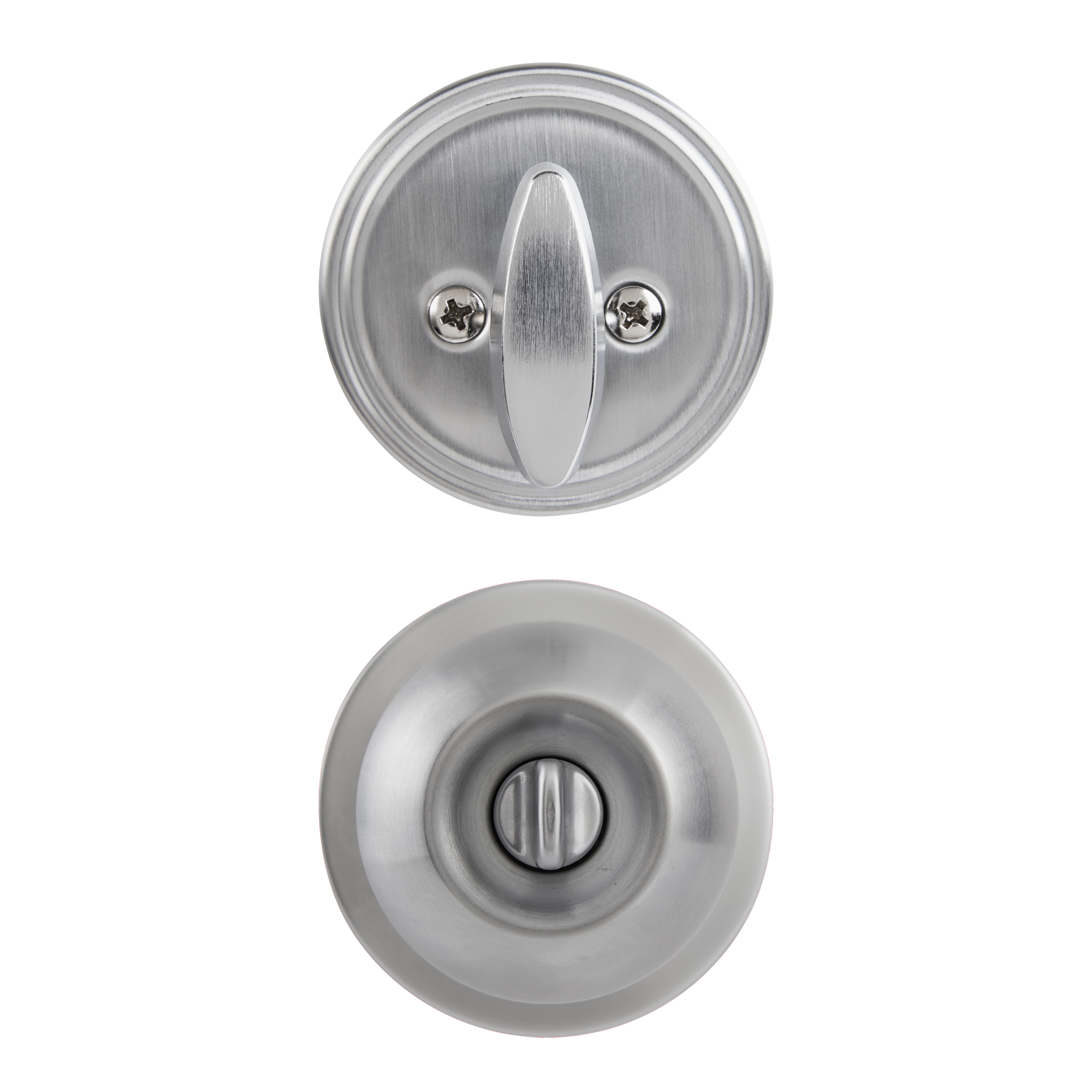

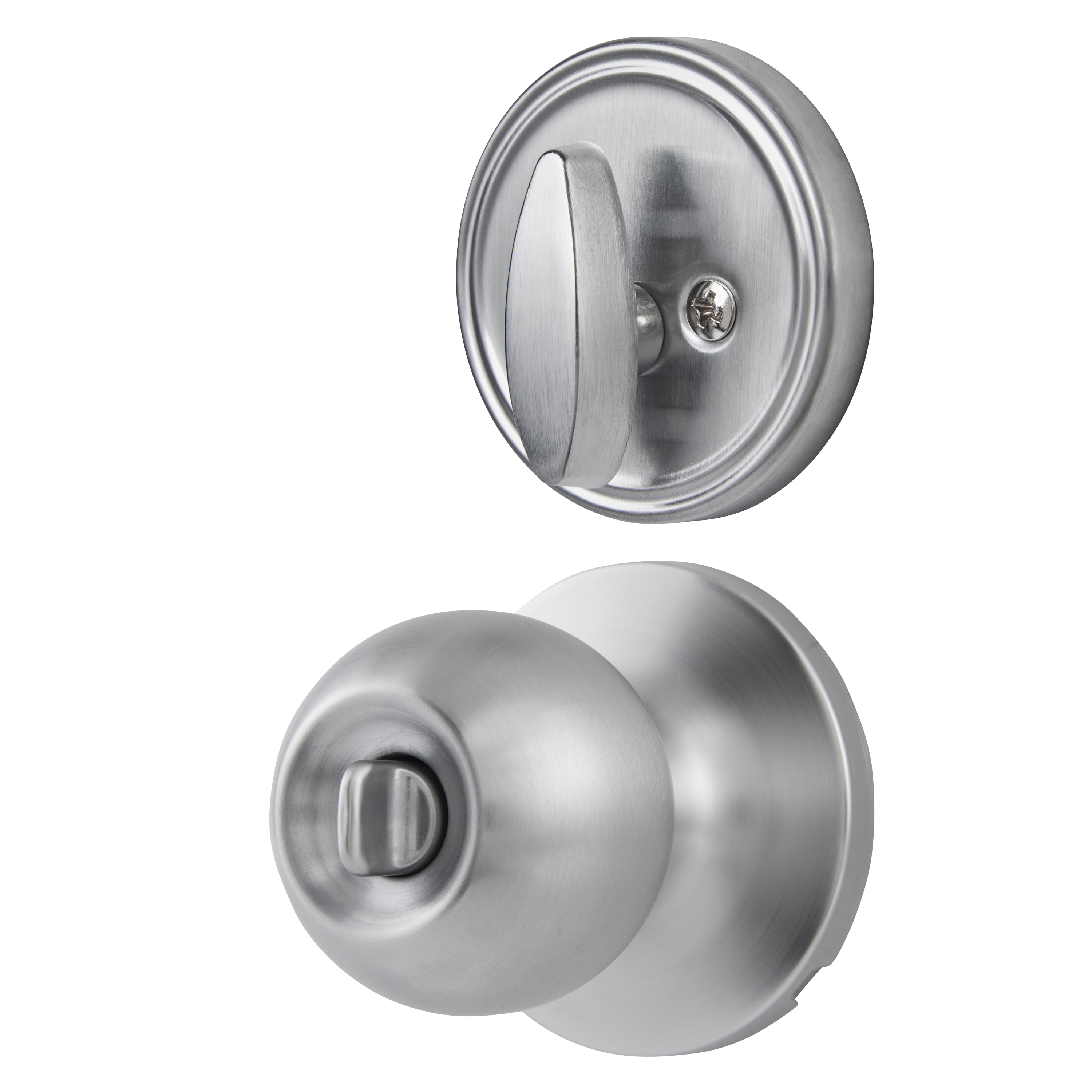

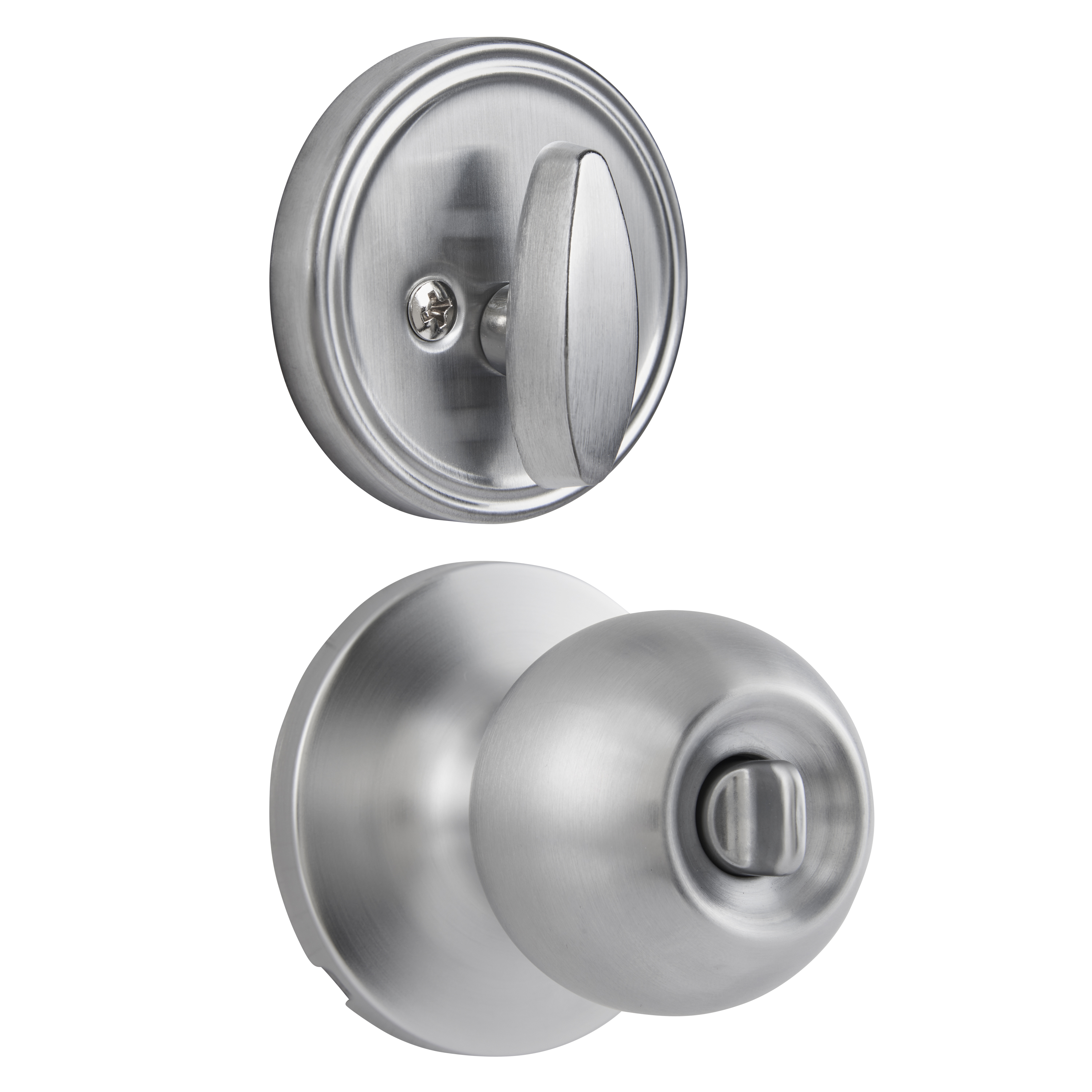

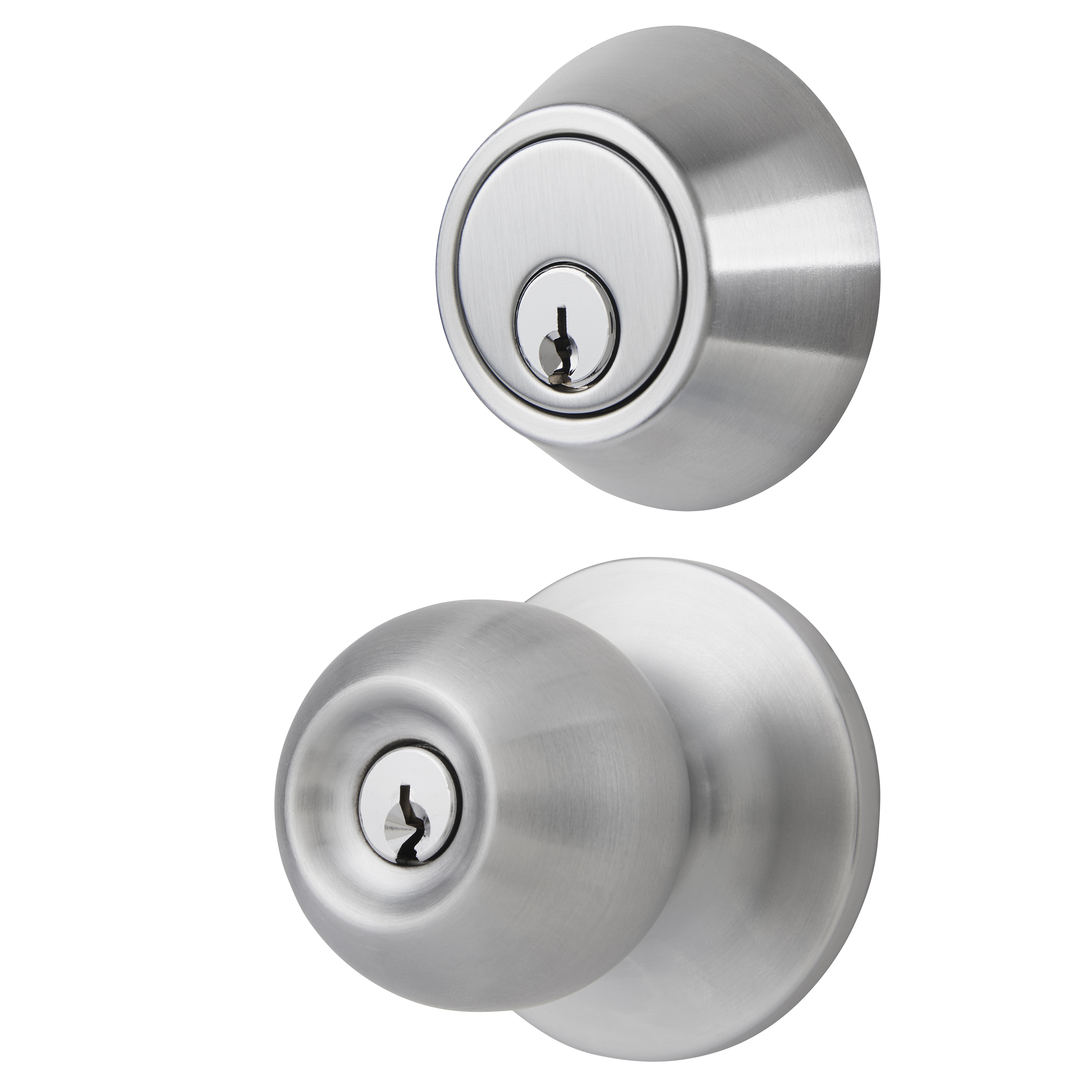

This door knob and deadbolt set is designed for convenience and versatility. Locks and unlocks from the inside with a thumb turn, and from the outside with a key (included with purchase). Fits 1-3/8” to 2” thick doors with an adjustable latch that fits 2-3/8" or 2-3/4" backset. Meets ANSI Grade 2 standards, meets ADA requirements, and has a 3-hour UL fire rating. Made from corrosion-resistant steel. Keyed lock has a 5-pin SC1 cylinder, brass cylinder in the deadbolt, brass plug in the door knob, and includes 3 keys. Compatible with most interior residential and commercial doors, with a saw resistant deadbolt latch and anti-pry shield. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.

ANSI Badge Testing Level Badge UL Badge Warranty Badge

Construction

  • Constructed with corrosion resistant steel for added durability
  • Equipped with 3-3/4" solid zinc diecast levers
  • Sleek satin chrome finish

Durability

  • ANSI Grade 2: Deadbolt Tested to exceed 150,000 cycles
  • UL Listed: 3 Hour fire rated for added protection and meeting building requirements
  • Included 5-Pin SC1 Cylinder, brass cylinder in deadbolt, bass plug in knob and 3-keys
  • Saw resistant deadbolt latch and anti-pry shield helps stop intruders and provides peace of mind
  • Warranty: 10 year limited warranty covers finish and function

Installation

  • Door Type: Wood or Metal doors 1-3/8"-2" thick
  • Non-Handed: Can be applied to left or right handed doors
  • Knob and deadbolt keyed alike for added convenience

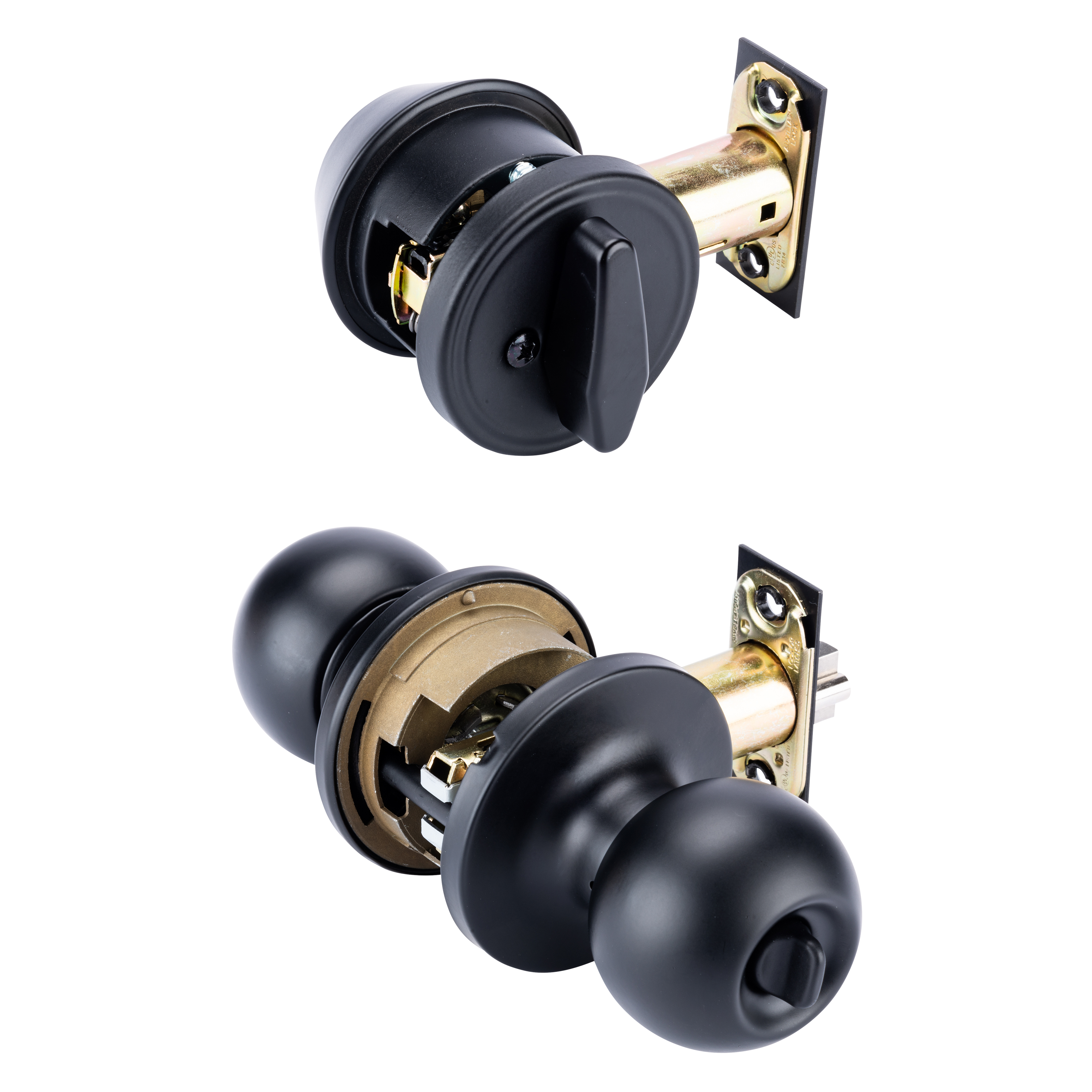

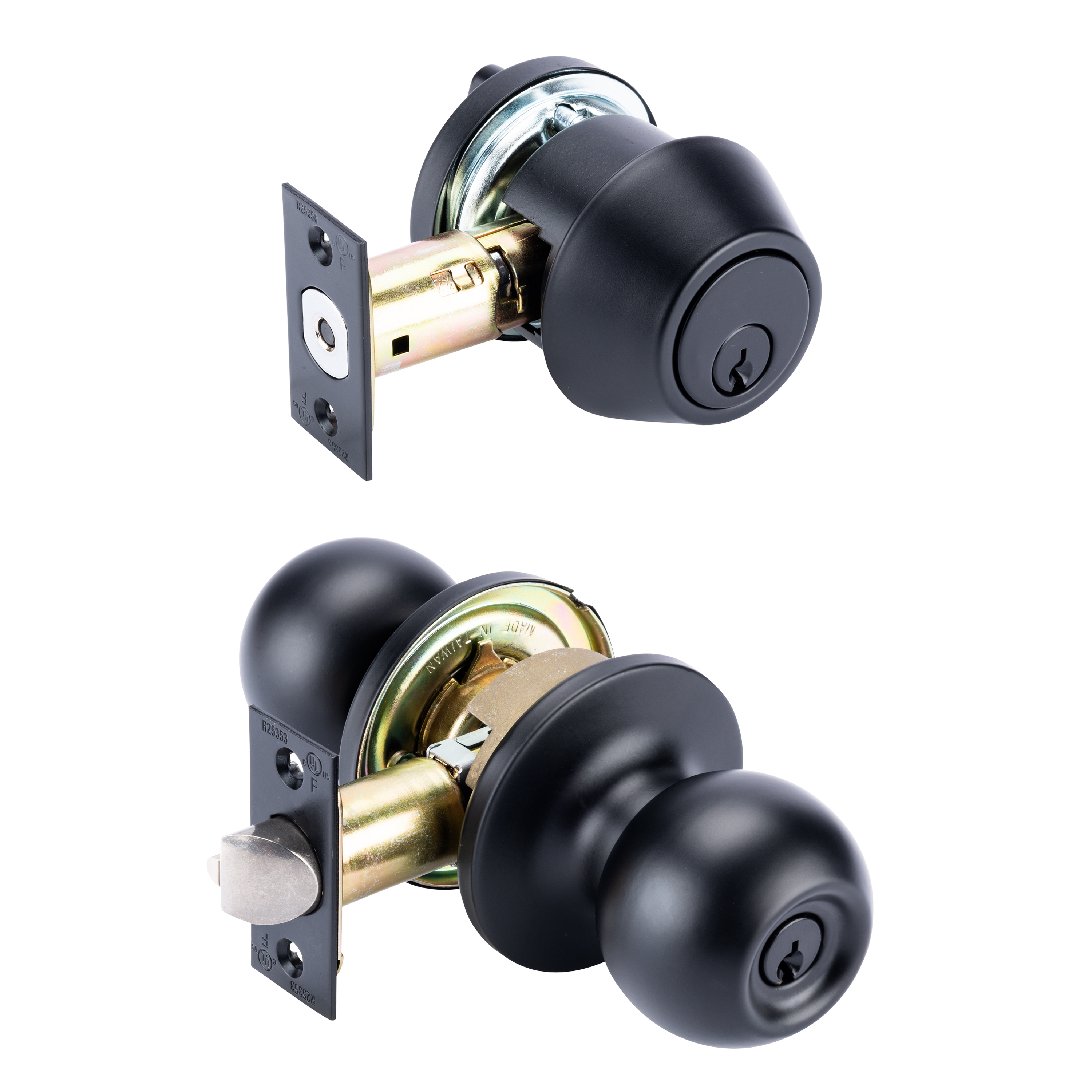

  • Tubular chassis knob helps simplify installation

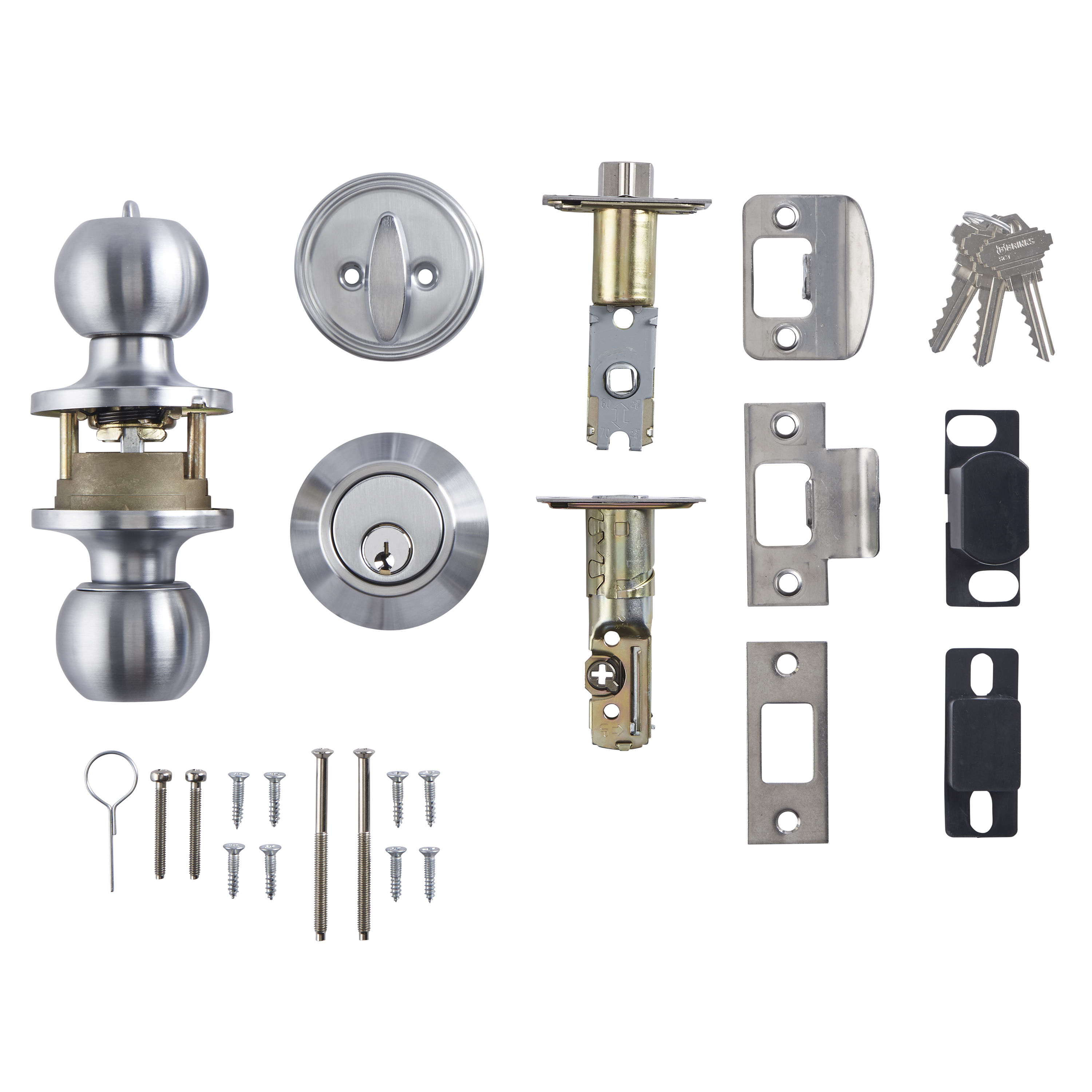

  • Included hardware: Mounting screws, 3 keys, and installation instructions
  • Adjustable latch fits 2-3/8" or 2-3/4" backset

Additional Images

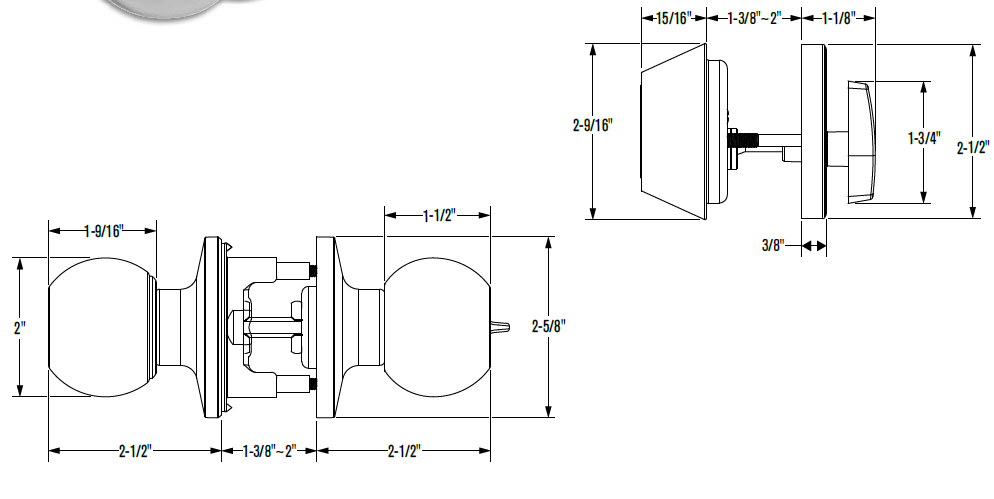

Drawings

Files

Instructions 1

Download

Instructions 2

Download

Product Information

Technical Details

Function Keyed Entry
Retail Width 9.25 in
Retail Height 10 in
Retail Depth 3.5 in
Retail Weight 2.84 lb
Included Hardware Mounting Hardware, Yes
Exterior Door Compatibility Left or right handed wood or metal doors 1-3/8" - 2" thick
ANSI Grade 2
Mount Type Surface Mount
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant No
Warranty 10 Year Limited Warranty

Additional Information

SKU BC40054
UPC 039208237239
Brand Brinks Commercial
Type Knobs
