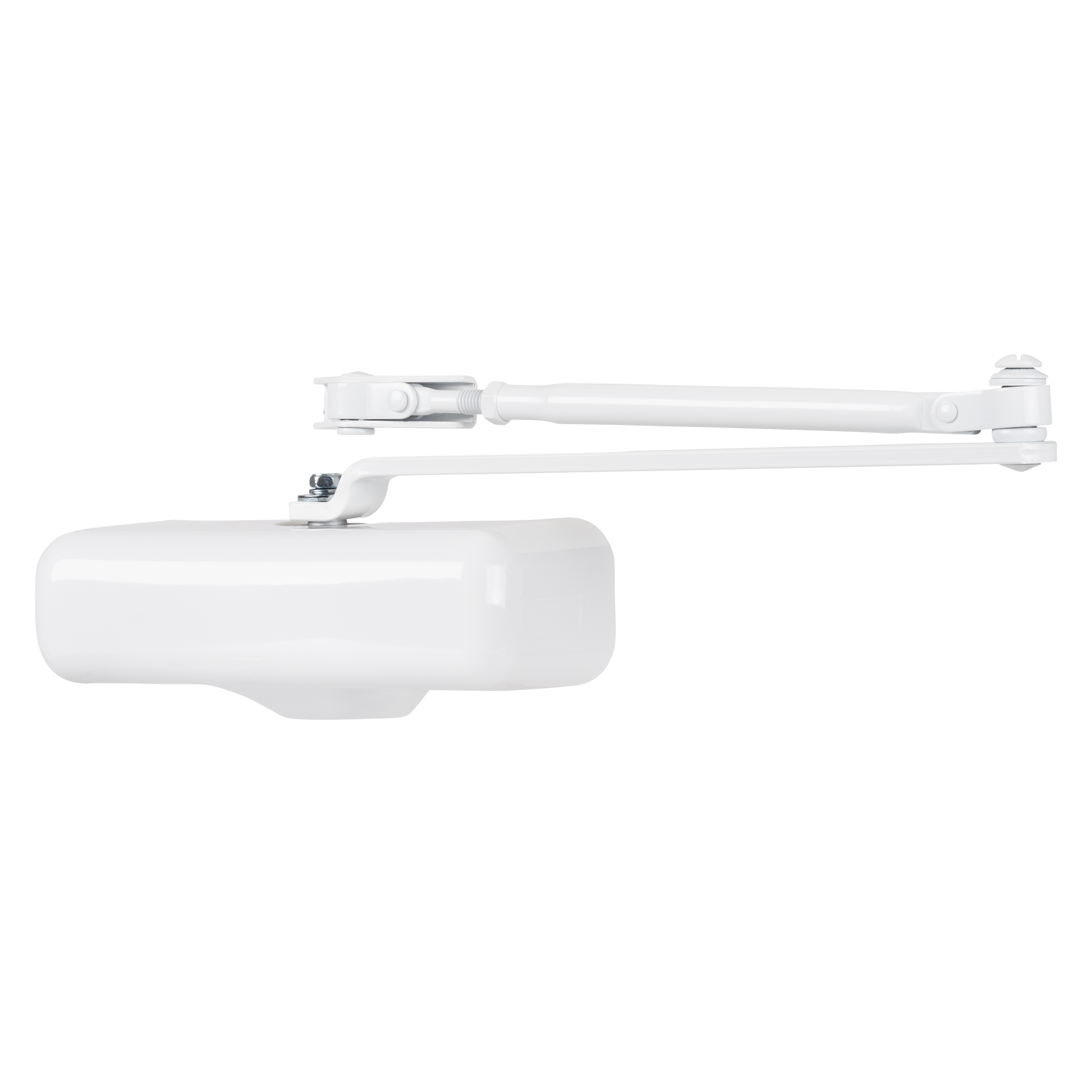

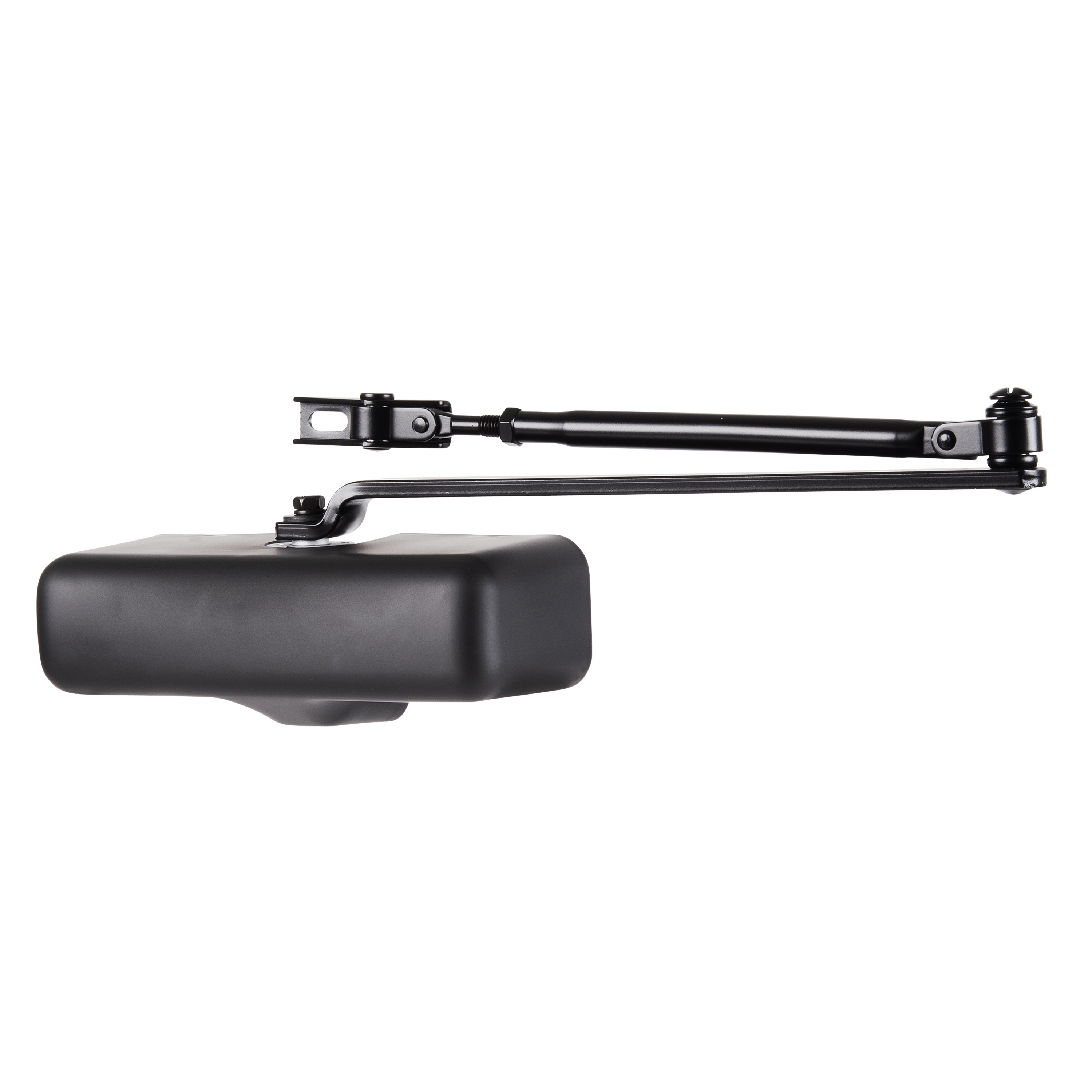

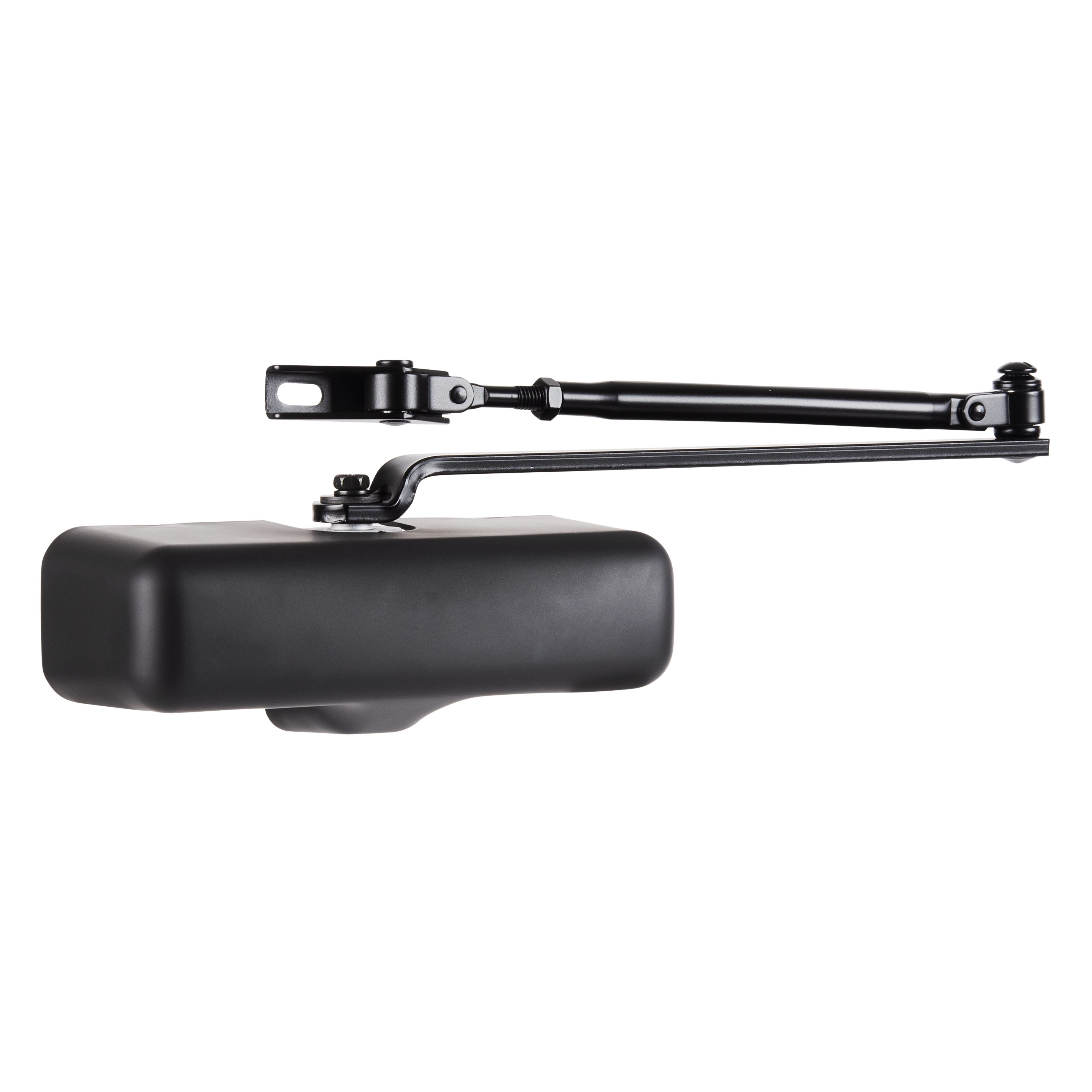

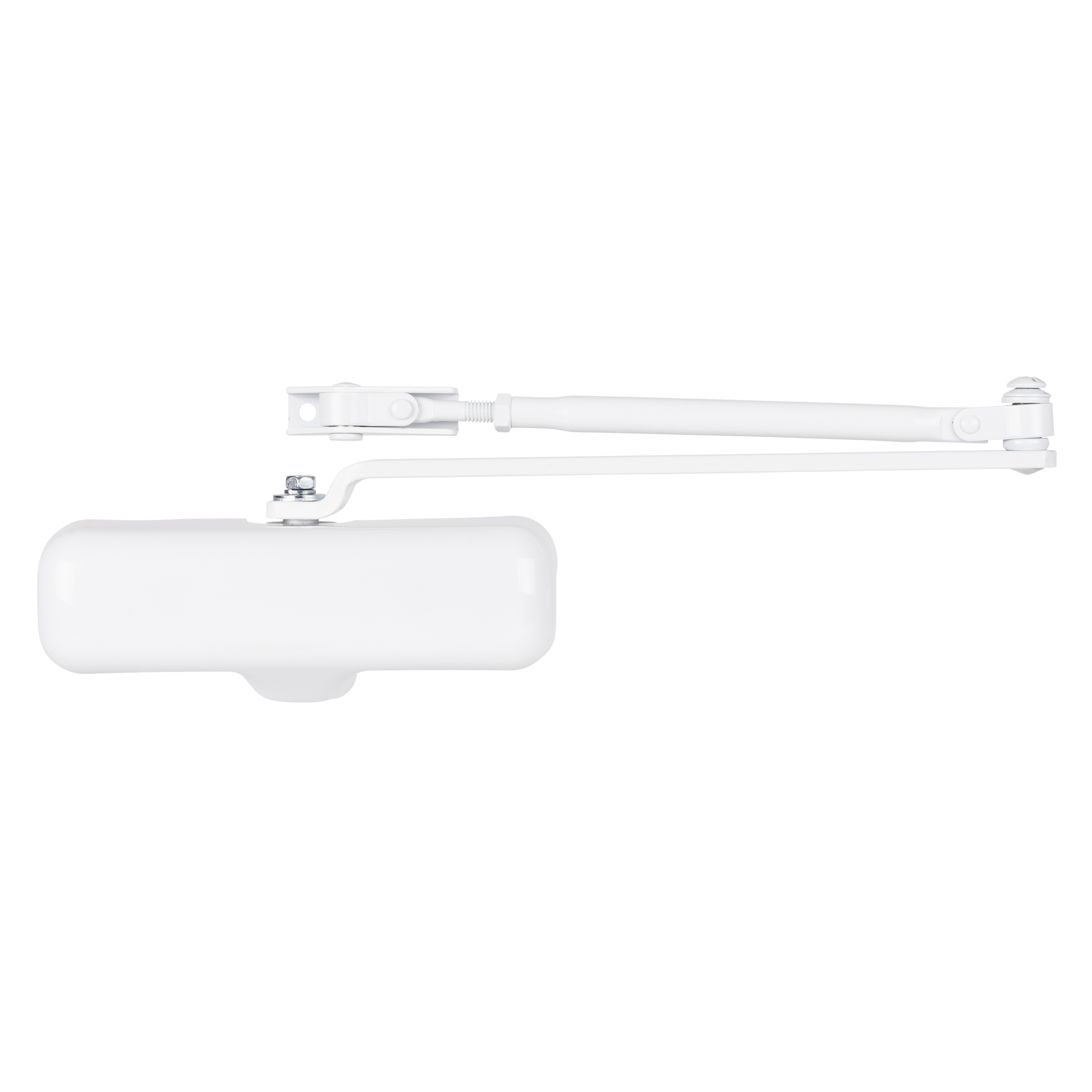

Heavy Duty Residential Closer

SKU BC4007
Find online:
Color: White

Product Description

This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 30” and interior doors up to 38”. Has a 3-hour UL fire rating. This closer fits on standard or top jam mounting applications with a 155-degree opening range. Compatible with most residential doors. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.

UL Badge Warranty Badge

Construction

  • All metal body construction for added durability
  • Sleek white finish

Durability

  • Size 3: works with minimum of 5 lbs. closing force for worry-free closing
  • UL Listed: 3-hour fire rated for added protection and meeting building requirements
  • Warranty: 5 year limited warranty covers finish and function

Installation

  • Interior doors: left or right hinged doors up to 125 lbs. and 38" wide
  • Exterior doors: Left or right hinged doors up to 125 lbs. and 30" wide
  • Adjustable closing speed to eliminate door slamming
  • Opening range: 155-degree provides more space for items to pass through
  • Mounting: Standard or top mounting

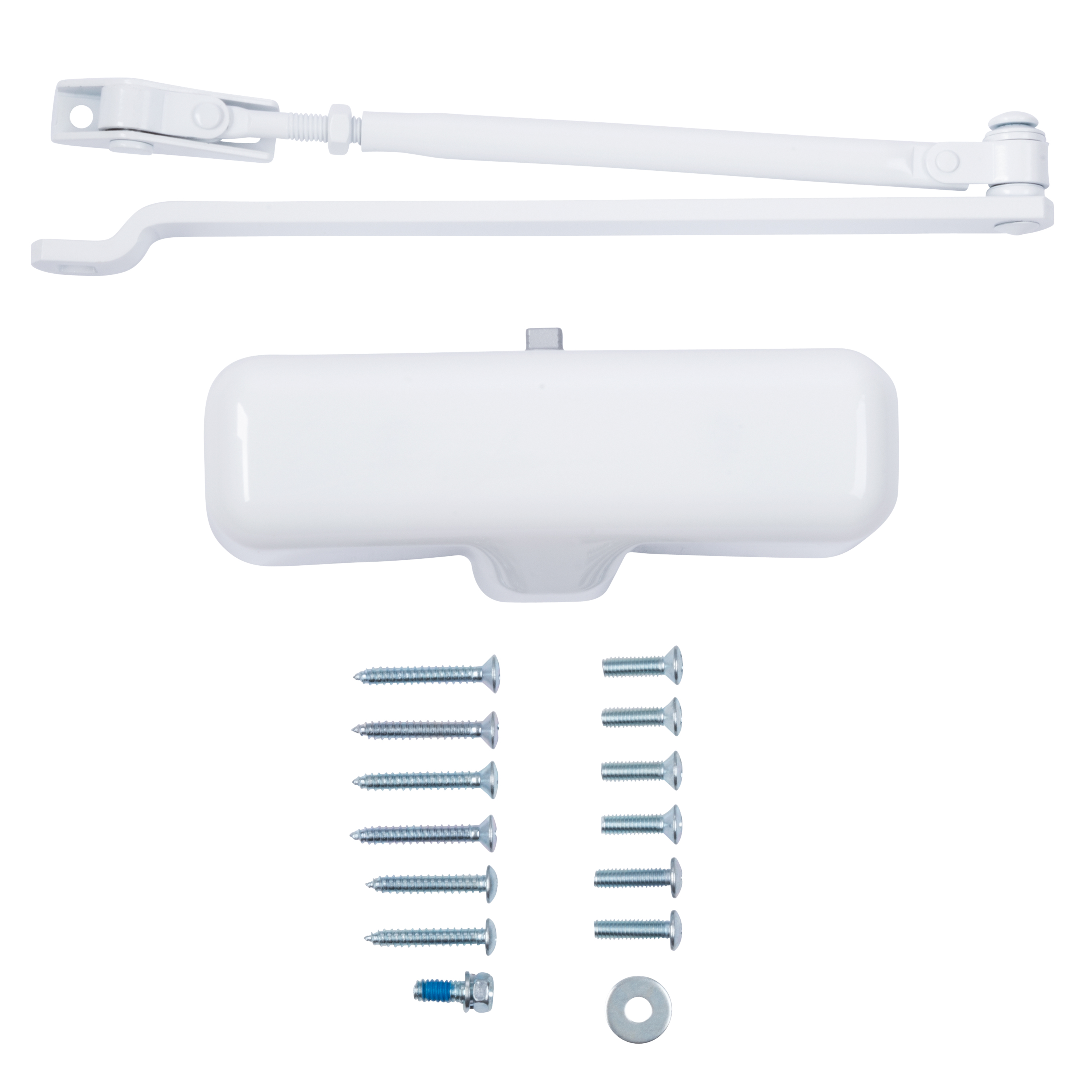

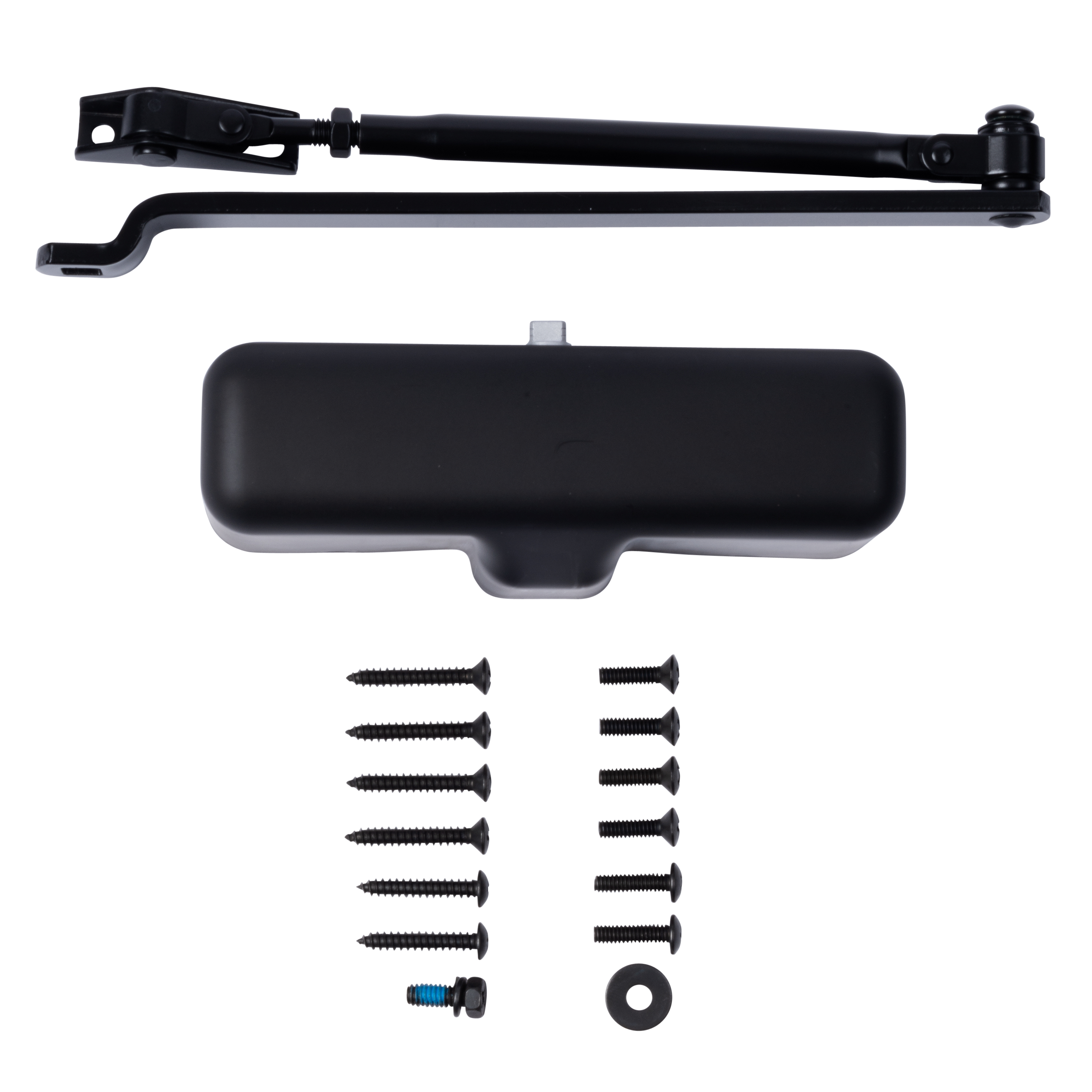

  • Included hardware: finished matched closer body, mounting screws and installation instructions

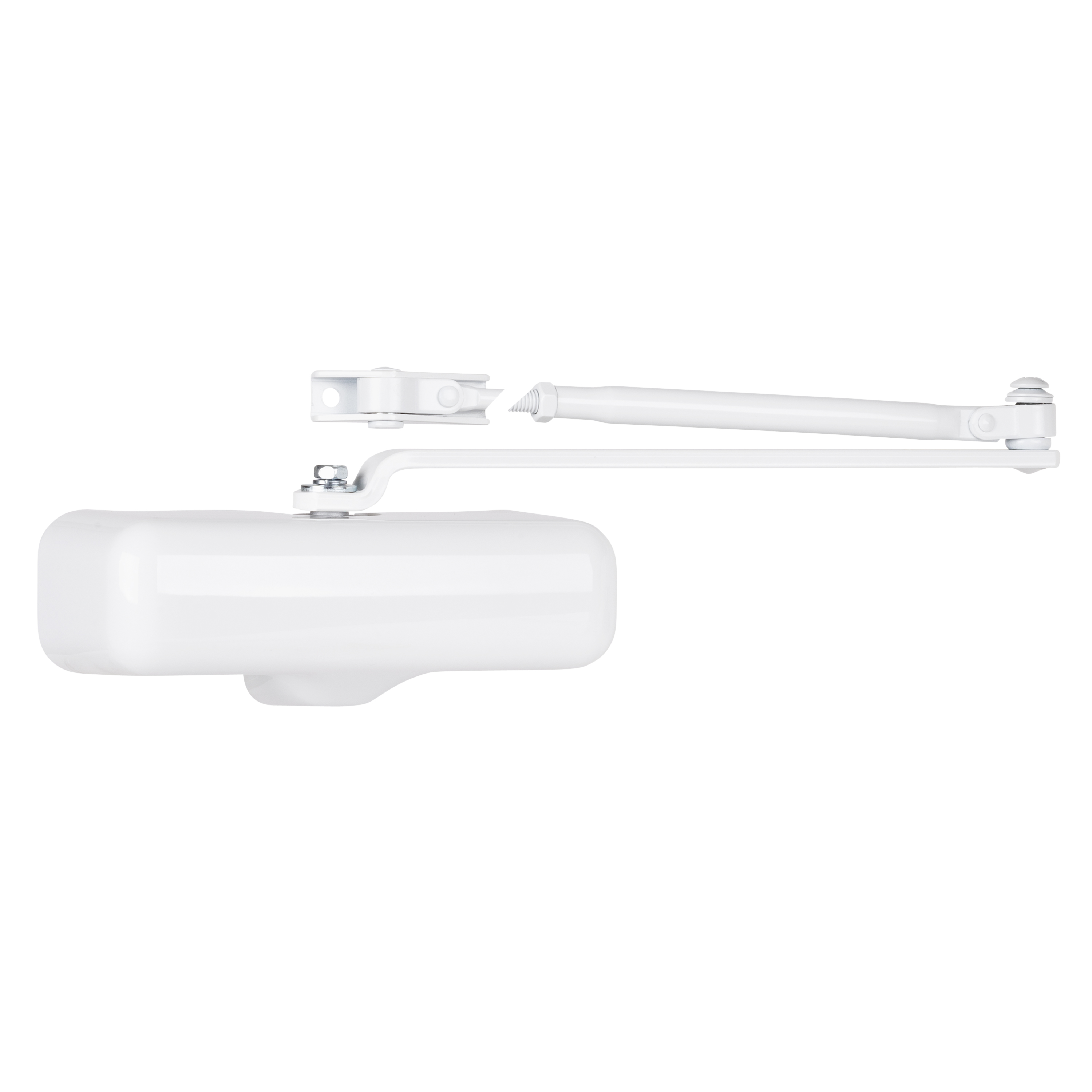

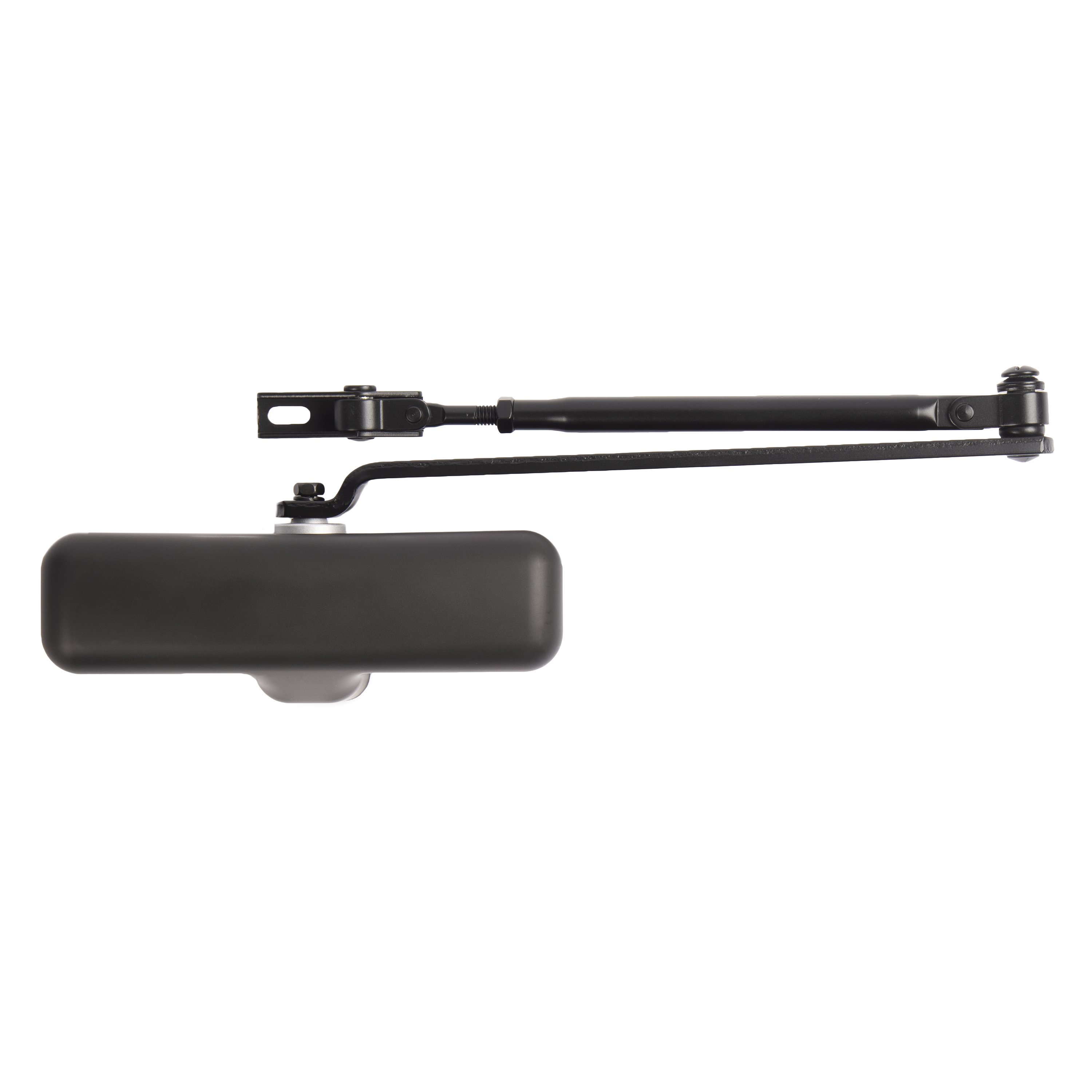

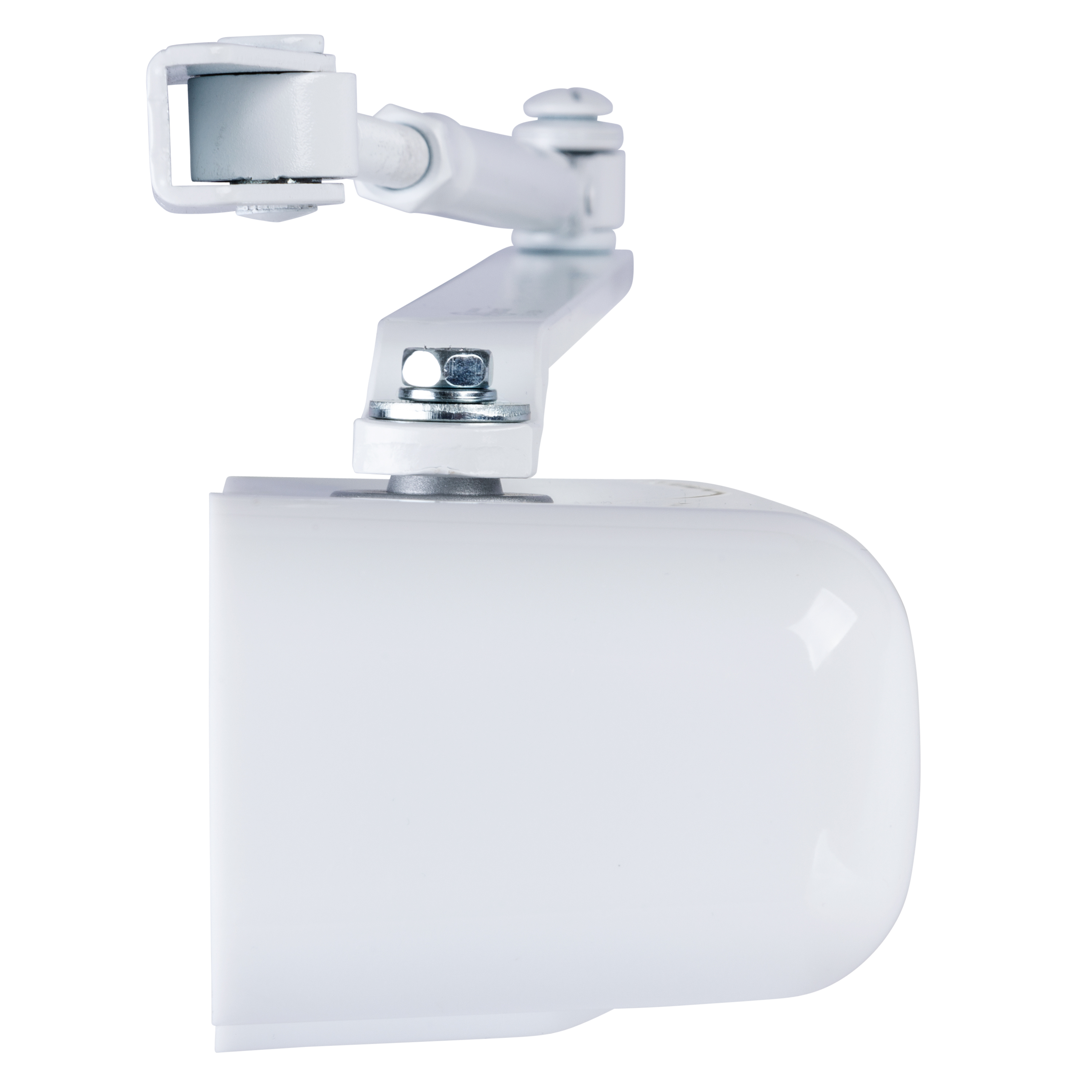

Additional Images

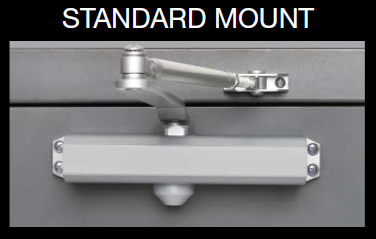

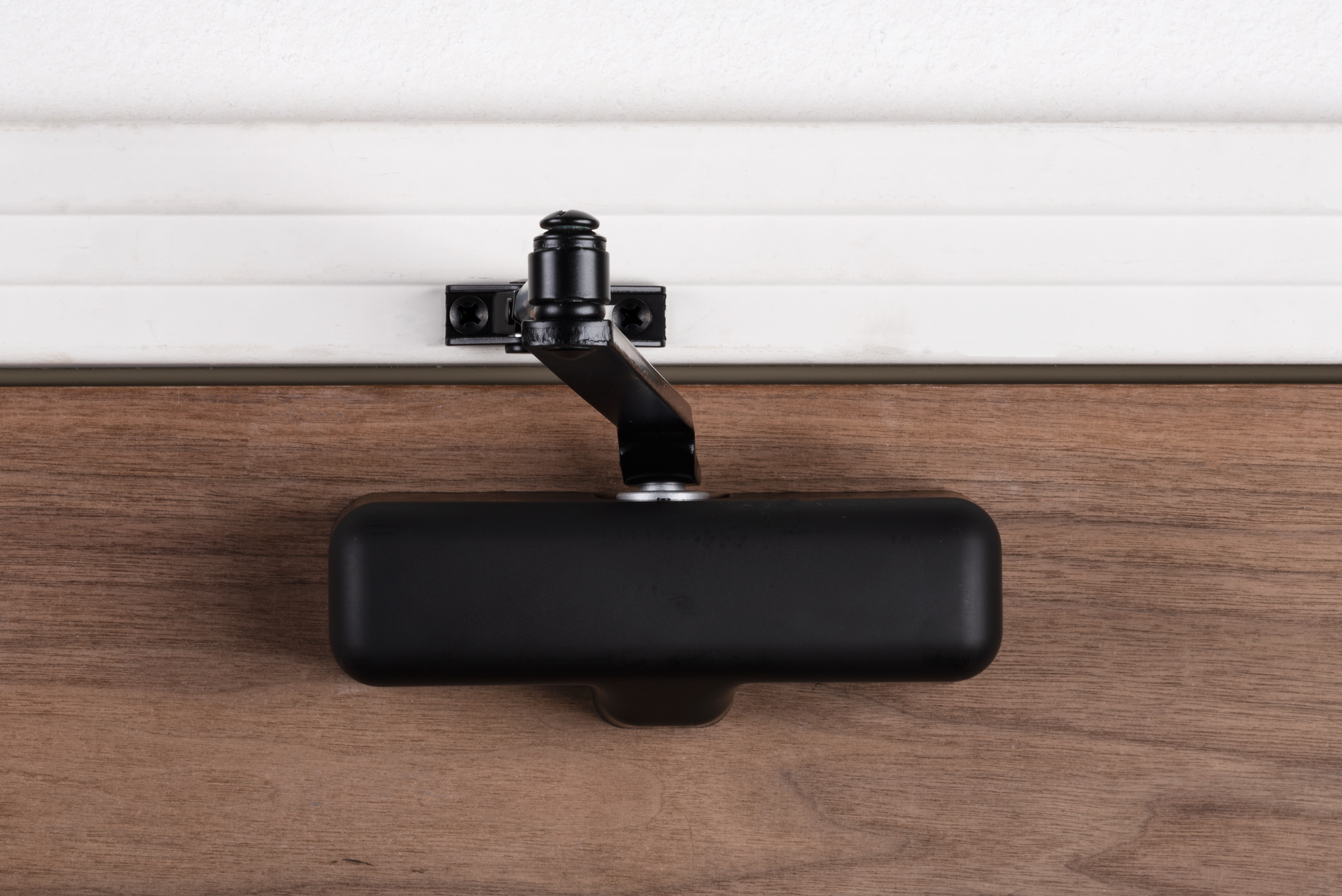

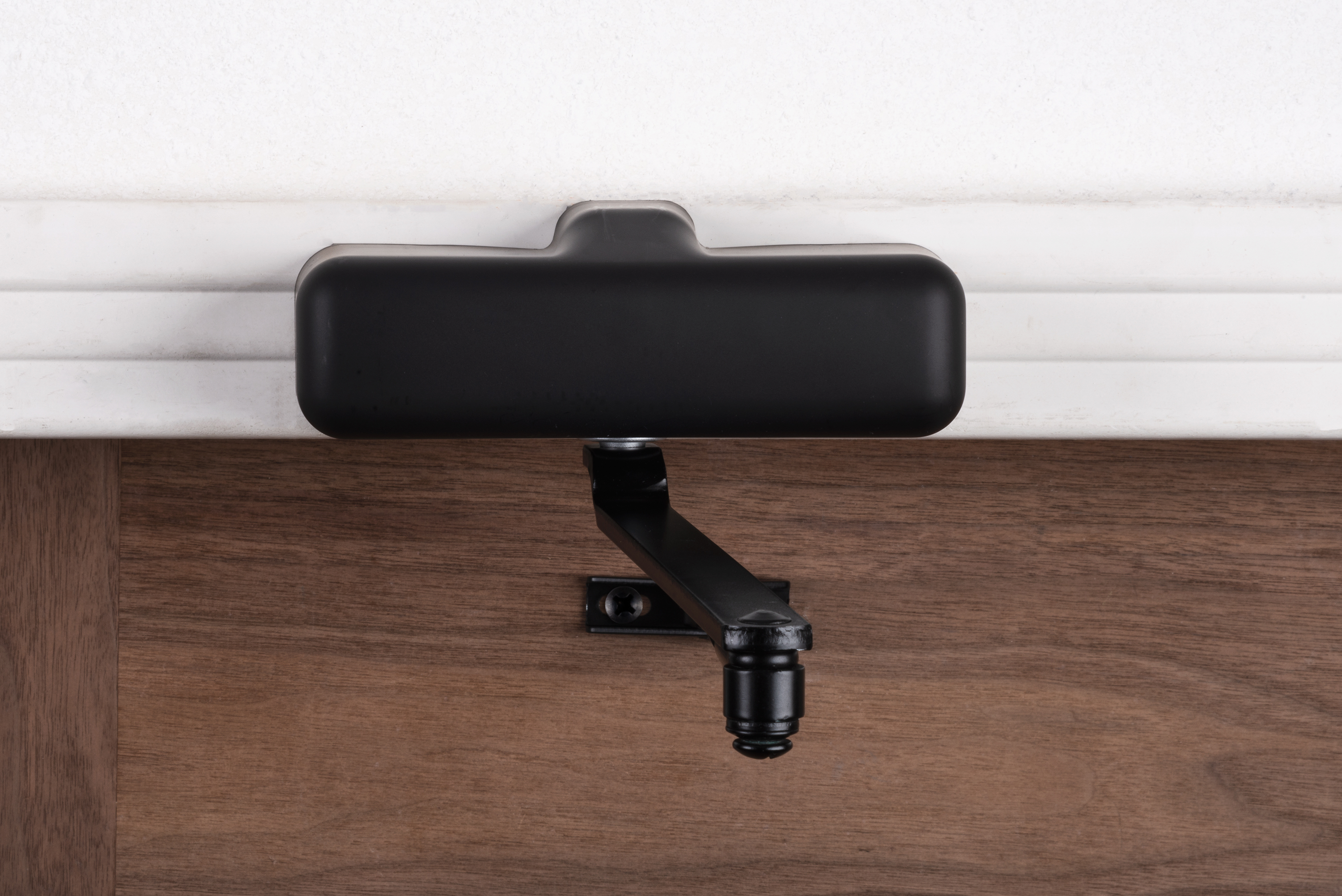

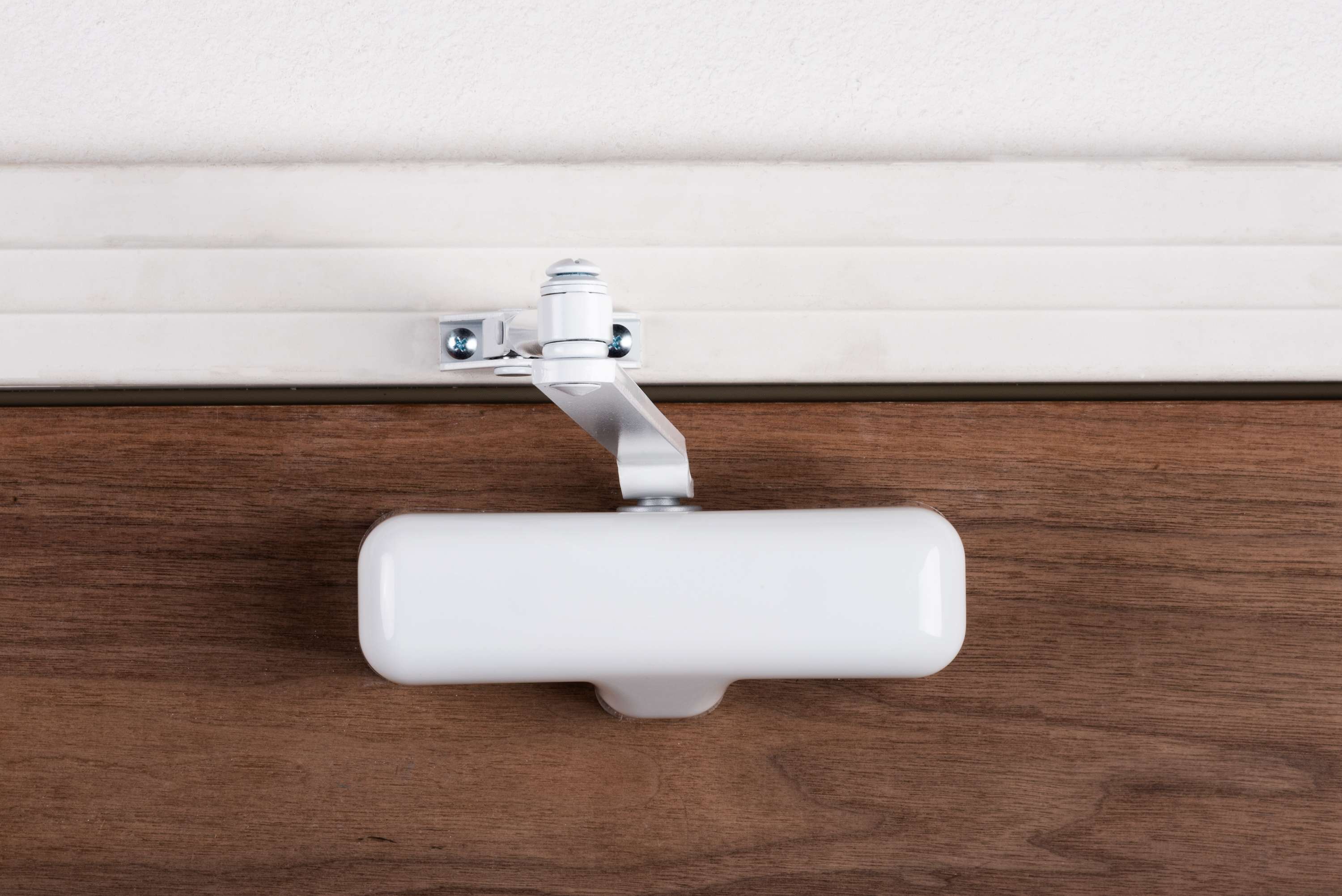

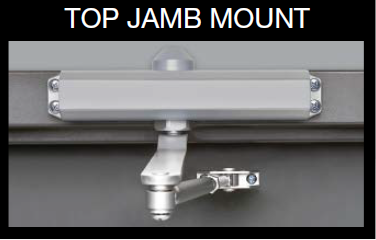

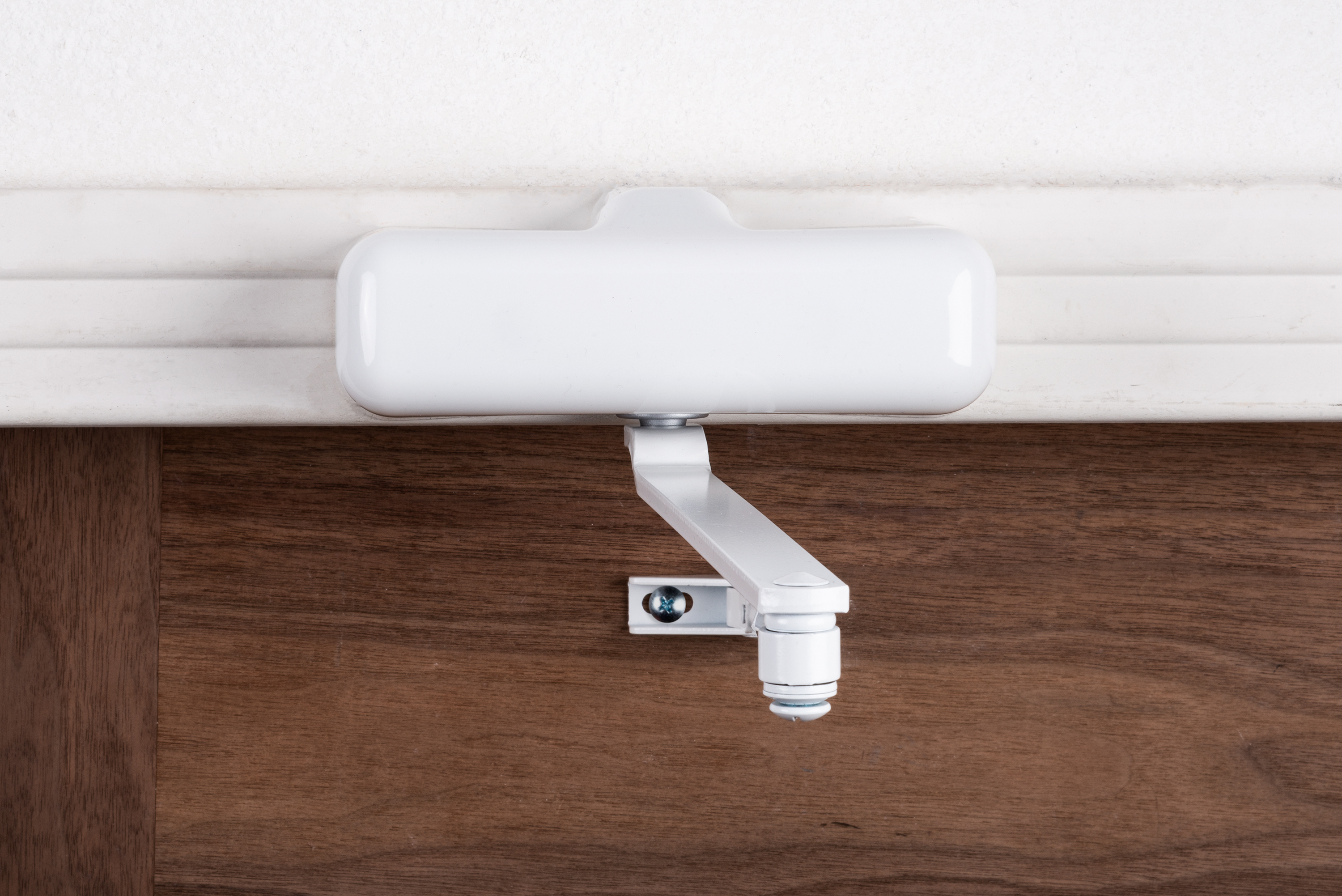

Mounting Configurations

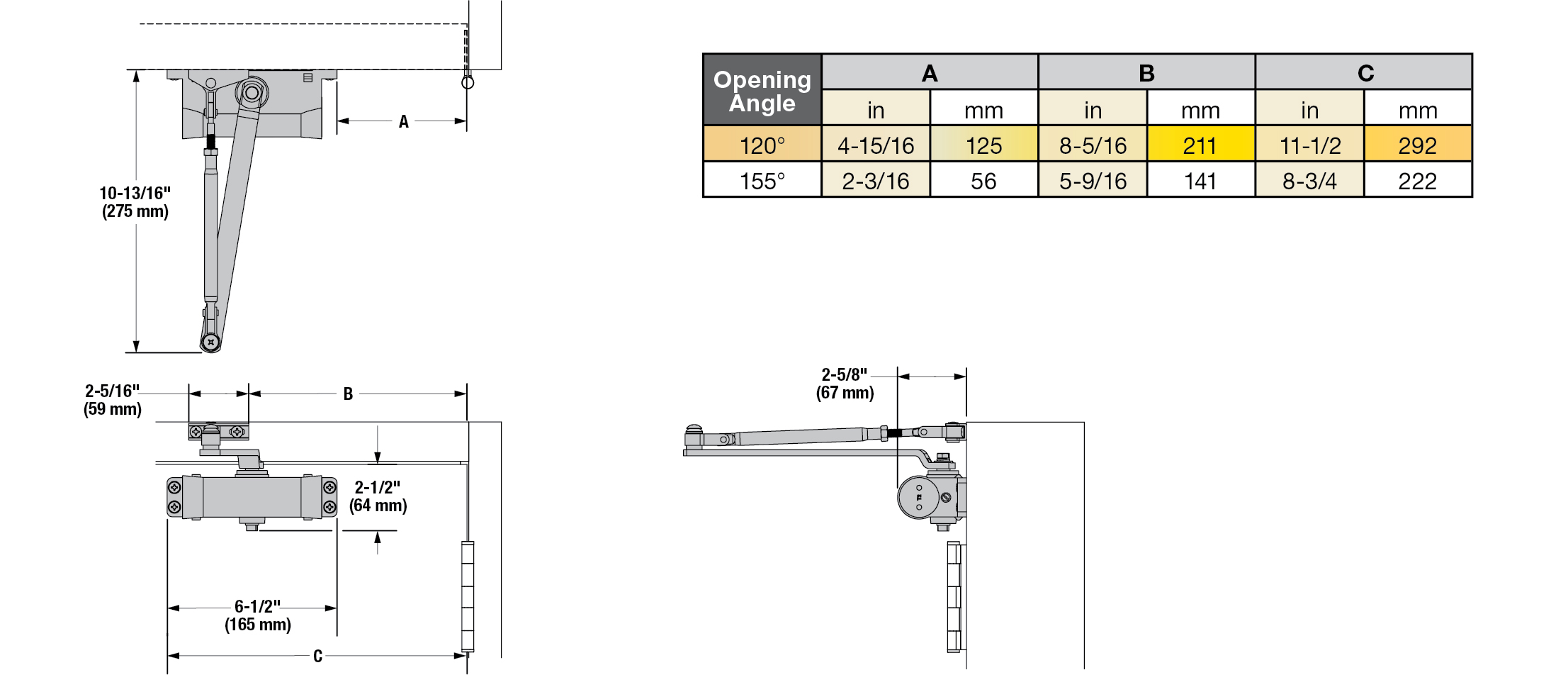

Drawings

Files

Instructions 1

Download

Instructions 2

Download

Product Information

Technical Details

Retail Width 11 in
Retail Height 3.5 in
Retail Depth 3.63 in
Retail Weight 3.62 lb
Included Hardware Mounting Hardware, Yes
Interior Door Compatibility Left or right hinged doors up to 38" wide
Exterior Door Compatibility Left or right hinged doors up to 30" wide
Closer Rating Size 3
OpeningRange 155 Degrees
Mount Type Standard or Top Mount
Closing and Latching Speed Adjustable
Indoor Outdoor Both
UL Listing Yes, 3 Hour Fire Rated
ADA Compliant No
Finish White
Warranty 10 Year Limited Warranty
Country of Origin Taiwan (TW)

Additional Information

SKU BC4007
UPC 039208237499
Brand Brinks Commercial
Type Closer
