Heavy Duty All-In-One Commercial Door Closer
SKU BC4061
Find online:
Product Description
This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 48” and interior doors up to 60”. This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable closing, latching and backcheck speeds, and the adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers in the market, so you can replace a broken closer without drilling new holes in an expensive or fire-rated door. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.
Construction
- Universal mounting plate: Pre-drilled steel plate matches hole patterns of most closers in the market
- All metal body construction for added durability
- Finish: Aluminum
- Included hardware: finish matched closer body, mounting screws, and installation instructions
Durability
- Grade: Meets ANSI Grade 1 standards for heavy-duty use
- Able to be used indoors or outdoors
- Warranty: Limited 10-year warranty covers finish and function
- UL Listed: 3-hour fire rated for added protection and meeting building requirements
Installation
- Adjustable closing and latching speeds eliminate door slamming
- Adjustable back check helps prevent wind damage for exterior facing doors
- Opening range: 180-degree for added convenience and pass-through space

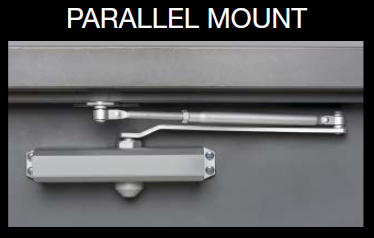

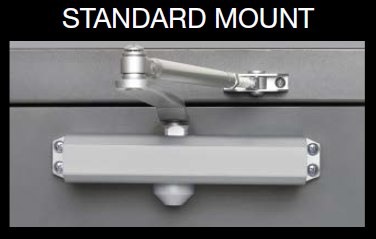

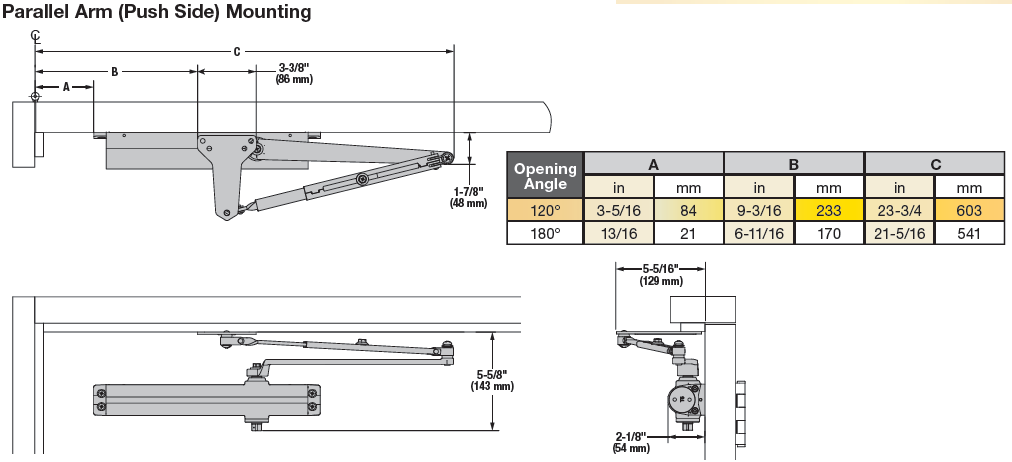

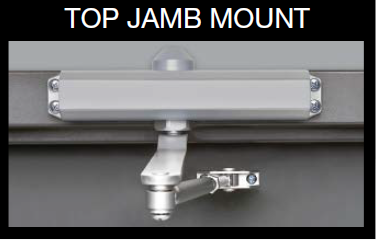

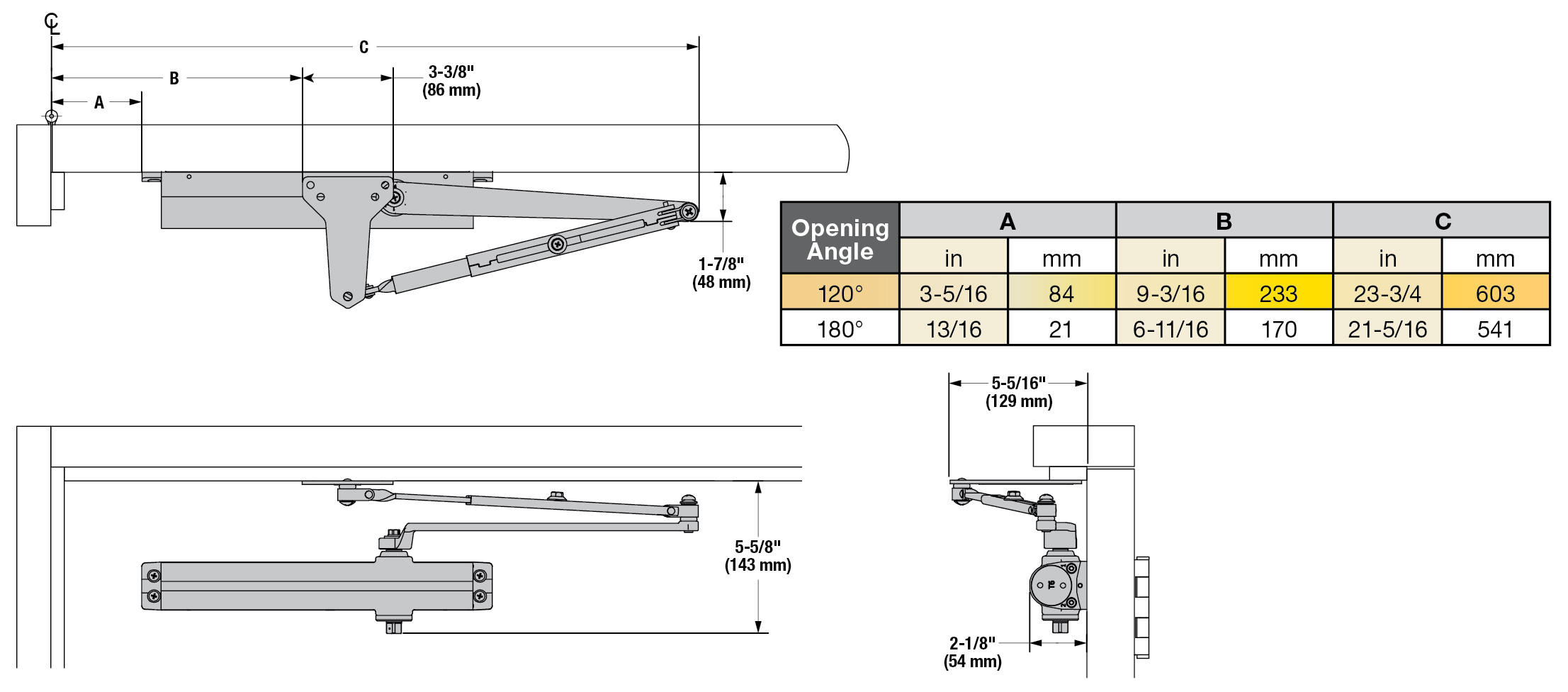

- Mounting: Standard, top jamb or parallel mounting
- Adjustable sizing 1-6: Provides ability to use in a variety of applications from light to heavy duty
- Interior doors: Left or right hinged doors up to 250 lbs and 60" wide
- Exterior doors: Left or right hinged doors up to 250 lbs. and 48" wide
Files
Product Information
Technical Details
| Retail Width | 14.13 in |
| Retail Height | 3.63 in |
| Retail Depth | 5.63 in |
| Retail Weight | 9.89 lb |
| Included Hardware | Mounting Hardware, Yes |
| Exterior Door Compatibility | Left or right hinged doors up to 250 lbs. and 48" wide |
| Closer Rating | Adjustable Size 1-6 |
| ANSI Grade | 1 |
| Backcheck | Adjustable |
| OpeningRange | 180 Degrees |
| Mount Type | Standard, Top Jamb, Parallel |
| Closing and Latching Speed | Adjustable |
| Indoor Outdoor | Both |
| UL Listing | Yes, 3 Hour Fire Rated |
| ADA Compliant | Yes |
| Warranty | 10 Year Limited Warranty |
Additional Information
| SKU | BC4061 |
| UPC | 039208228367 |
| Brand | Brinks Commercial |
| Type | Closer |
Warranty & Support
Our support team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.
Open a Support TicketProduct Description
This heavy duty closer controls the traffic in and out of your space and automatically closes the door after every opening. It controls the closing and latching of your door to eliminate slamming and adds security and safety. For exterior doors up to 48” and interior doors up to 60”. This closer meets ANSI Grade 1 requirements, is ASA compliant, and has a 180-degree opening range. Adjustable closing, latching and backcheck speeds, and the adjustable spring tension powers this closer from a Size 1 to a Size 6 to provide power adjustment for light to very heavy applications. Compatible with most commercial doors, and can be utilized in standard, top jamb and parallel mounting applications. Features a patented universal mounting plate with holes that match the hole patterns of most closers in the market, so you can replace a broken closer without drilling new holes in an expensive or fire-rated door. A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.
Construction
- Universal mounting plate: Pre-drilled steel plate matches hole patterns of most closers in the market
- All metal body construction for added durability
- Finish: Bronze
- Included hardware: finish matched closer body, mounting screws, and installation instructions
Durability
- Grade: Meets ANSI Grade 1 standards for heavy-duty use
- Able to be used indoors or outdoors
- Warranty: Limited 10-year warranty covers finish and function
- UL Listed: 3-hour fire rated for added protection and meeting building requirements
Installation
- Adjustable closing and latching speeds eliminate door slamming
- Adjustable back check helps prevent wind damage for exterior facing doors
- Opening range: 180-degree for added convenience and pass-through space
- Mounting: Standard, top jamb or parallel mounting
- Adjustable sizing 1-6: Provides ability to use in a variety of applications from light to heavy duty
- Interior doors: Left or right hinged doors up to 250 lbs. and 60" wide
- Exterior doors: Left or right hinged doors up to 250 lbs. and 48" wide
Files
Product Information
Technical Details
| Retail Width | 14.13 in |
| Retail Height | 3.63 in |
| Retail Depth | 5.63 in |
| Retail Weight | 9.89 lb |
| Included Hardware | Mounting Hardware, Yes |
| Exterior Door Compatibility | Left or right hinged doors up to 250 lbs. and 48" wide |
| Closer Rating | Adjustable Size 1-6 |
| ANSI Grade | 1 |
| Backcheck | Adjustable |
| OpeningRange | 180 Degrees |
| Mount Type | Standard, Top Jamb, Parallel |
| Closing and Latching Speed | Adjustable |
| Indoor Outdoor | Both |
| UL Listing | Yes, 3 Hour Fire Rated |
| ADA Compliant | Yes |
| Warranty | 10 Year Limited Warranty |
Additional Information
| SKU | BC4062 |
| UPC | 039208228374 |
| Brand | Brinks Commercial |
| Type | Closer |
Warranty & Support
Our support team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.
Open a Support TicketProduct Description
The Brinks Commercial Heavy Duty All-In-One Commercial Door Closer is a perfect solution to easily upgrade or replace any broken closer. This heavy-duty door closer provides peace of mind and added security to your space by automatically closing the door after every open. You can also control the closing and latching speed to eliminate any door slamming. An included steel universal mounting plate is pre-drilled to match the hole patterns of most closers in the market, eliminating the need to drill new holes in an expensive or fire rated door. Upgrading or replacing a broken closer is now easier than ever! The All-In-One Closer meets ANSI Grade 1 requirements, is 3-hour fire-rated and is ADA compliant making it perfect for commercial use by meeting building codes. For added versatility, it has adjustable sizing ranging from 1-6 and a 180-degree opening range so you can use it in a variety of settings ranging from light to heavy duty. Adjustable back check helps prevent wind damage to your closer and your door. The all-in-one closer works on interior doors up to 60" wide and exterior doors up to 48" wide. It can be applied to left or right handed doors and can be standard, top or parallel mounted. An aluminum closer body, all mounting hardware and installation instructions are included. This truly is an all-in-one and do-it-all closer!
Construction
- Universal mounting plate: Pre-drilled steel plate matches hole patterns of most closers in the market
- All metal body construction for added durability
- Finish: Matte Black
- Included hardware: finish matched closer body, mounting screws, and installation instructions
Durability
- Grade: Meets ANSI Grade 1 standards for heavy-duty use
- Able to be used indoors or outdoors
- Warranty: Limited 10-year warranty covers finish and function
- UL Listed: 3-hour fire rated for added protection and meeting building requirements
Installation
- Adjustable closing and latching speeds eliminate door slamming
- Adjustable back check helps prevent wind damage for exterior facing doors
- Opening range: 180-degree for added convenience and pass-through space
- Mounting: Standard, top jamb or parallel mounting
- Adjustable sizing 1-6: Provides ability to use in a variety of applications from light to heavy duty
- Interior doors: Left or right hinged doors up to 250 lbs. and 60" wide
- Exterior doors: Left or right hinged doors up to 250 lbs. and 48" wide
Files
Product Information
Technical Details
| Retail Width | 14.13 in |
| Retail Height | 3.63 in |
| Retail Depth | 5.63 in |
| Retail Weight | 9.86 lb |
| Included Hardware | Mounting Hardware, Yes |
| Exterior Door Compatibility | Left or right hinged doors up to 250 lbs. and 48" wide |
| Closer Rating | Adjustable Size 1-6 |
| ANSI Grade | 1 |
| Backcheck | Adjustable |
| OpeningRange | 180 Degrees |
| Mount Type | Standard, Top Jamb, Parallel |
| Closing and Latching Speed | Adjustable |
| Indoor Outdoor | Both |
| UL Listing | Yes, 3 Hour Fire Rated |
| ADA Compliant | Yes |
| Finish | Matte Black |
| Warranty | 10 Year Limited Warranty |
| Country of Origin | Taiwan (TW) |
Additional Information
| SKU | BC4063 |
| UPC | 039208241083 |
| Brand | Brinks Commercial |
| Type | Closer |
Warranty & Support
Our support team is available Mon–Fri, 7am–4pm PST. Click or tap the Support widget on the bottom left of the screen to get started.
